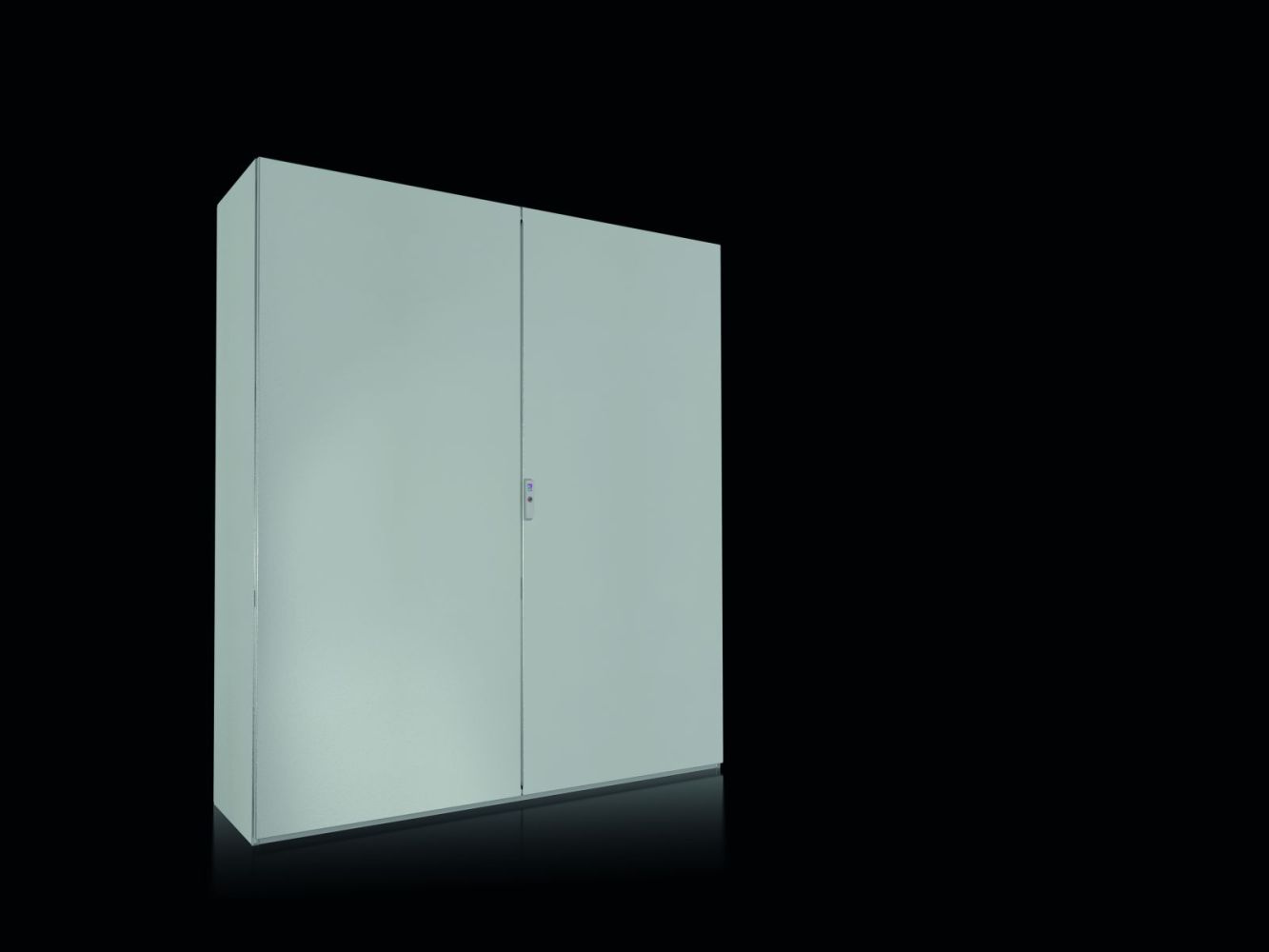

Rittal 5846600 VX SE system single enclosure 1800x2000x500 mm steel
|
1.394,72 EUR |
|
|
( 1.659,72 EUR incl. VAT ) ≈ £1,167.38 | ≈ $1,532.80 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055486 |
| Mfg Part No: | 5846600 |
| UPC/EAN: | 4028177959170 |
| Weight: | 282 kg |
| Type: | SE 5846600 |
Product information for Rittal 5846600:
Applications include industrial control and switch enclosures in production plants, power supply systems, automation technology, as well as environments requiring high mechanical load capacity and protection against dust and splashing water. The enclosure is suitable for indoor and outdoor use, as it meets the protection class IP 55 according to EN 60 529, meaning dust-tight and protected against splashing water. Additionally, it meets the protection classes NEMA 3R and NEMA 12 as well as the Type Ratings Type 1, Type 2, Type 3, Type 3R, Type 12 according to UL 50E. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail include a mounting plate made of 2.5 mm sheet steel, laterally C-bent, and depth-adjustable in 25 mm increments with integrated plastic gliding pieces and mounting rails. The mounting plate features a mounting grid to simplify component positioning. The rear wall is screwed and two-part, enabling flexible mounting and maintenance. The base plates are made of 1.5 mm sheet steel, three-part, removable and replaceable, and also feature automatic equipotential bonding. The base group is welded in and consists of a base frame and multiple divided, movable base plates.
Technology explained simply shows that the enclosure is made of 1.5 mm sheet steel, the doors of 2.0 mm sheet steel, and the mounting plate of 2.5 mm sheet steel. The surface of the enclosure, doors, and rear wall is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035. The mounting plate and base plates are galvanized to prevent corrosion. The triple surface treatment – nanoceramic coating, electrophoretic dip priming, and external lacquering – ensures high corrosion protection as well as resistance against mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and accessories include system compatibility with accessories of the VX25 system, enabling flexible expansion. Suitable accessories include, among others, levelling feet M12, system chassis, circuit diagram pockets, lock inserts, mounting brackets, comfort handles, support rollers, transport eyes, door latches, and plinth corner pieces. These components can be added as required for mounting, stabilization, accessibility, or security.
Mounting and installation is performed via the integrated mounting levels in the enclosure profile, which are perforated in 25 mm DIN grid increments. The vertical profiles as well as the front and rear roof frame profiles offer two mounting levels for space-saving system expansion. The mounting plate is depth-adjustable, allowing flexible positioning of components. The base plates are removable, enabling easy cleaning and maintenance.
Operational advantages lie in efficient assembly due to the integral construction, which does not require additional side walls. Large enclosure widths allow replacing smaller baying combinations, reducing space requirements. The high mechanical stability and protection classes IP 55, NEMA 3R/12, as well as IK10, ensure reliable operation in demanding environments. The integrated mounting levels and depth-adjustable mounting plate increase flexibility during installation and maintenance. The automatic equipotential bonding on doors, base plates, and rear wall ensures a safe electrical connection and prevents electrostatic charging.
Scope of delivery includes the enclosure with closed side and roof walls, two doors, one mounting plate, base plates, a screwed two-part rear wall, a 3 mm double bar lock, and two mounting rails 18 x 39 mm. Door hinges are standardly on the right, but can be converted to the left.
The surface treatment with nanoceramic, dip priming, and textured powder coating in RAL 7035 ensures high resistance to environmental influences. The PCF values (Cradle-to-Gate) amount to 730.94 kg CO2 eq (Category B), where the value is approximately calculated based on product weight and self-declared.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 2.5 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double bar, 2 mounting rails 18 x 39 mm, rear panel, two-piece |
| Width | 1.800 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 730.94 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5846600 VX SE system single enclosure 1800x2000x500 mm steel?
The article Rittal 5846600 VX SE system single enclosure 1800x2000x500 mm steel is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5846600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5846600 VX SE system single enclosure 1800x2000x500 mm steel always at the best possible price. We can give you a discount of 2% on Rittal 5846600 VX SE system single enclosure 1800x2000x500 mm steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
