Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm

Your rating:
Average rating
product review for Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm
( 4 / 5 ) 1 ratings
Rittal 8660042

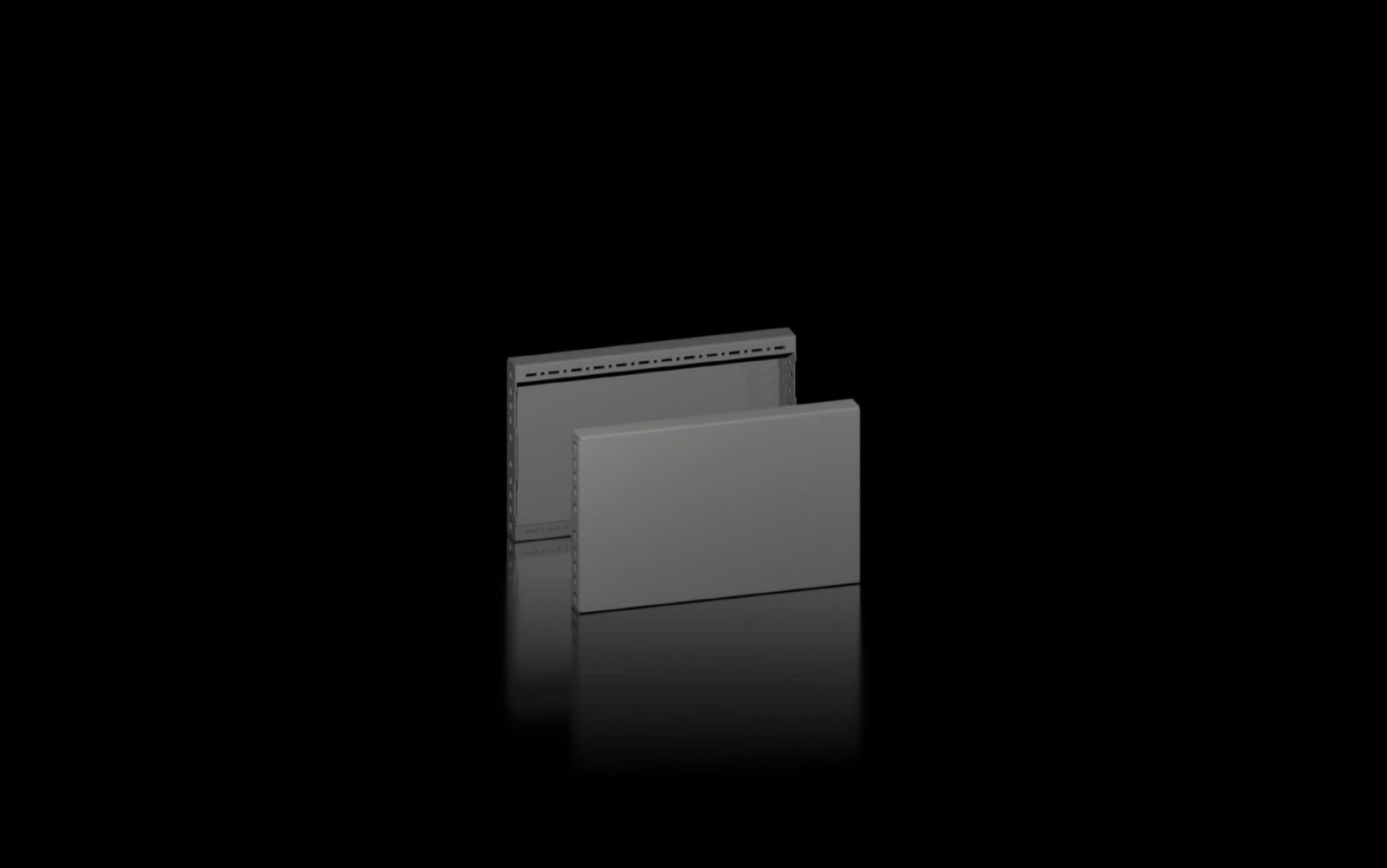

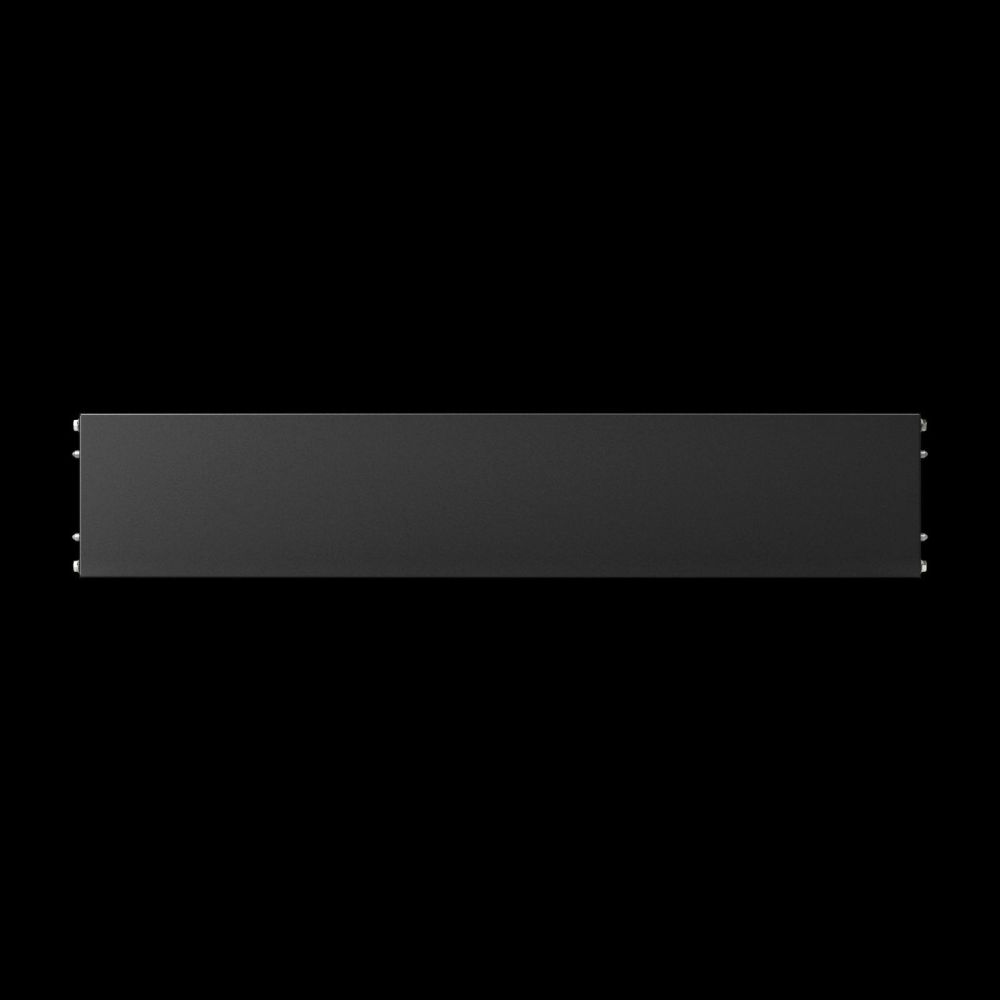

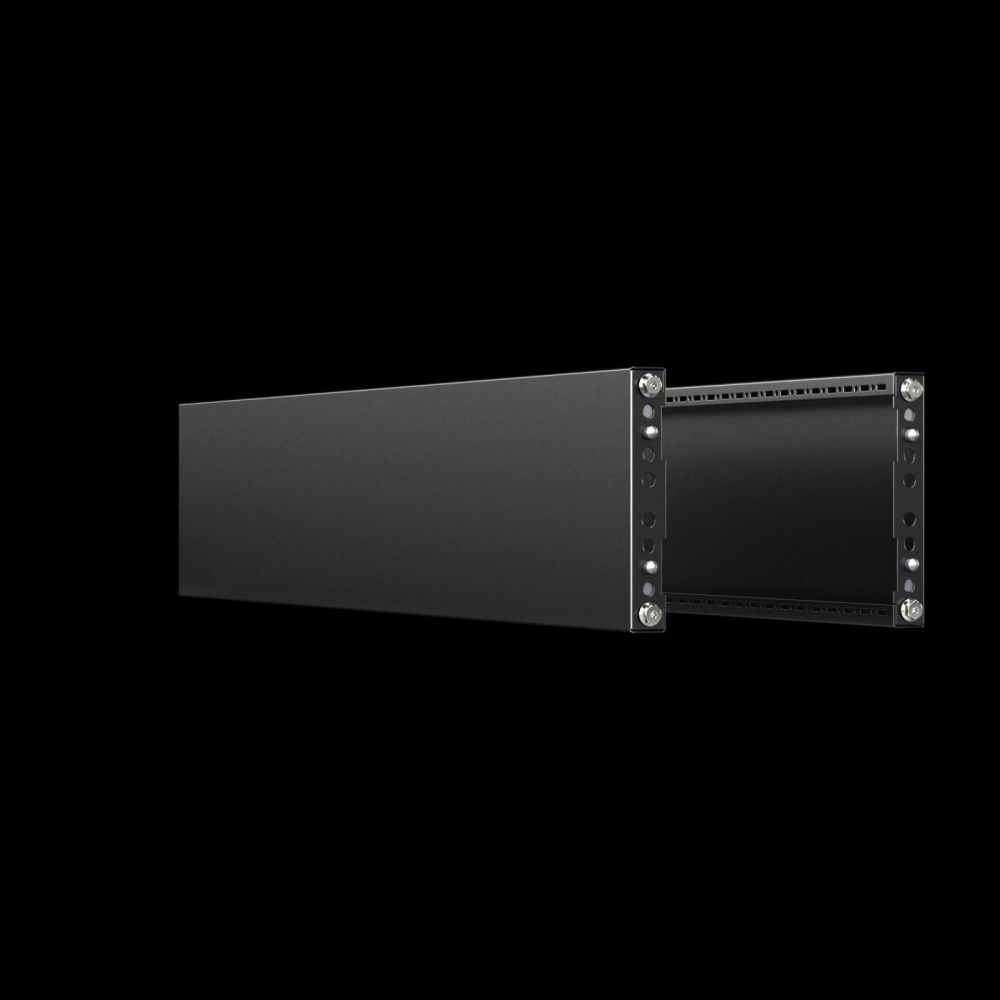

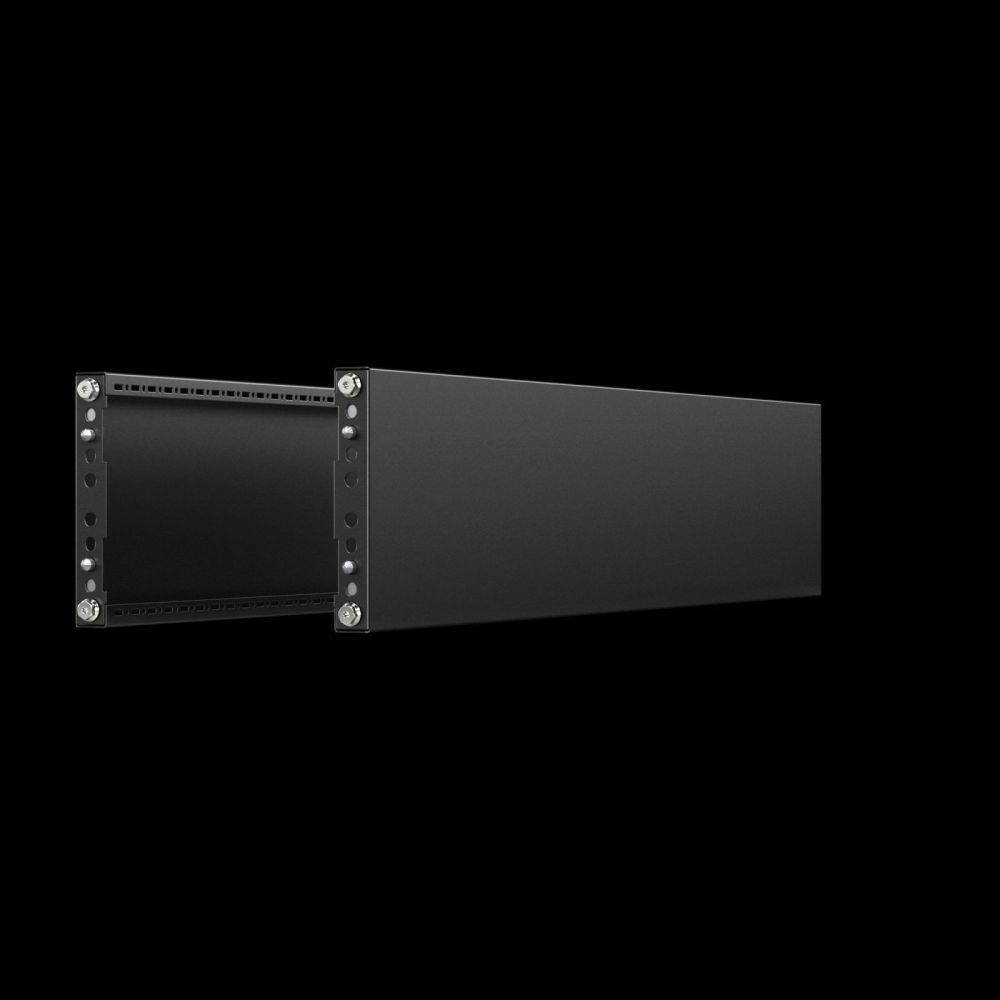

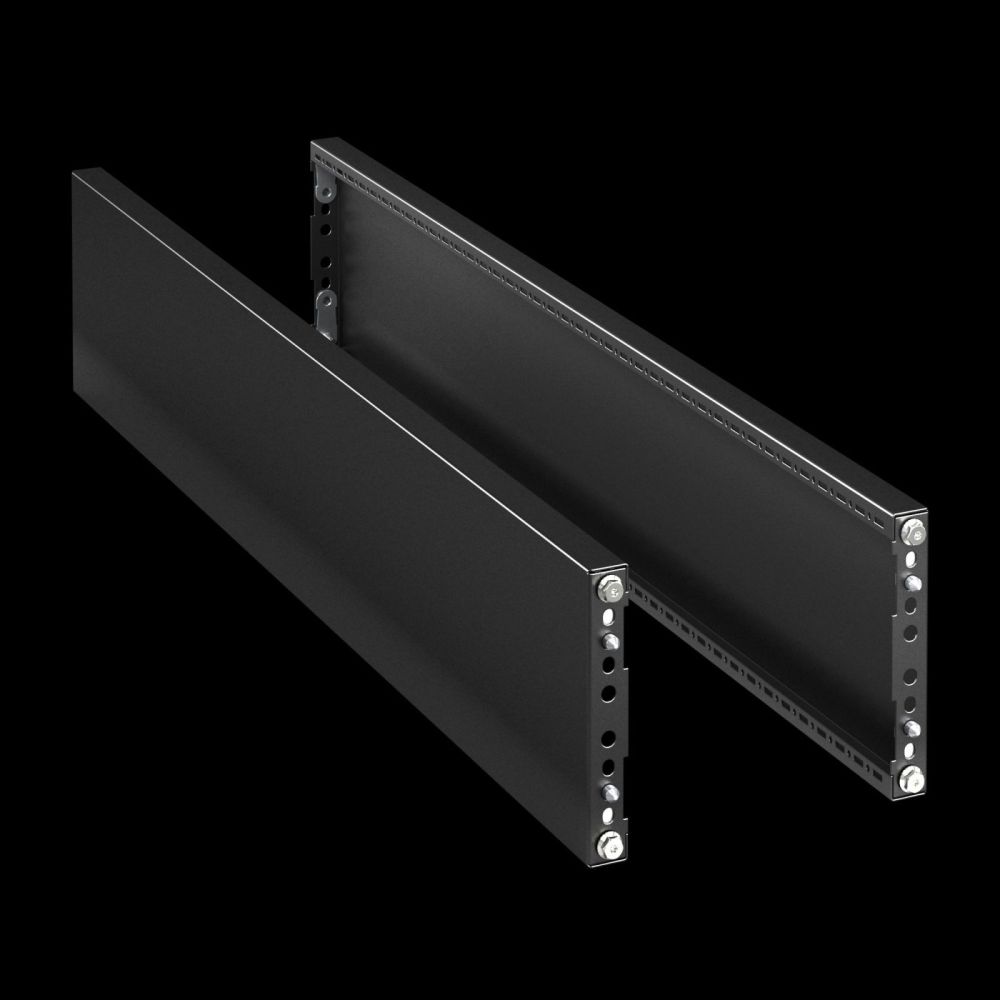

This image may differ from the desired article.
Rittal 8660042Rittal 8660042Rittal 8660042Rittal 8660042Rittal 8660042
30,71 EUR 31,94 EUR
( 36,54 EUR incl. VAT )
≈ £25.70  |  ≈ $33.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm
Datasheet:file_download Download
Lieske Part No.:1062788
Mfg Part No: 8660042
UPC/EAN: 4028177978300
Weight:2.572 kg
Type:VX 8660042

Product information for Rittal 8660042:

The Rittal VX plinth trim panel, type 8660042, is a lateral closure and stabilisation element for plinth systems in industrial applications. It is manufactured from sheet steel and has a height of 200 mm. The panel serves to provide optical and mechanical closure of the side surfaces of plinth units, particularly in bayed arrangements, to ensure better stability and a uniform appearance. The colour is RAL 9005, corresponding to a black surface. The panel is specifically designed for plinths with a depth of 500 mm and is compatible with various enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX.

Applications
The plinth trim panel is used in industrial environments where enclosures or housings are arranged in rows. It serves not only for aesthetic closure but also for mechanical stabilisation of plinth units, especially when multiple plinths are mounted side by side. The panel can be mounted on 200 mm high plinths either as a single 200 mm high unit or as two 100 mm high units, allowing flexible adaptation to different configurations.

Functions and Equipment in Detail
The panel is manufactured in a closed design, meaning it has no openings or cutouts. It is made from sheet steel, ensuring high mechanical strength and durability. The RAL 9005 colour provides a uniform visual appearance that integrates well in industrial environments. The delivery includes the mounting hardware required to attach the panel to the plinth. The packaging unit contains 2 pieces.

Technology Explained Simply
The panel is designed for a depth of 500 mm, meaning it can only be mounted on plinths with this exact depth. The height of 200 mm corresponds to the standard height of many plinth systems. The choice of sheet steel ensures high resistance to mechanical stress and environmental influences. The RAL 9005 colour is a standard black shade commonly used in industry. Mounting is done using the included hardware, ensuring secure installation.

Compatibility and Accessories
The panel is compatible with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX, provided the depth is 500 mm. As accessories, plinth baying brackets, VX plinth expansion angles for plinth trim panels with a height of 100 mm or 100/200 mm, and optional panel mounting brackets can be used to support installation and stabilisation. These components allow flexible adaptation to different requirements in industrial applications.

Mounting and Installation
Mounting is performed on the side surfaces of the plinth units. The mounting hardware included in the delivery is used to securely attach the panel to the plinth wall. The panel can be mounted on 200 mm high plinths either as a single 200 mm high unit or as two 100 mm high units, depending on requirements.

Operational Advantages
The plinth trim panel improves the mechanical stability of bayed plinth units and prevents shifting or tipping. It ensures a uniform and professional appearance, which is particularly important in industrial environments. The use of sheet steel ensures high durability and resistance to mechanical stress. The RAL 9005 colour integrates well with existing installations. The included mounting hardware simplifies installation and reduces the need for additional purchases.

Type rating according to UL 50E
The panel meets the requirements of the UL 50E standard in categories Type 1 and Type 12. Type 1 refers to protection against solid foreign objects and dripping water, while Type 12 additionally protects against splashing water from all directions. This certification makes the panel suitable for indoor use where some protection against environmental influences is required.

Environmental Information
The product life cycle footprint (PCF) is 10.65 kg CO2 equivalents per packaging unit (Cradle-to-Gate). Class B indicates that the value is approximately calculated and self-declared based on product weight. This information provides transparency regarding the environmental impact of the product during manufacturing and processing.

General
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height200 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, depth: = 500 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU2,52 kg
PCF/VE (Cradle-to-Gate)10.65 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660042, EAN: 4028177978300

Questions & answers

What is the delivery time of Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm?

The article Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660042 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660042 VX plinth trim panels, side, 200 mm, for D: 500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
