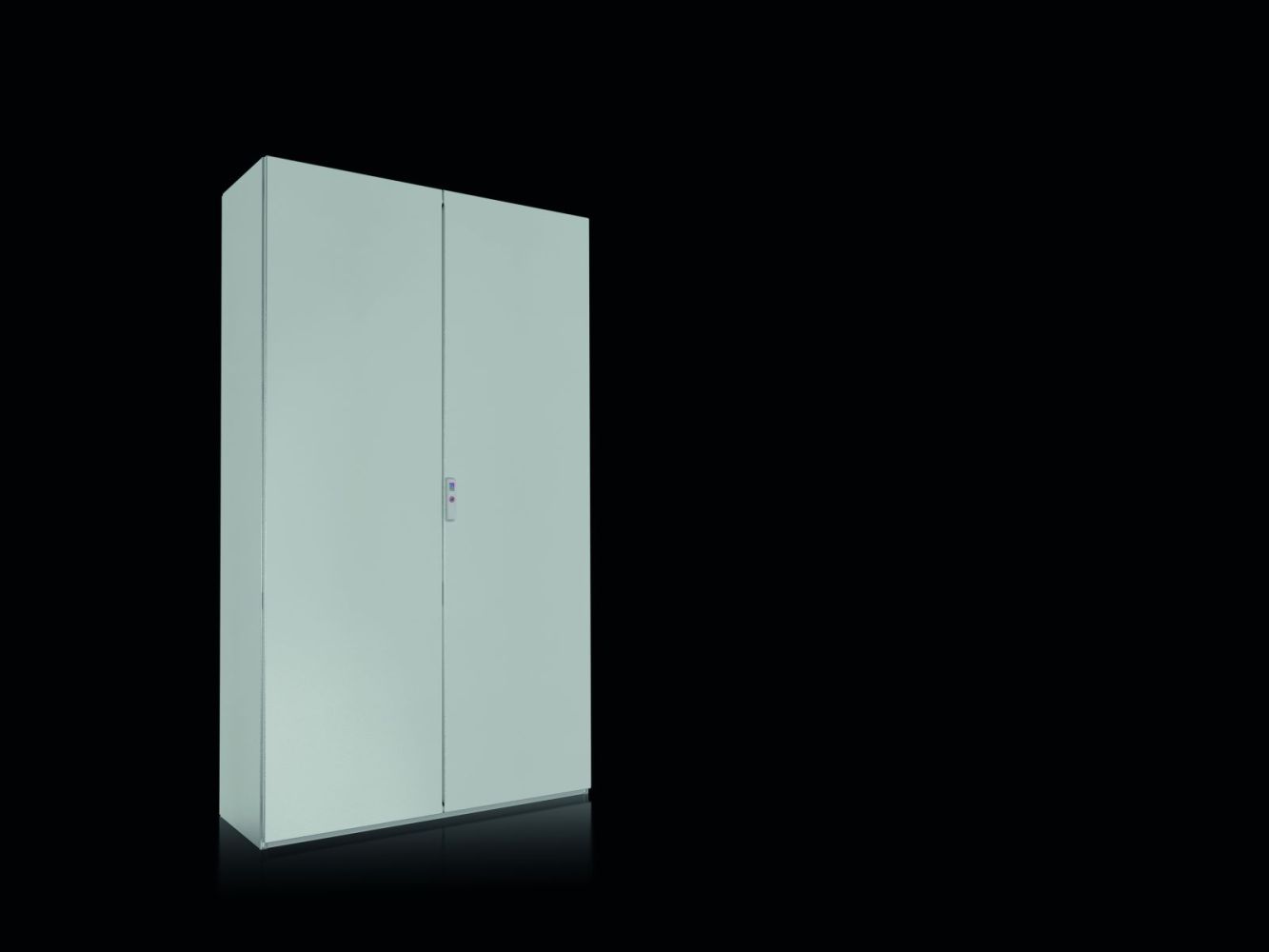

Rittal 5844600 VX SE system single enclosure 1200x2000x500 mm steel
|
970,37 EUR |
|
|
( 1.154,74 EUR incl. VAT ) ≈ £812.20 | ≈ $1,066.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055466 |
| Mfg Part No: | 5844600 |
| UPC/EAN: | 4028177959187 |
| Weight: | 195.2 kg |
| Type: | SE 5844600 |
Product information for Rittal 5844600:
Applications
This enclosure is suitable for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is particularly suitable for installations operated in production halls, factories, or outdoor areas. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction. Additionally, the enclosure meets protection ratings NEMA 3R and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 2, Type 3, Type 3R, and Type 12. The IK code IK10 indicates high mechanical strength against mechanical impacts.
Functions and Equipment in Detail
The enclosure is closed at the top and sides, with the roof and side walls made as one piece with a profiled frame. The rear wall is removable and fitted with a foamed sealing gasket to ensure a tight seal. The doors are overlapping and equipped with a foamed PU foam seal to achieve high sealing performance. The lock and auxiliary door are secured with a double bar lock insert according to DIN 43668 and a swing lever, providing double locking. The hinges are fitted with screwed-on stops, and the door opening angle is 130°, with a tool-free extension to 180° possible. An automatic equipotential bonding between door and enclosure body is integrated. The base plates are divided into three parts, removable and replaceable, also with automatic equipotential bonding.
Technology Explained Simply
The integrated mounting levels and system perforation in 25 mm DIN grid spacing facilitate the installation of components. The mounting plate is C-bent on the sides and depth-adjustable via mounting rails, allowing flexible adaptation to various mounting conditions. The surface treatment consists of a triple protective layer: nanoceramic coating, electrophoretic dip priming, and external coating in RAL 7035 texture, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system. Suitable accessories include levelling feet M12 with an adjustment height of 18–43 mm, system chassis TS 8612050, lock inserts made of zinc die-cast, mounting brackets for internal and external mounting levels, C-profile rails 30/15 according to EN 60715, comfort handles in RAL 7035, support rollers, transport eyes, door latches for escape routes and for universal consoles, and cable entry ferrules with IP 55 protection rating.
Mounting and Installation
Mounting is done via the integrated mounting rails and the depth-adjustable mounting plate. The base plates are removable and can be replaced as needed. The rear wall is removable, enabling easy maintenance and installation of components. The doors can be opened tool-free to 180°, facilitating access to internal components.
Operational Advantages
The enclosure offers high mechanical stability and protective features suitable for demanding industrial environments. The integrated mounting levels and system perforation simplify installation and maintenance. The depth-adjustable mounting plate allows flexible adaptation to various mounting conditions. The surface treatment ensures high corrosion resistance and resistance against various chemicals. The protection ratings IP 55, NEMA 3R, NEMA 12, and Type ratings according to UL 50E make the enclosure suitable for a wide range of applications. The system-compatible equipment allows flexible expansion with various accessories.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 529.43 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5844600 VX SE system single enclosure 1200x2000x500 mm steel?
The article Rittal 5844600 VX SE system single enclosure 1200x2000x500 mm steel is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5844600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5844600 VX SE system single enclosure 1200x2000x500 mm steel always at the best possible price. We can give you a discount of 2% on Rittal 5844600 VX SE system single enclosure 1200x2000x500 mm steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
