Rittal 8660096 VX optional trim panel mounting

Your rating:
Average rating
product review for Rittal 8660096 VX optional trim panel mounting
( 4.6 / 5 ) 5 ratings

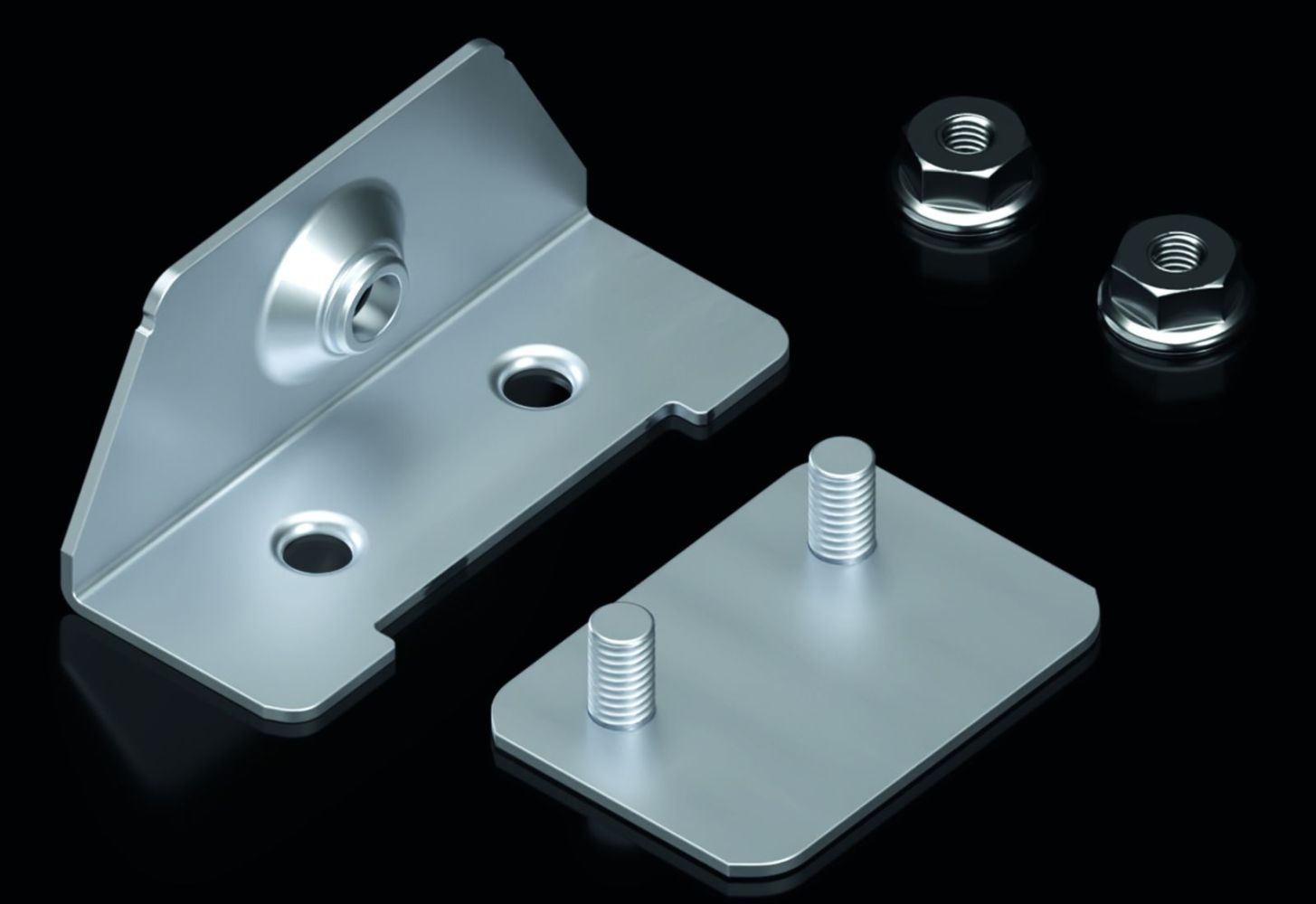

Rittal 8660096
This image may differ from the desired article.
Rittal 8660096Rittal 8660096
14,69 EUR
( 17,48 EUR incl. VAT )
≈ £12.30  |  ≈ $16.14
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660096 VX optional trim panel mounting
Datasheet:file_download Download
Lieske Part No.:1103916
Mfg Part No: 8660096
UPC/EAN: 4028177985438
Weight:0.32 kg
Type:VX 8660096

Product information for Rittal 8660096:

The article VX 8660096 from Rittal is an optional trim panel mounting for the VX plinth system. It is an additional angle specifically developed for mounting trim panels with brush strips or ventilated panels in the depth of the VX plinth system. The mounting enables secure and precise installation of the panels, achieving optimal fit and mechanical stability in the enclosure. The product is made of sheet steel and features a galvanized surface, ensuring high corrosion resistance and durability in industrial environments.

Applications
The trim panel mounting VX 8660096 is used in industrial electrical engineering and enclosure construction, particularly for mounting plinth trim panels in the VX system. It is suitable for applications where additional panel fixation in the plinth depth is required to ensure secure anchoring and a clean visual appearance. The product is typically used in combination with panels featuring a brush strip or ventilated construction to enable effective sealing or air circulation.

Functions and Equipment in Detail
The angle serves as an additional mounting point, securing the panel in the rear area of the plinth. This prevents the panel from shifting or loosening during operation, especially under vibration or mechanical stress. The mounting is designed for use with panels featuring brush strips and ventilated panels, allowing flexible adaptation to different enclosure configurations. The galvanized surface provides high protection against moisture and oxidation, extending the product’s lifespan in humid or aggressive environments.

Technology Explained Simply
The product is made of sheet steel, which receives a protective layer through galvanization to prevent rust. Galvanization is a proven industrial method to make metal components durable and resistant to environmental influences. The angle is designed to easily fit into the designated mounting points of the VX plinth. Mounting is done using the included fastening material, ensuring secure and long-lasting installation. The use of sheet steel guarantees high mechanical strength, required for industrial enclosures.

Compatibility and Accessories
The trim panel mounting VX 8660096 is specifically developed for the VX plinth system and fits exclusively with sheet steel plinths. It is compatible with panels featuring brush strips or ventilated construction. The mounting is used in conjunction with the corresponding panels to ensure optimal installation and functionality.

Mounting and Installation
Installation is done by inserting the angle into the designated mounting openings in the VX plinth system. Subsequently, the panel is fastened to the angle using the included fastening material. The mounting is designed for easy and quick installation, without requiring additional adjustments or drilling.

Advantages in Operation
Using the optional trim panel mounting VX 8660096 provides improved mechanical stability of the panels in the enclosure. This reduces the risk of shifting or loosening during operation, increasing the reliability and safety of the installation. The galvanized surface ensures long service life, even in humid or corrosive environments. Easy mounting and compatibility with various panel types increase flexibility in planning and executing enclosure projects. The product is available in a packaging unit of 4 pieces, improving ordering and installation efficiency.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Weight/PU0,304 kg
Mounting optionsIn socket frame with brush strip and socket frame, ventilated
Suitable forfor VX socket system, sheet steel


Product data sheet
Datasheet for Rittal 8660096, EAN: 4028177985438

Questions & answers

What is the delivery time of Rittal 8660096 VX optional trim panel mounting?

The article Rittal 8660096 VX optional trim panel mounting is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660096 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660096 VX optional trim panel mounting always at the best possible price. We can give you a discount of 2% on Rittal 8660096 VX optional trim panel mounting if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
