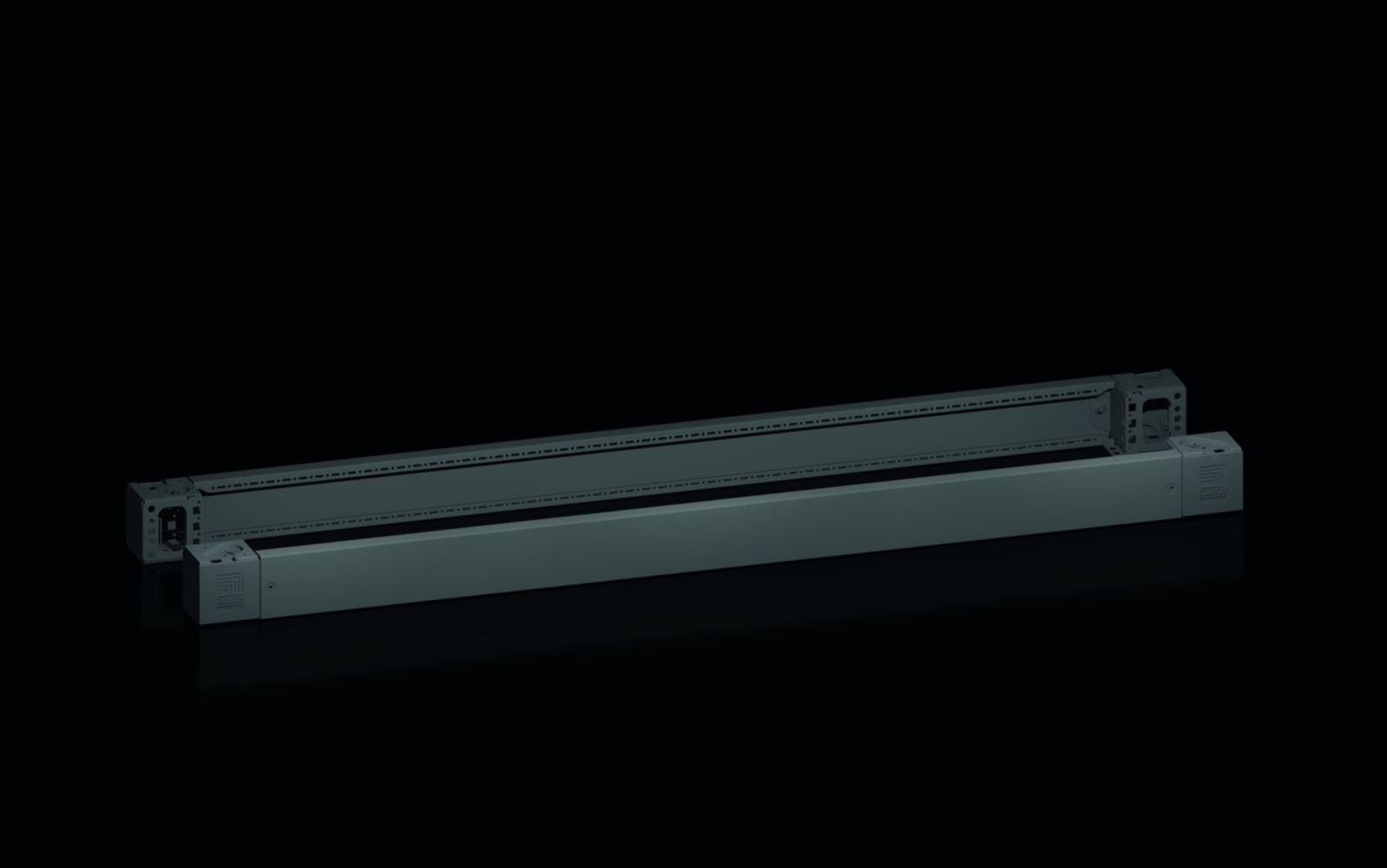

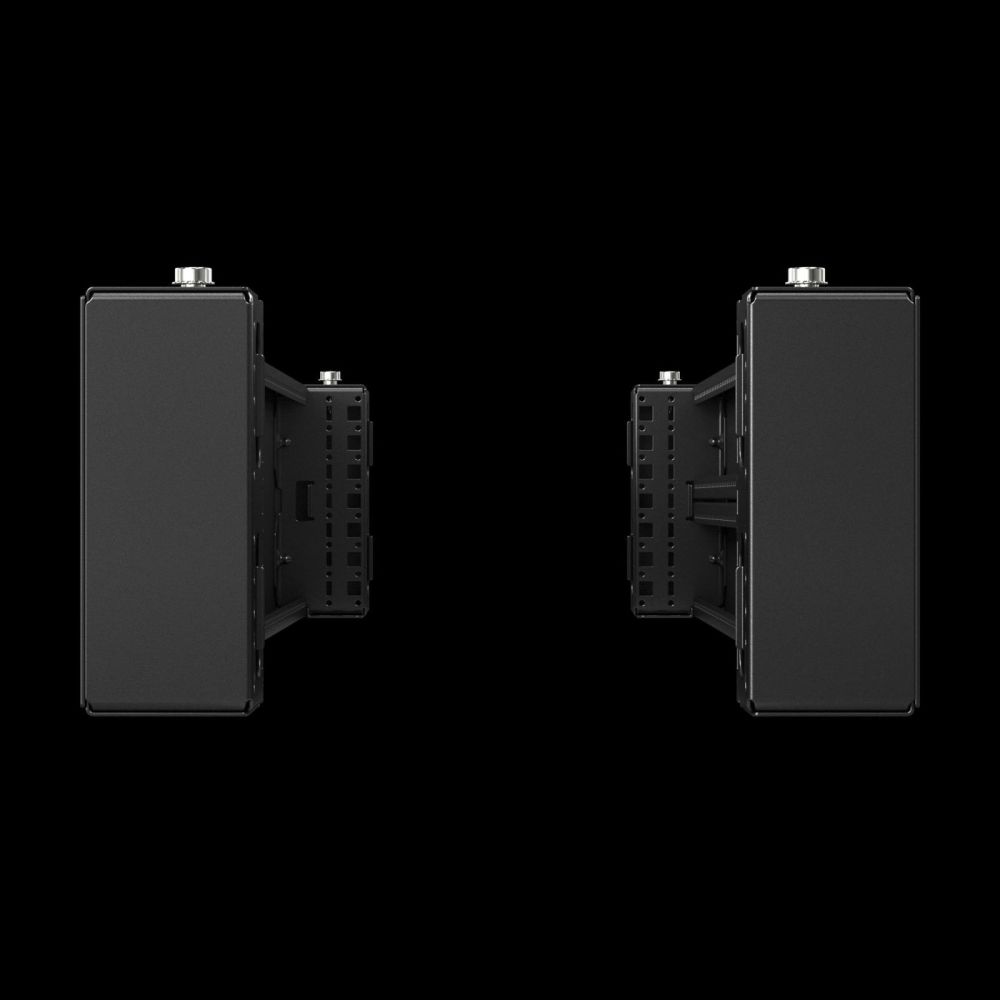

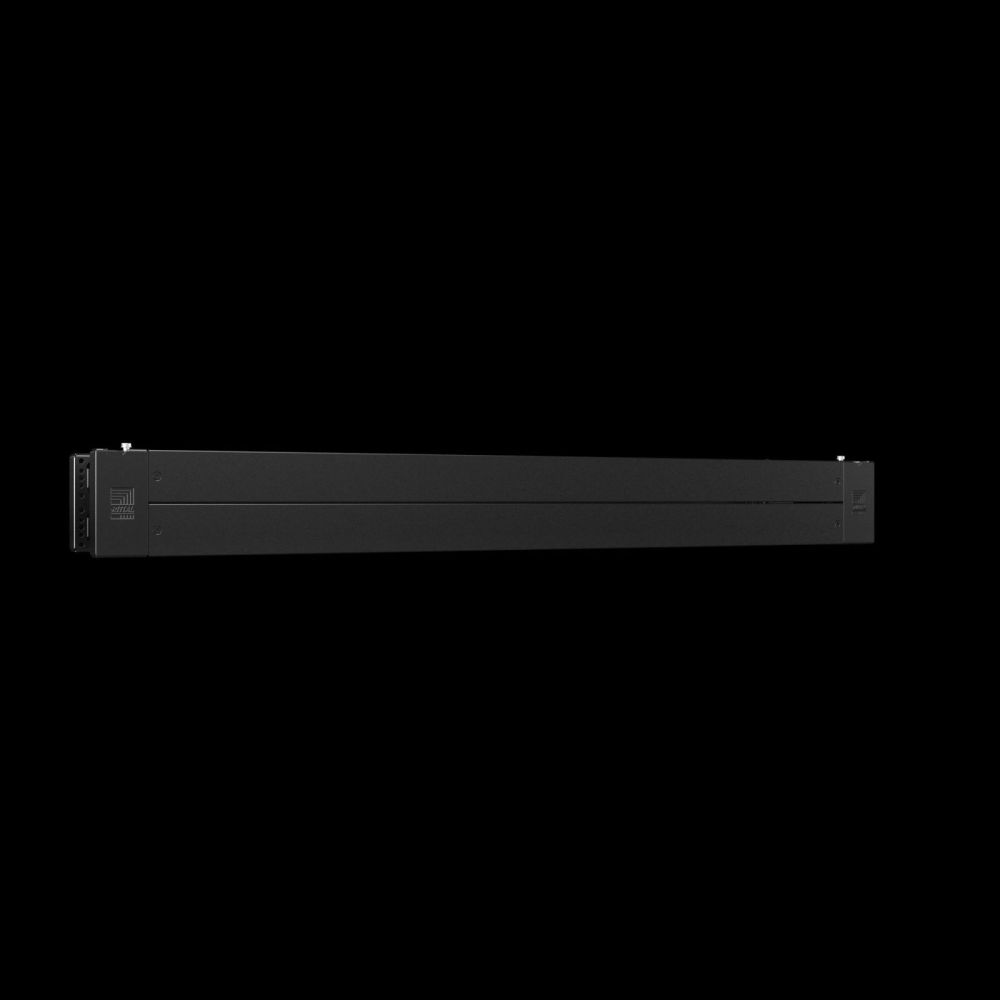

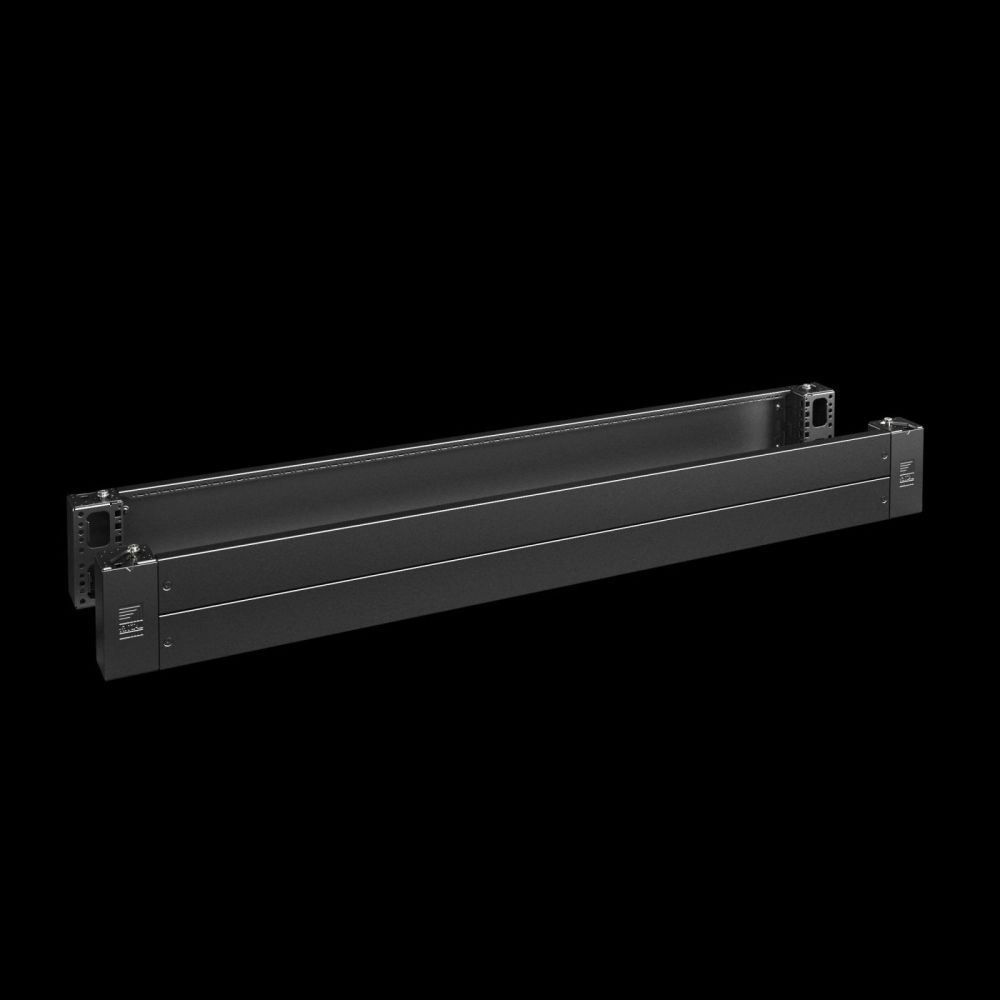

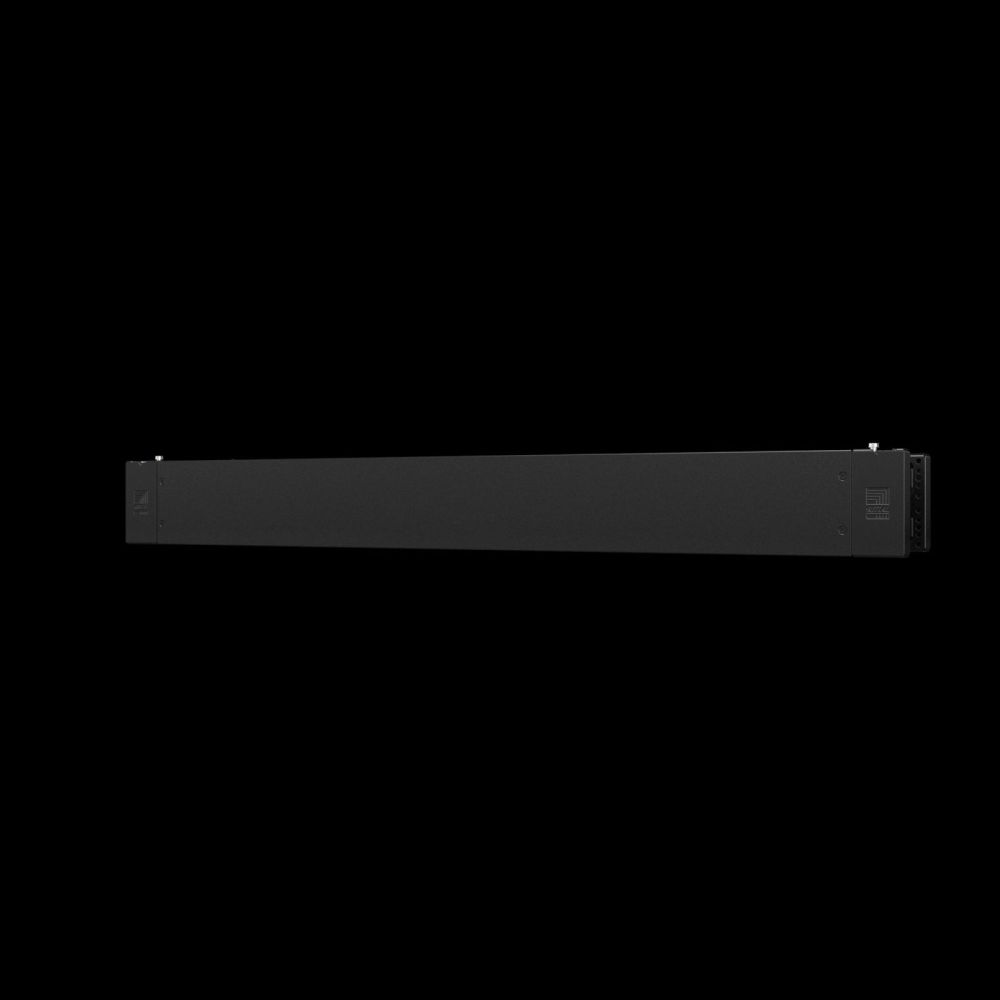

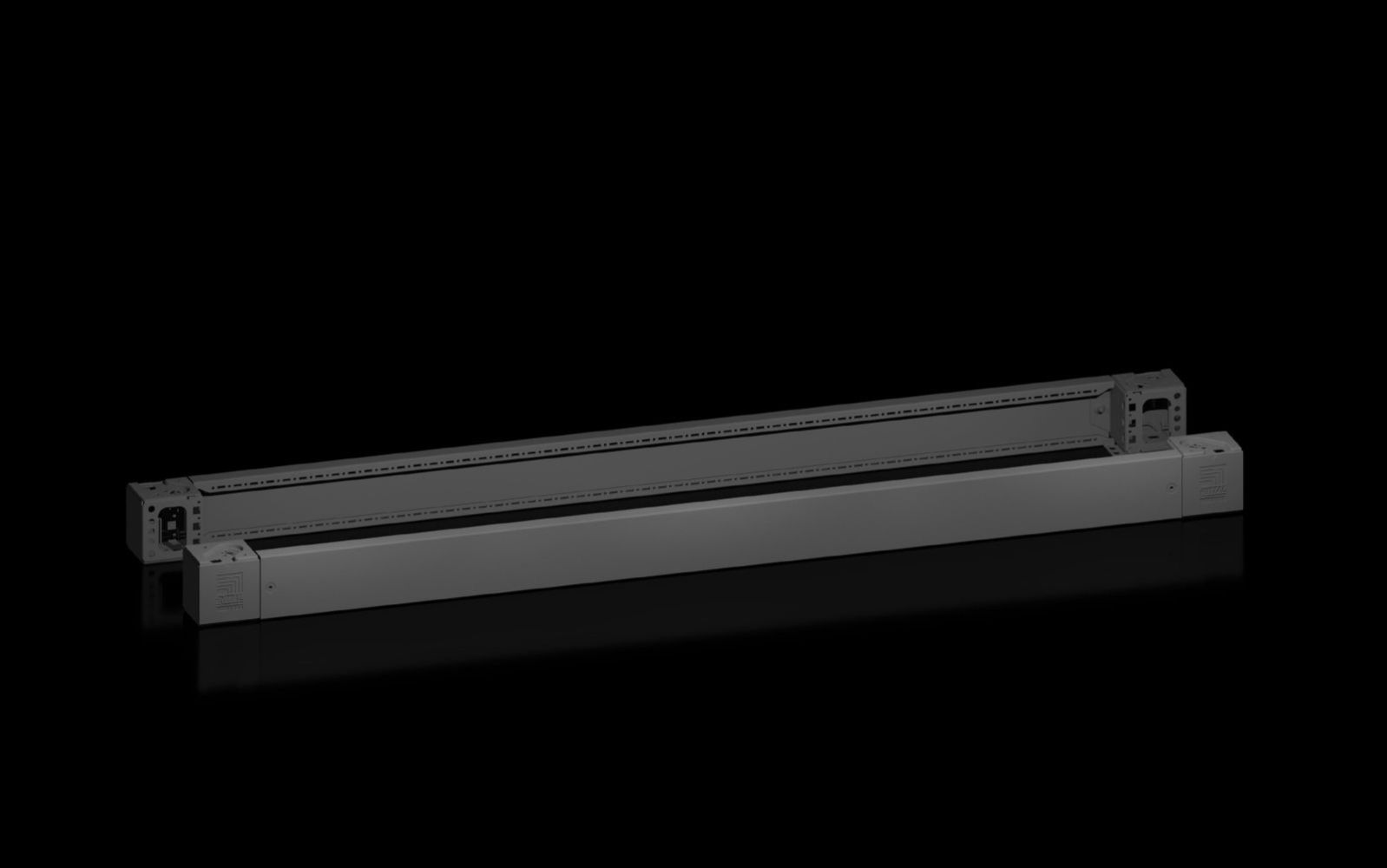

Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100

Your rating:
Average rating
product review for Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100
( 4 / 5 ) 2 ratings

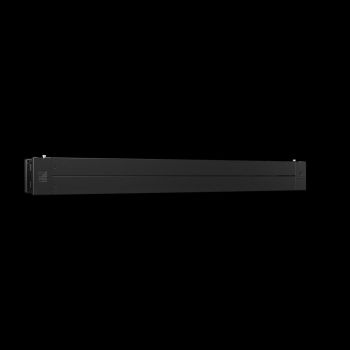

Rittal 8660008
This image may differ from the desired article.
Rittal 8660008Rittal 8660008Rittal 8660008Rittal 8660008Rittal 8660008Rittal 8660008
56,47 EUR 57,53 EUR
( 67,20 EUR incl. VAT )
≈ £47.27  |  ≈ $62.06
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100
Datasheet:file_download Download
Lieske Part No.:1103901
Mfg Part No: 8660008
UPC/EAN: 4028177978072
Weight:9 kg
Type:VX 8660008

Product information for Rittal 8660008:

The Rittal VX 8660008 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the plinth system VX. It serves as a stable end cap and connecting element for plinth systems with a width of 1,600 mm. The component consists of sheet steel for the corner pieces and trim panels, and plastic for the corner and baying covers. The colour is RAL 9005, a dark grey standard tone that integrates well in industrial environments. The height is 100 mm, representing a standard installation size for plinth systems.

Applications
This product is intended for use in industrial enclosures and system housings, particularly in combination with housing types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX. The plinth trim panels serve not only as an aesthetic finish but also for additional stabilisation between plinths or as a base for internal installation. The use is especially beneficial in installations with high mechanical stress or when mounting multiple plinth units.

Functions and Equipment in Detail
The plinth corner pieces ensure very high stability of the plinth, which is important when mounting heavy or mobile enclosures. The integrated front and rear trim panels allow for flexible cable entry and ensure a flush finish between baying points. The delivery includes 4 corner covers, 4 plinth corner pieces (100 mm high), 2 plinth trim panels front/rear (100 mm), and the required mounting hardware. The trim panels can also be mounted laterally to close off a plinth unit or increase stability between multiple plinths.

Technology Explained Simply
The construction from sheet steel offers high strength and resistance to mechanical stress. The plastic covers at the corners and baying points protect against edge injuries and provide a clean visual finish. The height of 100 mm corresponds to a standard dimension used in many industrial plinth systems. The colour RAL 9005 is a neutral, robust-looking tone that integrates well in industrial environments. Mounting is done using the included hardware, designed for secure installation on plinth systems.

Compatibility and Accessories
The plinth corner piece is compatible with a variety of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX, each with a width of 1,600 mm. It can be combined with additional accessories, such as levelling feet M12, VX castors, plinth baying brackets, VX plinth expansion angles (for trim panel heights 100 mm or 100/200 mm), double swivel castors M12, optional trim panel mounting brackets, floor mounting brackets, or levelling elements for plinths H100 mm. These combinations allow for flexible adaptation to different mounting and operating conditions.

Mounting and Installation
Mounting is done at the corners of the plinth systems, where the plinth corner pieces are secured using the included mounting hardware. The front and rear trim panels are also installed to ensure a closed and stable construction. The lateral trim panels can optionally be used for stabilisation or internal installation. Installation requires no special tools beyond standard screwdrivers needed for securing the plinth systems.

Operational Advantages
The use of the Rittal VX 8660008 provides high mechanical stability, increasing the safety and longevity of plinth systems. The flexible cable entry through the trim panels simplifies cable installation and maintenance. The flush finish between baying points ensures a neat appearance and prevents dust or foreign objects from entering. Compatibility with various housing types and accessories increases adaptability to different requirements in industrial applications.

Type rating according to UL 50E
The product meets the requirements of UL 50E standard in categories Type 1 and Type 12. Type 1 is intended for indoor use with enclosed covers, while Type 12 provides additional protection against splashing water and dust. This certification makes the product suitable for use in industrial environments where a certain protection class is required.

Material and Colour
The plinth corner pieces and trim panels are made of sheet steel, ensuring high strength and durability. The corner and baying covers are made of plastic to prevent edge injuries and provide a clean visual finish. The colour RAL 9005 is a dark grey standard tone that integrates well in industrial environments and offers a robust appearance.

Weight and Packaging
The packaging unit contains 2 pieces, with a gross weight of 9 kg. The product is designed for use in industrial installations, with weight and materials matched to high load capacity. The packaging is designed to protect the components during transport.

Environmental Information
The product life cycle (Cradle-to-Gate) has a PCF value of 29.04 kg CO2 eq per packaging unit. This value is classified in category B, meaning it is approximately calculated based on product weight and self-declared. This information serves to provide transparency regarding the environmental impact of the product up to completion.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1.600 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU9 kg
PCF/VE (Cradle-to-Gate)29.04 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660008, EAN: 4028177978072

Questions & answers

What is the delivery time of Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100?

The article Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100 is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660008 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100 always at the best possible price. We can give you a discount of 2% on Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
