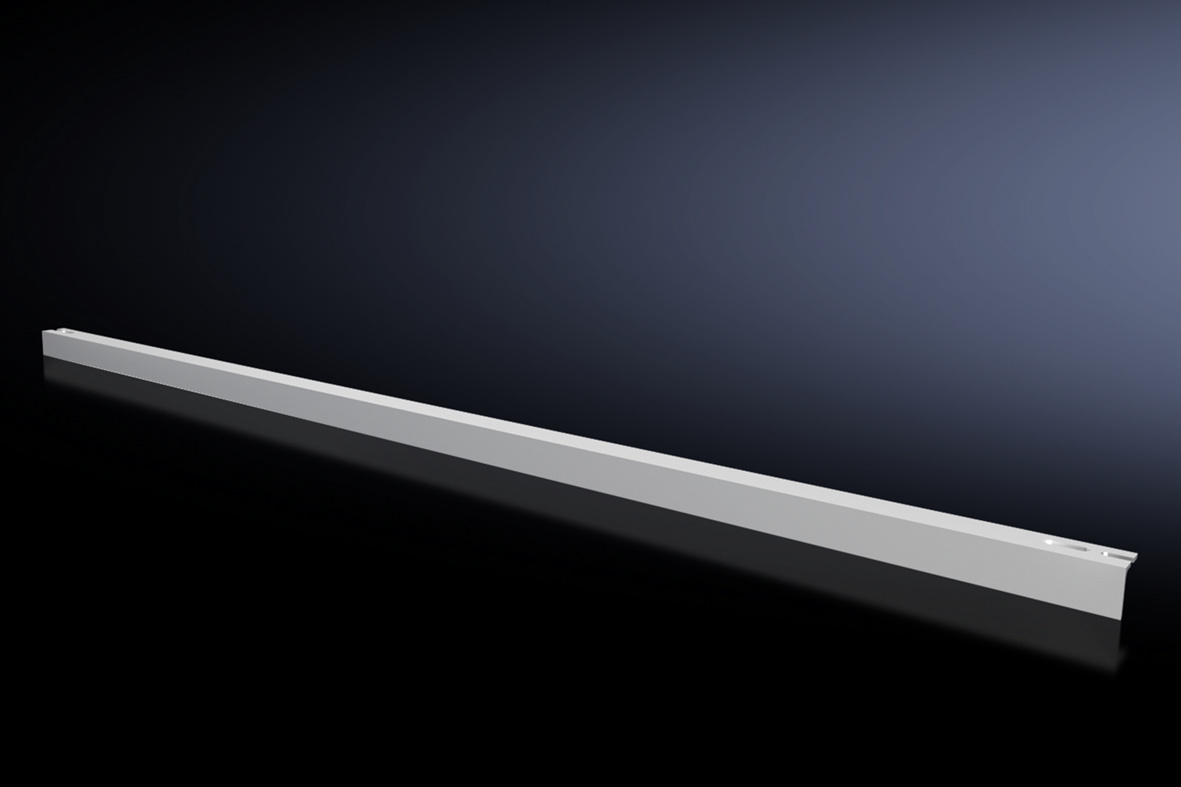

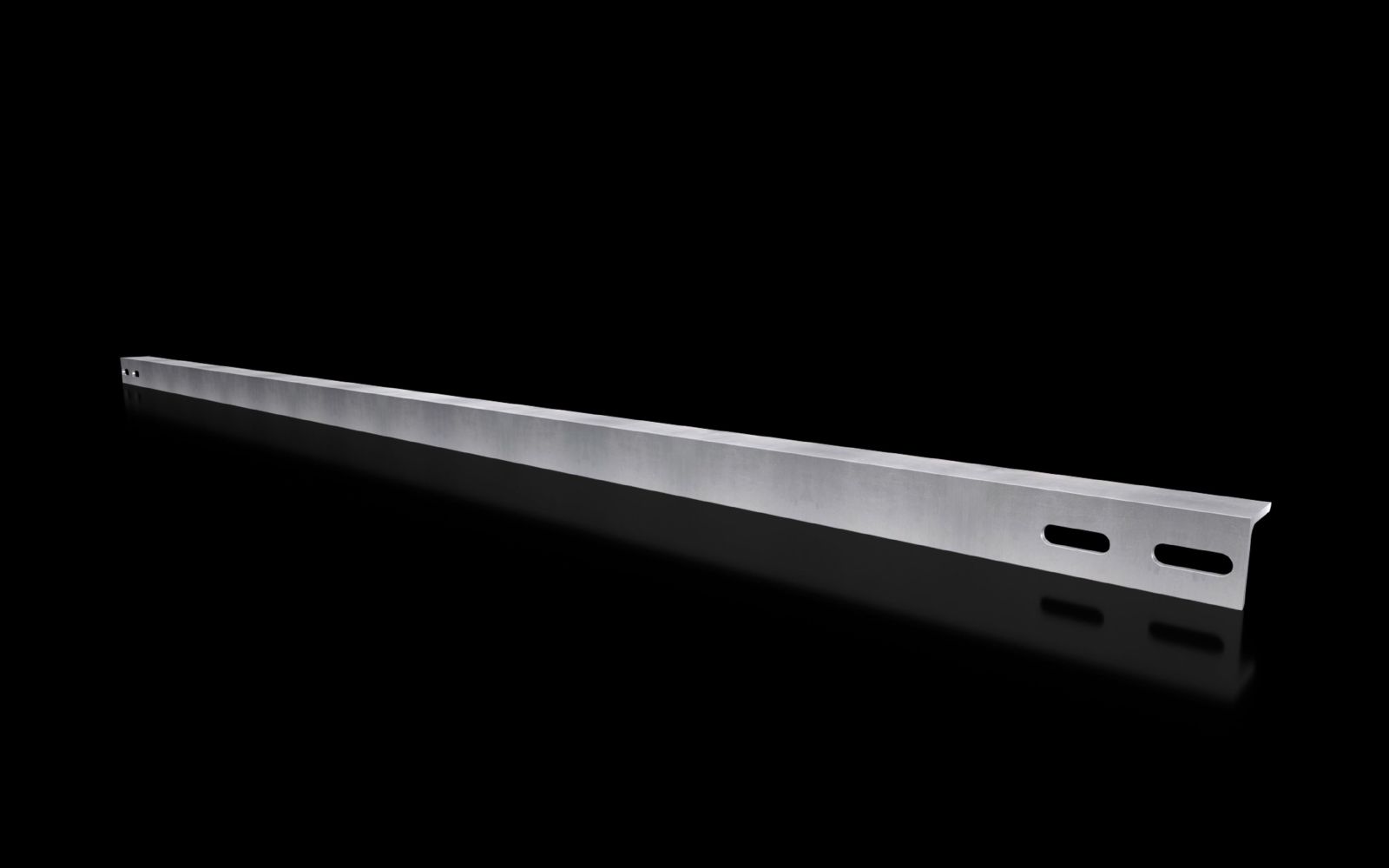

Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm
|
68,54 EUR |
|
|
( 81,56 EUR incl. VAT ) ≈ £57.37 | ≈ $75.33 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441176 |
| Mfg Part No: | 8619450 |
| UPC/EAN: | 4028177921979 |
| Weight: | 8.28 kg |
| Type: | VX 8619.450 |
Product information for Rittal 8619450:
Applications
The cable strain relief rail is intended for use in industrial enclosures, particularly in systems of the VX series, including VX SE and plinth systems. It is installed in enclosure widths of 1600 mm, with mounting in the base area or in the plinth. The depth-variable mounting in 25 mm increments allows precise adaptation to the respective enclosure depth and cable entry position. The rail is thus ideal for installations where orderly and strain-free cable routing is required to minimize mechanical stress on cables and connection points.
Functions and Equipment in Detail
The rail performs the function of strain relief by catching the cables upon entry into the enclosure and reducing tensile forces on cable connections. This prevents damage to cables and connected components. The length of the rail is 1554 mm, matching the width of a 1600 mm enclosure. The zinc-coated steel surface provides good corrosion protection, especially in environments with increased humidity or low aggressiveness.
Technology Explained Simply
The depth-variable mounting in 25 mm increments means the rail can be mounted at various positions along the enclosure depth, allowing flexible adaptation to the specific cable entry arrangement. The angle profile shape ensures the rail can be mounted both horizontally and vertically, which is advantageous during installation in the plinth area or on the enclosure base. Strain relief is achieved through mechanical cable guidance, reducing stress on cable ends and connection points inside the enclosure.
Compatibility and Accessories
The cable strain relief rail is specifically designed for the VX plinth system and fits enclosures with a width of 1600 mm. It can be mounted in the base area of the VX SE system, while in the VX plinth system, mounting requires a holder or spacer. As suitable accessories, the VX plinth expansion angle plinth trim panel H: 100/200 mm is offered, which can be used to cover cut-out holes in the plinth area. The rail is suitable for use with enclosures of types VX, TS, VX SE, AX, PC, and the VX plinth system.
Mounting and Installation
Mounting is done on the horizontal enclosure wall or in the plinth area, with the rail positioned in 25 mm increments. Fixing is done using the included mounting material. When mounting in the plinth area, the use of a holder or spacer is required to secure the rail correctly.
Operational Advantages
The cable strain relief rail ensures orderly and strain-free cable routing, extending the service life of cables and connected devices. The depth-variable mounting allows optimal adaptation to the respective enclosure configuration. The zinc-coated steel surface provides good corrosion protection, which is particularly beneficial in industrial environments. The integrated strain relief reduces the risk of cable breaks and connection losses, increasing operational safety.
| General | |
| Material | Steel |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX SE | In cabinet width 1600 mm, in floor |
| Mounting options VX socket | In 1600 mm socket width, in combination with mounting/distance piece |
| Suitable for | VX socket system |
| Length | 1.554 mm |
| Suitable for width | = 1.600 mm |
Questions & answers
What is the delivery time of Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm?
The article Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619450 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
