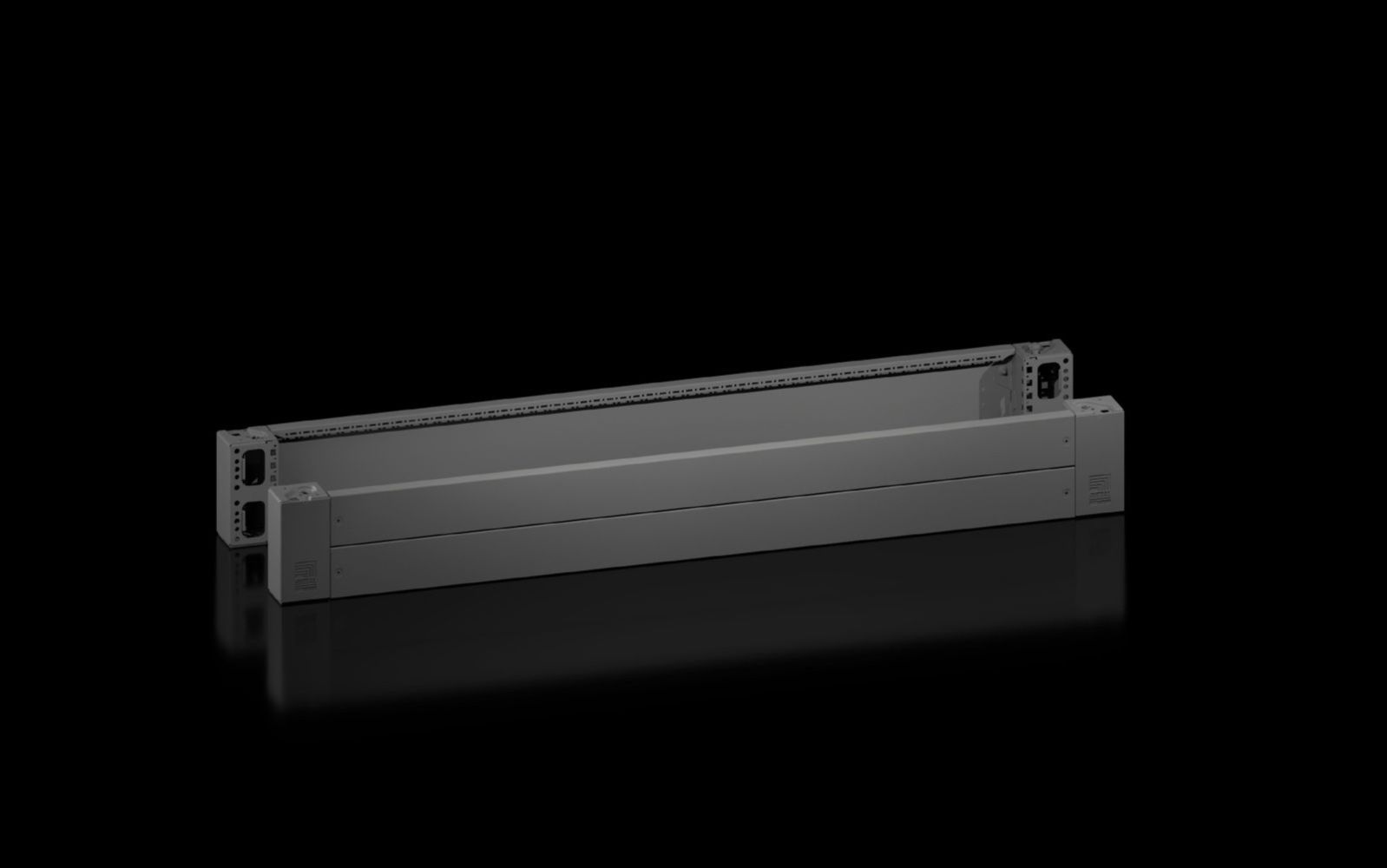

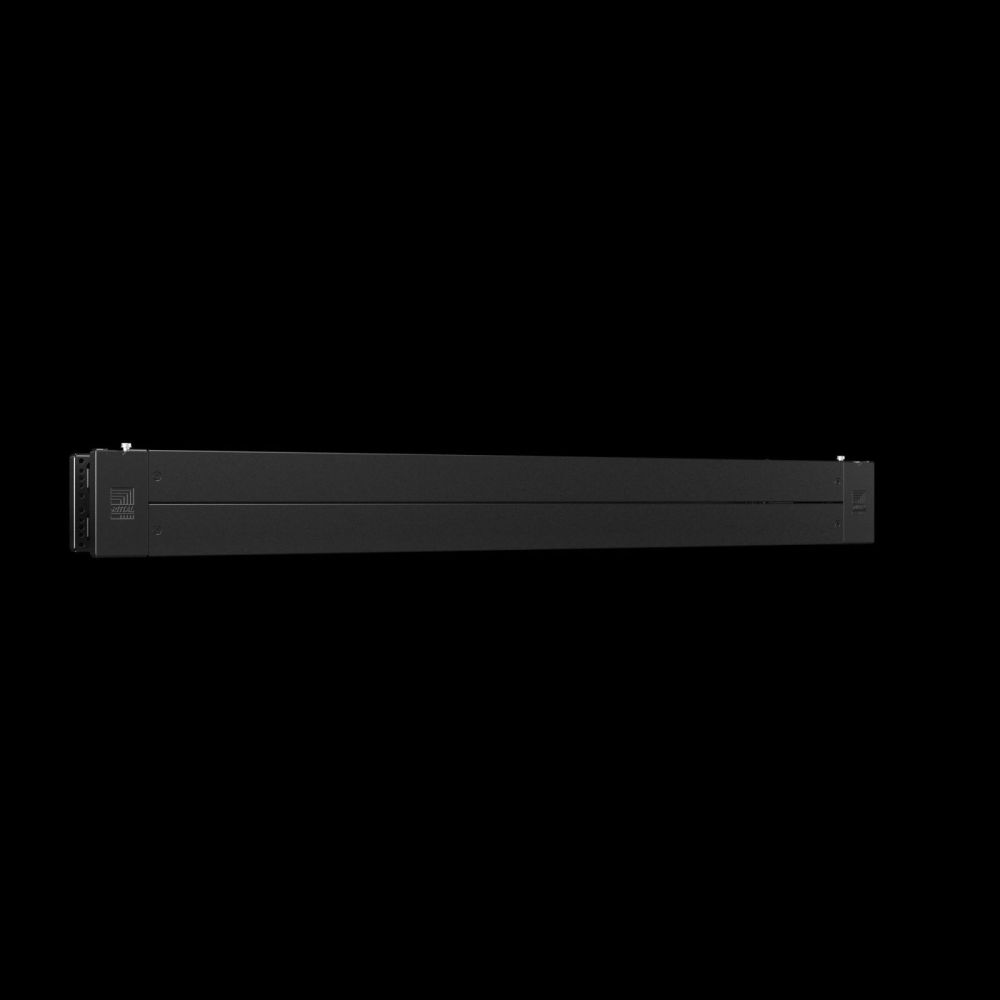

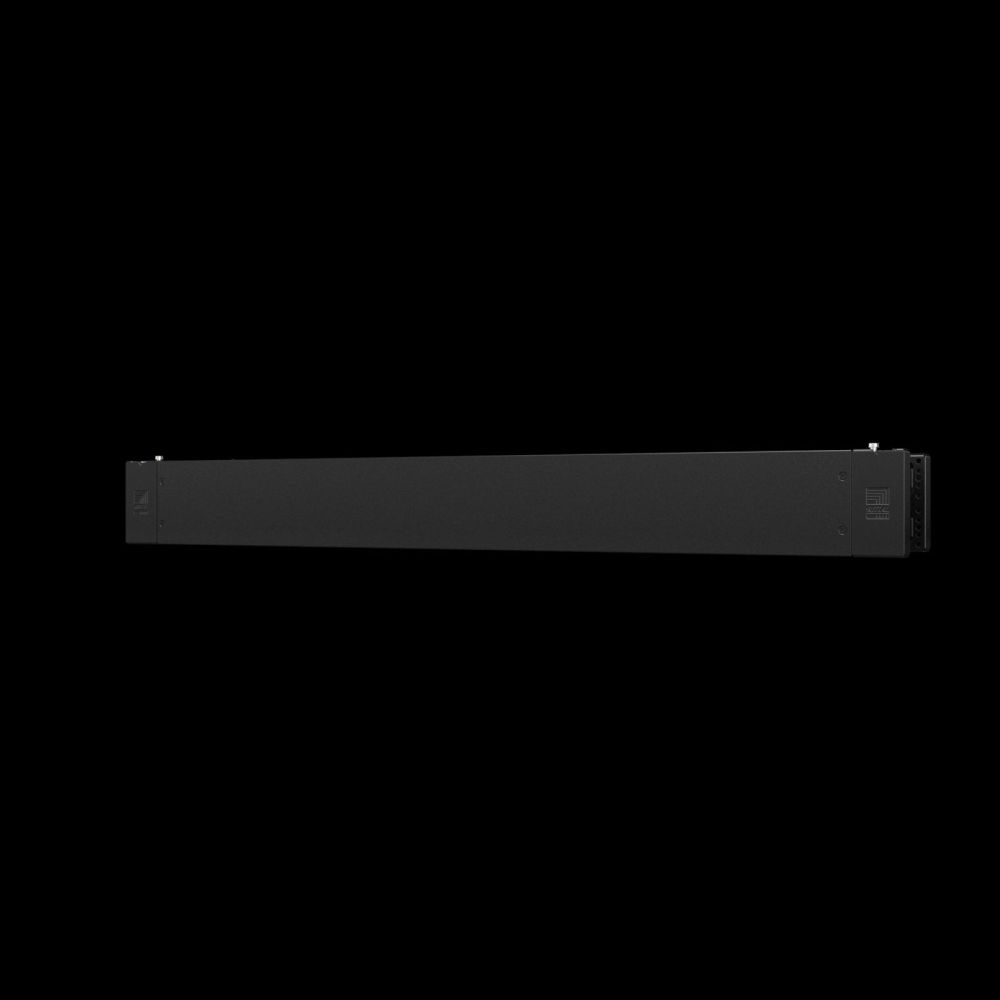

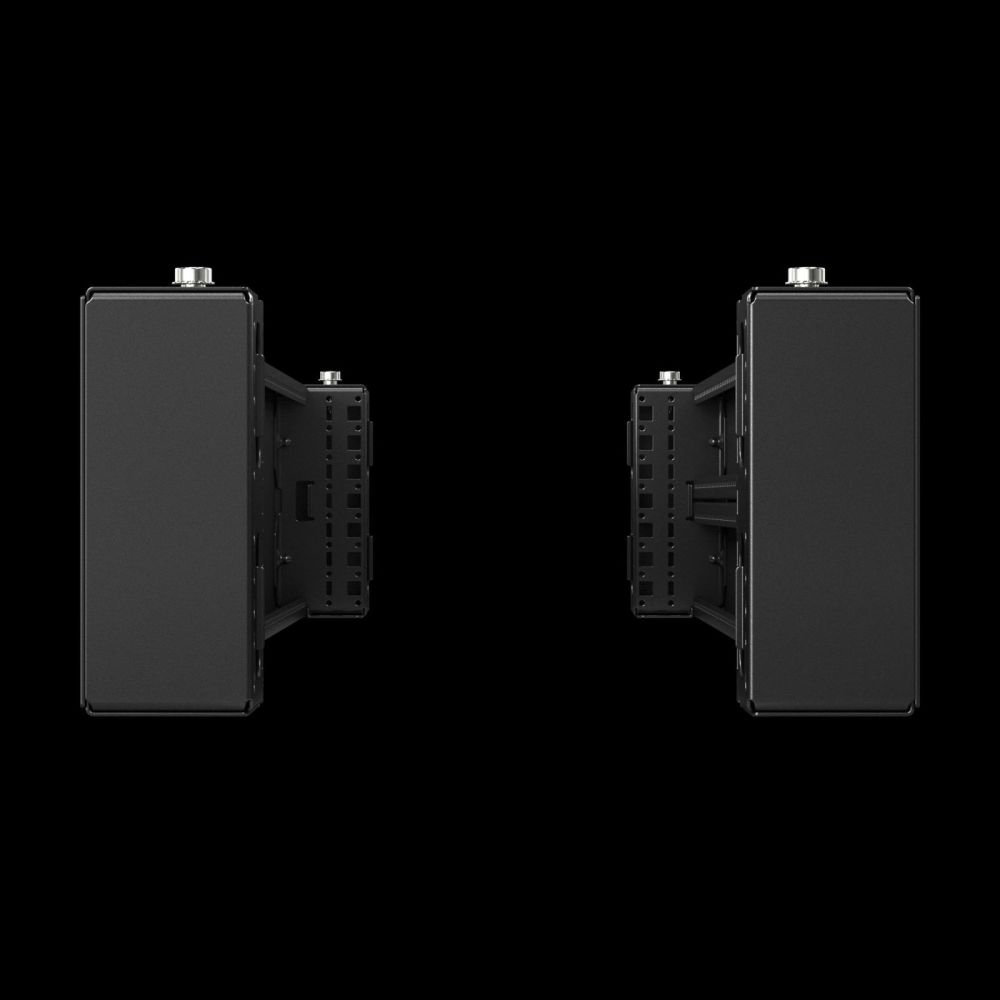

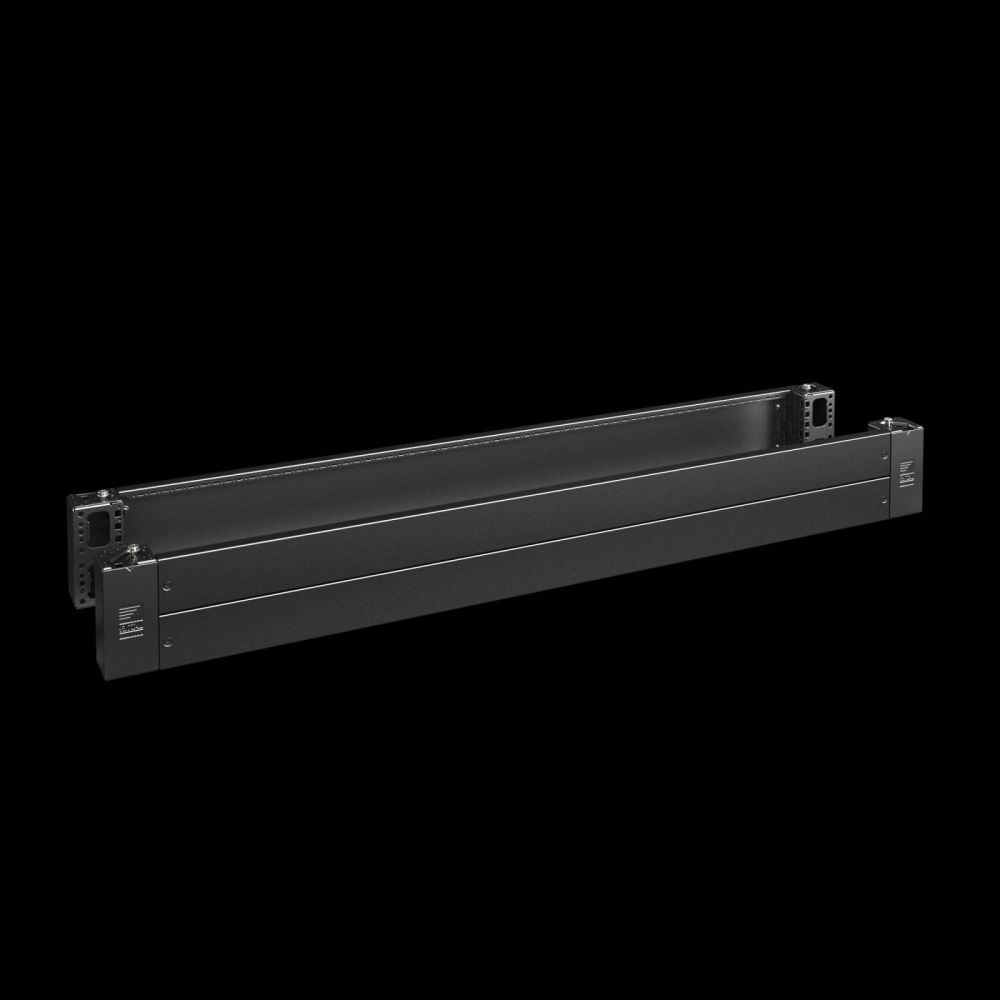

Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200

Your rating:
Average rating
product review for Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200
( 4.4 / 5 ) 8 ratings
Rittal 8660026
This image may differ from the desired article.
Rittal 8660026Rittal 8660026Rittal 8660026Rittal 8660026Rittal 8660026Rittal 8660026
127,65 EUR 128,34 EUR
( 151,90 EUR incl. VAT )
≈ £106.84  |  ≈ $140.29
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200
Datasheet:file_download Download
Lieske Part No.:682735
Mfg Part No: 8660026
UPC/EAN: 4028177978188
Weight:14.5 kg
Type:VX 8660026

Product information for Rittal 8660026:

The Rittal VX 8660026 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the VX plinth system. It serves as a stable end and connection element for plinth constructions with a width of 1,600 mm. The component consists of sheet steel for the corner pieces and trim panels, and plastic for the corner and baying covers. The colour is RAL 9005, a dark grey, which integrates well visually in industrial environments. The height is 200 mm, ensuring sufficient stability and at the same time flexibility during installation.

Applications
This product is suitable for a variety of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is particularly used in installations where high mechanical stability and a clean, flush finish between baying points are required. The plinth trim panels serve not only as an aesthetic finish but also for additional stabilisation of plinths relative to each other or as a base for internal fitting. Its use is ideal in industrial environments where enclosures or cabinets are arranged in rows.

Functions and Equipment in Detail
The plinth corner piece offers very high stability, achieved through the use of sheet steel. The integrated plinth trim panels at the front and rear allow for flexible cable entry and ensure a neat finish of the plinth construction. The delivery includes 4 plastic corner covers, 4 sheet steel plinth corner pieces (200 mm high), 1 plinth trim panel front/rear (200 mm), and 2 plinth trim panels front/rear (100 mm), all made of sheet steel. Fastening materials are also included to ensure secure installation.

Technology Explained Simply
The construction from sheet steel ensures high mechanical strength and durability. The plastic covers at the corners and baying points protect against mechanical damage and ensure a clean visual finish. The plinth trim panels in heights of 100 mm and 200 mm allow for adaptable execution, depending on whether a complete closure or a partial opening for cables or other components is required. The colour RAL 9005 is standard in industry and ensures uniform visual design.

Compatibility and Accessories
The plinth corner piece is compatible with various enclosure types of the Rittal VX system, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for a width of 1,600 mm. As accessories, additional elements such as levelling feet M12, VX castors, VX levelling elements (H: 200 mm), plinth baying brackets, VX plinth expansion angles (for trim panels H: 100 mm or H: 100/200 mm), double swivel castors M12, optional trim panel fasteners, mounting brackets for plinth base (VX 8660100) or system chassis (23 x 64 mm, W x H x D: 1600 mm) can be combined. The cable strain relief rail with angle profile (W: 1600 mm) supports orderly cable routing in the plinth area.

Installation and Mounting
Installation is carried out by securing the plinth corner pieces at the corners of the plinth, using the included fastening materials. The plinth trim panels are attached to the front and rear sides to ensure a closed finish. The plastic corner covers are mounted at the transitions between plinths to achieve a flush finish. Installation is simple and requires no special tools beyond standard mounting materials.

Operational Advantages
The product offers high stability, which is crucial for the safe operation of enclosures and cabinets in industrial installations. The flexible internal fitting capability allows individual adaptation to different requirements. The flush finish between baying points improves appearance and reduces the risk of mechanical damage. The use of sheet steel and plastic ensures long service life and resistance to mechanical stress. Compatibility with various enclosure types increases application flexibility.

Type Rating according to UL 50E
The product meets the requirements of UL 50E standard in categories Type 1 and Type 12. Type 1 protects against solid foreign objects and dripping water, while Type 12 provides additional protection against splashing water from all directions. These certifications make the product suitable for indoor use, particularly in environments with increased humidity or risk of splashing water.

Weight and Environmental Impact
The packaging unit contains 2 pieces, with a gross weight of 14.5 kg. The environmental impact (PCF) is stated as 47.47 kg CO2 equivalent per packaging unit (Cradle-to-Gate, Category B). This value is approximately calculated and self-declared, based on the product weight.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height200 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1.600 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU14,5 kg
PCF/VE (Cradle-to-Gate)47,47 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660026, EAN: 4028177978188

Questions & answers

What is the delivery time of Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200?

The article Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660026 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200 always at the best possible price. We can give you a discount of 2% on Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
