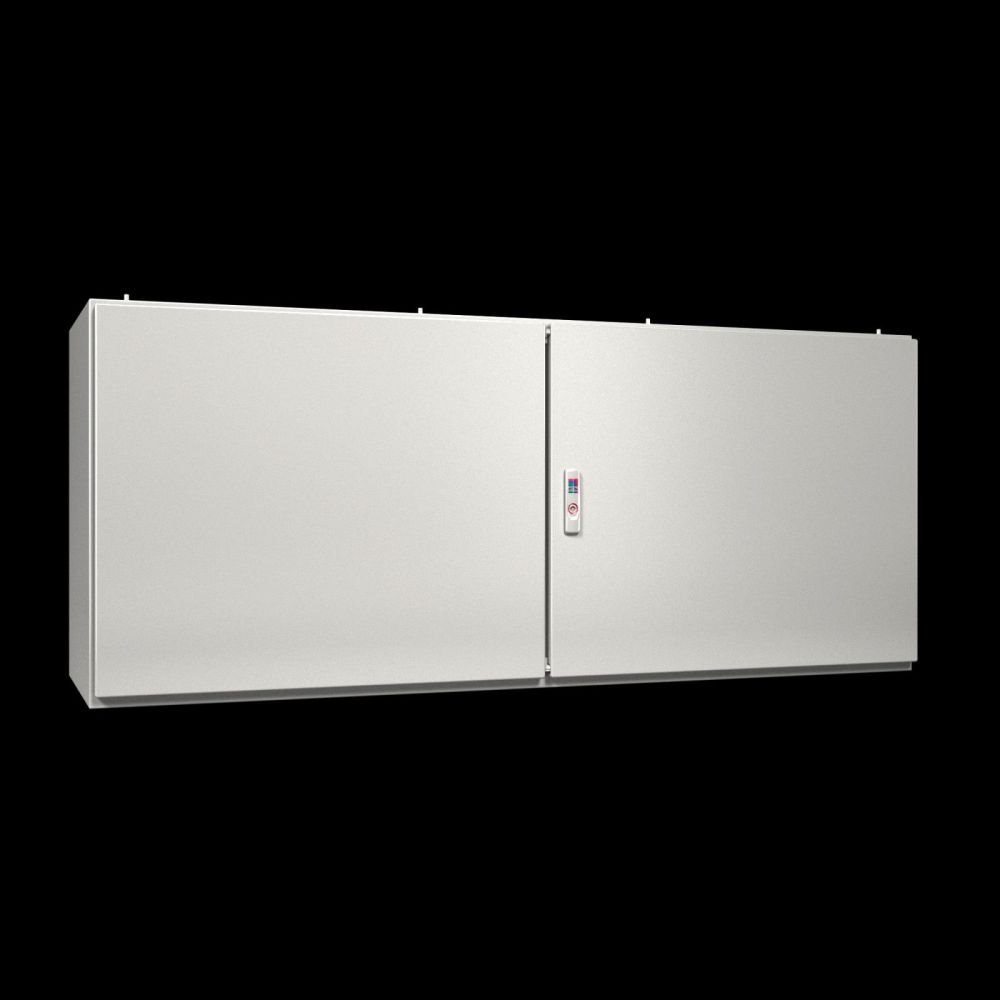

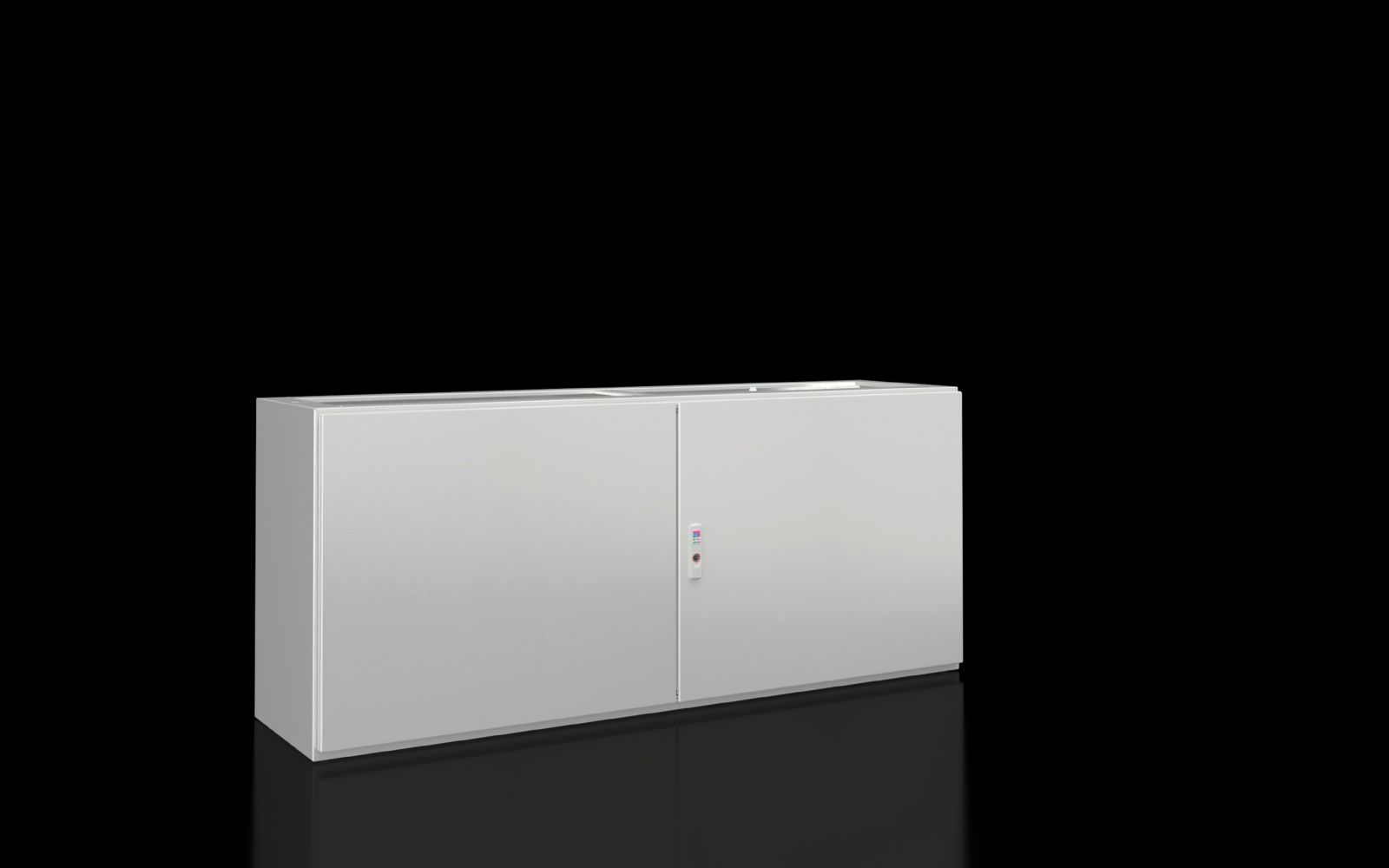

Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm

Your rating:
Average rating
product review for Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm
( 5 / 5 ) 1 ratings
Rittal 6703000
This image may differ from the desired article.
Rittal 6703000Rittal 6703000Rittal 6703000Rittal 6703000Rittal 6703000Rittal 6703000Rittal 6703000
614,10 EUR 638,66 EUR
( 730,78 EUR incl. VAT )
≈ £514.00  |  ≈ $674.90
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm
Datasheet:file_download Download
Lieske Part No.:2145732
Mfg Part No: 6703000
UPC/EAN: 4028177983779
Weight:76.5 kg
Type:CX 6703000

Product information for Rittal 6703000:

The Rittal CX 6703000 is a console base unit from the CX console system, designed as a base unit with dimensions width 1,600 mm, height 675 mm, and depth 400 mm. It serves as a foundation for modular console solutions in industrial and technical applications. The enclosure is made of sheet steel with a wall thickness of 1.5 mm, the door of sheet steel with 2.0 mm thickness and a continuously foamed PU seal, ensuring a tight closure. The mounting plate is made of 2.5 mm thick sheet steel. The surface of the enclosure and door is dip-primed and externally powder-coated with a textured lacquer, creating a robust and weather-resistant layer. The colour corresponds to RAL 7035, a grey-black tone commonly used in industrial environments. The mounting plate is galvanised, providing additional corrosion protection.

Applications
This console base unit is designed for use in industrial environments where high mechanical strength and protection against dust and splashing water are required. It is suitable as a base for control consoles, control systems, or enclosures in production plants, machine building, or process engineering. The open top allows for flexible integration with additional modules such as console middle or console top units, enabling the creation of modular, multi-part console systems. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor areas or damp indoor environments. The protection ratings NEMA 1 and NEMA 12 further enhance suitability for indoor and light industrial environments.

Functions and Equipment in Detail

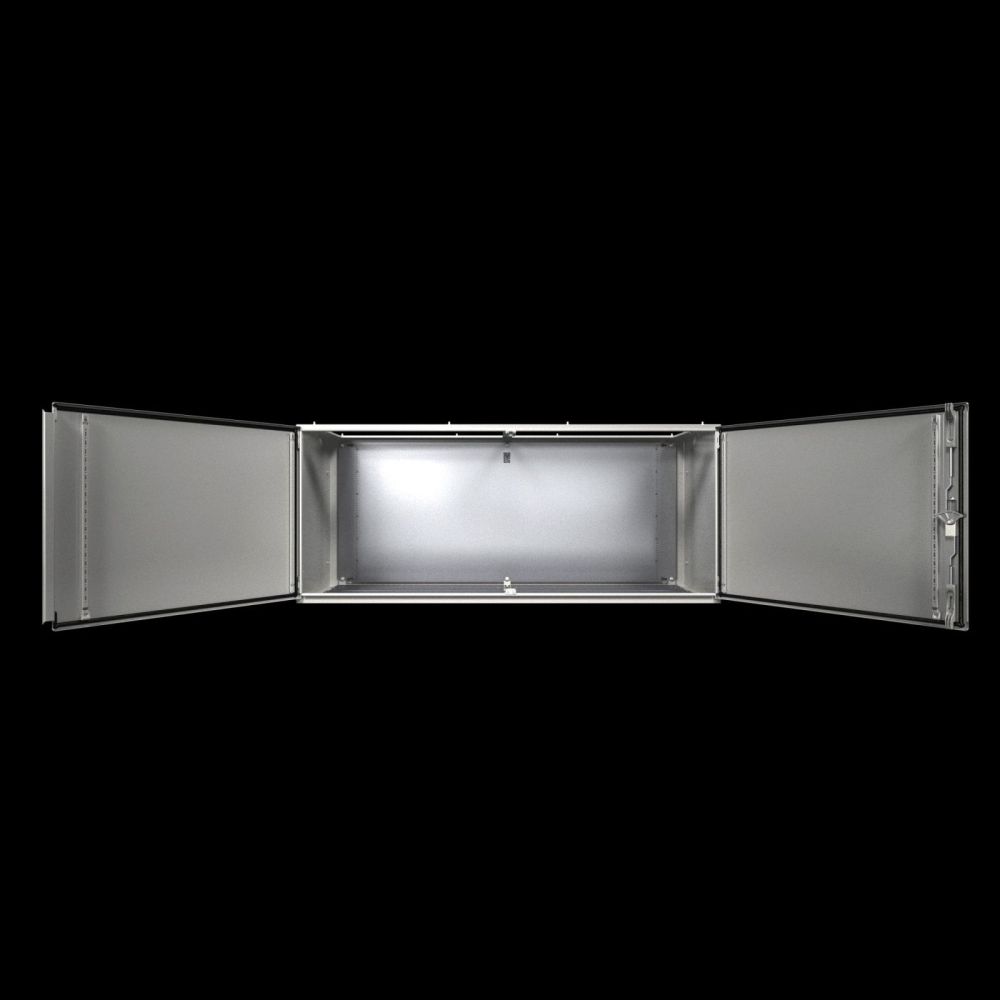

The unit features a double door at the front, secured with a 3-point locking system. This system ensures an even and secure closure of the door at three points, achieving high mechanical stability. The lock insert is a 3 mm double bar, integrated into the locking system. The door can be opened up to an angle of 130°, providing good access to the interior. The delivery includes the enclosure (open at the top), the double door with locking system, the mounting plate, and two-part base plates, which facilitate easy cable routing. The base plates are included in the delivery to simplify the installation of cables and conduits.

Technology Explained Simply
The materials used – sheet steel with varying wall thicknesses – ensure high mechanical stability and durability. The PU seal on the door ensures a tight closure, supporting the IP 55 protection rating. The powder-coated surface provides additional corrosion protection and is suitable for use in harsh environments. The IK10 rating means the enclosure is protected against mechanical impacts such as shocks or vibrations up to a certain energy level, which is important for industrial applications. The mounting plate with dimensions 1,520 mm (W) x 625 mm (H) allows for secure mounting of devices or components inside the console.

Compatibility and Accessories
The console base unit is part of the modular CX console system and can be combined with additional components such as console middle or console top units to create multi-part console solutions. For a 2-part setup, a console middle unit and a closing plate for the middle unit are required. For a 3-part setup, a console middle unit and a console top unit are necessary. Compatible accessories include lock inserts made of zinc die-cast, VX profiles for cable entry, baying sets, earthing straps, plinth corner pieces with trim panels, mounting brackets, plinth trim panels, system chassis, cable strain relief rail, and comfort handles and circuit diagram pockets. These elements support integration into existing systems and allow individual adaptation to specific requirements.

Installation and Mounting
Mounting is done via the designated mounting plate, which has a galvanised surface. The two-part base plates facilitate the installation of cables and conduits. The open top of the enclosure allows for flexible integration with additional modules. The double door with the 3-point locking system ensures a secure and stable closure. The 130° door opening ensures good access to the interior. Mounting typically occurs on a suitable base, taking into account the dimensions of the enclosure and mounting plate.

Operational Advantages
The console base unit offers high mechanical strength and protection through the IP 55 and IK10 ratings. The modular design allows for flexible expansion and adaptation to different requirements. The integrated base plates and robust construction from sheet steel ensure a long service life and easy maintenance. The powder-coated surface is easy to clean and resistant to contamination. The use of standard components from the CX system ensures high compatibility with other modules and accessories.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width1.600 mm
Height675 mm
Depth400 mm
Mounting plate dimensions (W x H)1.520 mm x 625 mm
Number of doors2
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6703000, EAN: 4028177983779

Questions & answers

What is the delivery time of Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm?

The article Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6703000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm

Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Rittal LogoRittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177020849
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 236156
Mfg Part No: 2307000
Type: SZ 2307000
2,98 EUR
Rittal 2307000 plus VAT
≈ £2.49  |  ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023864
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 251997
Mfg Part No: 2465000
Type: SZ 2465000
-11% 2,62 EUR 2,93 EUR
Rittal 2465000 plus VAT
≈ £2.19  |  ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023765
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 400490
Mfg Part No: 2460000
Type: SZ 2460000
2,63 EUR
Rittal 2460000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm Rittal LogoRittal 8618804 VX profile for cable entry, central, for W: 1600 mm The Rittal VX 8618804 is a profile for cable entry, specifically designed for enclosures of type VX with a width of 1600 mm. It serves as a snap-on profile on the base plates of the enclosure and ...

Lieske Part No.: 469256
Mfg Part No: 8618804
Type: VX 8618804
-10% 48,53 EUR 54,13 EUR
Rittal 8618804 plus VAT
≈ £40.62  |  ≈ $53.33
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177220331
Customs tariff number: 83024900
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 499708
Mfg Part No: 2460650
Type: SZ 2460650
2,63 EUR
Rittal 2460650 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 1199100 Baying set for AX, KX, AE, KL Rittal LogoRittal 1199100 Baying set for AX, KX, AE, KL Supports baying and sealing between KL/KL and AE/AE.
Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ...

Lieske Part No.: 583514
Mfg Part No: 1199100
Type: SZ 1199100
32,32 EUR 33,69 EUR
Rittal 1199100 plus VAT
≈ £27.05  |  ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5 Rittal LogoRittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5 The Rittal SZ 2568500 is an earthing strap for use in enclosures and housings, ensuring a safe and reliable earthing connection. It is specifically designed for use in industrial electrical ...

Lieske Part No.: 643857
Mfg Part No: 2568500
Type: SZ 2568500
-6% 31,74 EUR 33,93 EUR
Rittal 2568500 plus VAT
≈ £26.57  |  ≈ $34.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023789
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 661058
Mfg Part No: 2461000
Type: SZ 2461000
2,63 EUR
Rittal 2461000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200 Rittal LogoRittal 8660026 VX plinth corner piece with trim panel, front/rear, H: 200 The Rittal VX 8660026 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the VX plinth system. It serves as a stable end and connection ...

Lieske Part No.: 682735
Mfg Part No: 8660026
Type: VX 8660026
127,65 EUR 128,34 EUR
Rittal 8660026 plus VAT
≈ £106.84  |  ≈ $140.29
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 4594000 TS mounting brackets for door width 400 mm Rittal LogoRittal 4594000 TS mounting brackets for door width 400 mm Applications: For attachment of
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: ...

Lieske Part No.: 770295
Mfg Part No: 4594000
Type: TS 4594000
-10% 50,60 EUR 56,44 EUR
Rittal 4594000 plus VAT
≈ £42.35  |  ≈ $55.61
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023888
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 975920
Mfg Part No: 2466000
Type: SZ 2466000
2,67 EUR
Rittal 2466000 plus VAT
≈ £2.23  |  ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, Rittal LogoRittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, The VX plinth trim panel, side, type 8660031, from Rittal is a system accessory for finishing and stabilisation tasks on plinth units in industrial and enclosure construction. The product serves as a ...

Lieske Part No.: 1062787
Mfg Part No: 8660031
Type: VX 8660031
19,85 EUR
Rittal 8660031 plus VAT
≈ £16.61  |  ≈ $21.82
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100 Rittal LogoRittal 8660008 VX plinth corner piece with trim panel, front/rear, H: 100 The Rittal VX 8660008 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the plinth system VX. It serves as a stable end cap and connecting ...

Lieske Part No.: 1103901
Mfg Part No: 8660008
Type: VX 8660008
56,47 EUR 57,53 EUR
Rittal 8660008 plus VAT
≈ £47.27  |  ≈ $62.06
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8660041 VX plinth trim panels, side, 200 mm, for D: 400 mm, Rittal LogoRittal 8660041 VX plinth trim panels, side, 200 mm, for D: 400 mm, The VX plinth trim panel, side, type 8660041, from Rittal is a system accessory for use in the field of enclosures and housings. It serves as a closure cladding on the side of plinth units in the VX ...

Lieske Part No.: 1103910
Mfg Part No: 8660041
Type: VX 8660041
27,37 EUR 28,47 EUR
Rittal 8660041 plus VAT
≈ £22.91  |  ≈ $30.08
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Rittal 8619730 VX system chassis 14 x 39 mm, door width: 800 mm, Rittal LogoRittal 8619730 VX system chassis 14 x 39 mm, door width: 800 mm, The Rittal VX 8619.730 is a system chassis made of sheet steel with a galvanised surface, specifically designed for mounting cable ducts, cable conduit holders, door inserts and other components in ...

Lieske Part No.: 1349705
Mfg Part No: 8619730
Type: VX 8619.730
51,74 EUR
Rittal 8619730 plus VAT
≈ £43.31  |  ≈ $56.86
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm Rittal LogoRittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm The Rittal VX 8617.110 is a system chassis made of sheet steel with a zinc-coated surface, designed for variable and individual interior fitting of enclosure frames. It serves as a mounting base for ...

Lieske Part No.: 1441093
Mfg Part No: 8617110
Type: VX 8617.110
39,79 EUR 41,02 EUR
Rittal 8617110 plus VAT
≈ £33.30  |  ≈ $43.73
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8619700 VX system chassis 14 x 39 mm, door width: 400 mm Rittal LogoRittal 8619700 VX system chassis 14 x 39 mm, door width: 400 mm The Rittal VX 8619.700 is a system chassis made of sheet steel with a galvanised surface, specifically designed for use in various enclosure and housing types. It serves as a mounting element for ...

Lieske Part No.: 1441166
Mfg Part No: 8619700
Type: VX 8619.700
33,47 EUR
Rittal 8619700 plus VAT
≈ £28.01  |  ≈ $36.78
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm Rittal LogoRittal 8619450 VX cable strain relief rail angle profile, W: 1600 mm The Rittal VX 8619.450 is a cable strain relief rail in angle profile design, specifically designed for use in the VX plinth system. It serves for strain relief during cable entry into enclosures and ...

Lieske Part No.: 1441176
Mfg Part No: 8619450
Type: VX 8619.450
68,54 EUR
Rittal 8619450 plus VAT
≈ £57.37  |  ≈ $75.33
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2435100 AX comfort handle for lock inserts or half cylinder Rittal LogoRittal 2435100 AX comfort handle for lock inserts or half cylinder The Rittal AX 2435100 is a comfort handle for enclosures and housings, specifically designed for use with lock inserts or half cylinders. It serves as an ergonomic handle mechanism that simplifies the ...

Lieske Part No.: 1598252
Mfg Part No: 2435100
Type: AX 2435100
-6% 37,15 EUR 39,38 EUR
Rittal 2435100 plus VAT
≈ £31.09  |  ≈ $40.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 2515400 AX circuit diagram pocket, steel sheet, width: 625 - 725 mm, Rittal LogoRittal 2515400 AX circuit diagram pocket, steel sheet, width: 625 - 725 mm, The Rittal AX 2515400 is a circuit diagram pocket made of sheet metal, specifically designed for mounting on the door punch strip of enclosures. It is intended for holding and organizing circuit ...

Lieske Part No.: 1598255
Mfg Part No: 2515400
Type: AX 2515400
-6% 29,21 EUR 30,97 EUR
Rittal 2515400 plus VAT
≈ £24.45  |  ≈ $32.10
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2435400 AX comfort handle, for padlock, lock insert Rittal LogoRittal 2435400 AX comfort handle, for padlock, lock insert The Rittal AX 2435400 is a comfort handle for enclosures and housings, specifically designed for use with AX enclosures as well as other housing types such as TE, stand console CX, and console base CX.

Lieske Part No.: 1598263
Mfg Part No: 2435400
Type: AX 2435400
42,90 EUR
Rittal 2435400 plus VAT
≈ £35.91  |  ≈ $47.15
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2435200 Comfort handle AX for compact enclosures AX Rittal LogoRittal 2435200 Comfort handle AX for compact enclosures AX The Rittal AX 2435200 is a comfort handle for enclosures of the AX system, specifically designed for use with bar locking mechanisms. It features a safety insert with locking E1 and serves as an ...

Lieske Part No.: 1598265
Mfg Part No: 2435200
Type: AX 2435200
51,75 EUR
Rittal 2435200 plus VAT
≈ £43.31  |  ≈ $56.87
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm Rittal LogoRittal 8618814 VX profile for cable entry at rear for W: 1600 mm The Rittal VX 8618814 is a profile for cable entry, specifically designed for the rear side of enclosures. It enables structured and tight cable routing into VX enclosures with a width of 1600 mm, as ...

Lieske Part No.: 1989430
Mfg Part No: 8618814
Type: VX 8618814
50,37 EUR
Rittal 8618814 plus VAT
≈ £42.16  |  ≈ $55.36
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2519020 AX door latch Rittal LogoRittal 2519020 AX door latch The Rittal SZ 2519020 is a door latch for enclosures of the AX system, specifically developed for the secure fixation of the opened door. The product consists of sheet steel with a zinc-coated ...

Lieske Part No.: 1991121
Mfg Part No: 2519020
Type: SZ 2519020
8,24 EUR
Rittal 2519020 plus VAT
≈ £6.90  |  ≈ $9.06
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 6730700 SZ rail W x H: 600 mm, pack of 4 for internal installation CX Rittal LogoRittal 6730700 SZ rail W x H: 600 mm, pack of 4 for internal installation CX The Rittal SZ 6730700 is a rail for internal mounting, specifically designed for the CX console system. It serves as a mounting base for electrical assemblies, switching devices and other components ...

Lieske Part No.: 2145908
Mfg Part No: 6730700
Type: SZ 6730700
-6% 28,75 EUR 30,74 EUR
Rittal 6730700 plus VAT
≈ £24.06  |  ≈ $31.60
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Searching
Search is performed.
Please be patient ...
Fehlende Felder
Close
Product in the shopcart

The following item has been put into your shopping cart by our system:

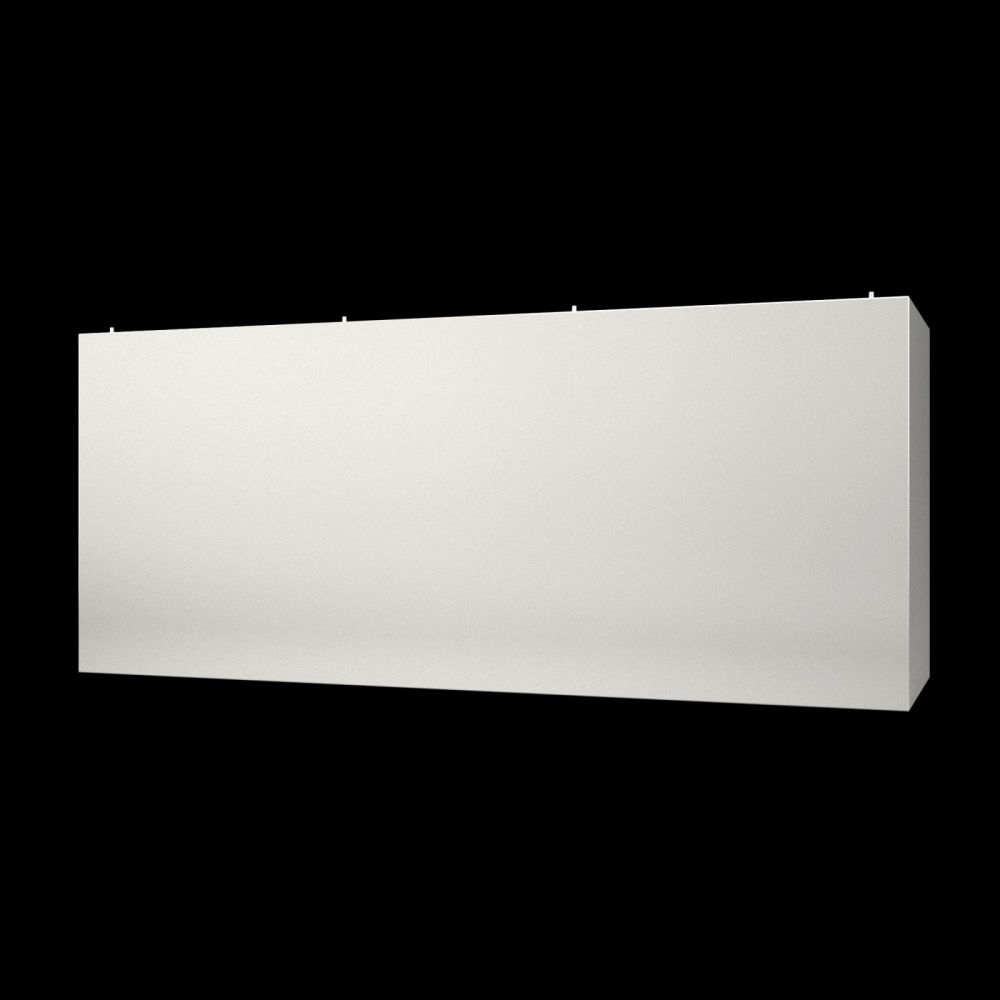

1x Rittal 6703000 CX 6703000 console subunit 1600x675x400 mm
Rittal 6703000 CX console base unit W x H x D: 1600 x 675 x 400 mm
614,10 EUR
Sum of all articles in cart
plus VAT
You can continue shopping and open your cart at any time from the top menu bar or now directly by clicking the button.
Enquiry: Rittal 6703000 CX 6703000 console subunit 1600x675x400 mm
Company name
Name
Homepage
Street
ZIP-Code City
Country
Telephone
Desired quantity
Comment
9 + 1 =
Data protection notice: The data entered here will only be electronically stored and processed for the purpose of responding to your inquiry in accordance with Art. 6 GDPR para. 1b. The basis for this is our privacy policy.
Name and email address are the only mandatory fields.

We use cookies. Some are required to run the shop (e.g. shopping cart and login), others help us improve it (Google Analytics). Statistics cookies are only used with your consent. See our privacy policy for details.
