Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm

Your rating:
Average rating
product review for Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm
( 4.5 / 5 ) 2 ratings

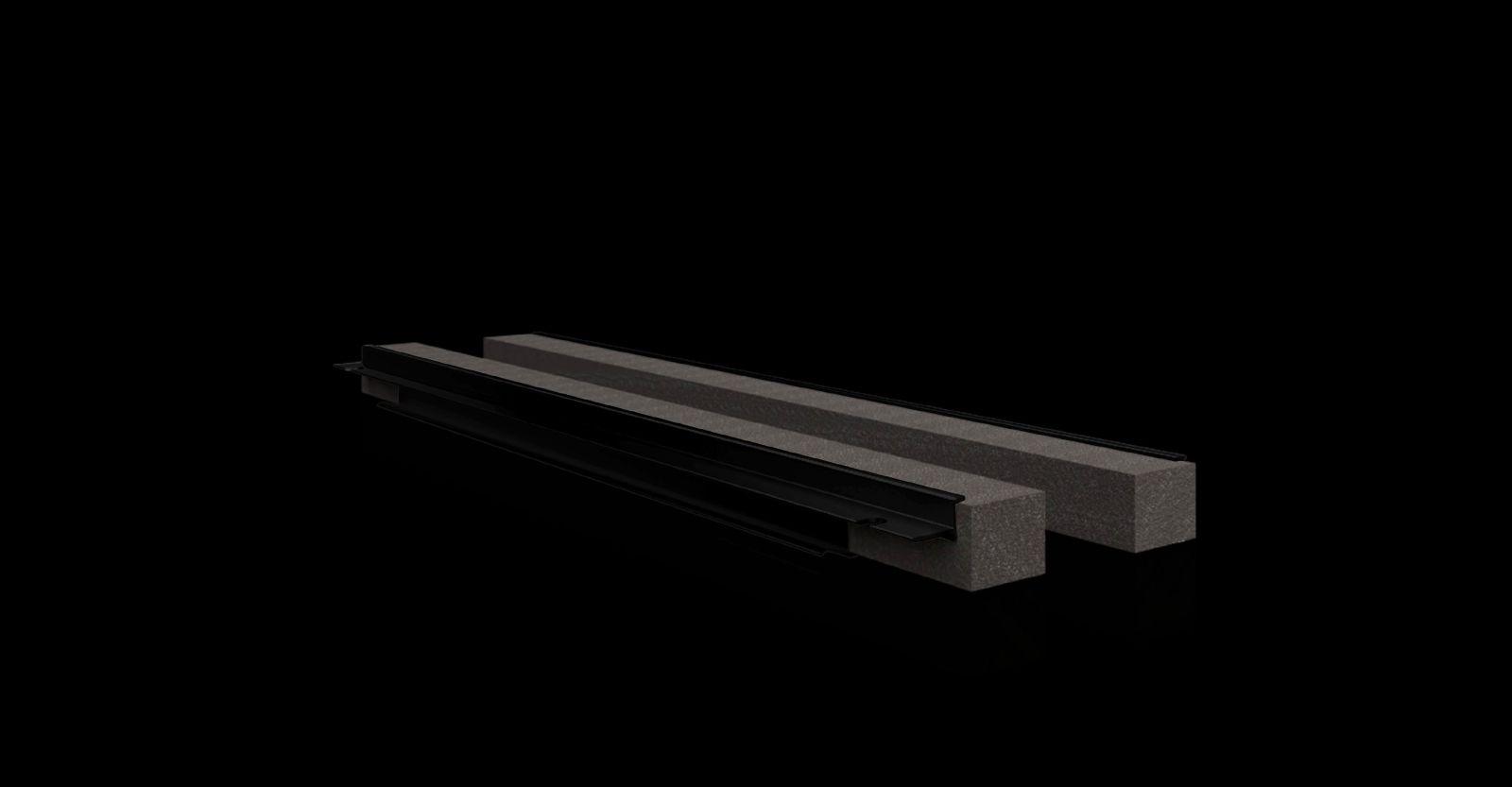

Rittal 8618804
This image may differ from the desired article.
Rittal 8618804Rittal 8618804
-10% 48,53 EUR 54,13 EUR
( 57,75 EUR incl. VAT )
≈ £40.62  |  ≈ $53.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm
Datasheet:file_download Download
Lieske Part No.:469256
Mfg Part No: 8618804
UPC/EAN: 4028177922785
Weight:0.46 kg
Type:VX 8618804

Product information for Rittal 8618804:

The Rittal VX 8618804 is a profile for cable entry, specifically designed for enclosures of type VX with a width of 1600 mm. It serves as a snap-on profile on the base plates of the enclosure and enables an orderly and damage-free routing of cables during the installation of the mounting plate in a forward position. The construction ensures a full-surface contact and a high sealing effect for the introduced cables, which increases the reliability of the installation and reduces the ingress of dust or moisture.

Applications
This profile is primarily intended for use on base plates of enclosures, particularly during the installation of VX and VX SE enclosures as well as console sub-assemblies CX. It is directly snapped onto the base plates, allowing cables to be routed directly to a cable strain relief rail during the installation of the mounting plate without requiring large bending radii. From a cabinet width of 1000 mm, the base group is divided into two sections, allowing one cable entry point to be installed on each side (left/right). Two profiles are required for each cable entry point.

Functions and Equipment in Detail
The profile is made of rigid PVC, which is flame-retardant and self-extinguishing. The material properties ensure a temperature resistance up to +60 °C, making it suitable for use in industrial environments with moderate thermal loads. The integrated sealing made of PU foam with a cross-section of 30 x 25 mm provides effective sealing and prevents the ingress of foreign objects. The elastic clamp profiles included in the delivery support secure fastening and stable positioning of the profile on the base plate.

Technology Explained Simply
The design of the profile allows for easy and quick installation without requiring additional tools or fastening elements. The full-surface contact with the base plates ensures stable positioning, which remains intact even under mechanical loads from cables or mounting work. The combination with a cable strain relief rail enables optimal adaptation between the cable entry and the mounting plate, resulting in a clean and structured cable routing.

Compatibility and Accessories
The profile is specifically designed for enclosures of types VX (width 1600 mm), VX SE, and console sub-assembly CX. Suitable accessories include cable strain relief rail angle profiles in widths of 800 mm and 1000 mm, as well as the C-profile rail SZ 4946000, which can further optimize cable routing. These components enable structured and secure cable routing within the enclosure.

Mounting and Installation
Installation is performed by snapping the profile directly onto the base plates of the enclosure. The elastic clamp profiles ensure a secure hold. No additional fastening elements are required. The use of two profiles per cable entry point ensures even load distribution and stable positioning.

Advantages in Operation
The use of the profile reduces the risk of cable damage caused by excessive bending radii or mechanical stress. The high sealing effect protects the introduced cables from environmental influences. The simple installation and stable fastening facilitate the installation and maintenance of the enclosure. Compatibility with various enclosure types and accessories increases flexibility in planning and implementing enclosure systems.

General
ApplicationsFor mounting on floor plates
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forCabinet type: VX: = 1,600 mm, cabinet type: VX SE, cabinet type: CX console base


Product data sheet
Datasheet for Rittal 8618804, EAN: 4028177922785

Questions & answers

What is the delivery time of Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm?

The article Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618804 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618804 VX profile for cable entry, central, for W: 1600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
