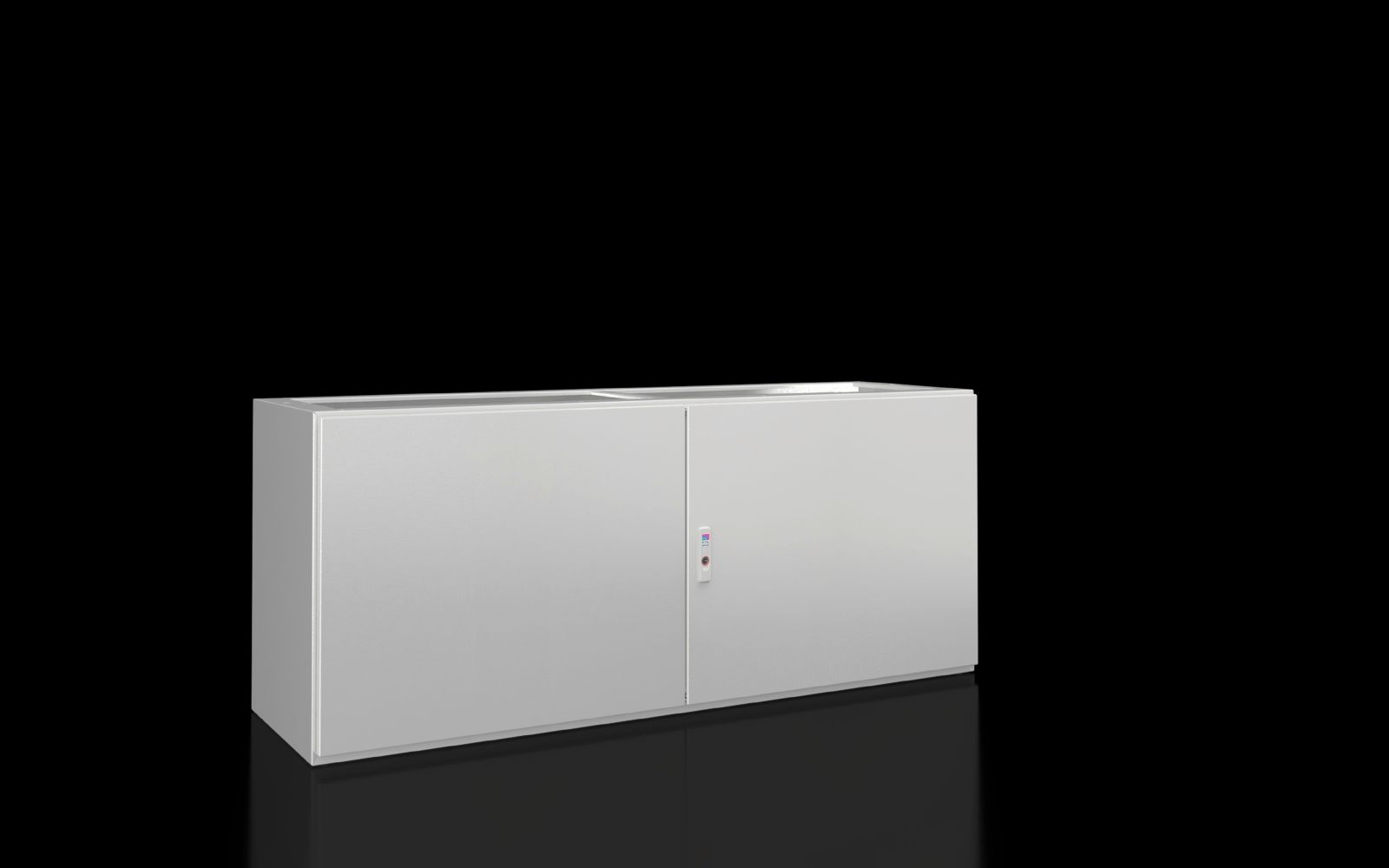

Rittal 6707000 CX console base unit W x H x D: 1600x675x500 mm
|
686,55 EUR 714,01 EUR |
|
|
( 816,99 EUR incl. VAT ) ≈ £574.64 | ≈ $754.52 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2145733 |
| Mfg Part No: | 6707000 |
| UPC/EAN: | 4028177983731 |
| Weight: | 81 kg |
| Type: | CX 6707000 |
Product information for Rittal 6707000:
Applications
This console base unit is designed for use in industrial environments where a robust and flexible mounting base is required for electrical, electronic, or IT components. It is suitable, for example, as a base for control consoles, control enclosures, or as a substructure for multi-part console systems. The open construction at the top allows for easy integration into existing installations or the assembly of a multi-part console.
Functions and Equipment in Detail

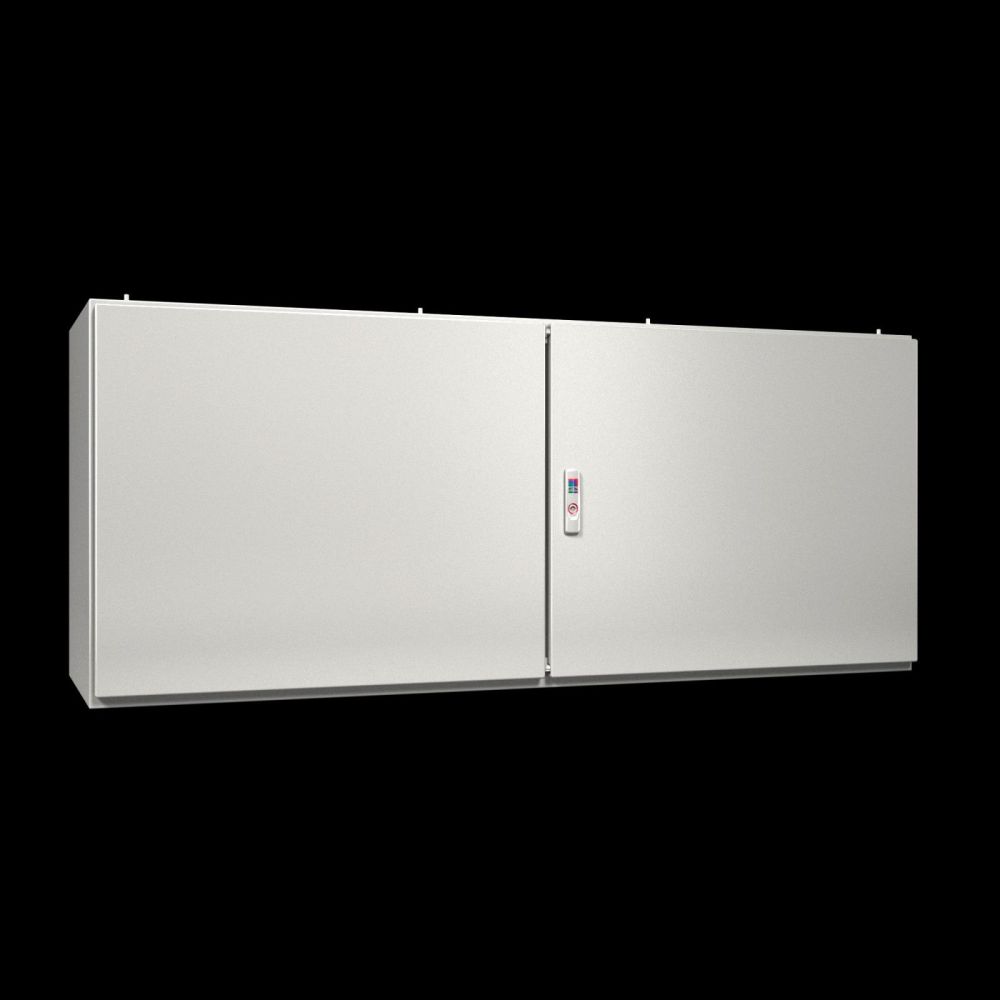

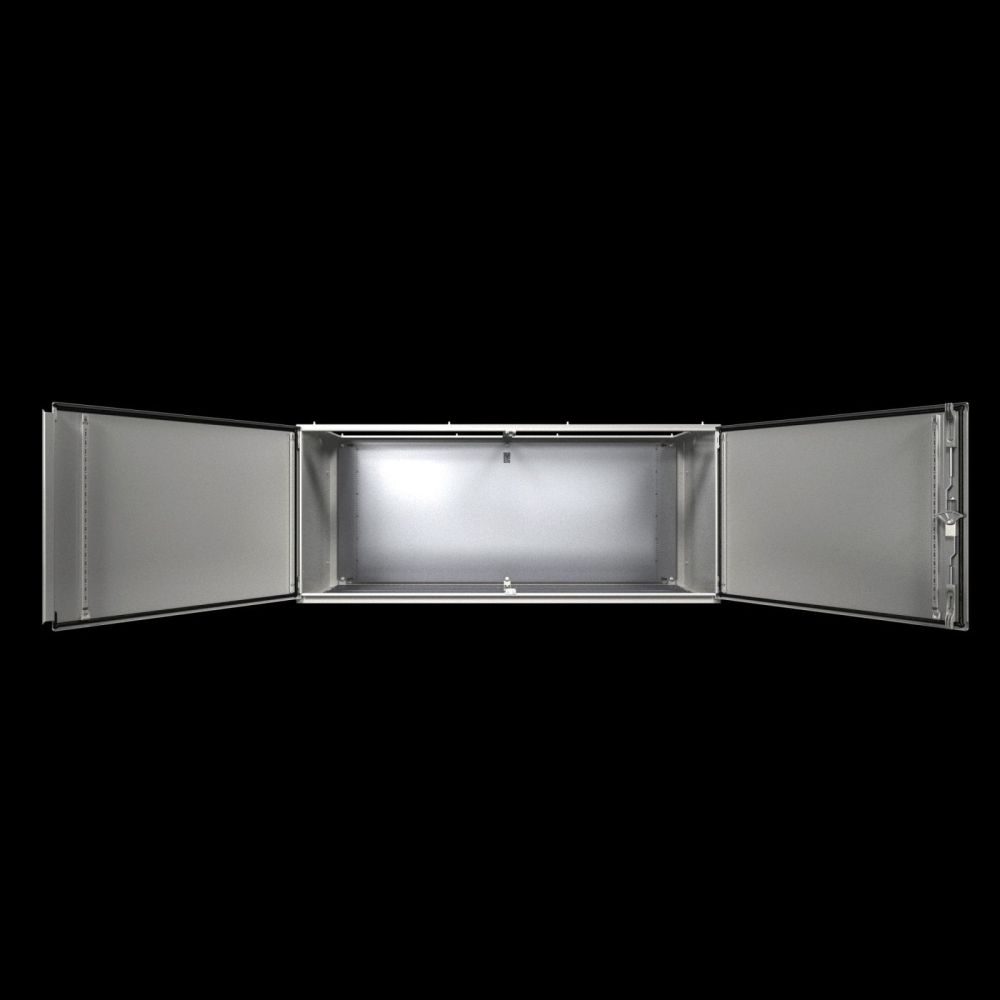

The unit is equipped with a double door at the front, secured by a 3-point locking system. The lock insert is a 3 mm double bar, ensuring secure and reliable locking. The doors open to an angle of up to 130°, providing good access to the interior. The continuously foamed PU sealing gasket ensures effective protection against dust and splashing water. The delivery includes the enclosure, the double door, the mounting plate, and two-part base plates, which facilitate easy cable routing.
Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 means that the enclosure is protected against dust and splashing water from any direction, making it suitable for use in industrial environments. The protection ratings NEMA 1 and NEMA 12 complement this information and confirm suitability for indoor use as well as environments with limited dirt and moisture ingress. The IK code IK10 guarantees mechanical protection against impact with an energy of 10 joules, indicating high resistance to mechanical stress such as shocks or vibrations.
Compatibility and Accessories
The console base unit is part of a modular system and can be combined with additional components to create a two-part or three-part console. For a two-part assembly, a console middle section and an end plate for the middle section are required. For a three-part assembly, a console middle section and a console top section are needed. Suitable accessories include, for example, lock inserts made of zinc die-cast, VX profiles for cable entry, mounting brackets, earthing straps, as well as VX plinth trim panels and corner pieces, which enable additional design and functional security.
Mounting and Installation
Mounting is carried out via the integrated mounting plate with dimensions 1520 mm × 625 mm. The two-part base plates facilitate cable routing and the installation of cables and conduits.
Operational Advantages
The console base unit provides a stable and secure mounting base with high mechanical strength. The powder-coated surface in RAL 7035 ensures a uniform and robust appearance. The integrated base plates and the 3-point locking system reduce installation time and increase operational safety. Compatibility with other modules of the CX system enables flexible expansion and adaptation to specific requirements.
| General | |
| Model | Base unit |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Housing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar |
| Width | 1.600 mm |
| Height | 675 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.520 mm x 625 mm |
| Number of doors | 2 |
| Door opening angle | 130° |
| IK code | IK10 |
| Note | To close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required. |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Base material | steel sheet |
| Number of locks | 1 |
| Closure type | 3-point locking system |
| Closure insert | 3 mm double barb |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
