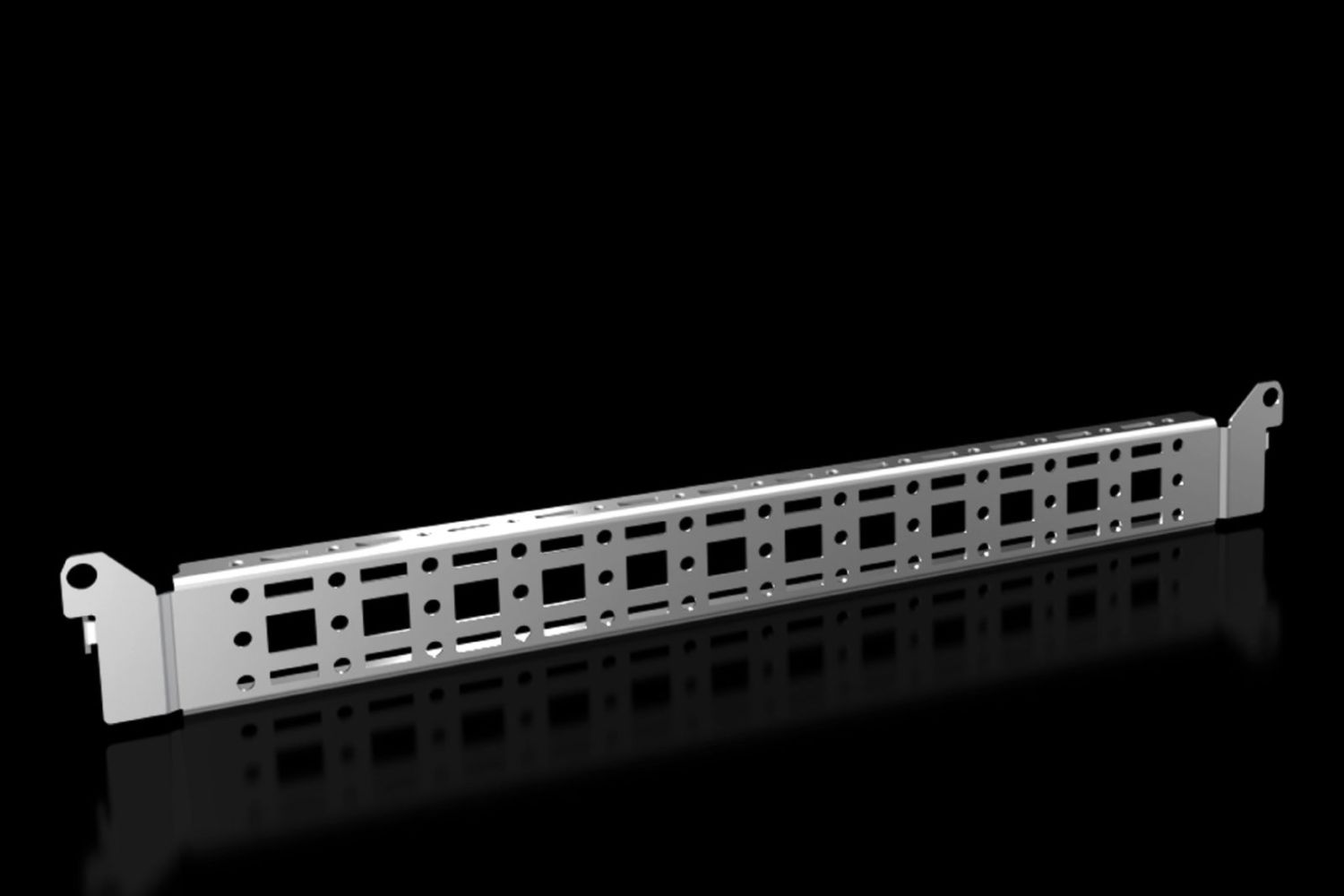

Rittal 8619710 VX system chassis 14 x 39 mm, door width: 500 mm
|
38,14 EUR 38,15 EUR |
|
|
( 45,39 EUR incl. VAT ) ≈ £31.92 | ≈ $41.92 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441165 |
| Mfg Part No: | 8619710 |
| UPC/EAN: | 4028177924635 |
| Weight: | 0.92 kg |
| Type: | VX 8619.710 |
Product information for Rittal 8619710:
Applications
The system chassis is suitable for a wide range of Rittal housing types, including VX, VX SE, TP, AX, AX plastic, wall-mounted enclosures AX, 3-piece systems, stand consoles CX, and console systems CX. It can be used in various configurations, for example, in door widths of 500 mm for VX and VX SE housings, in housing widths of 400 mm or housing heights of 500 mm for AX housings, and in lock doors with housing widths of 1000 mm. For AX 3-piece systems, it is intended for a housing depth of 573 mm. In CX systems, it is mounted in console top, middle, and bottom sections in combination with the CX internal mounting rail, with a housing depth of 500 mm required for console bottom sections. For TP systems, it is intended for console top sections in housing widths of 600 mm, also in combination with the TP internal mounting rail.
Functions and Equipment in Detail
The chassis features a structured mounting surface with a spacing of 375 mm between mounting points, enabling even and stable mounting of components. The galvanized surface provides corrosion protection and is suitable for use in industrial environments. The product is delivered with mounting hardware included, allowing immediate installation after unpacking. For installation in AX steel sheet housings, the AX internal mounting rail must be used to ensure secure fastening.
Technology Explained Simply

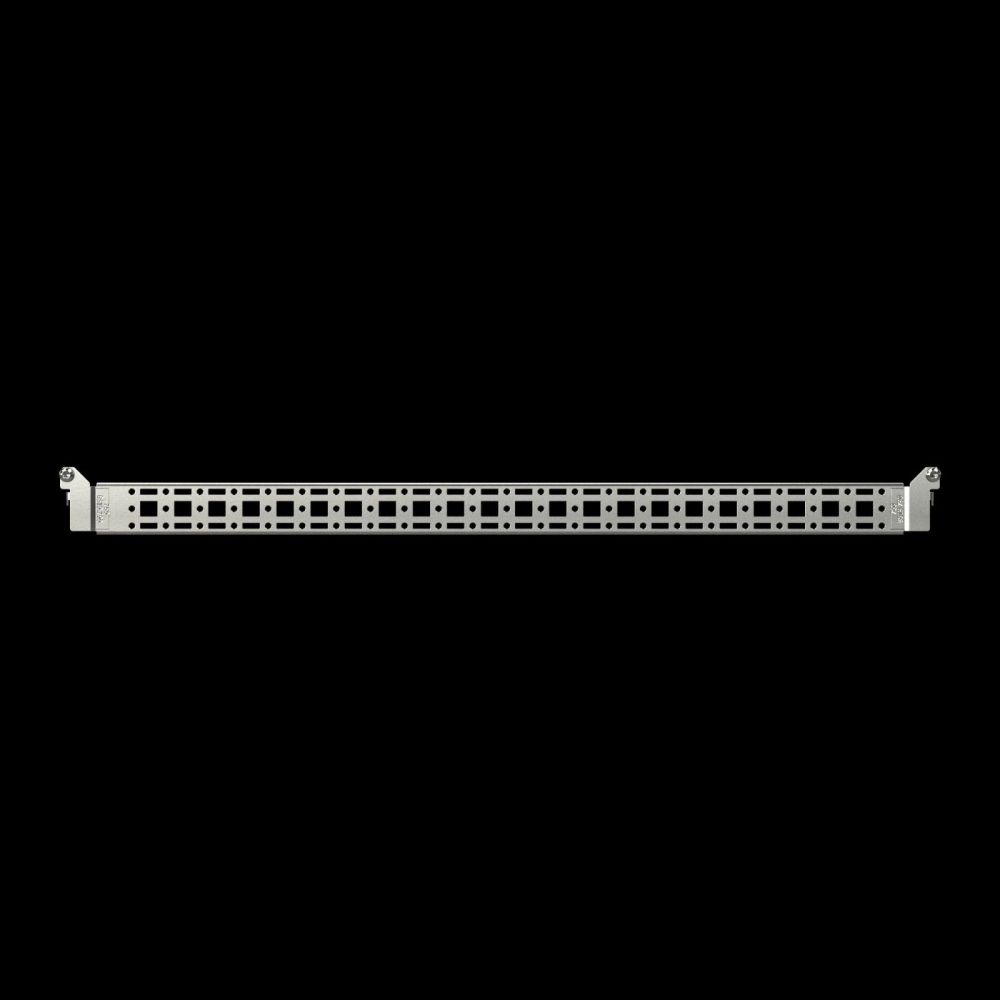

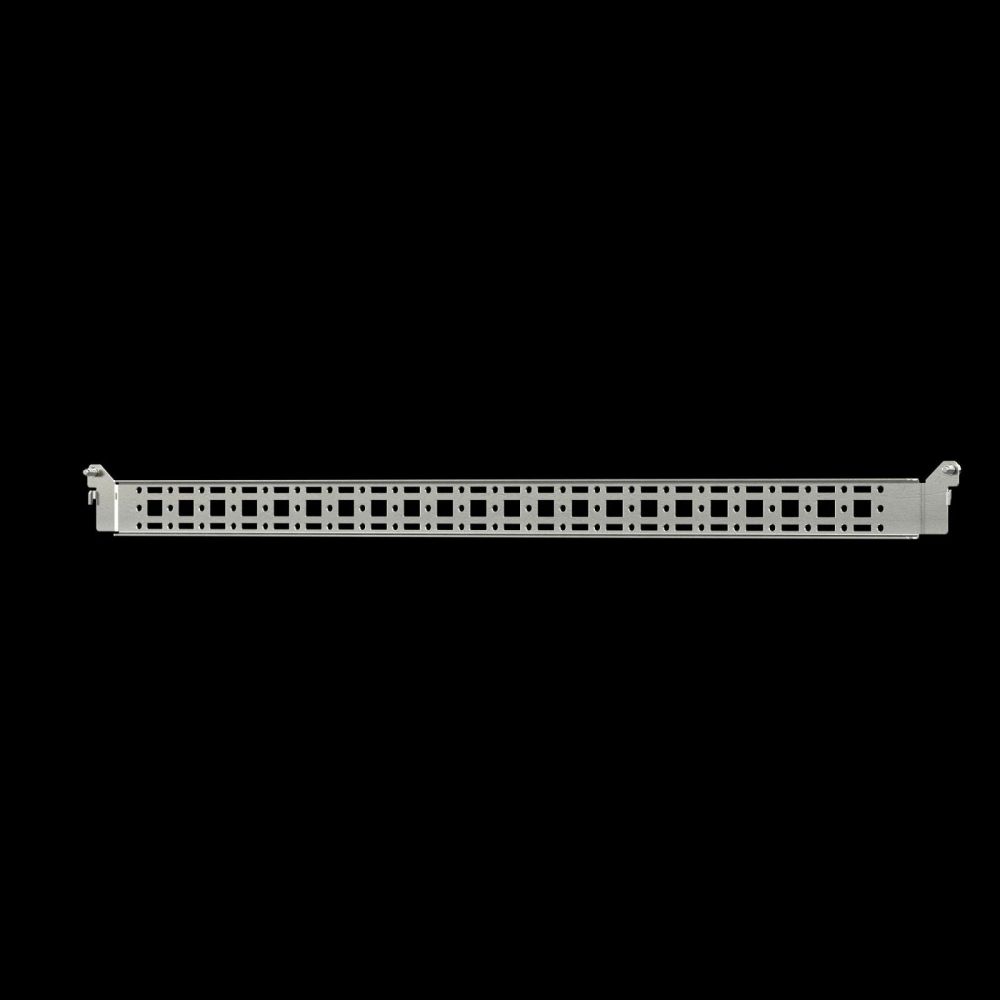

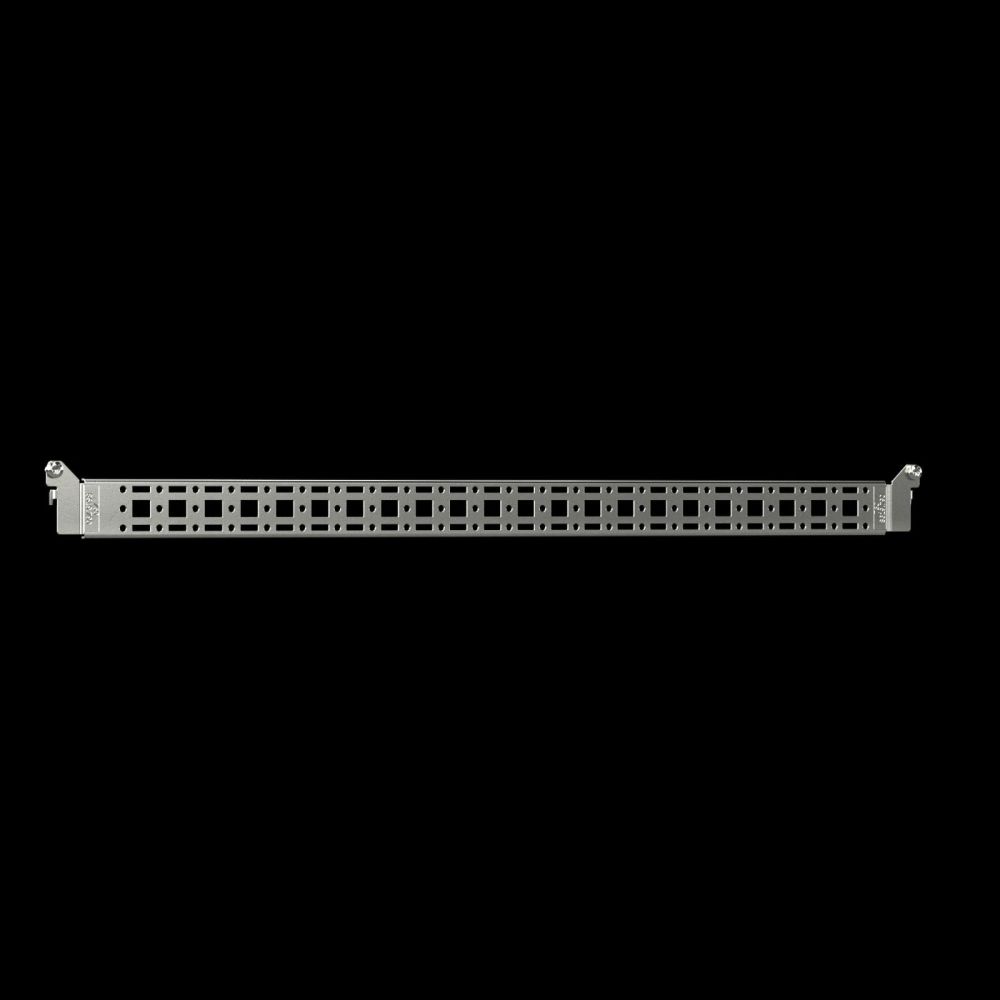

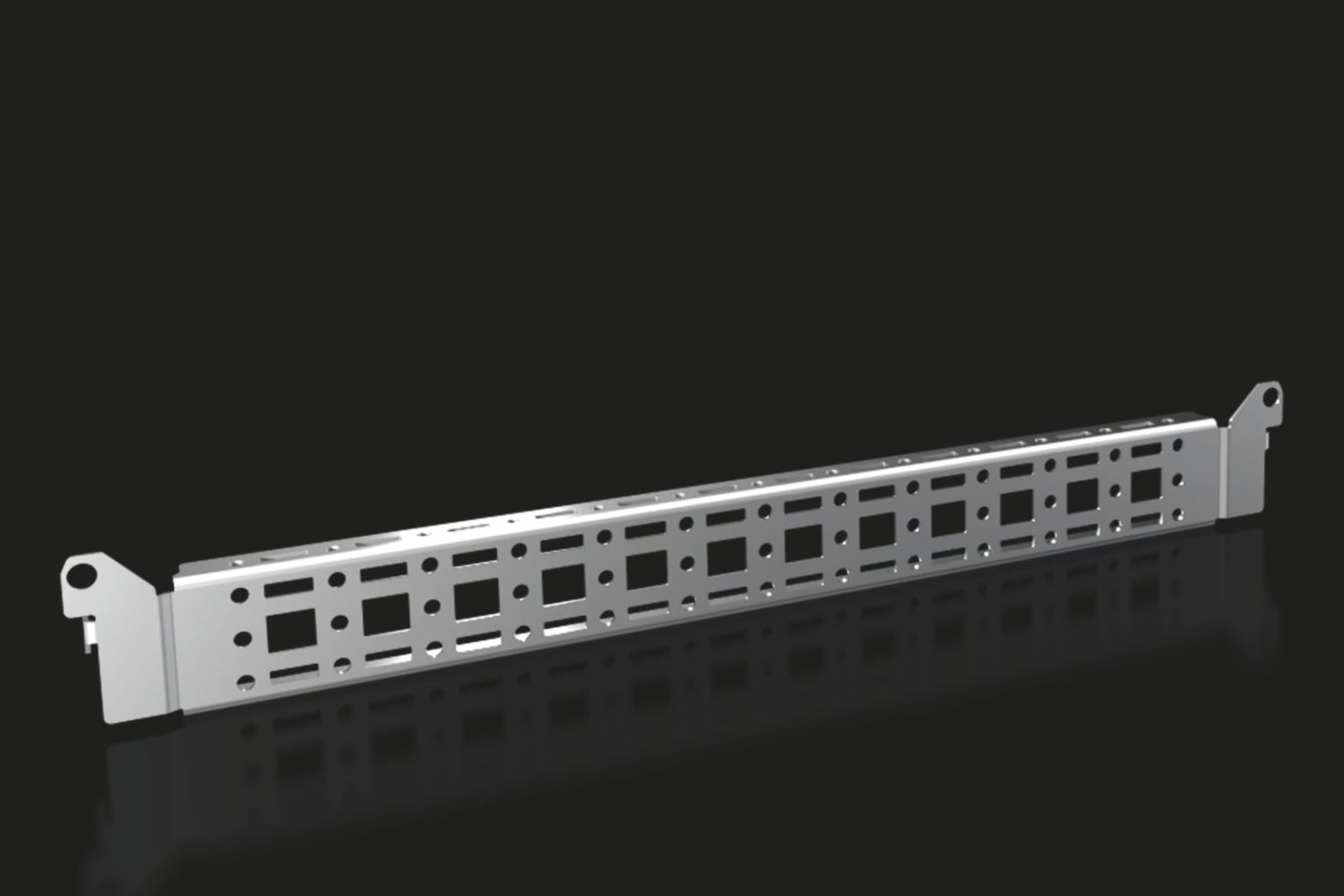

The system chassis is a perforated profile serving as a carrier for additional components within the enclosure. The dimensions of 14 x 39 mm define the cross-sectional shape, suitable for mounting standard components such as cable ducts or holders. The galvanized surface protects the steel sheet from moisture and oxidation, which is particularly important in humid or industrial environments. Mounting is done via pre-drilled holes spaced 375 mm apart, allowing flexible and even load distribution.
Compatibility and Accessories
The chassis is compatible with various Rittal housing types, particularly VX, VX SE, TP, AX, AX plastic, wall-mounted enclosures AX, 3-piece systems, stand consoles CX, and console systems CX. For AX housings, the AX internal mounting rail must be used to securely mount the chassis. For mounting custom components to the chassis, sheet metal screws or thread-forming screws M5 are required. Use in combination with other Rittal system components enables modular and flexible enclosure equipment.
Mounting and Installation

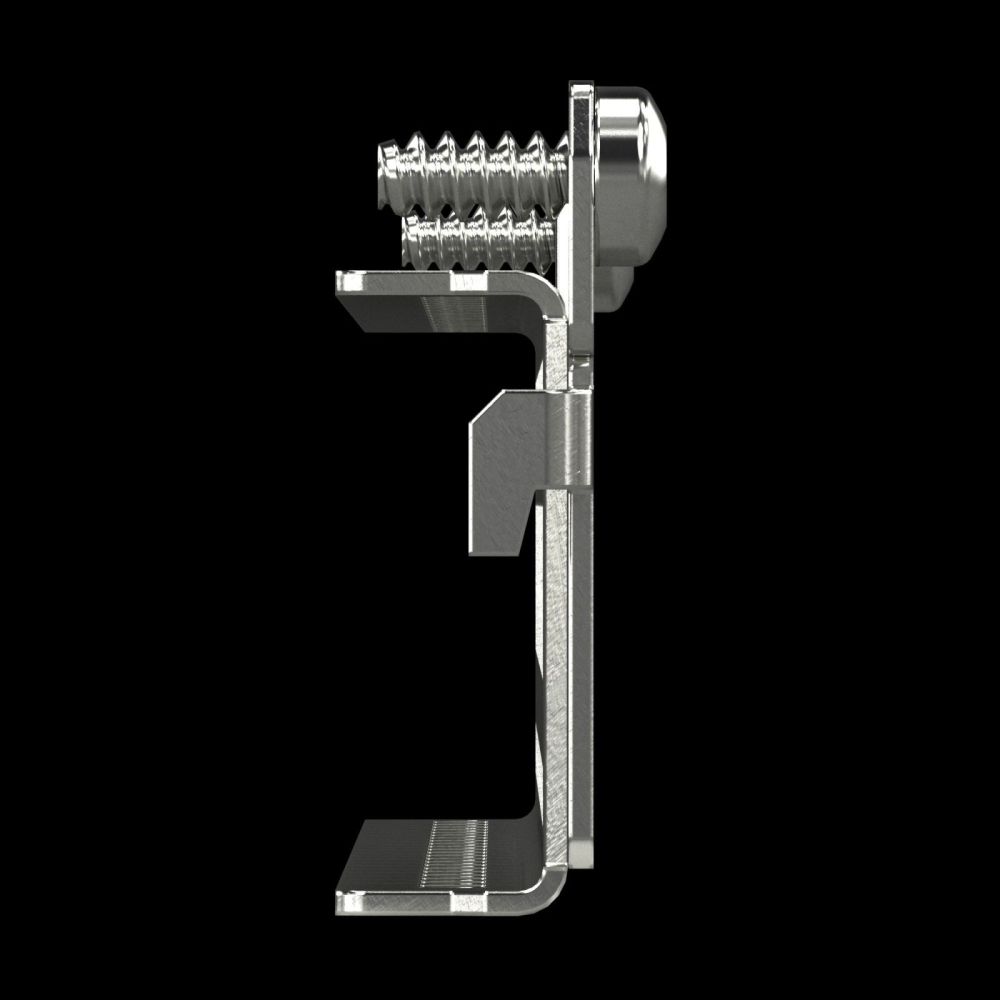

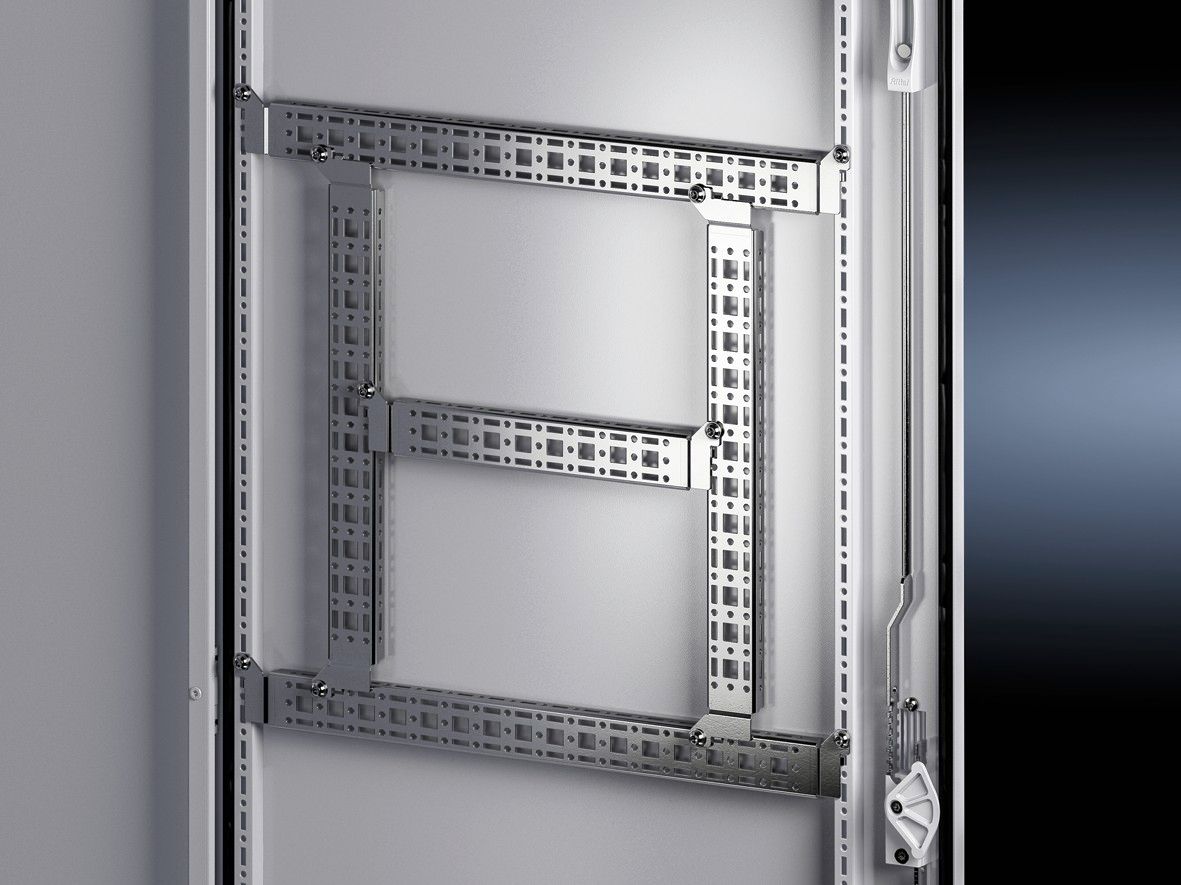

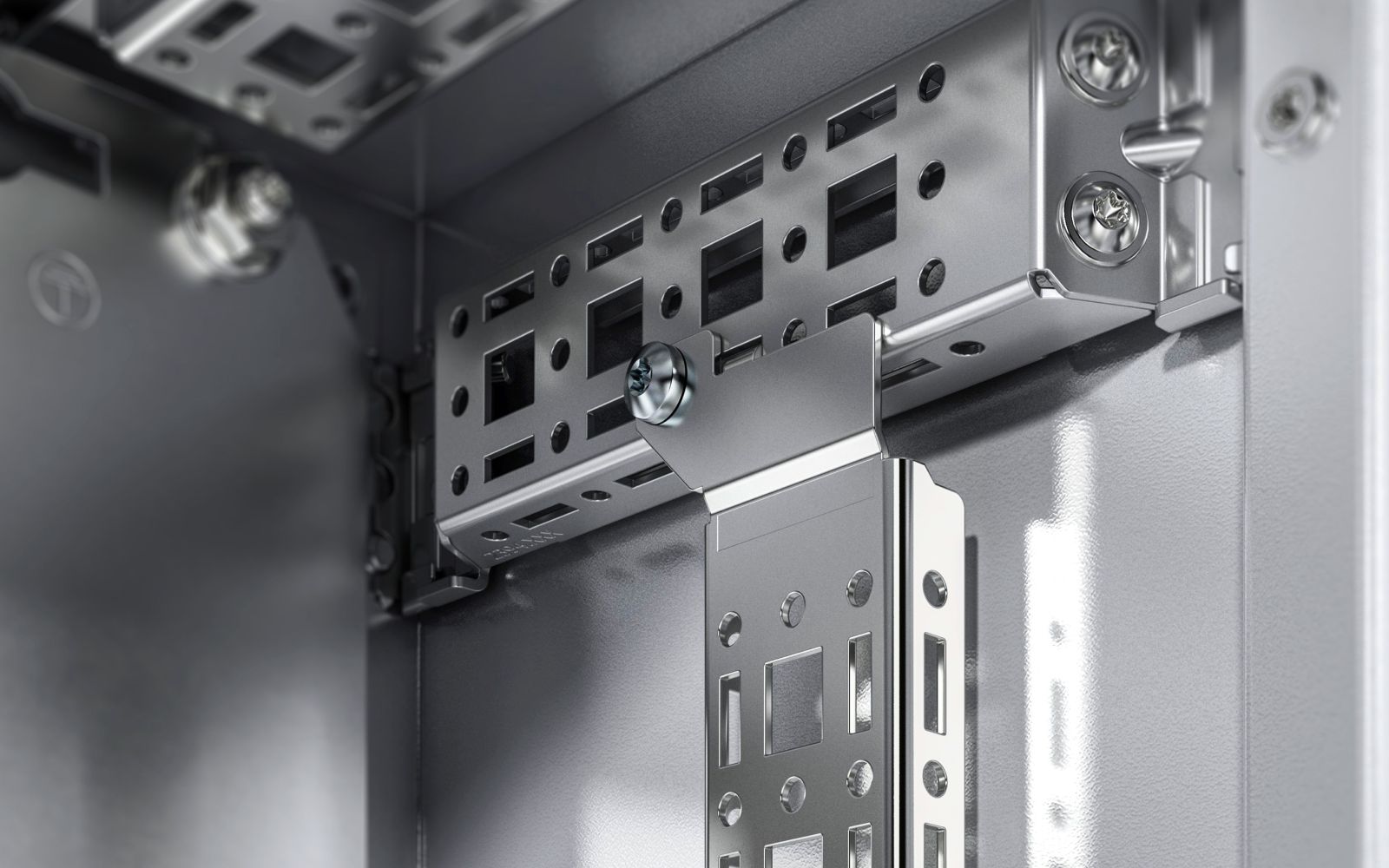

Mounting is done at the designated mounting points using the included mounting hardware. For AX steel sheet housings, the AX internal mounting rail must be used to securely fasten the chassis. The installation orientation depends on the specific housing type and dimensions, such as door width, housing height, or depth. Installation is simple and requires no special tools other than a screwdriver or screw clamp.
Operational Advantages
The system chassis provides a stable and secure mounting option for various components within the enclosure. Its modular design allows flexible adaptation to different requirements. The galvanized surface ensures long service life even in demanding environments. Delivery with mounting hardware included reduces installation time and effort for the user. Compatibility with various Rittal systems facilitates integration into existing enclosure configurations.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Distance between mounting points | 375 mm |
| Suitable for door width | 500 mm |
| Mounting options VX | In door width 500 mm |
| Mounting options VX SE | In door width 500 mm |
| Mounting options AX | in housing width 400 mm and housing height 500 mm, in combination with the rail for internal installation AX, in housing width 1000 mm in door |
| Mounting options AX stainless steel | In enclosure height 500 mm, in enclosure width 400 mm |
| Mounting options AX plastic | In door width 500 mm |
| Installation options AX 3-piece | In housing depth 573 mm |
| Mounting options CX | In console top section and console middle section, depth installation in conjunction with CX mounting rail, in console bottom section with housing depth 500 mm, in door width 500 mm |
| Mounting options TP | In console top sections for 3-part construction in cabinet width 600 mm, in combination with the rail for internal installation TP, compact control cabinet HD |
| Mounting note | For installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX |
| Note | For expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required |
| Suitable for | Housing type: VX, VX SE, TP, AX, AX plastic, wall-mounted housing AX, 3-piece, stand console CX, console system CX, suitable for width or height or depth: 500 mm |
| PCF/VE (Cradle-to-Gate) | 6,17 |
