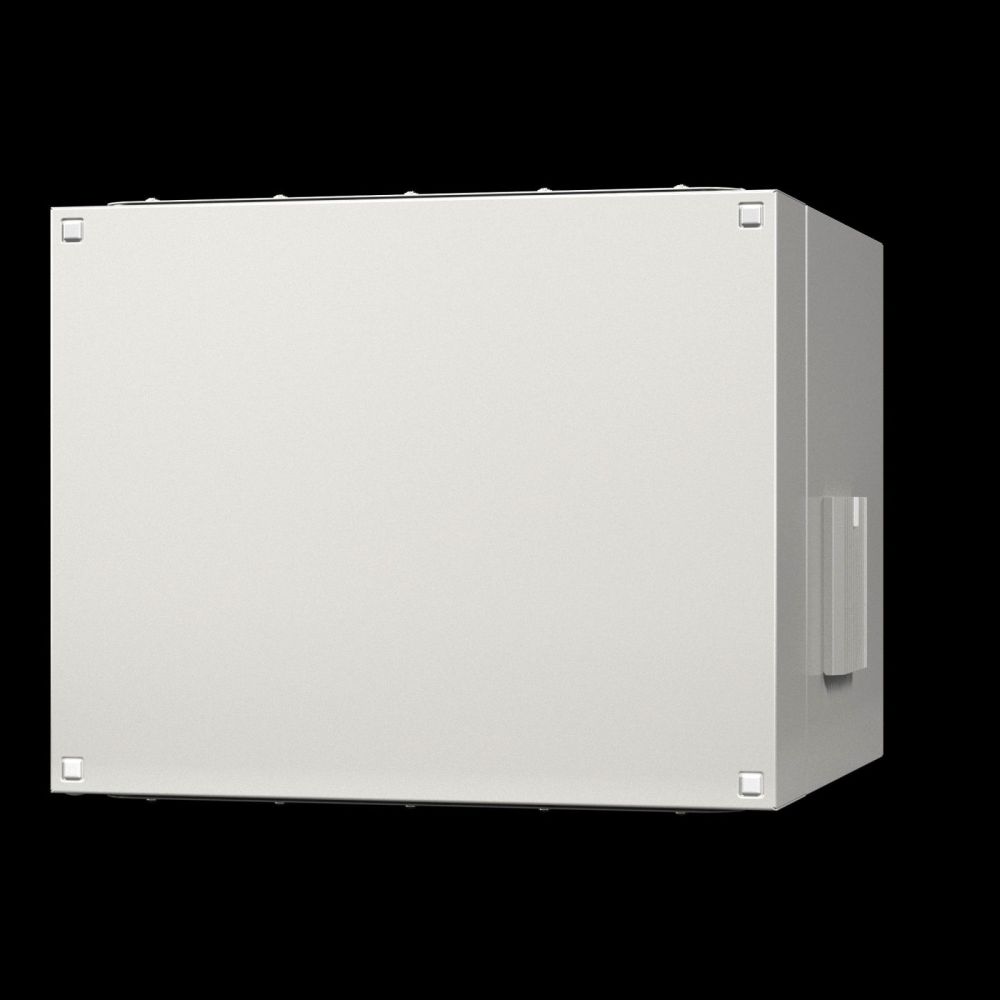

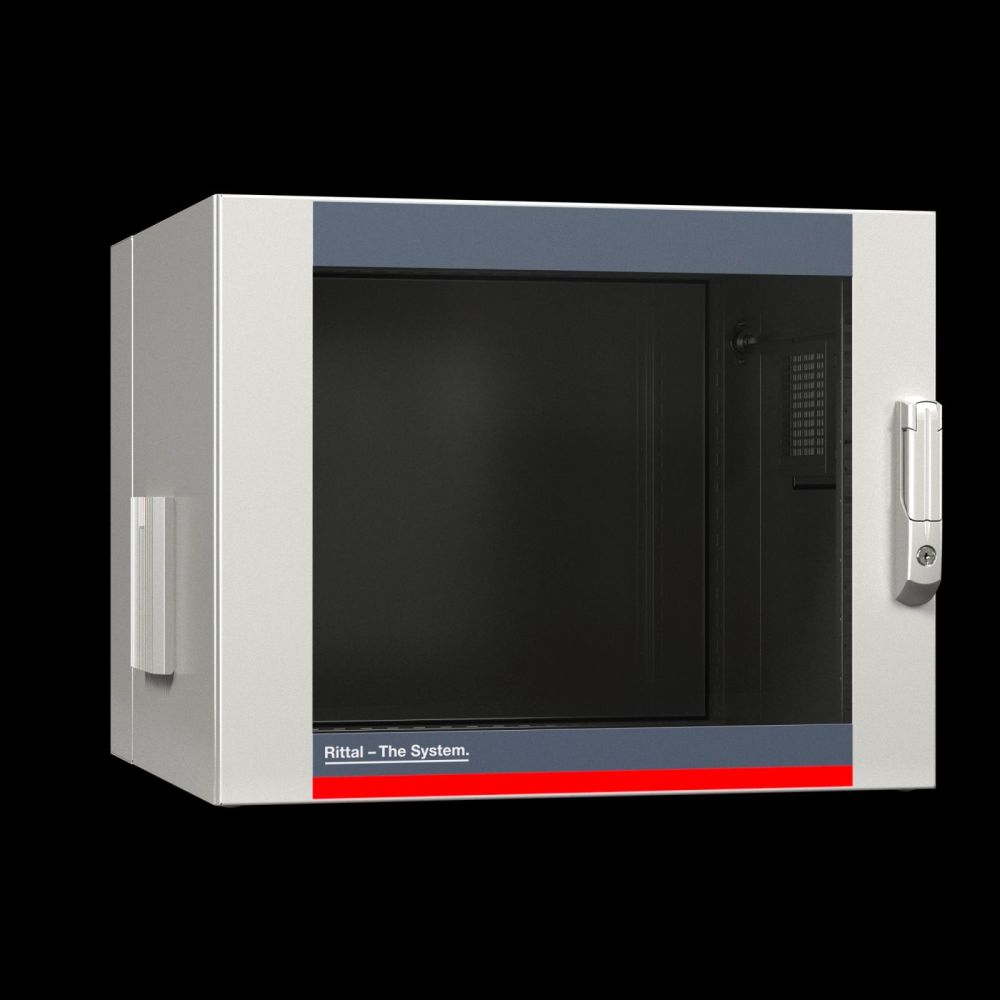

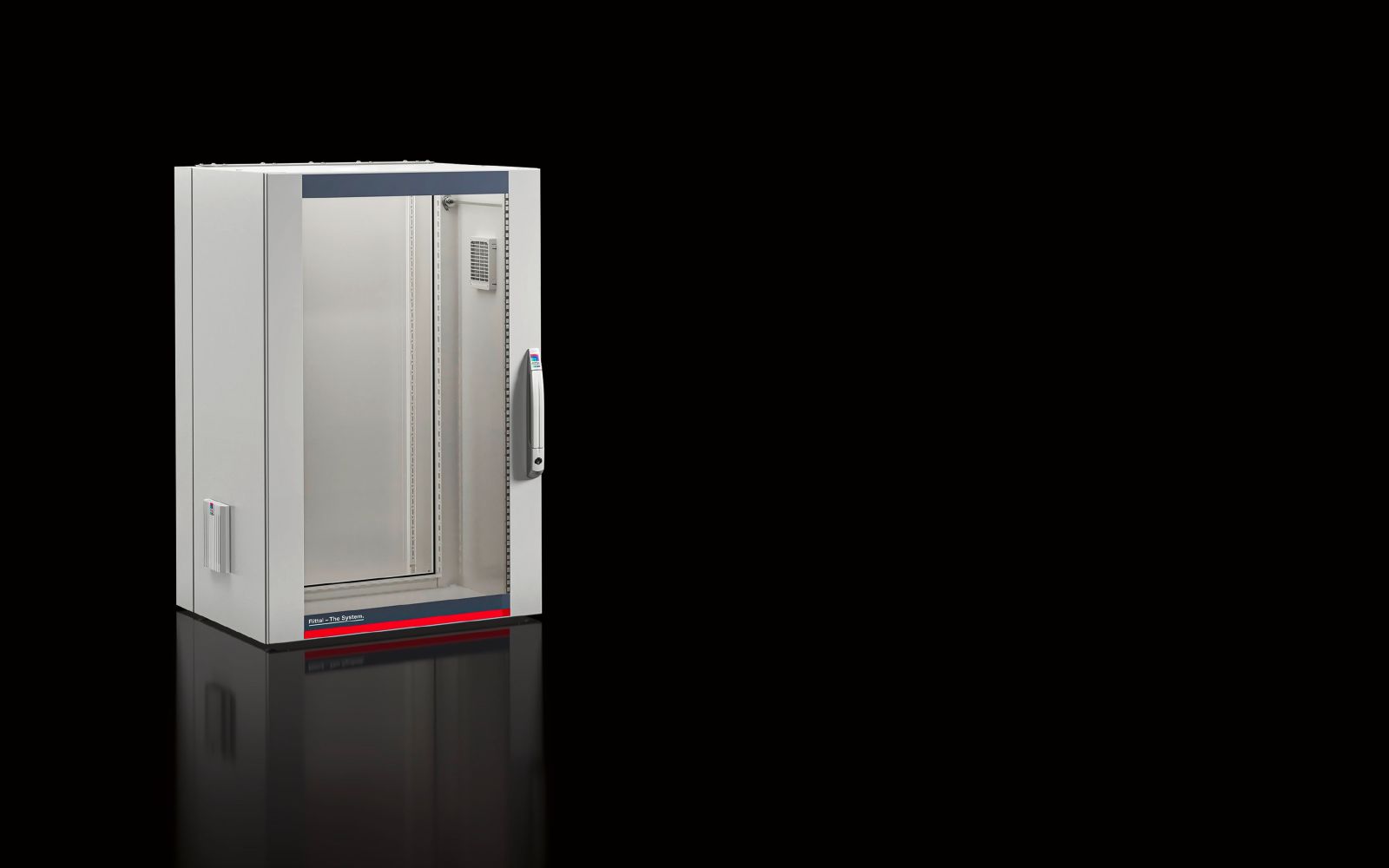

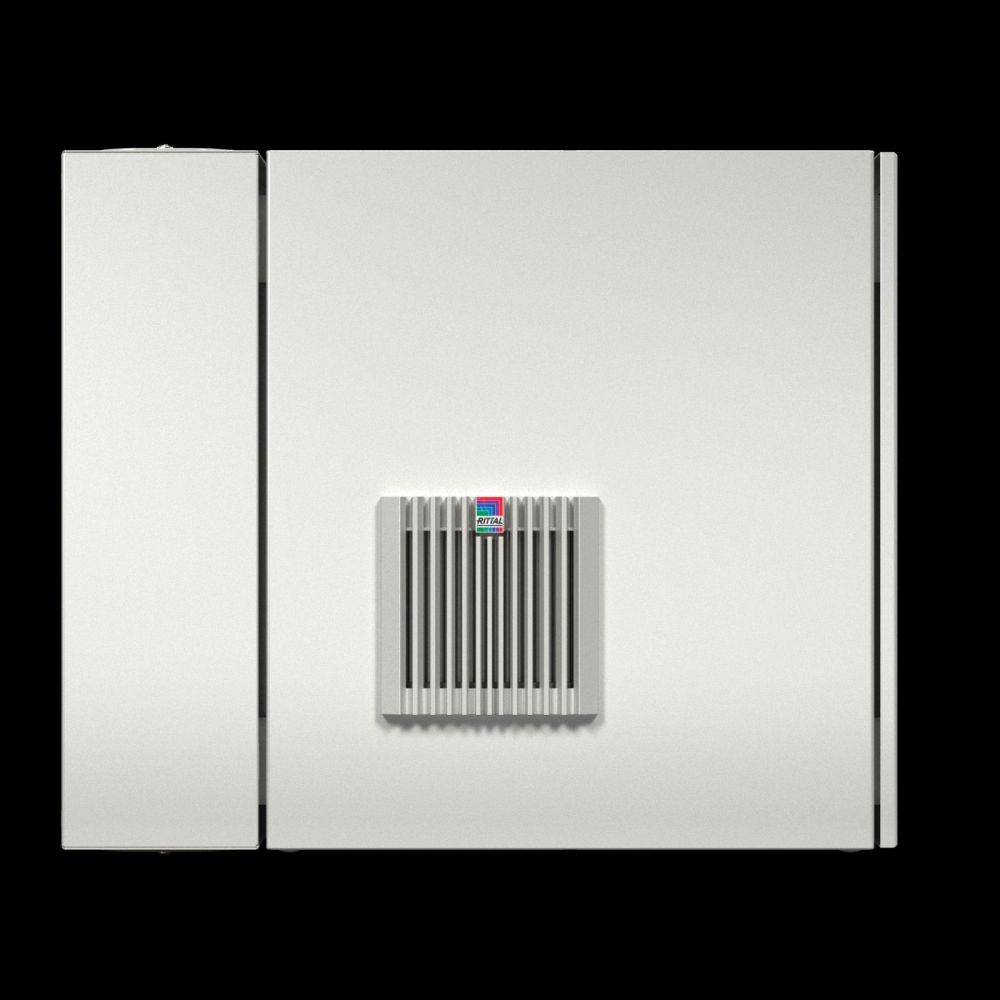

Rittal 2262155 AX AX wall-mounted enclosure 3-piece 21 U cutout

Your rating:
Average rating
product review for Rittal 2262155 AX AX wall-mounted enclosure 3-piece 21 U cutout
( 4.4 / 5 ) 5 ratings
Rittal 2262155
This image may differ from the desired article.
Rittal 2262155Rittal 2262155Rittal 2262155Rittal 2262155Rittal 2262155
-6% 822,25 EUR 871,59 EUR
( 978,48 EUR incl. VAT )
≈ £688.22  |  ≈ $903.65
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 2262155 AX AX wall-mounted enclosure 3-piece 21 U cutout
Datasheet:file_download Download
Lieske Part No.:1572155
Mfg Part No: 2262155
UPC/EAN: 4028177994058
Weight:57 kg
Type:AX2262155

Product information for Rittal 2262155:

The Rittal AX2262155 is a three-piece wall-mounted enclosure of the IT series, designed for use in industrial and technical installations where secure and accessible mounting of devices on the wall is required. The enclosure consists of a wall section, a swing section, and a design viewing door, ensuring flexible and secure access to installed components. The wall-mounted enclosure IT design enables integration into existing IT infrastructures and provides a stable platform for network and control technology. Dimensions are 600 mm width, 1,012 mm height, and 573 mm depth, with an installation depth of 520 mm. The enclosure features 21 height units (U), providing sufficient mounting space for standard 48,3 cm ( 19 inch ) devices.

Applications
This enclosure is designed for indoor use, particularly in areas requiring high mechanical strength and protection against dust and splashing water. The IP 54 protection rating, achieved with closed gland plates at top and bottom, protects against dust and splashing water, making it suitable for environments with increased contamination risk. The IK08 rating ensures mechanical strength, protecting against impacts and vibrations up to 750 N on the swing section and 250 N on the wall section. These properties make the enclosure suitable for use in production halls, administrative buildings, or technical rooms where a robust and aesthetically pleasing solution is required.

Functions and Equipment in Detail

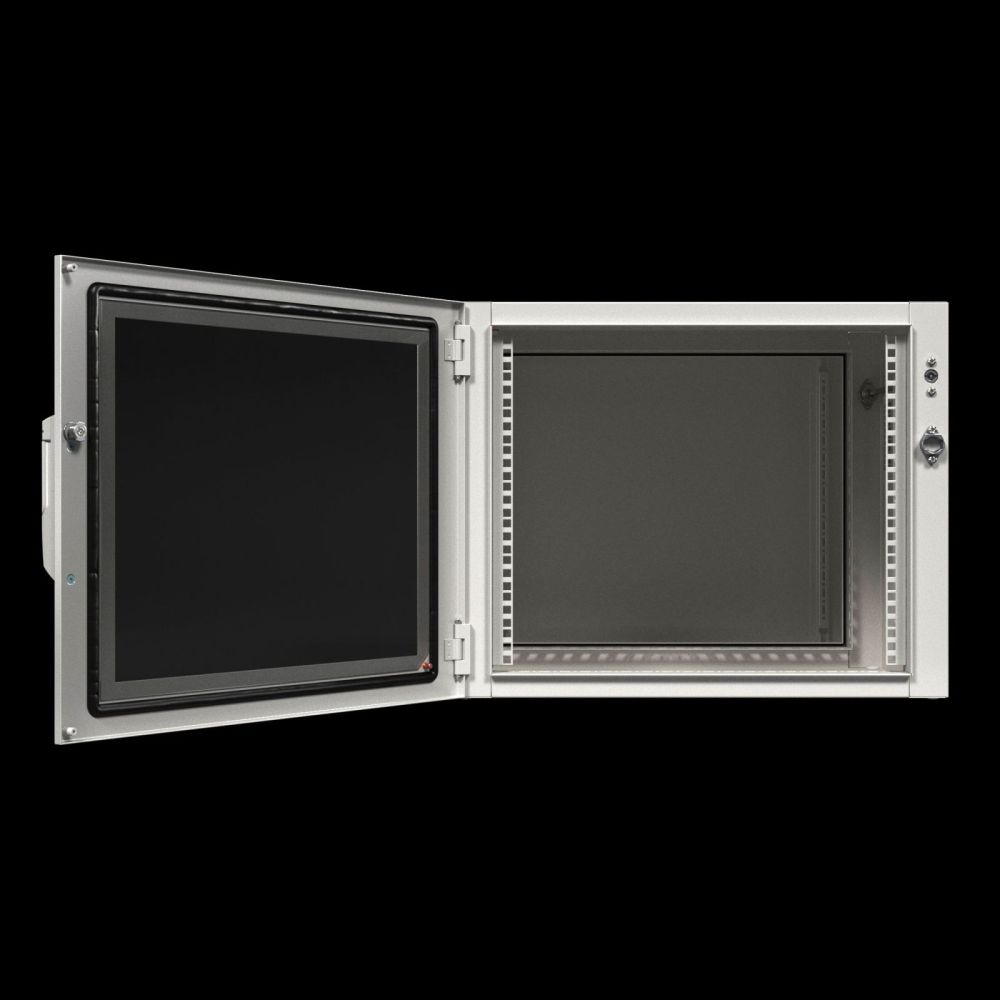

The swing section is equipped with a 25 mm hole grid in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are integrated in the front of the swing section to securely fasten standard IT devices. The design viewing door made of single-pane safety glass (3 mm) ensures clear visibility of installed components without compromising safety. The door is fitted with a safety locking mechanism 3524 E, featuring a 2-point locking system and a comfort handle to facilitate access. The center section is secured with a 3 mm double bar, providing additional protection. Two Blue e+ outlet filters (3238.300) are supplied loose and serve to purify the air inside the enclosure.

Technology Explained Simply
The construction from sheet steel (1.5 mm) ensures high mechanical stability. The surface is powder-coated, providing high corrosion resistance and uniform coloration in RAL 7035 (slate gray) for the wall and swing sections, and RAL 7035/7015 for the viewing door. The clear width is 502 mm and the clear height is 951 mm, providing sufficient space for device mounting. The depth of the swing section is 416 mm, while the wall section has a depth of 135 mm. The static load capacity of the swing section is 750 N, and that of the wall section is 250 N, enabling the mounting of heavier devices.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be expanded with various accessories. These include 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, mounting brackets, component shelves, C-profile rails, fan extension kits, IT system lights, VX system chassis, as well as wall mounting holders and mounting plates for terminal boxes. These components allow individual adaptation to specific requirements, such as additional cooling, earthing, or integration of control systems.

Mounting and Installation
Installation is carried out on a wall, with the wall section secured using closed gland plates at top and bottom. The swing door can be opened after installation to insert devices. The designated mounting points and hole grid facilitate installation. The installation depth of 520 mm must be considered during wall mounting planning to ensure secure and stable fastening.

Advantages in Operation
The three-piece design enables easy access to devices without having to open the entire enclosure. The safety locking mechanism and 2-point locking system provide high protection against unauthorized access. The integrated outlet filters ensure clean air circulation inside. The robust construction and high mechanical strength ensure long service life and low maintenance costs. Compatibility with the AX/VX system kit allows flexible expansion and adaptation to future requirements.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking mechanism for design vision door: safety lock 3524 E, locking mechanism for middle section: 3 mm double bar, 2 Blue e+ exit filters 3238.300 (supplied loose), comfort handle for locking inserts and 2-point locking
Height units21 HE
Width600 mm
Height1.012 mm
Depth573 mm
Built-in depth520 mm
Light dimensionsClear width: 502 mm, clear height: 951 mm
Depth of swivel part416 mm
Depth of wall part135 mm
Number of locks1
IK codeIK08
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking type: comfort handle and 2-point locking, lock insert: security insert lock No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2262155, EAN: 4028177994058
