Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm

Your rating:
Average rating
product review for Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm
( 0 / 5 ) 0 ratings

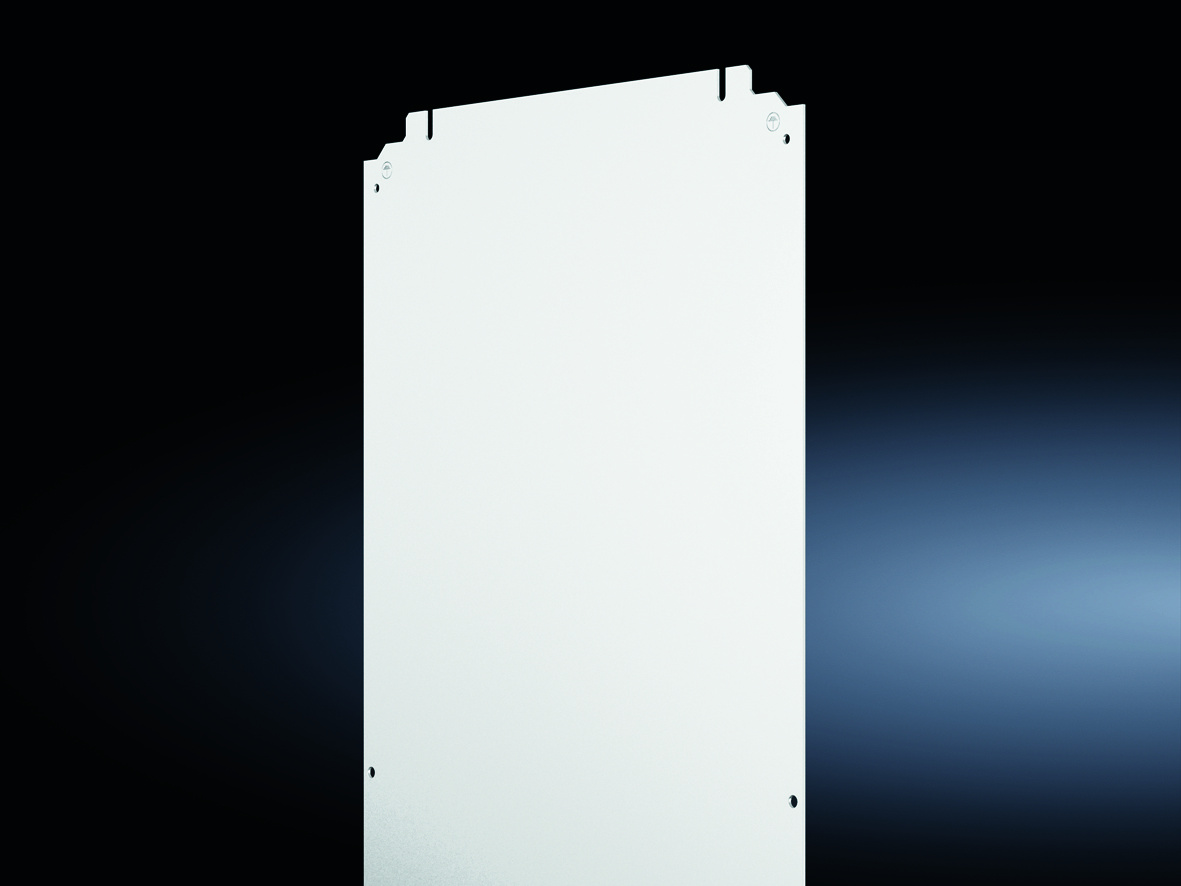

Rittal 1562100
This image may differ from the desired article.
Rittal 1562100Rittal 1562100
49,51 EUR 51,72 EUR
( 58,92 EUR incl. VAT )
≈ £41.44  |  ≈ $54.41
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm
Datasheet:file_download Download
Lieske Part No.:895239
Mfg Part No: 1562100
UPC/EAN: 4069196010503
Weight:7.32 kg
Type:AX 1562100

Product information for Rittal 1562100:

The mounting plate AX 1562100 from Rittal is a system accessory for wall-mounted enclosures of the AX series, specifically designed for 3-piece enclosure configurations. It is used for mounting components, switches, indicators, or other electrical parts directly on the outside of the enclosure, enabling efficient and accessible installation outside the control cabinet. The plate is made of steel sheet with a thickness of 2 mm and features a zinc-coated surface, providing corrosion protection. Its dimensions are 485 mm in width and 975 mm in height, making it suitable for wall-mounted enclosures with a minimum width of 600 mm and a minimum height of 1,012 mm. The mounting plate is supplied in a packaging unit of one piece.

Applications

The mounting plate is primarily designed for industrial applications where quick and secure mounting of control or operating elements outside the enclosure is required. It is suitable, for example, for installing control panels, indicators, switches, or connectors in production plants, automation systems, or distribution enclosures. Mounting components outside the enclosure reduces internal space requirements and improves accessibility for the operator.

Functions and Equipment in Detail

The plate enables secure mounting of components on the outside of the wall-mounted enclosure. Mounting is achieved using pre-drilled holes that correspond to the mounting points of the enclosure. The delivery includes mounting screws necessary for attaching the plate to the enclosure. The zinc-coated surface provides enhanced resistance to environmental influences, especially in damp or slightly corrosive environments. The material thickness of 2 mm ensures sufficient stability to safely support mounted components.

Technology Explained Simply

The mounting plate consists of a flat, rectangular sheet of steel, which receives a protective layer against oxidation through zinc coating. The precise fit for 3-piece AX wall-mounted enclosures is ensured by the specific dimensions of 485 mm width and 975 mm height. The plate is attached at the designated mounting points of the enclosure, with the included screws securing the connection. The use of steel sheet with a thickness of 2 mm provides sufficient strength to support even larger or heavier components without bending.

Compatibility and Accessories

The mounting plate is exclusively designed for wall-mounted enclosures of the AX series, 3-piece configuration. It is compatible with enclosures having a minimum width of 600 mm and a minimum height of 1,012 mm. Use with other enclosure types or sizes is not intended. The included mounting screws are specifically designed for installation on AX wall-mounted enclosures.

Mounting and Installation

Installation is carried out by attaching the plate to the designated mounting points of the wall-mounted enclosure. The included screws are inserted into the holes of the plate and into the corresponding mounting points of the enclosure. Fastening is done using an appropriate screwdriver or an electric screwdriver. The plate is designed to fit precisely into the designated positions, ensuring a secure and flush installation.

Operational Advantages

The mounting plate enables a clear separation between internal circuits and external operating elements. This improves clarity and simplifies maintenance and operation. Mounting components outside the enclosure reduces internal space requirements, which is particularly beneficial for complex circuits. The zinc-coated surface ensures longer service life, especially in environments with increased humidity or low corrosion exposure.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Width485 mm
Height975 mm
Suitable for housing typeWall-mounted housing AX, 3-piece
Suitable forCabinet type: Wall cabinet AX, 3-piece, Width: = 600 mm, Height: = 1,012 mm


Product data sheet
Datasheet for Rittal 1562100, EAN: 4069196010503

Questions & answers

What is the delivery time of Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm?

The article Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1562100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm always at the best possible price. We can give you a discount of 2% on Rittal 1562100 AX mounting plate for AX 3-piece W x H: 485 x 975 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
