Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U

Your rating:
Average rating
product review for Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U
( 4.4 / 5 ) 5 ratings

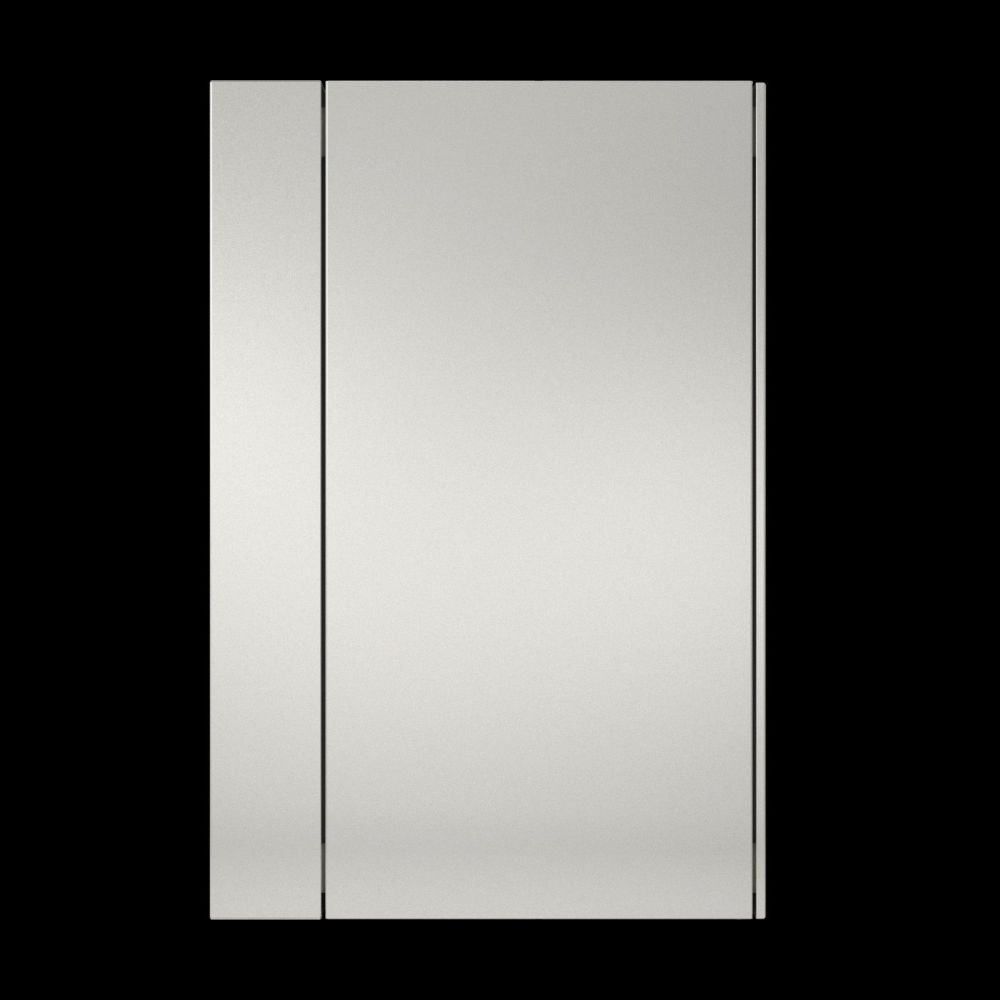

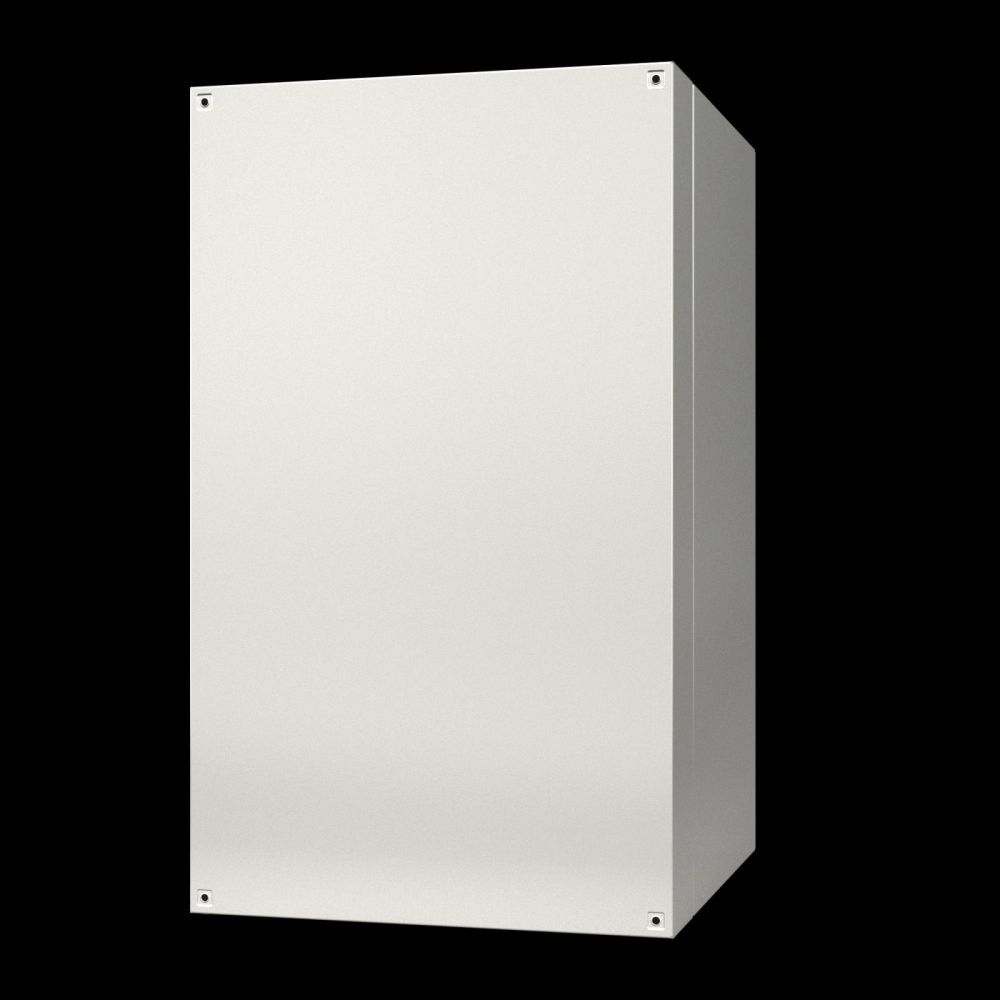

Rittal 2262140
This image may differ from the desired article.
Rittal 2262140Rittal 2262140Rittal 2262140Rittal 2262140
-6% 756,70 EUR 802,10 EUR
( 900,47 EUR incl. VAT )
≈ £633.36  |  ≈ $831.61
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U
Datasheet:file_download Download
Lieske Part No.:1567526
Mfg Part No: 2262140
UPC/EAN: 4028177983311
Weight:49 kg
Type:AX 2262140

Product information for Rittal 2262140:

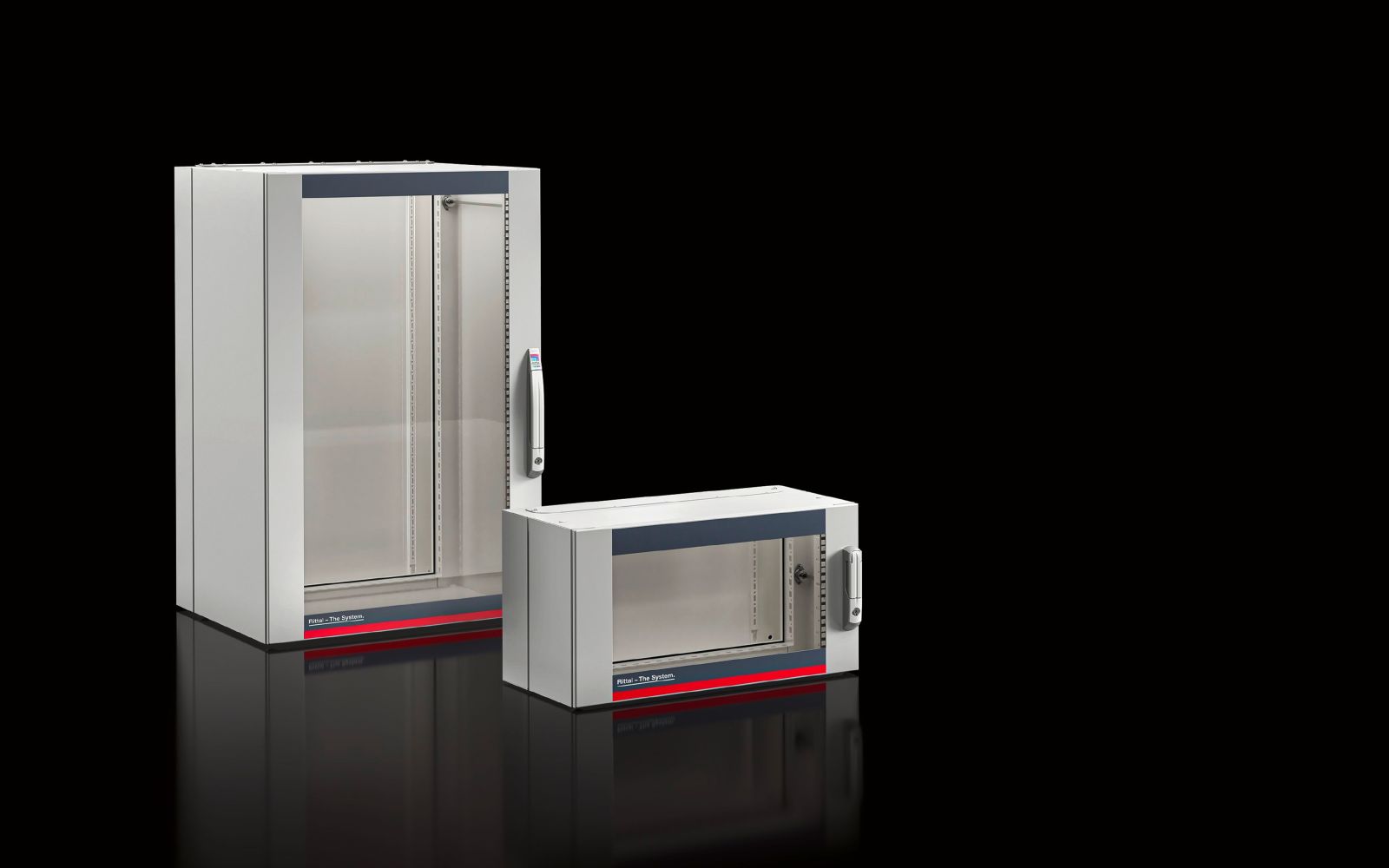

The Rittal AX 2262140 is a 3-piece wall-mounted enclosure of the IT series, designed for use in technical installations where flexible and secure wall mounting of network and control technology is required. The enclosure offers 21 height units (HE) and has overall dimensions of 600 mm width, 1012 mm height, and 473 mm depth. The three-piece construction consists of a wall section, a swing section, and a design viewing door, ensuring easy access to installed devices. The wall and swing sections are made of 1.5 mm thick steel sheet, powder-coated, with the colour RAL 7035 (slate grey). The viewing pane is made of 3 mm thick single-glazed safety glass and is finished in RAL 7035/7015.

Applications
This enclosure is suitable for use in IT and automation environments, particularly in rooms with limited space where wall mounting is advantageous. It is designed for indoor use, with protection class IP 54 combined with closed gland plates at the top and bottom providing dust and splash water protection. The construction is suitable for use in technical rooms, such as server or control rooms, where secure and accessible installation of devices is necessary.

Functions and Equipment in Detail
The swing section is equipped with a 25 mm hole pattern in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front, providing a secure mounting option for standard IT and electronic devices. The design viewing door features a safety locking mechanism type 3524 E, equipped with a comfort handle and a 2-point locking system. This construction ensures a secure closure that protects against unauthorised access. The door can be secured with a double-bar lock in the middle section.

Technology Explained Simply
The static load capacity of the swing section is 750 N, equivalent to a load of approximately 76.5 kg, while the wall section has a load capacity of 250 N (approx. 25.5 kg). The installation depth is 420 mm, allowing devices up to this depth to be securely mounted. The clear width is 502 mm and the clear height is 951 mm, defining the available space for device installation. The depth of the swing section is 316 mm, while the wall section has a depth of 135 mm. The gland plates on the wall section are closed at top and bottom, enabling protection class IP 54.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be extended with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, mounting brackets, and wall mounting holders. These components allow application-specific adaptation of the enclosure. Mounting plates for terminal boxes and bus enclosures are also compatible. The design viewing door can optionally be replaced with other locking variants, such as a comfort handle for half cylinder.

Mounting and Installation

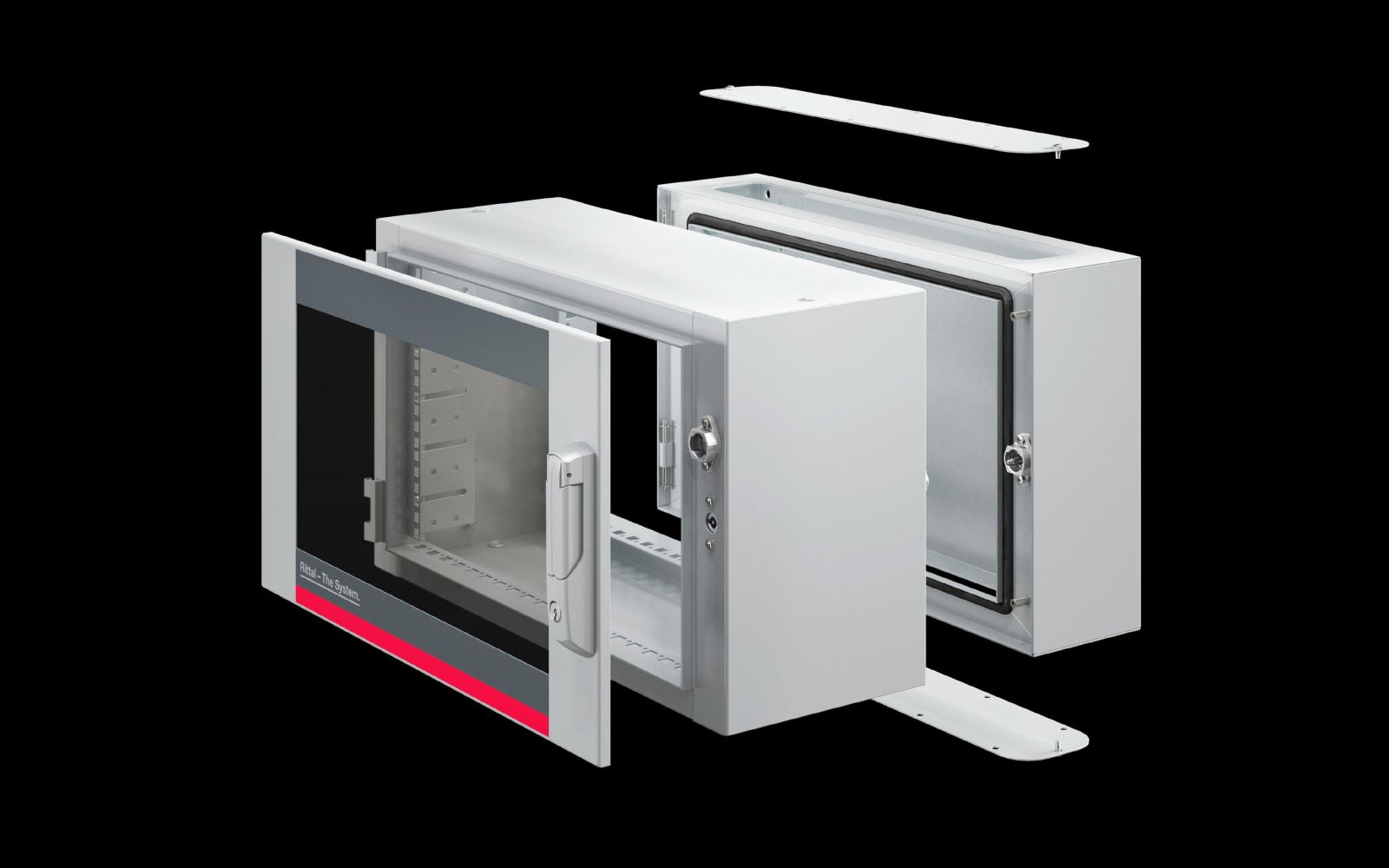

Installation is carried out on the wall using the pre-drilled holes in the wall section. The three-piece structure enables easy installation and maintenance, as the swing section can be folded forward. The pre-installed profile rails and hole pattern facilitate device mounting. The wall section gland plates are closed, ensuring protection class IP 54. The installation height and depth are designed to meet the requirements of most standard devices.

Operational Advantages
The enclosure offers high flexibility due to its modular design and compatibility with various accessories. The 2-point locking system and safety locking mechanism ensure a high protection standard. The powder-coated surface provides good corrosion resistance and an attractive visual appearance. The three-piece structure allows easy access to devices, simplifying maintenance and installation. Protection class IP 54 protects against dust and splash water, making it suitable for indoor use with increased contamination risk.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, lock middle section: 3 mm double bar, lock design vision door: safety lock 3524 E, comfort handle for lock inserts and 2-point locking
Height units21 HE
Width600 mm
Height1.012 mm
Depth473 mm
Built-in depth420 mm
Light dimensionsClear width: 502 mm, clear height: 951 mm
Depth of swivel part316 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking type: comfort handle and 2-point locking, lock insert: security insert lock No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2262140, EAN: 4028177983311

Questions & answers

What is the delivery time of Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U?

The article Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2262140 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U always at the best possible price. We can give you a discount of 2% on Rittal 2262140 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x473 mm 21 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
