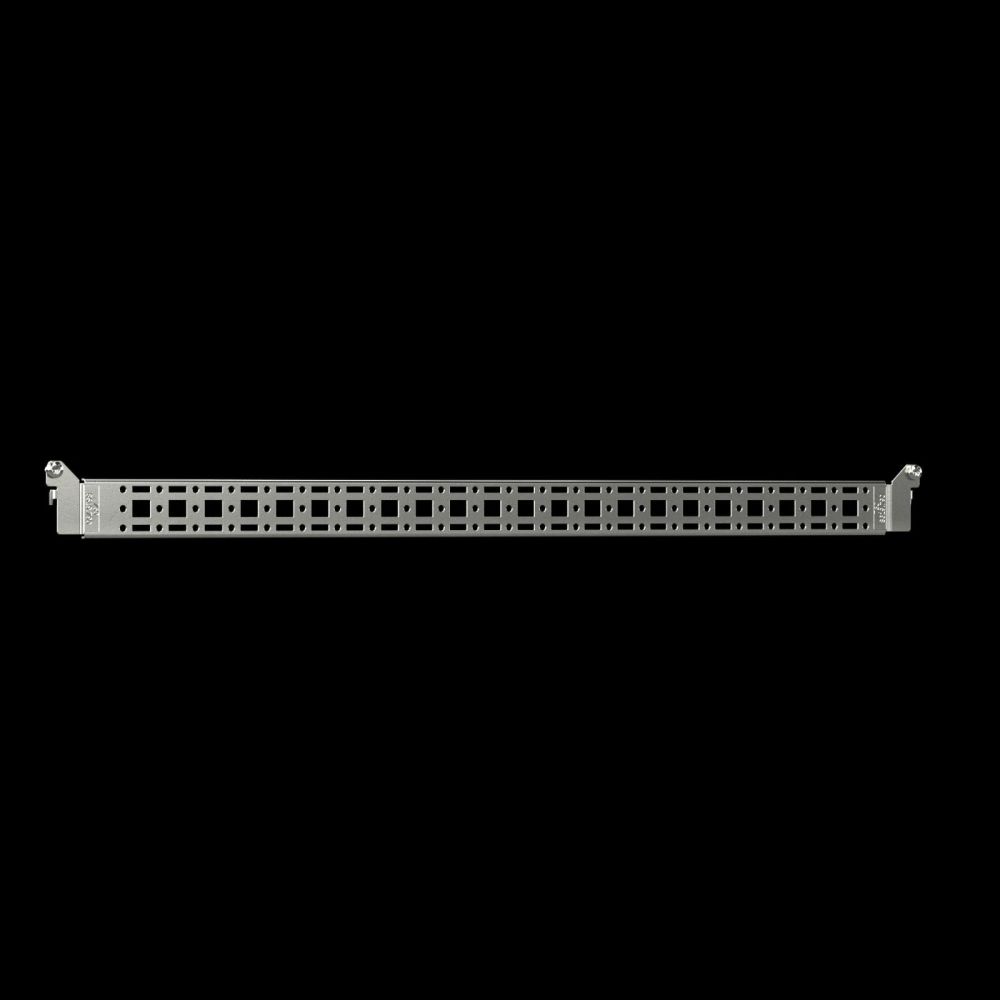

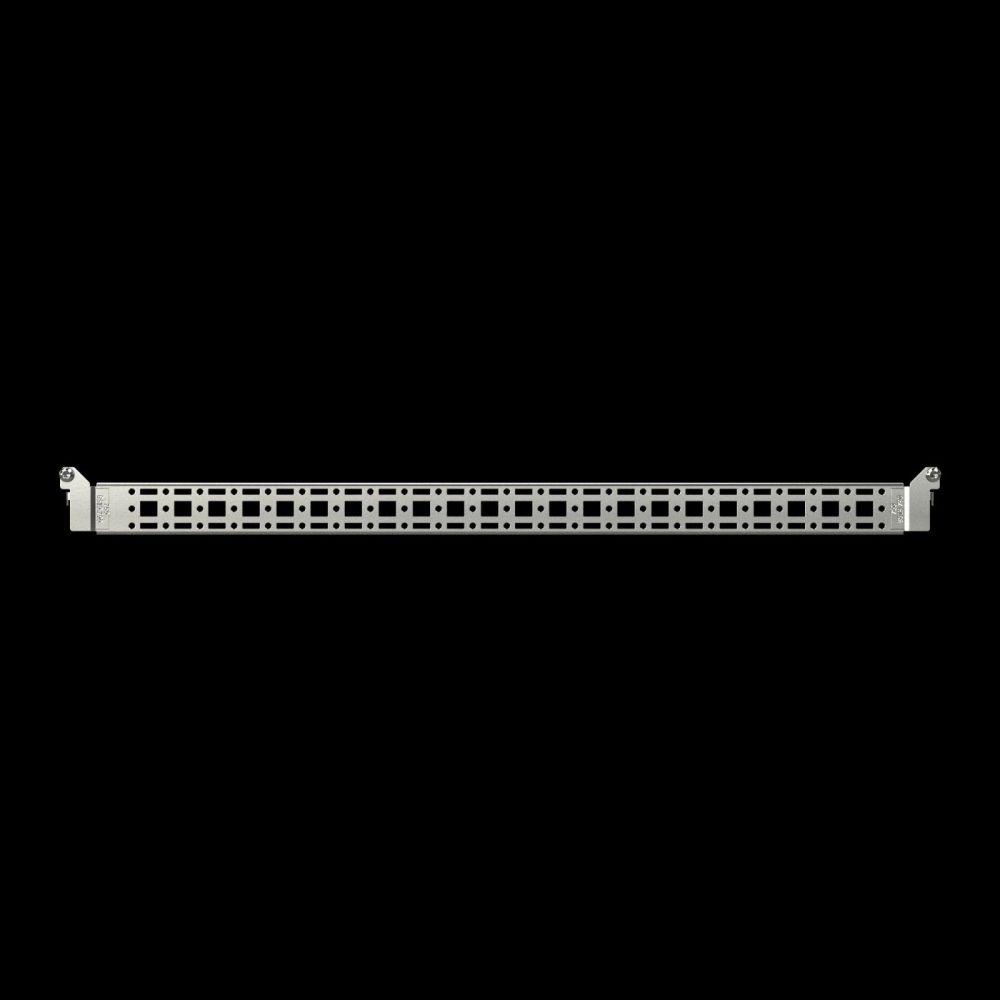

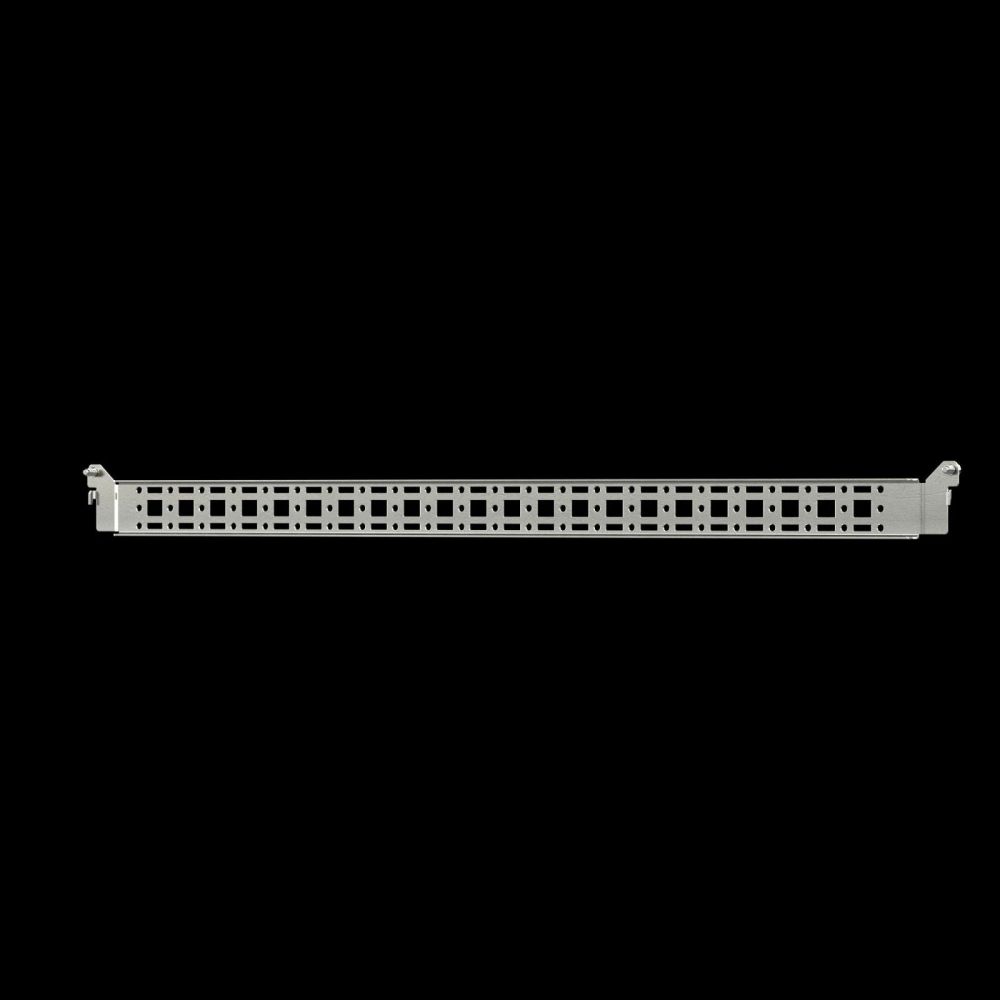

Rittal 8619700 VX system chassis 14 x 39 mm, door width: 400 mm
|
33,47 EUR |
|
|
( 39,83 EUR incl. VAT ) ≈ £28.01 | ≈ $36.78 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441166 |
| Mfg Part No: | 8619700 |
| UPC/EAN: | 4028177924659 |
| Weight: | 0.686 kg |
| Type: | VX 8619.700 |
Product information for Rittal 8619700:
Applications
This system chassis is suitable for a variety of housing types, including VX, AX, AX plastic, wall-mounted AX enclosures, 3-piece, console CX, and console base CX. Mounting options depend on the specific housing type: In VX enclosures, it is mounted in a door width of 400 mm. For AX enclosures made of sheet steel, mounting is possible in a housing width of 300 mm or a housing height of 400 mm, but only in conjunction with the AX internal mounting rail. For AX enclosures made of stainless steel, mounting is specified for a housing width of 300 mm, while AX plastic enclosures require a door width of 400 mm. In 3-piece AX enclosures, mounting is possible in a housing depth of 473 mm. In CX enclosures, the chassis can be installed in console bases or console sub-bases with a housing depth of 400 mm.
Functions and Equipment in Detail
The chassis features a structured surface with mounting points spaced 275 mm apart, enabling secure and even mounting of components. The galvanised surface provides good corrosion protection and is suitable for use in industrial environments. For installing custom components on the system chassis, sheet metal screws or thread-forming screws M5 are required.
Technology Explained Simply

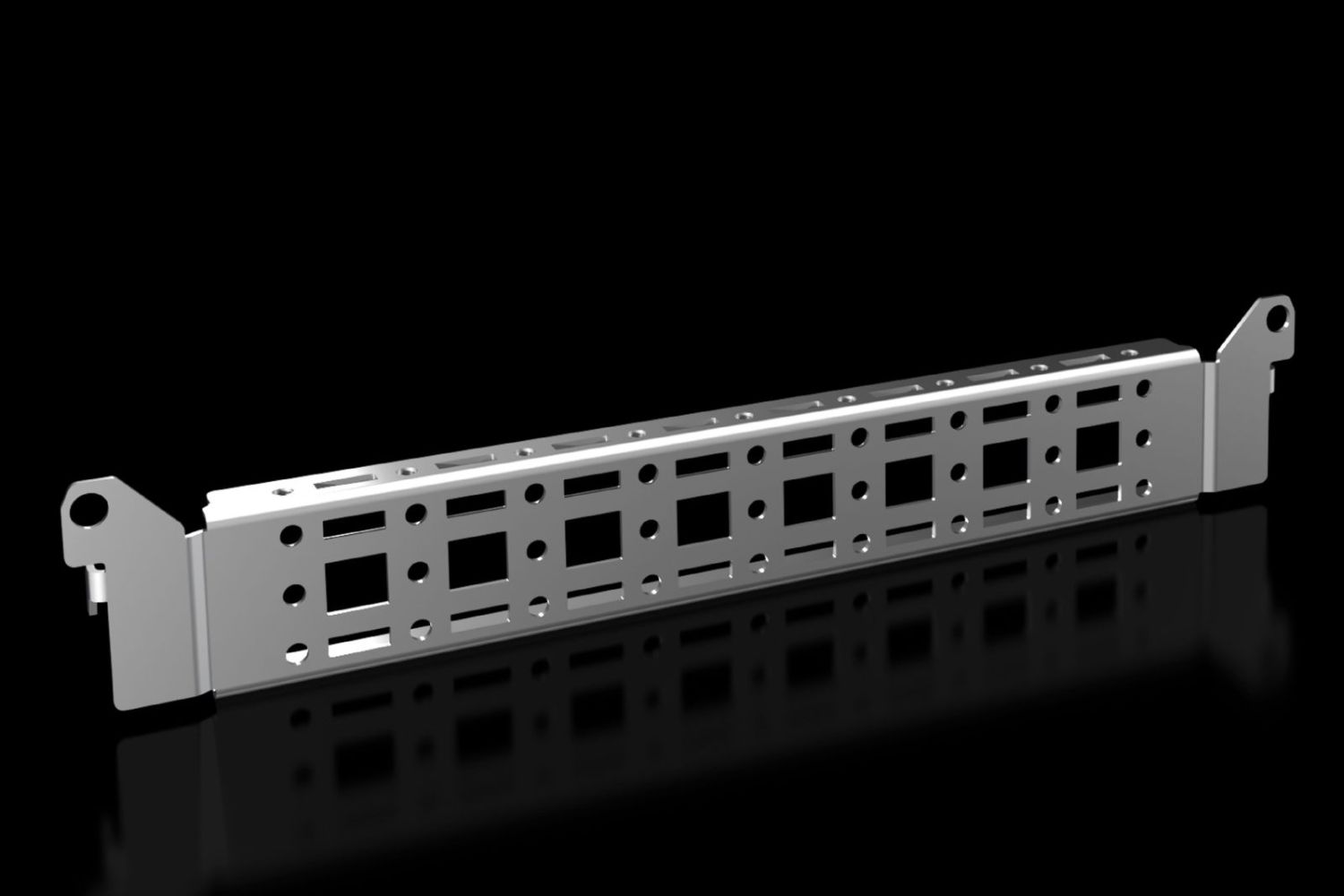

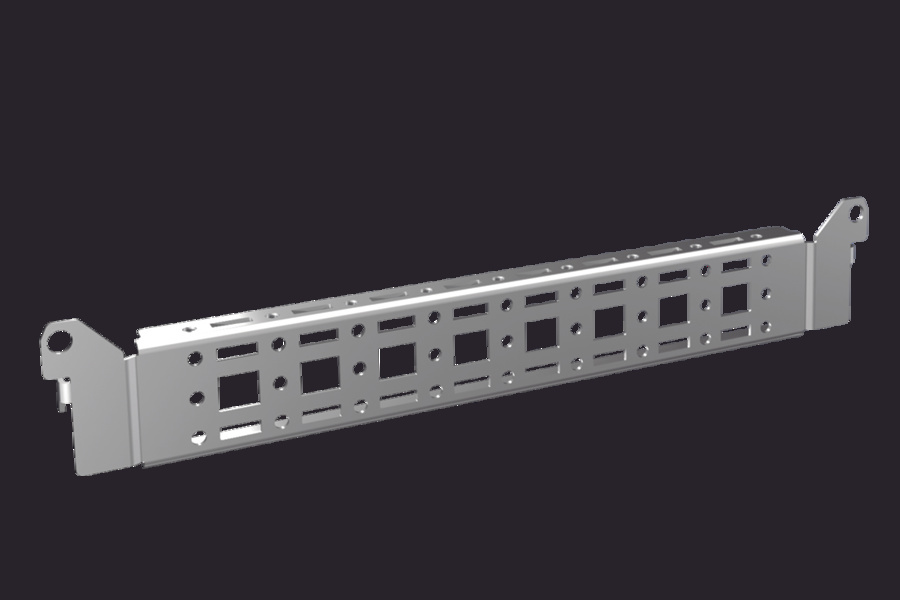

The system chassis is a perforated profile with a mounting flange, serving as a carrier for various insert components. The dimensions 14 x 39 mm refer to the cross-sectional dimensions of the profile, where 14 mm is the height and 39 mm is the width. The galvanised surface protects the sheet steel from corrosion and increases the product’s service life. Mounting is carried out via the predefined mounting points, spaced 275 mm apart, to ensure stable fastening.
Compatibility and Accessories
The chassis is compatible with various Rittal housing types, particularly VX, AX, AX plastic, wall-mounted AX enclosures, 3-piece, console CX, and console base CX. Mounting in AX sheet steel enclosures requires the use of the AX internal mounting rail. The chassis is specifically designed for installation in housings with a width, height, or depth of 400 mm. It can be combined with cable ducts, cable conduit holders, and other door inserts to ensure structured and secure cabling.
Mounting and Installation

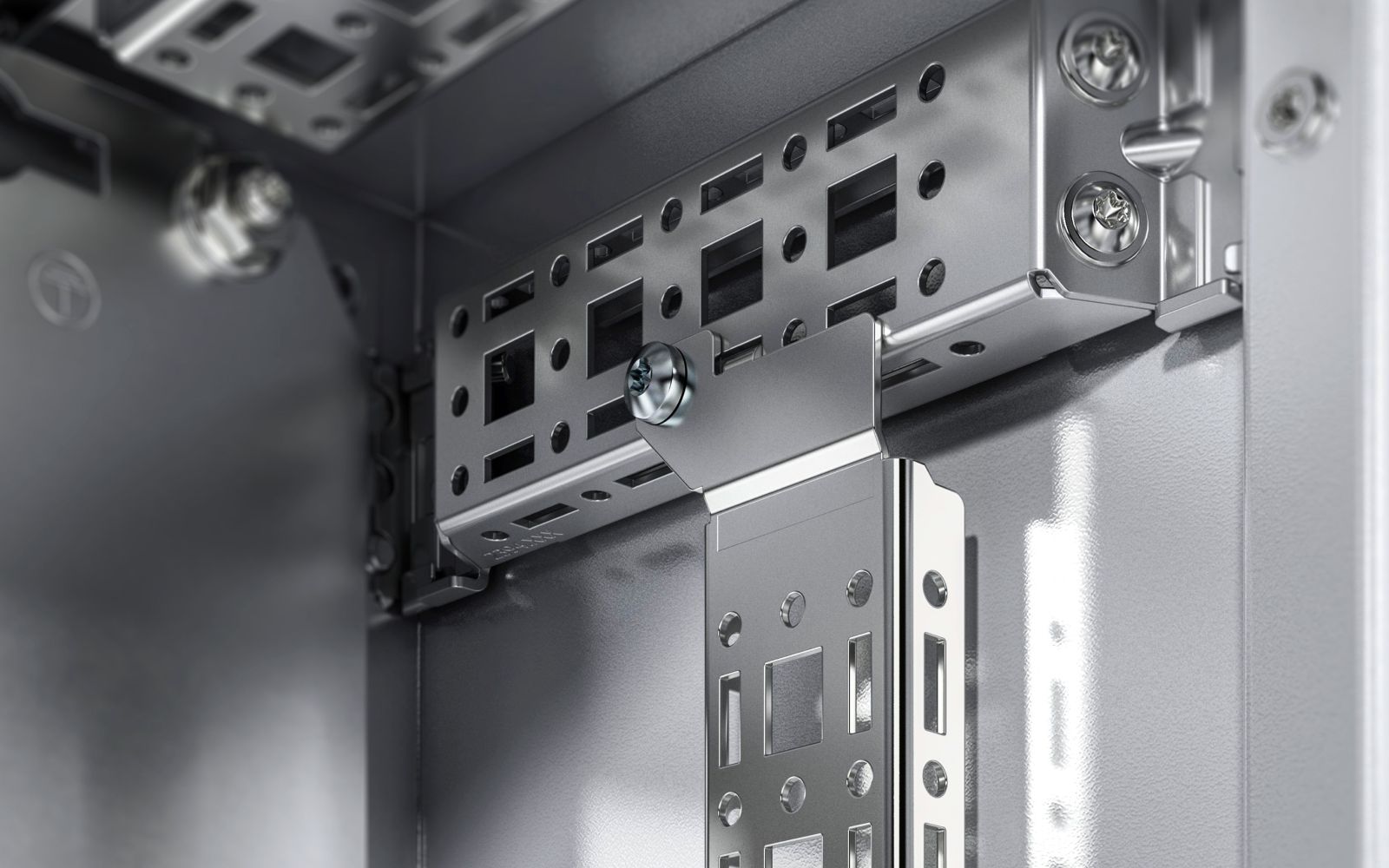

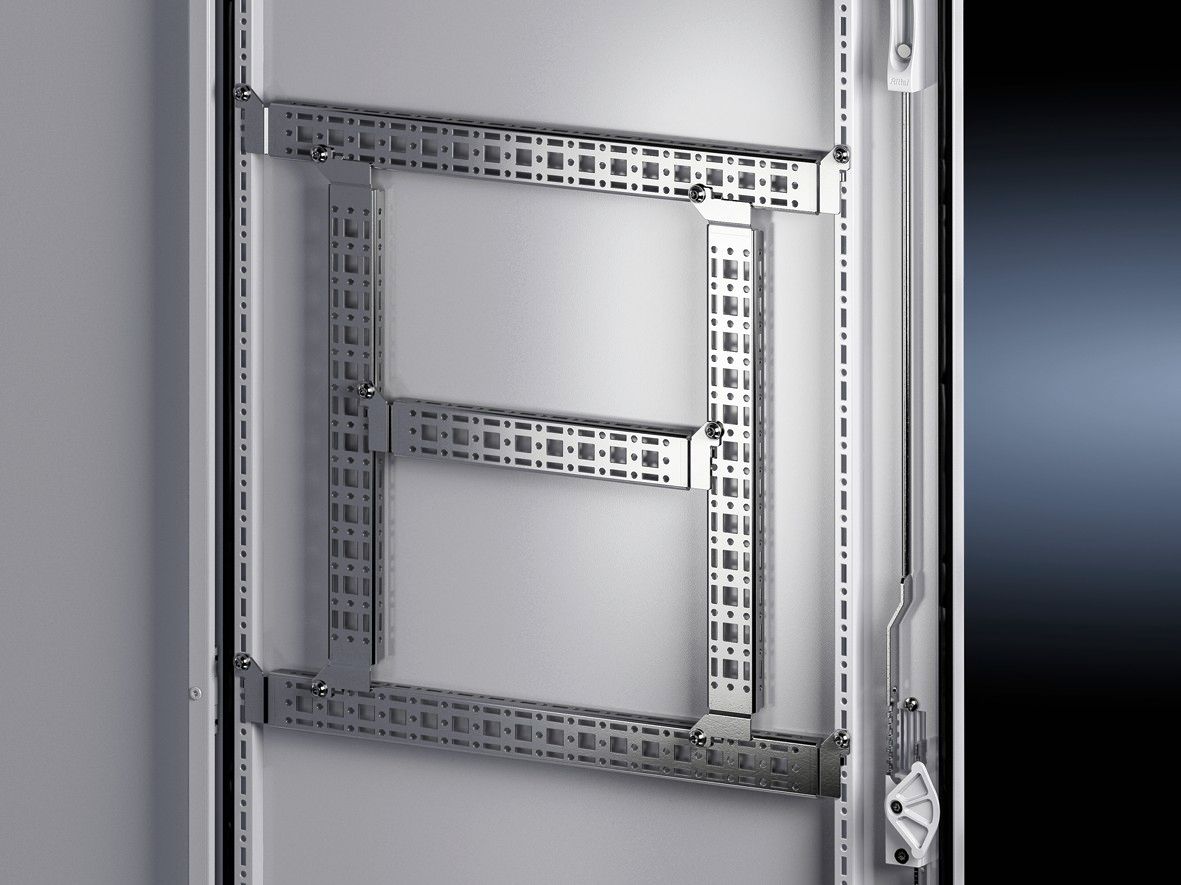

Mounting is carried out in the specified dimensions of the respective housing types. For AX sheet steel enclosures, the use of the AX internal mounting rail is required. Fastening is done via the predefined mounting points using the included mounting hardware. For installing custom components on the chassis, sheet metal screws or thread-forming screws M5 are necessary.
Operational Advantages
The system chassis provides a stable and secure mounting option for various components within enclosures and housings. The galvanised surface ensures high corrosion resistance, extending the product’s service life. The predefined mounting points spaced 275 mm apart allow for even and secure fastening. Compatibility with various housing types increases flexibility in planning and installing enclosures. The included mounting hardware reduces installation effort and enables quick mounting.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |

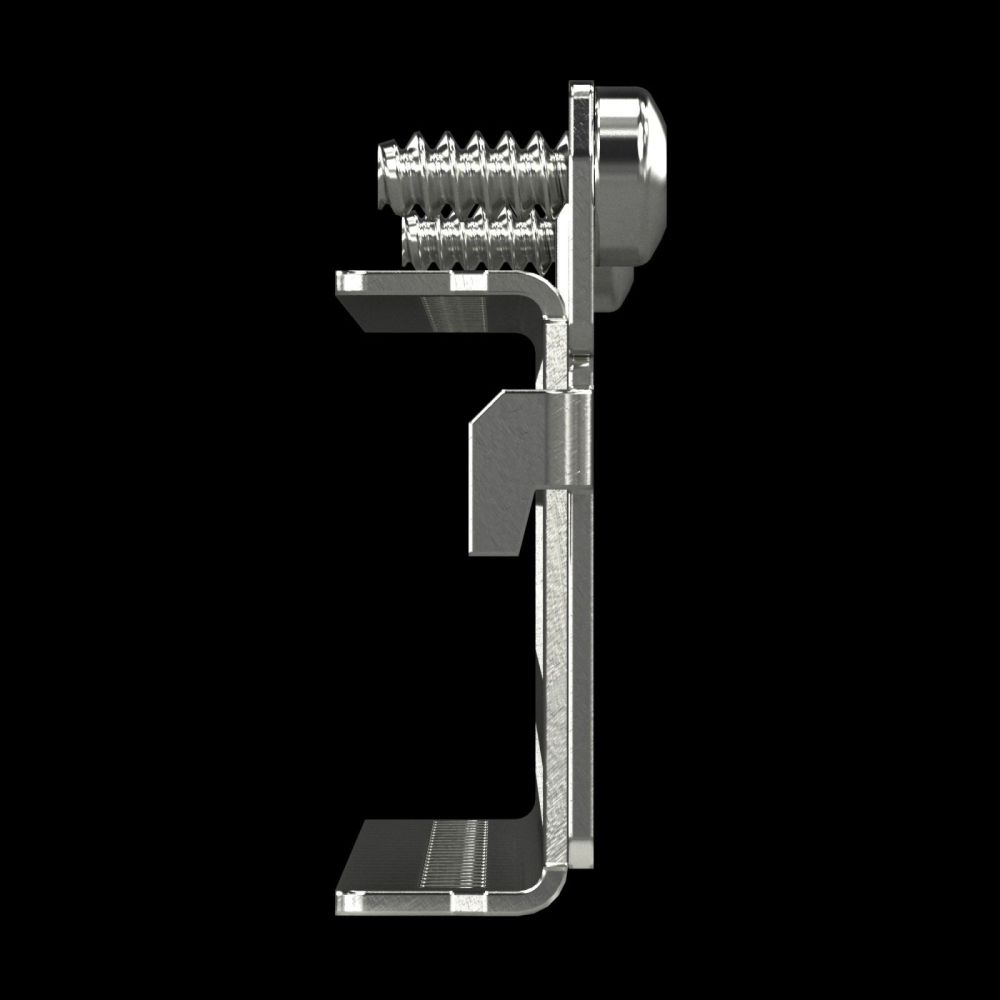

| Scope of delivery | Including mounting hardware |
| Distance between mounting points | 275 mm |
| Suitable for door width | 400 mm |
| Mounting options VX | In door width 400 mm |
| Mounting options AX | In housing width 300 mm and housing height 400 mm, in combination with the rail for indoor installation AX |
| Mounting options AX stainless steel | In cabinet width 300 mm |
| Mounting options AX plastic | In door width 400 mm |
| Installation options AX 3-piece | In housing depth 473 mm |
| Mounting options CX | In console base unit in housing depth 400 mm, In standing console base unit in housing depth 400 mm |
| Mounting note | For installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX |
| Note | For expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required |
| Suitable for | Housing type: VX, AX, AX plastic, wall-mounted housing AX, 3-piece, stand console CX, console base CX, suitable for width or height or depth: 400 mm |
| PCF/VE (Cradle-to-Gate) | 4,56 |
