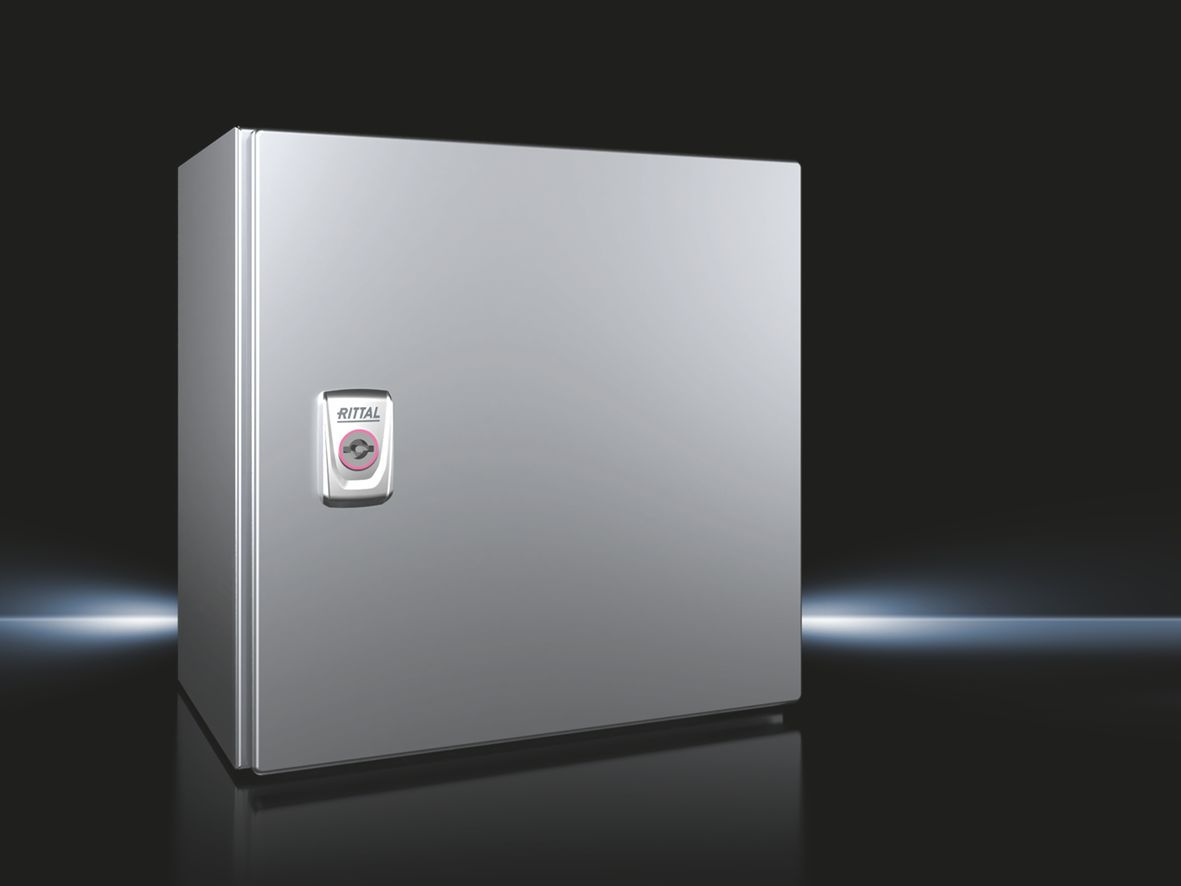

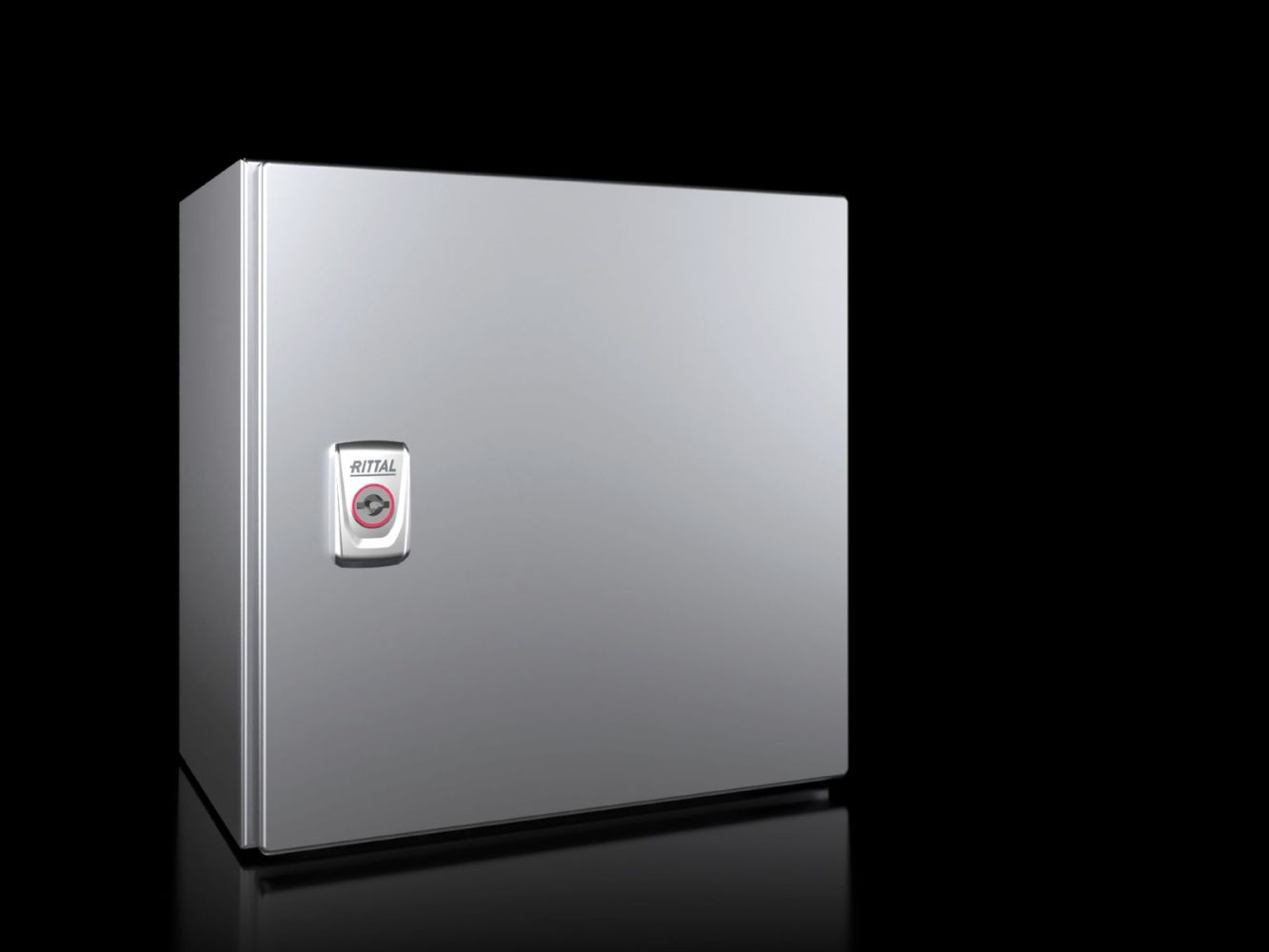

Rittal 1003000 Compact enclosure AX, 1-door, 300x300x210 mm
|
201,54 EUR |
|
|
( 239,83 EUR incl. VAT ) ≈ £168.69 | ≈ $221.49 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980344 |
| Mfg Part No: | 1003000 |
| UPC/EAN: | 4028177815063 |
| Weight: | 6.335 kg |
| Type: | AX 1003000 |
Product information for Rittal 1003000:
Applications
This enclosure is designed for use in environments with high requirements for mechanical strength, corrosion resistance, and environmental protection. It is particularly suitable for outdoor use, in humid or dusty environments, and in industrial applications where a high degree of protection is required. The protection rating IP 66 according to EN 60 529 ensures protection against dust and heavy splashing water, while the protection ratings NEMA 4X and Type 4X according to UL 50E confirm suitability for humid, dusty, and corrosive environments. The IK10 rating provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail

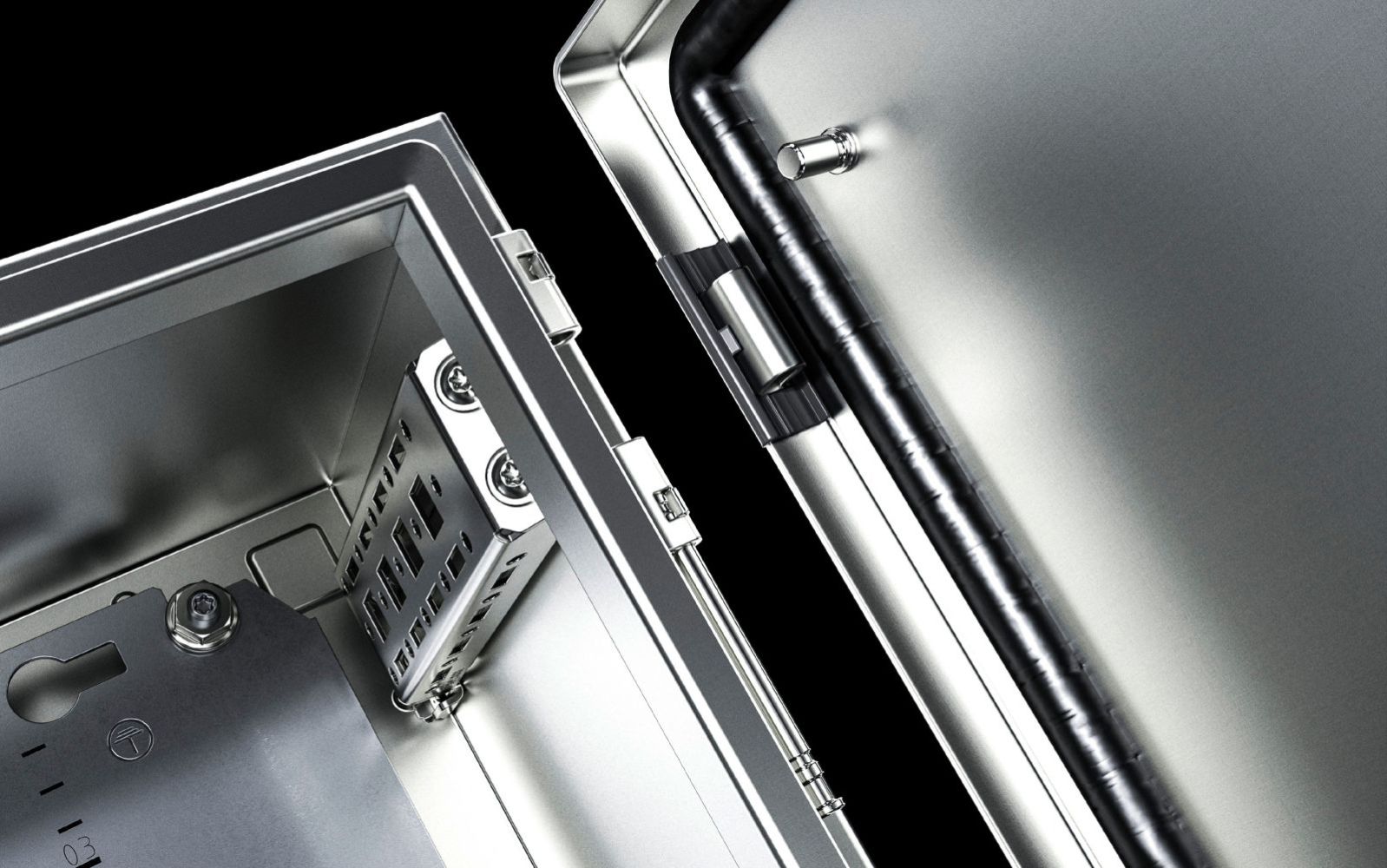

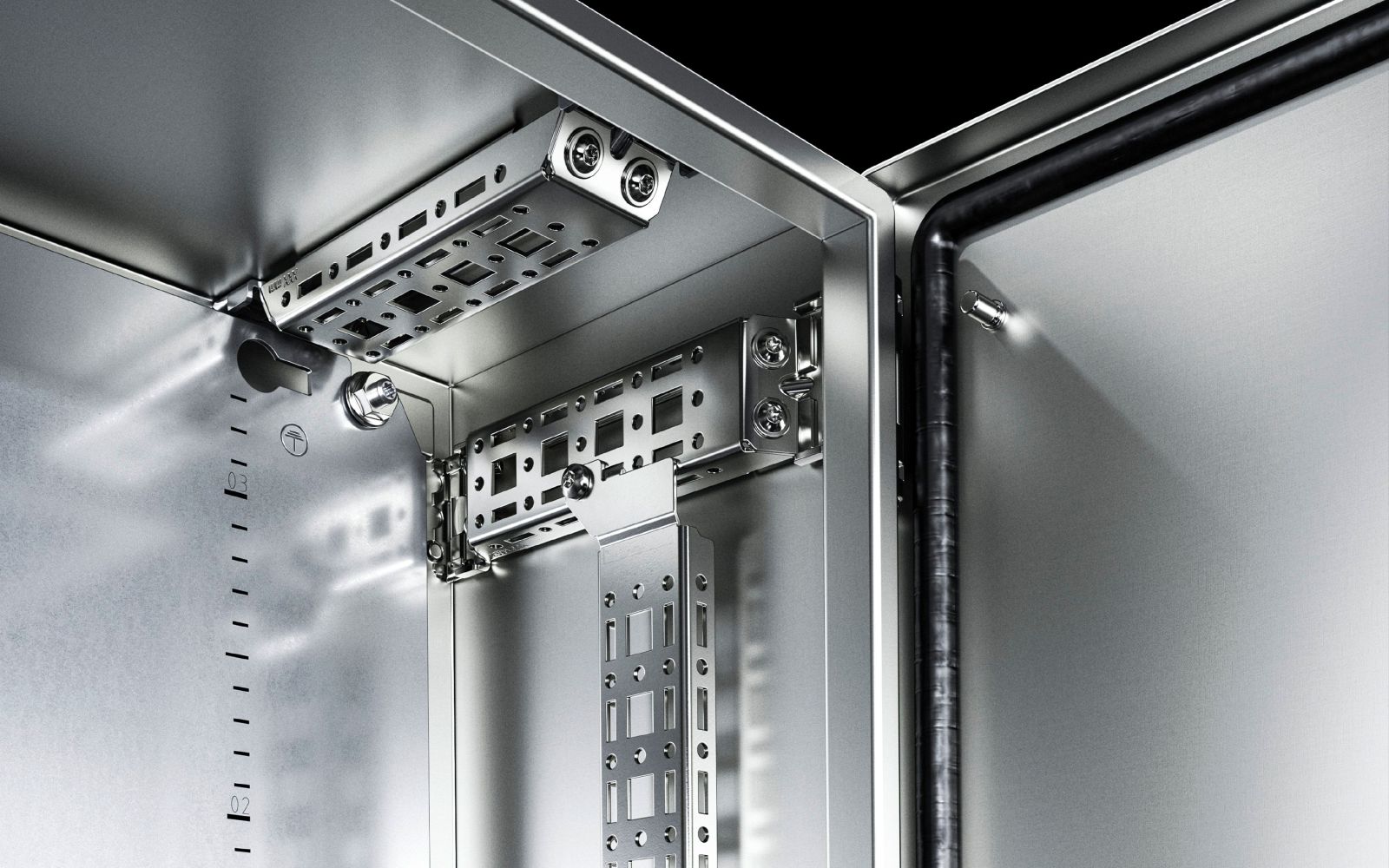

The enclosure features an integrated latching system that allows for easy and quick internal installation without drilling. The door opens to an angle of 130° according to VDI, providing good access to the interior. The locking mechanism consists of a cam lock with a 3 mm double-barrel lock insert made of zinc die-cast, providing secure and reliable locking. The mounting plate includes mounting options for internal components, enabling secure installation of assemblies. An earthing bolt is integrated into the enclosure to ensure safe earthing of installed components.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially in humid or aggressive environments. The door thickness is 1.5 mm, and the enclosure thickness is 1.25 mm, providing sufficient mechanical strength. The continuous PU seal ensures a tight seal, preventing ingress of dust, water, and other environmental influences. The IP 66 protection rating means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor or wet environments. The IK10 rating indicates that the enclosure protects against mechanical impacts such as shocks or vibrations up to a certain energy level.
Compatibility and Accessories

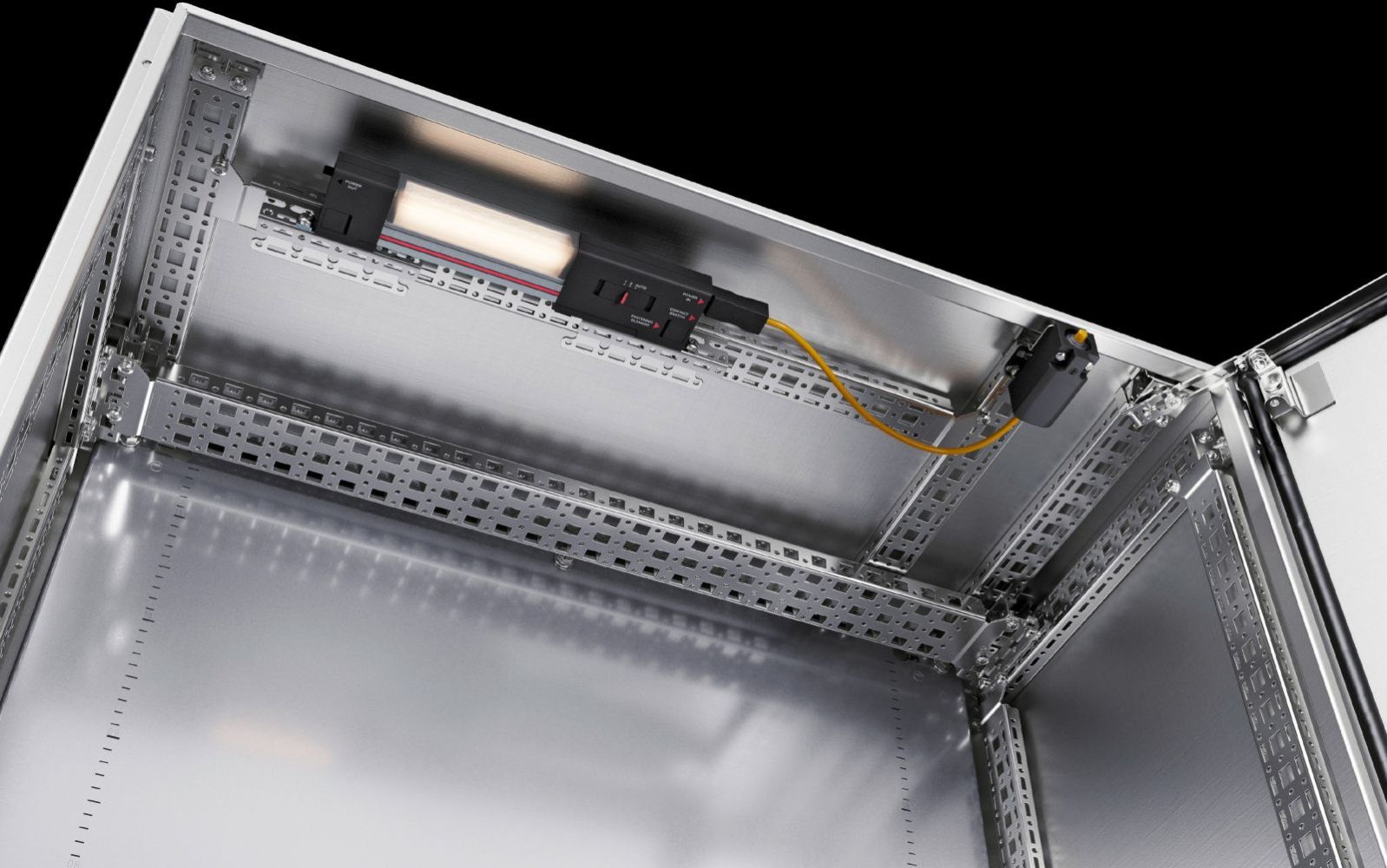

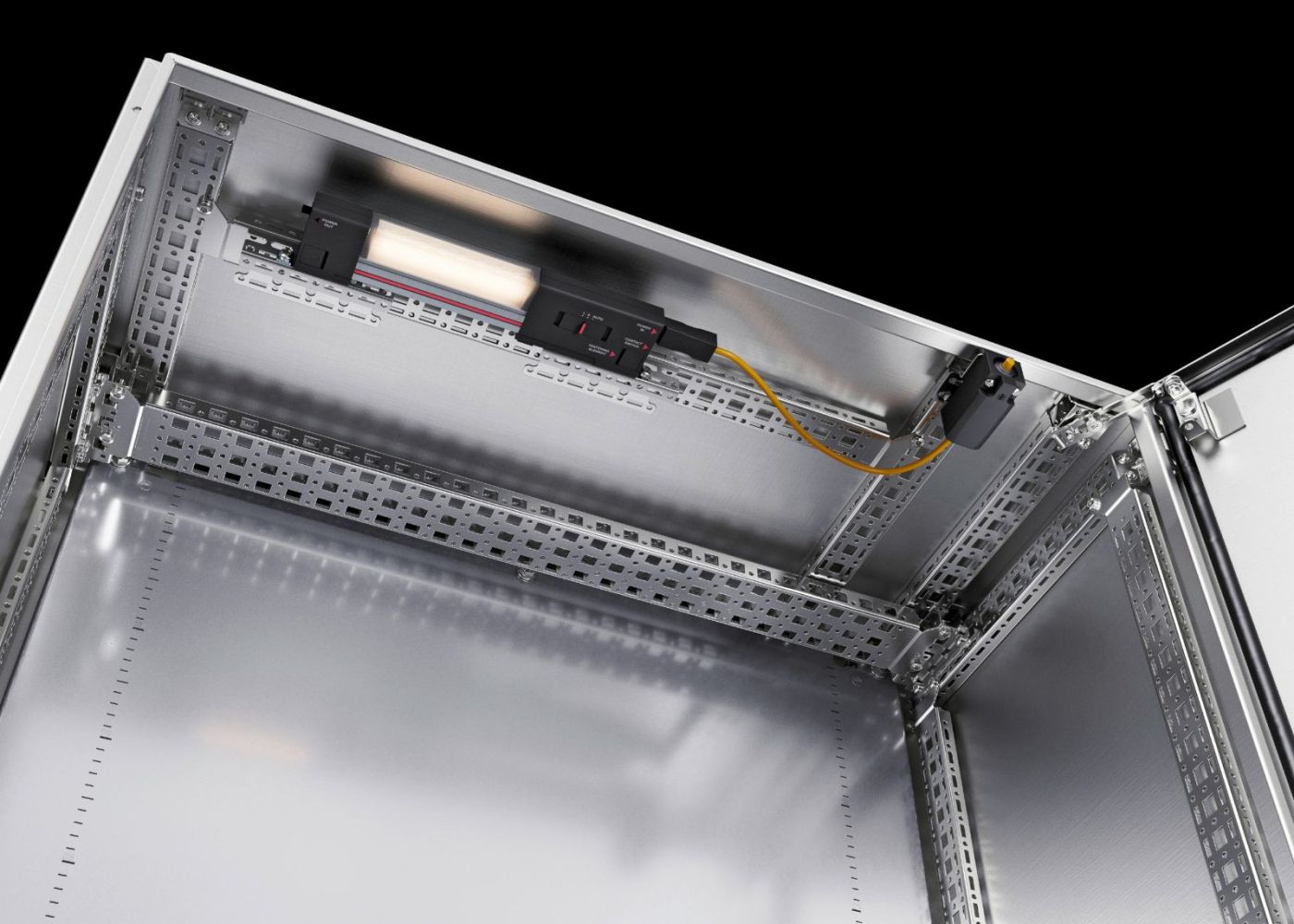

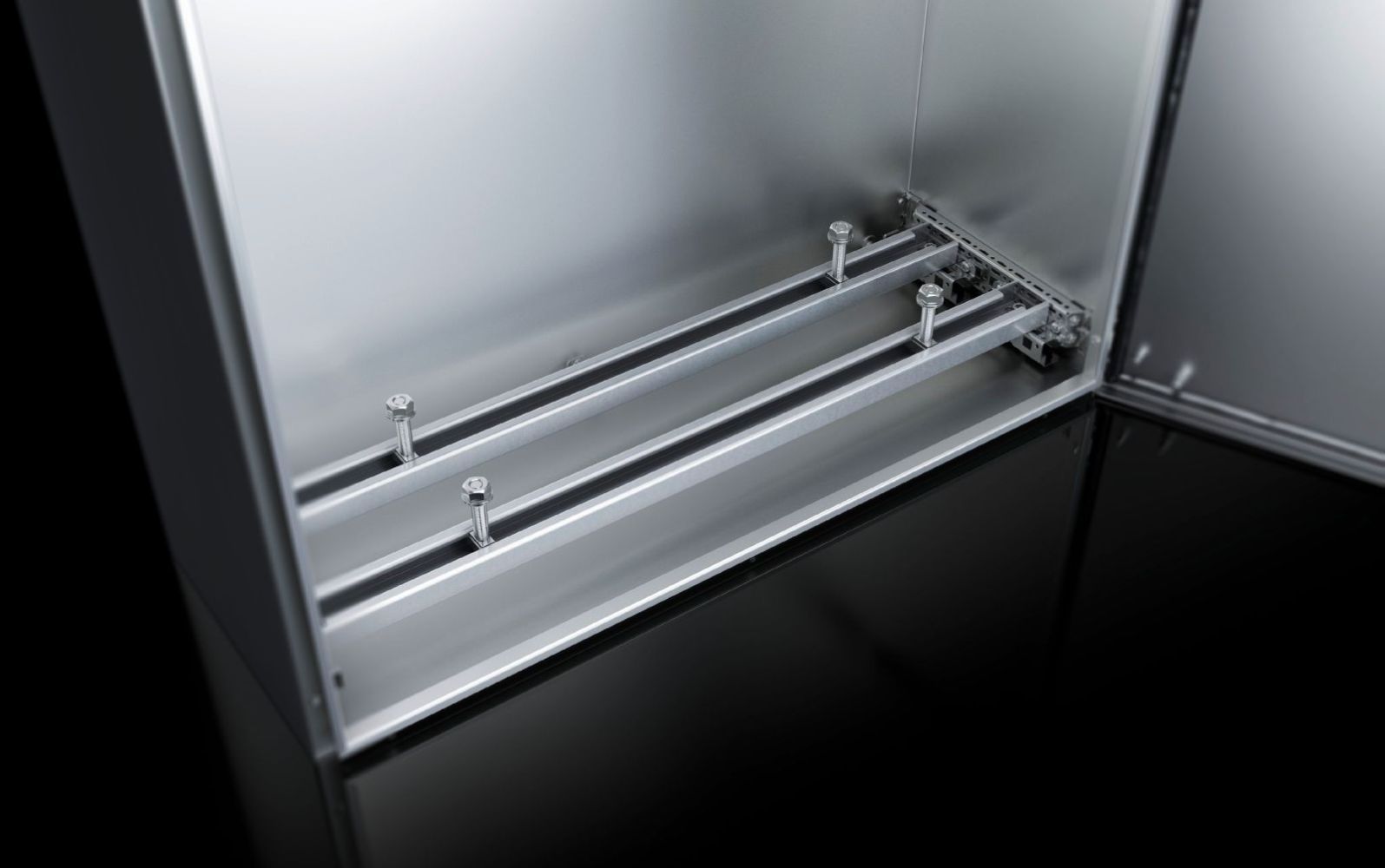

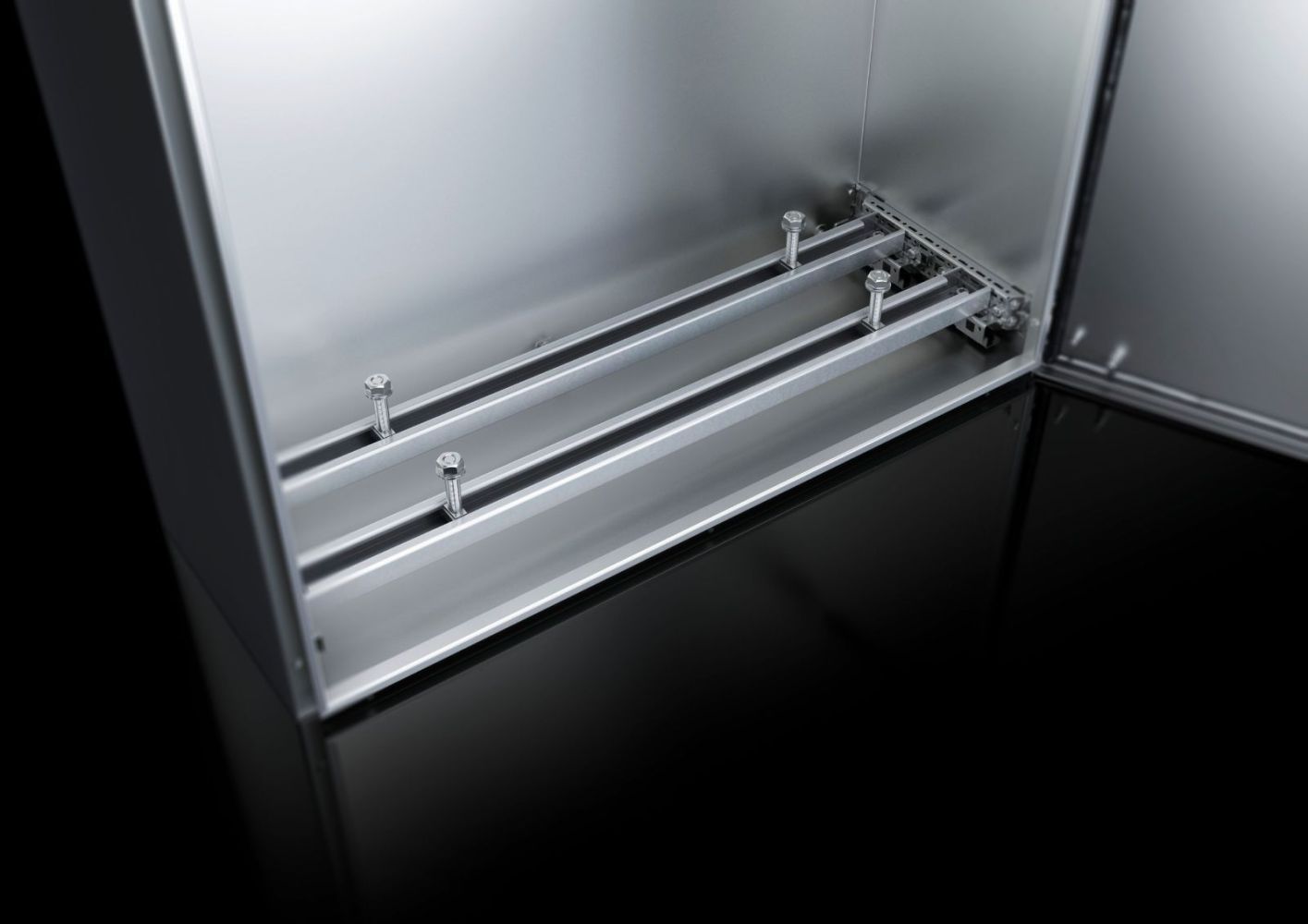

The enclosure is part of the AX enclosure system and can be expanded with various accessories. These include, for example, baying sets for AX, KX, AE, and KL, floor extension rails for AX, wall mounting brackets made of stainless steel 1.4301, cam locks with double-barrel inserts, AX rails for internal installation, lock inserts made of zinc die-cast, condensate drains, knob handles without safety cylinder inserts, mounting brackets for door width 400 mm, wall mounting angles made of stainless steel 1.4301, and rain roofs made of stainless steel for AE. These components enable flexible adaptation to specific requirements and installation conditions.
Mounting and Installation

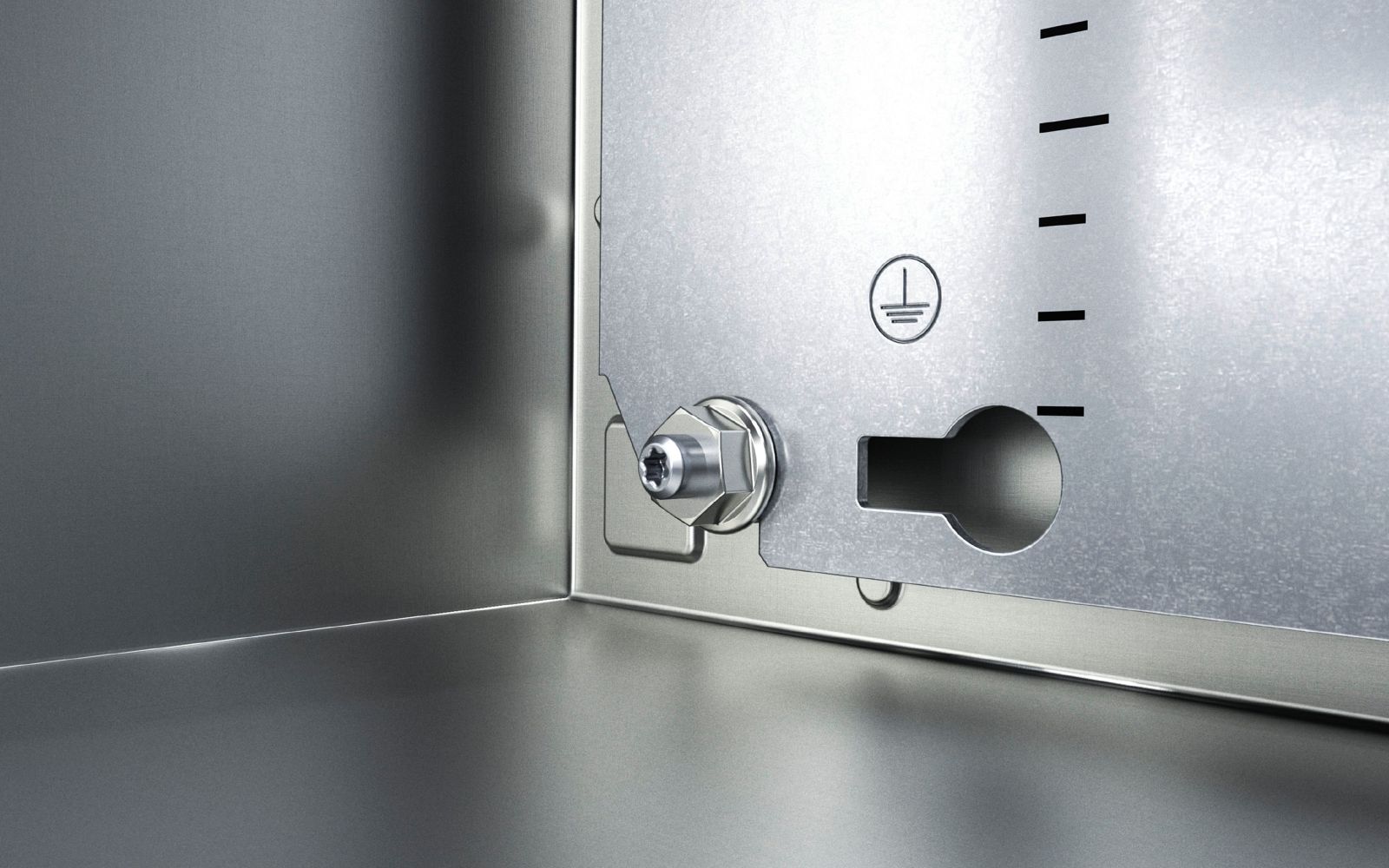

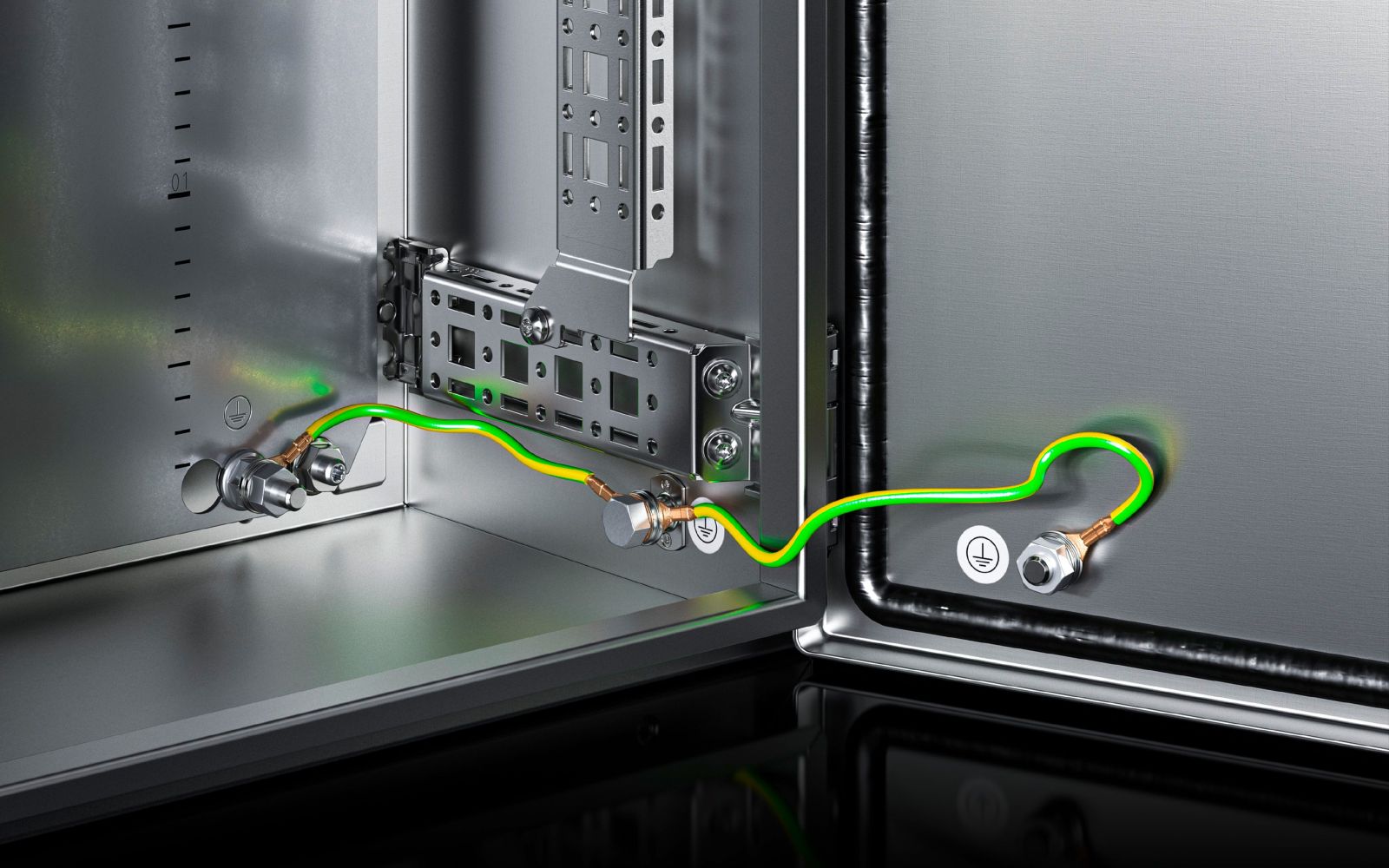

Mounting is done via the integrated mounting plate, which features keyhole slots for earthing and dimension markings. Fastening is achieved using Limbach nuts, ensuring secure and durable installation. The integrated enclosure latches allow for easy internal installation without drilling. The door can be mounted on the left side if required, enabling flexible installation at different locations. QR codes on the body, door, and type plate enable unique identification and easy access to relevant product information, as well as traceability of individual parts.
Operational Advantages
The enclosure offers high reliability and longevity due to the use of stainless steel and robust construction. The integrated latches and continuous seal simplify internal installation and ensure a tight seal. The protection ratings IP 66, NEMA 4X, and IK10 guarantee high protection against environmental influences and mechanical stresses. Easy mounting and compatibility with various accessories enable flexible and application-specific use. The integrated earthing and secure locking via the cam lock enhance safety during installation and maintenance.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 300 mm |
| Height | 300 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 250 mm x 275 mm |
| Number of doors | 1 |
| Lock | Closure type: latch, number of closures: 1, closure insert: 3 mm double barb, closure material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 26,13 |
