Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301

Your rating:
Average rating
product review for Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301
( 5 / 5 ) 2 ratings
Rittal 2433010
This image may differ from the desired article.
Rittal 2433010Rittal 2433010
24,67 EUR
( 29,36 EUR incl. VAT )
≈ £20.65  |  ≈ $27.11
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301
Datasheet:file_download Download
Lieske Part No.:1778281
Mfg Part No: 2433010
UPC/EAN: 4028177938144
Weight:0.42 kg
Type:AX 2433010

Product information for Rittal 2433010:

The Rittal SZ 2433010 is a wall mounting bracket made of stainless steel 1.4301 (AISI 304), specifically designed for mounting stainless steel enclosures of types AX and KX. It serves as a fixed mounting solution for walls and enables secure and hygienic installation in industrial and technical applications, particularly where the enclosures themselves do not have pre-drilled holes for wall mounting. The construction ensures a constant wall clearance of 20 mm, allowing sufficient air circulation and accessibility for maintenance work.

Applications

The wall mounting bracket is designed for use in environments where high requirements for protection rating and hygiene exist, for example in the food industry, pharmaceuticals, or process automation. The use of stainless steel 1.4301 ensures corrosion resistance and long service life, even under influence of moisture, chemicals, or aggressive environmental conditions. The compatible use with AX and KX stainless steel enclosures enables a uniform, clean, and robust mounting in industrial enclosures and control systems.

Functions and Equipment in Detail

The bracket is attached by simply hanging it onto a pre-installed screw in the wall, enabling quick and tool-free installation. The mounting position can be adjusted according to local conditions to ensure optimal alignment and placement of the enclosure. If required, the bracket can be fitted with an aesthetically pleasing cover cap, which improves the visual appearance and protects the fastening elements from contamination. The delivery includes the wall mounting bracket, cover caps, and the necessary mounting materials.

Technical Explanation

The use of stainless steel 1.4301 (AISI 304) provides high mechanical strength and resistance to oxidation and corrosion. This material is particularly suitable for applications in damp or aggressive environments. The 20 mm wall clearance ensures sufficient distance from the substrate, enabling effective cooling and maintenance. The mounting is done without drilling holes in the enclosure, preserving the protection rating and hygiene integrity of the stainless steel enclosures. Installation is carried out on pre-installed screws, allowing quick installation without additional tools.

Compatibility and Accessories

The wall mounting bracket is specifically designed for enclosure types AX stainless steel and KX stainless steel. It is not intended for other enclosure types or materials. Compatibility with the specified enclosures ensures secure and stable mounting. The cover caps included in the delivery serve to enhance the visual appearance and protect the fastening elements.

Mounting and Installation

Installation is performed by hanging the wall bracket onto a screw already mounted in the wall. The mounting position can be adjusted as needed to achieve optimal alignment of the enclosure. The mounting is done without drilling holes in the enclosure, preserving the protection rating and hygiene integrity of the stainless steel enclosures. The provided mounting materials included in the delivery simplify installation and ensure a secure connection.

Operational Advantages

The use of the wall mounting bracket provides quick, tool-free, and secure mounting of stainless steel enclosures. The use of stainless steel 1.4301 ensures high service life and resistance to corrosion. The constant wall clearance of 20 mm enables effective cooling and maintenance. The cover caps improve the visual appearance and protect the fastening elements. Compatibility with AX and KX stainless steel enclosures ensures a uniform and robust mounting solution in industrial applications. The type rating according to UL 50E includes categories Type 1, Type 3R, Type 4, Type 4X, and Type 12, confirming suitability for various environmental conditions.

General
MaterialStainless steel 1.4301 (AISI 304)

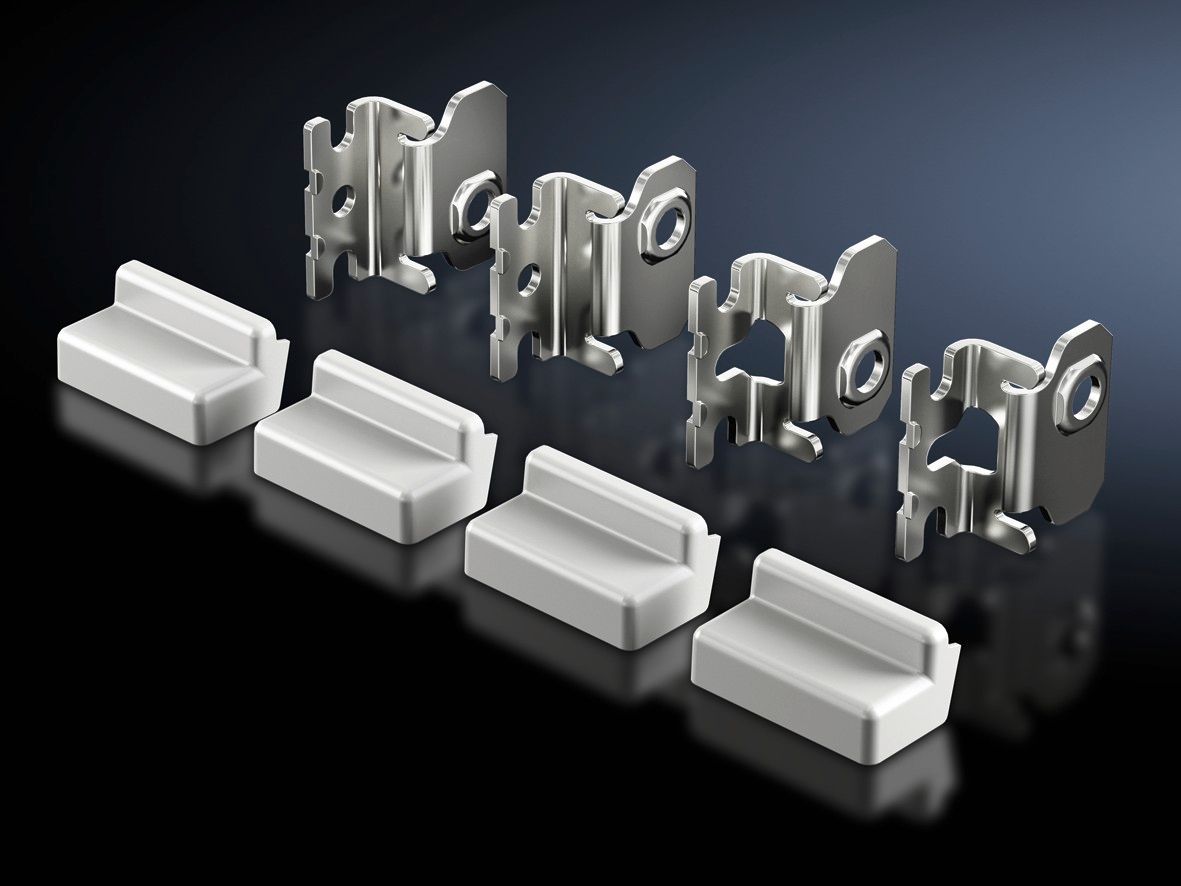

Scope of deliveryWall mounting bracket, end caps, including fastening material
Wall distance20 mm
NoteFor protection and hygiene reasons, the stainless steel enclosures have no holes for wall mounting.
Suitable forHousing type: AX stainless steel, KX stainless steel
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 2433010, EAN: 4028177938144

Questions & answers

What is the delivery time of Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301?

The article Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2433010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301 always at the best possible price. We can give you a discount of 2% on Rittal 2433010 Wall mounting holder for AX, KX stainless steel 1.4301 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
