Rittal 1584000 KX E-Box, 200x300x120 mm, stainless steel 1.4301, with M

Your rating:
Average rating
product review for Rittal 1584000 KX E-Box, 200x300x120 mm, stainless steel 1.4301, with M
( 4 / 5 ) 1 ratings

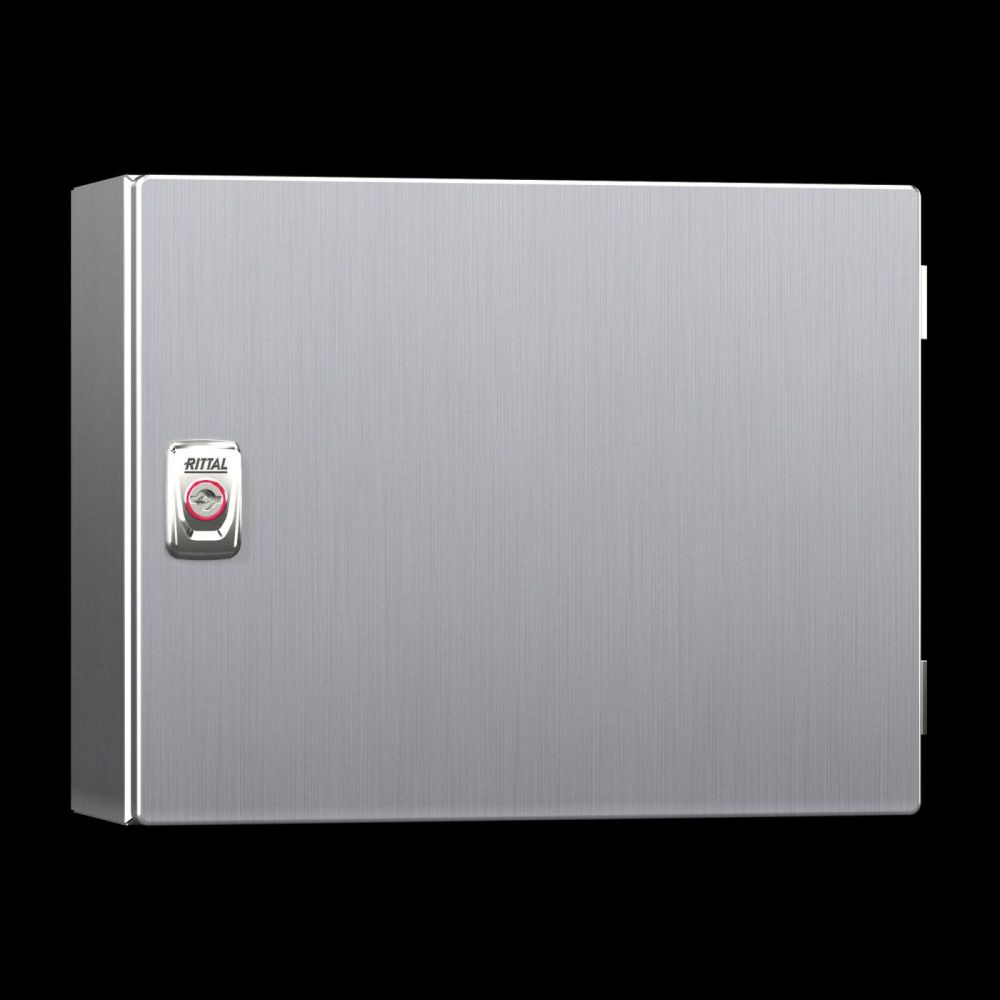

Rittal 1584000
This image may differ from the desired article.
Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000Rittal 1584000
163,46 EUR 163,49 EUR
( 194,52 EUR incl. VAT )
≈ £136.82  |  ≈ $179.64
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1584000 KX E-Box, 200x300x120 mm, stainless steel 1.4301, with M
Datasheet:file_download Download
Lieske Part No.:1778288
Mfg Part No: 1584000
UPC/EAN: 4028177919105
Weight:3.556 kg
Type:KX 1584000

Product information for Rittal 1584000:

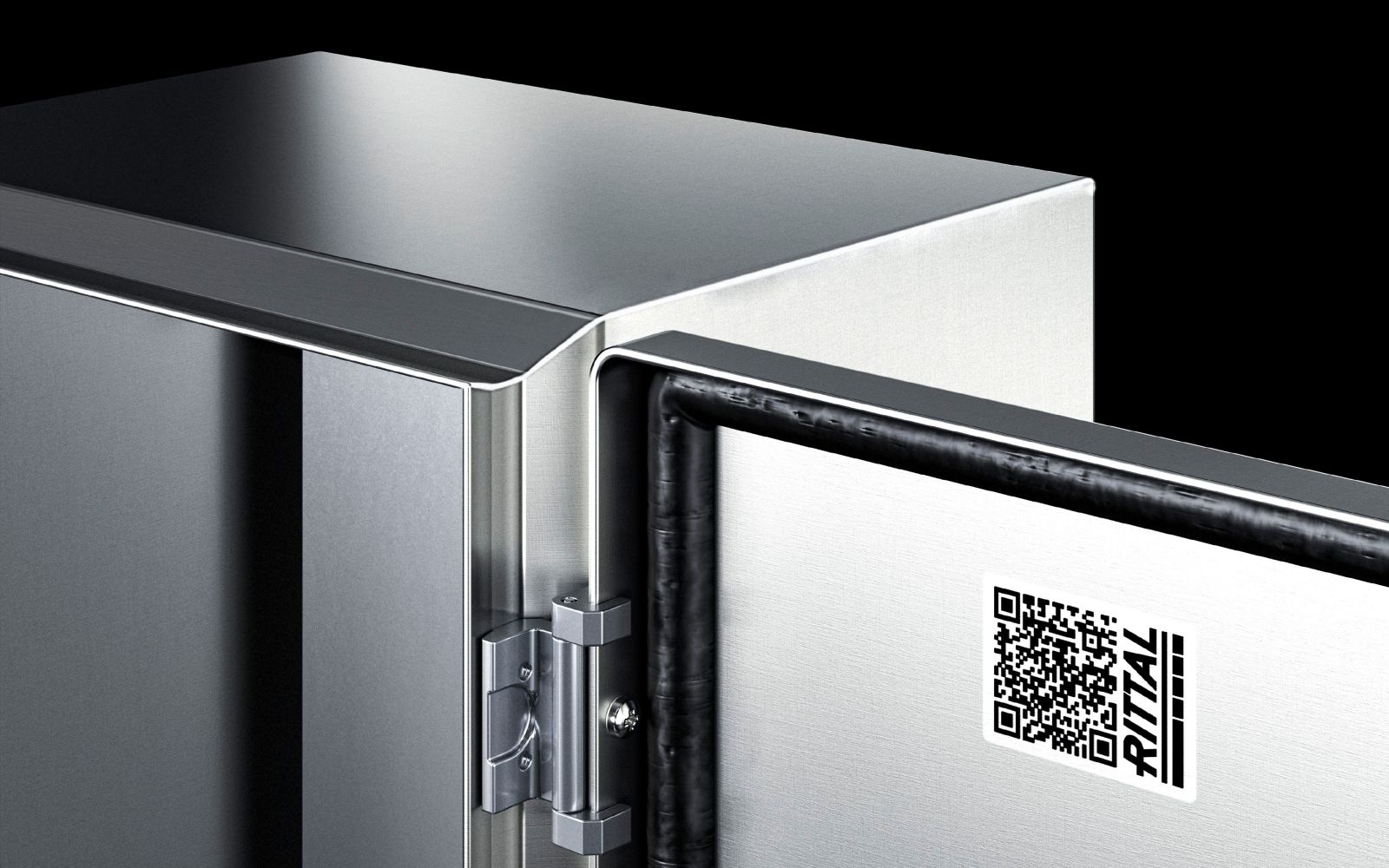

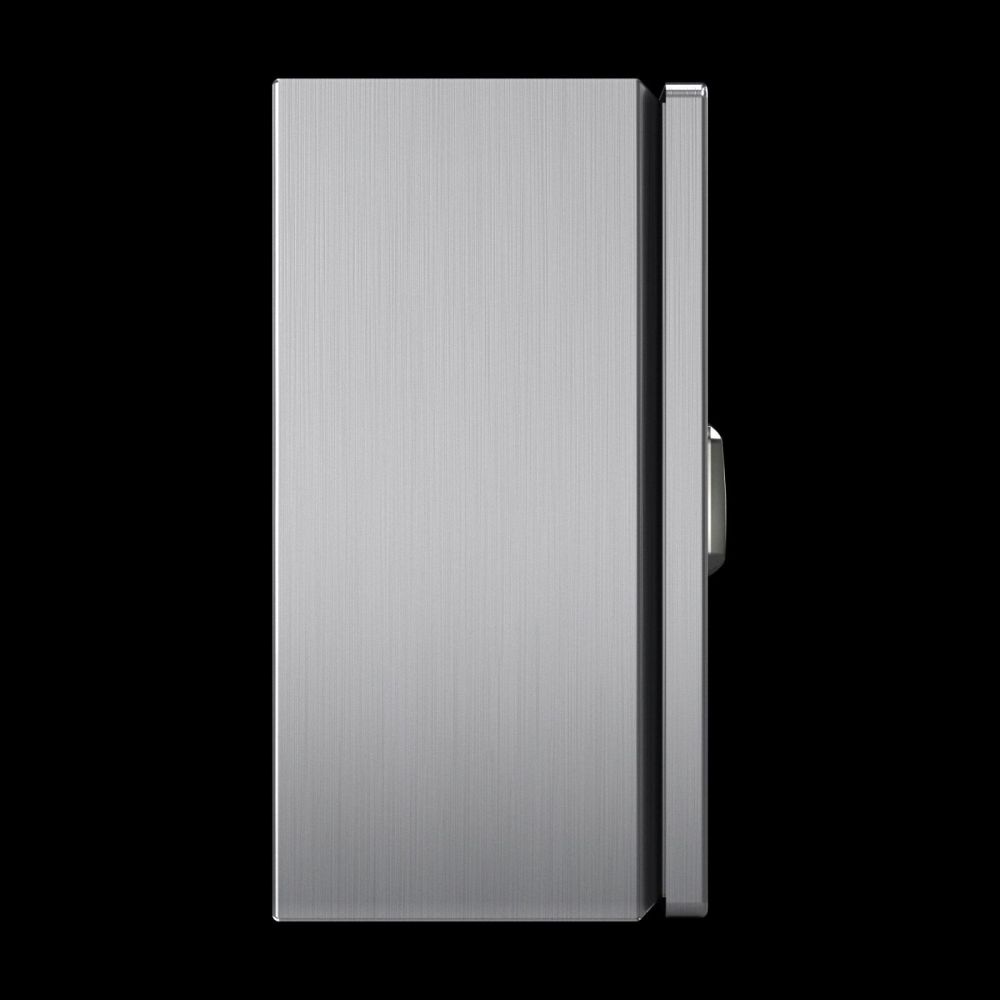

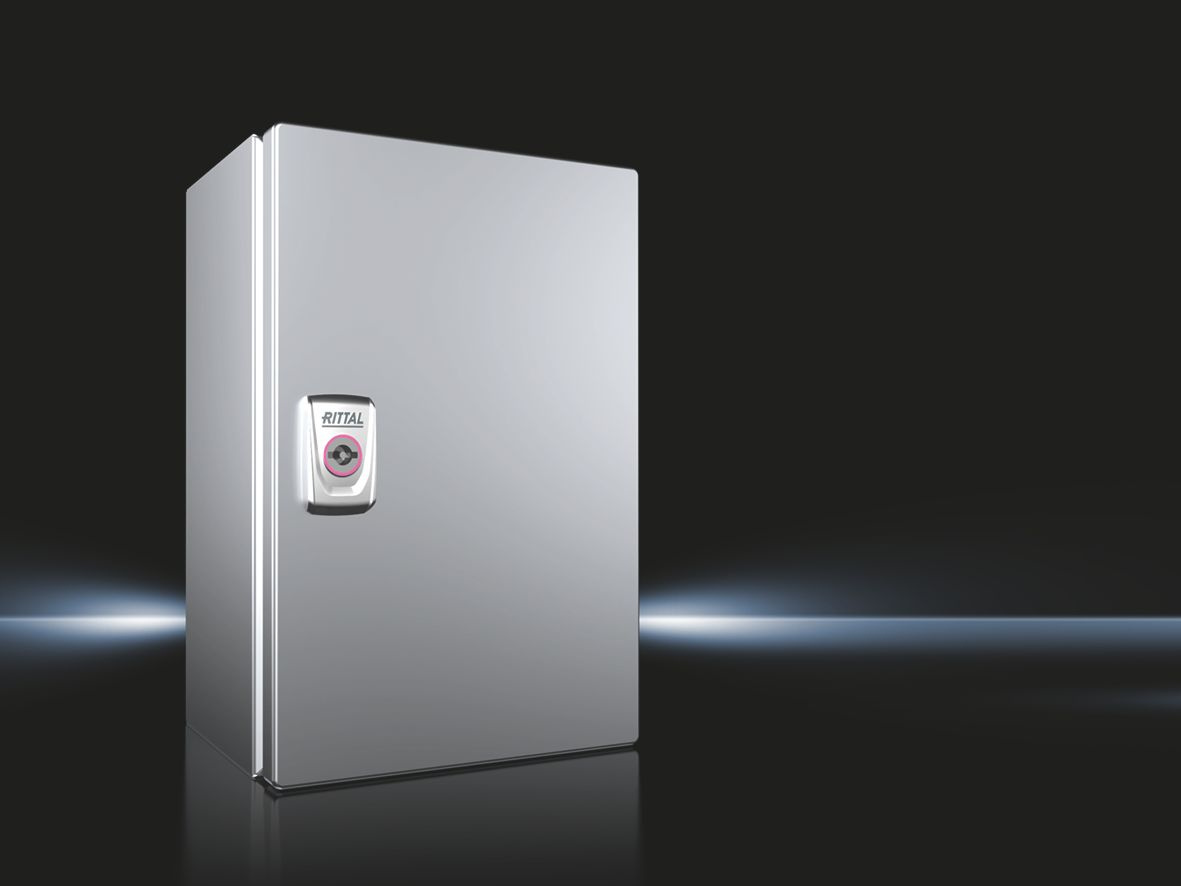

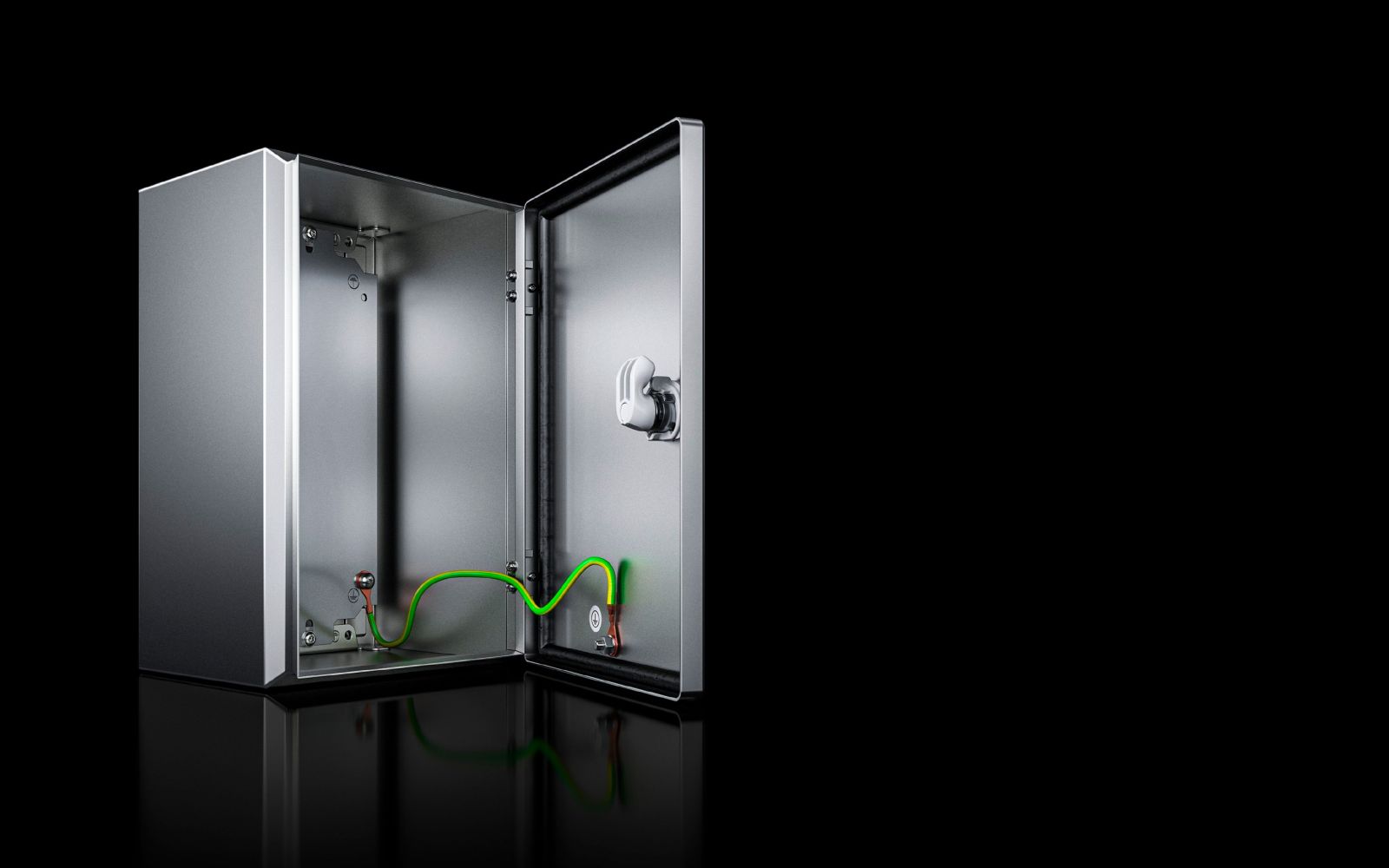

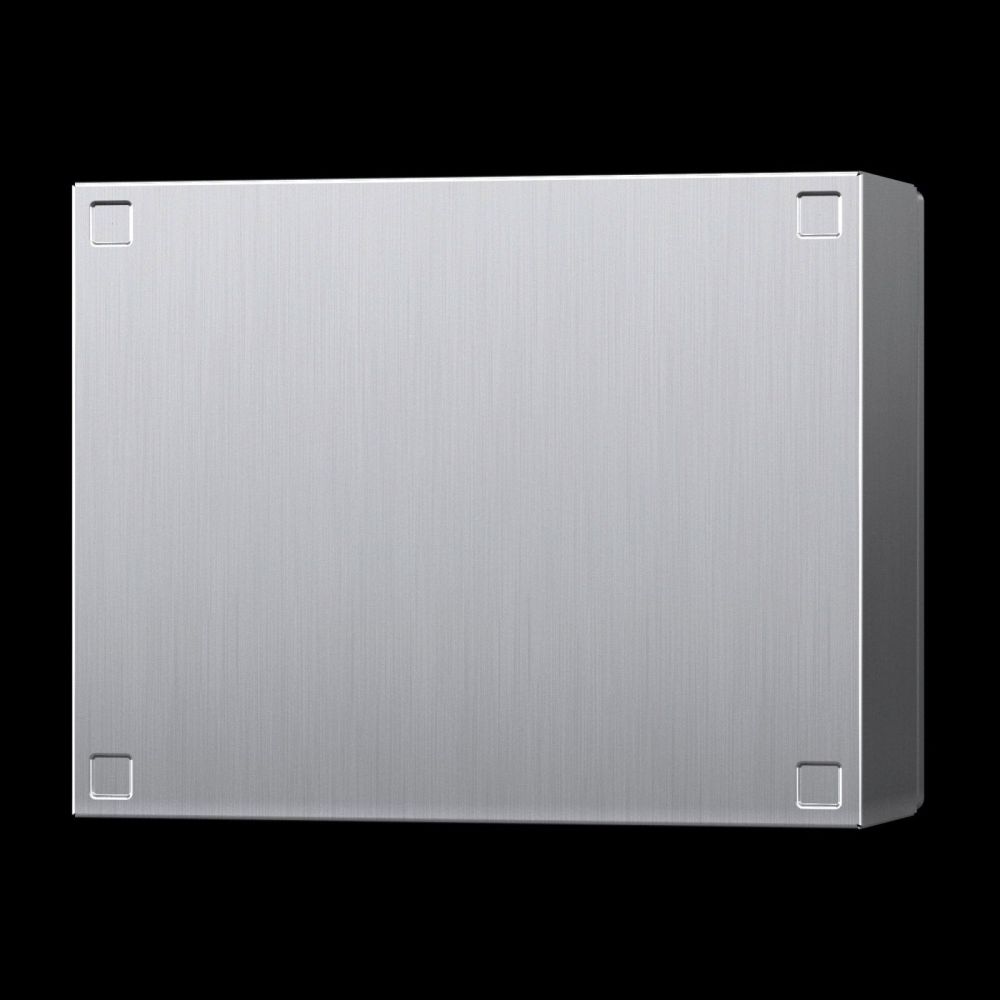

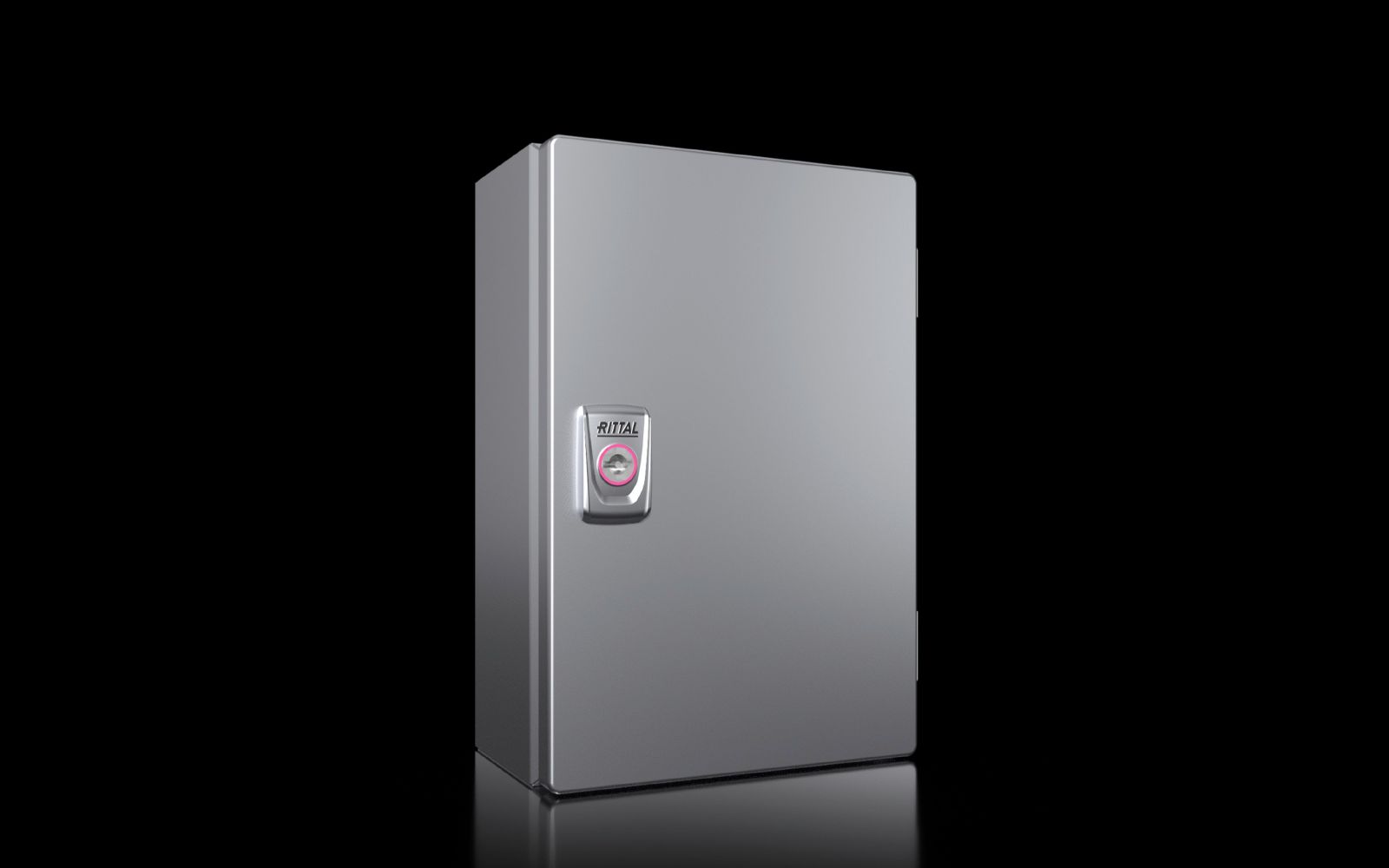

The Rittal KX 1584000 is an industrial E-Box made of stainless steel, designed for use in demanding environments where high mechanical stability, corrosion resistance, and protection against dust and water are required. The enclosure has dimensions of 200 mm (width) × 300 mm (height) × 120 mm (depth) and is manufactured as a single piece, folded and welded, resulting in a stable and tight construction. The door is hinged on the right and features a continuous, foamed PU seal, ensuring a tight seal. The surface of the enclosure and door is brush-finished (grit 180), providing a uniform, easy-to-clean surface. The mounting plate made of galvanized steel sheet enables secure attachment to support rails or wall mountings.

Applications

The E-Box is suitable for use in industrial electrical engineering, automation technology, and environments with increased requirements for protection against external influences. It is particularly suitable for outdoor use or in damp, dusty, or corrosive environments, as it meets the protection rating IP 66 according to EN 60 529. This means the enclosure is dust-tight and protected against the ingress of strong splashing water. Additionally, the enclosure meets the type ratings according to UL 50E: Type 1, Type 3R, Type 3RX, Type 4, Type 4X, and Type 12, confirming its suitability for various industrial and commercial applications in the USA and Canada.

Functions and Equipment in Detail

The enclosure features a cam-locking system with a 3 mm double-barrel lock insert, enabling secure and easy locking. The standard 180° hinges ensure optimal access to the interior, facilitating the installation and maintenance of components. The enclosure includes an earth conductor connection, and the door is earthed via a bolt, ensuring electrical safety. The mounting plate (175 mm × 285 mm) is included as standard and allows attachment to standard support rails or wall mountings.

Technology Explained Simply

The construction from stainless steel 1.4301 (AISI 304) offers high corrosion resistance and mechanical strength, extending the service life of the enclosure in harsh environments. The material thickness of 1.25 mm for the enclosure and door ensures sufficient stability without unnecessarily increasing weight. The IP 66 protection rating protects the interior from dust and splashing water, which is particularly important in industrial or outdoor applications. The PU seal ensures a tight seal that maintains its function even under temperature fluctuations.

Compatibility and Accessories

Various accessories are available to extend functionality, including mounting clips for support rails, lock inserts made of zinc die-cast, support rails TH 35/7,5/TS 35/15, mounting brackets, condensate drains, drill screws, mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mountings, earthing straps M6-M6 with a cross-section of 10 mm², and mini comfort handles AX for padlocks. These components allow flexible adaptation to specific mounting and safety requirements.

Mounting and Installation

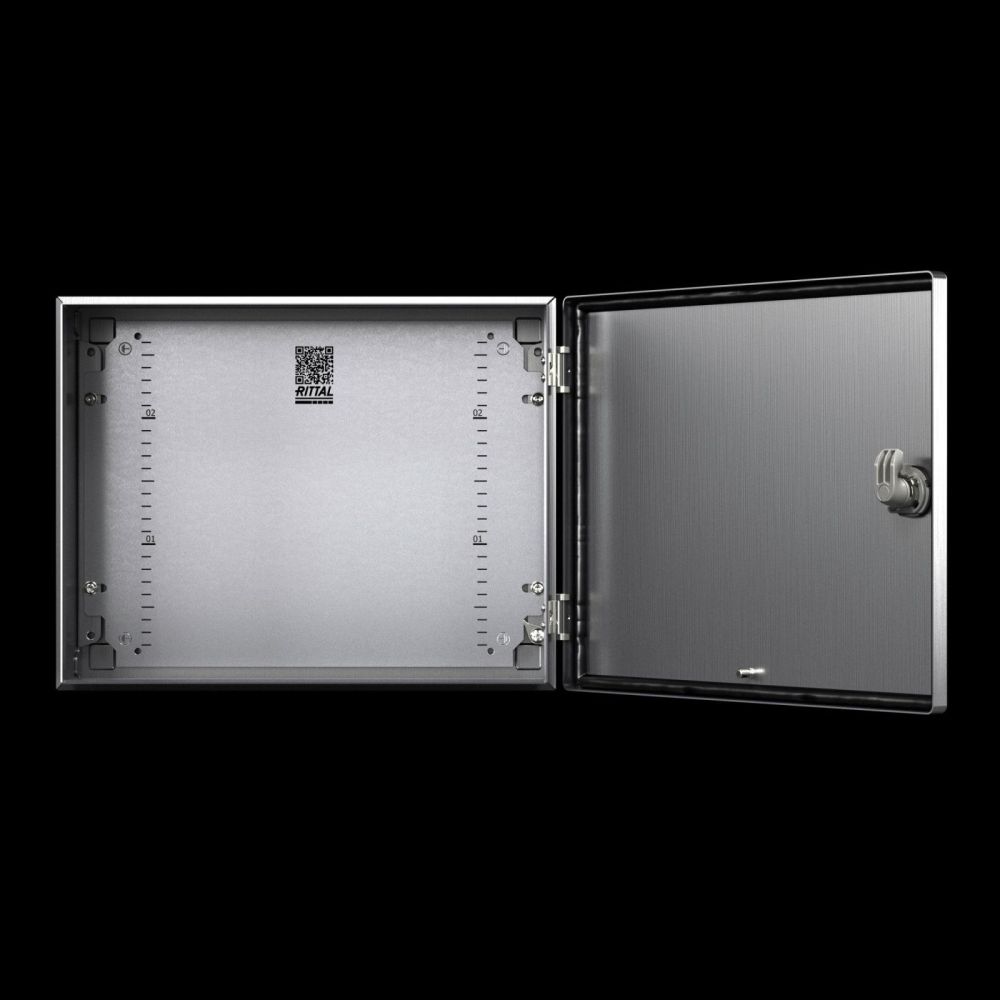

Mounting is performed via the standard mounting plate, which can be attached to standard support rails or walls. The 180° hinges allow full door opening, facilitating the installation of components inside. The door earthing via a bolt and the integrated earth conductor connection in the enclosure ensure a safe electrical connection. The use of drill screws or mounting brackets may be required depending on the application.

Operational Advantages

The E-Box offers high reliability due to its robust stainless steel construction and IP 66 protection rating. Easy installation and maintenance, enabled by the 180° hinges and integrated mounting plate, reduce labor effort. The use of stainless steel 1.4301 ensures a long service life, even in corrosive environments. The standard equipment with cam-locking system and mounting plate allows quick commissioning without additional components. A QR code on the enclosure, door, and nameplate enables unique identification and easy access to product information and documentation.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304)
Surface protectionEnclosure and cover: Brushed finish, grit 180, mounting plate: galvanized
Scope of deliveryMounting plate, pre-lubricated lock with 3 mm double-barrel insert
Width200 mm
Height300 mm
Depth120 mm
Mounting plate dimensions (W x H)175 mm x 285 mm
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
LockNumber of locks: 1
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)11,36


Product data sheet
Datasheet for Rittal 1584000, EAN: 4028177919105
