Rittal 2565050 earthing straps M6-M6, cross-section 10 mm², length 350 m
|
19,44 EUR |
|
|
( 23,13 EUR incl. VAT ) ≈ £16.27 | ≈ $21.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598242 |
| Mfg Part No: | 2565050 |
| UPC/EAN: | 4028177950177 |
| Weight: | 0.207 kg |
| Type: | SZ 2565050 |
Product information for Rittal 2565050:
Applications
The earthing strap is used in industrial and technical installations where a solid and resistance-free earthing connection is required. It is particularly suitable for connecting door/cover, housing wall, and mounting plates within enclosures. The connection options are aligned with standard system holes (KX), which are common in Rittal enclosure systems. Its use is part of electrical safety to ensure a reliable protective conductor circuit.
Functions and Equipment in Detail

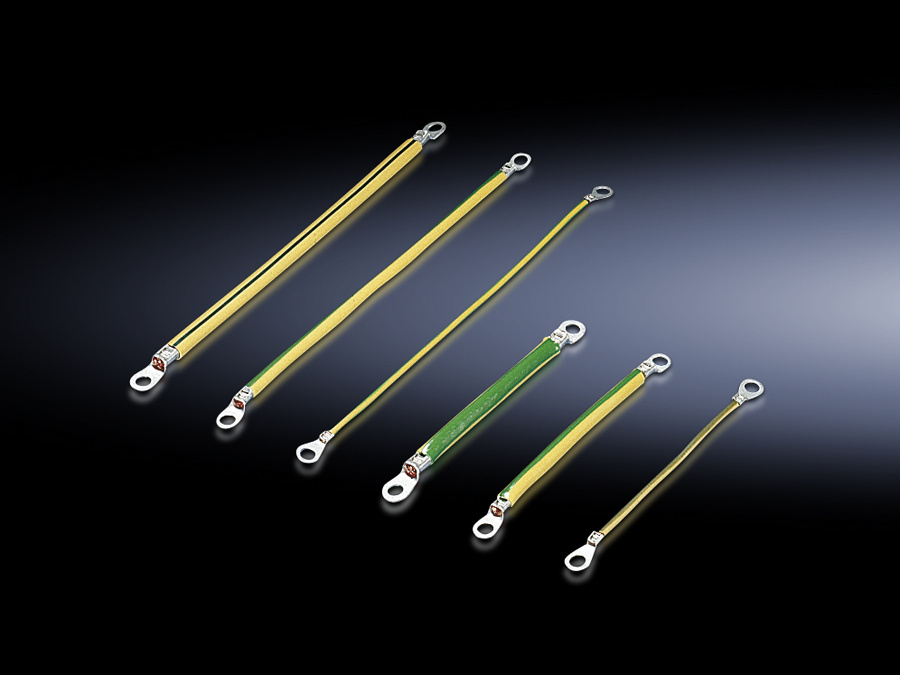

The strap is equipped with ring cable lugs M6, enabling a secure mechanical and electrical connection to earthing screws. The cross-section of 10 mm² ensures sufficient current dissipation during fault currents and meets the requirements for protective conductors in medium to large enclosures. The length of 350 mm is designed for typical distances between earthing points in enclosures, allowing it to be mounted without additional bending or extension. The packaging unit contains 5 pieces, sufficient for installation at multiple points or for replacement needs.
Technology Explained Simply
An earthing strap such as the SZ 2565050 is used to create an electrical connection between various metallic parts of an enclosure, ensuring all parts are at the same potential. This is crucial for safety during touch and during fault currents. The cross-section of 10 mm² is sufficient to safely dissipate fault currents without overheating or interruption. The ring cable lugs in M6 fit directly onto standard earthing screws used in Rittal systems. The length of 350 mm allows for direct connection without additional bending or extension, simplifying installation and improving contact quality.
Compatibility and Accessories
The earthing strap is designed for use in Rittal enclosure and housing systems. Installation options include connecting door/cover, housing wall, and mounting plate, each with M6 connections. It is compatible with standard system holes (KX) and fits typical earthing screws in these systems. Suitable accessories include mounting materials for system holes with earthing straps, which can be used for secure installation of the straps.
Installation and Mounting

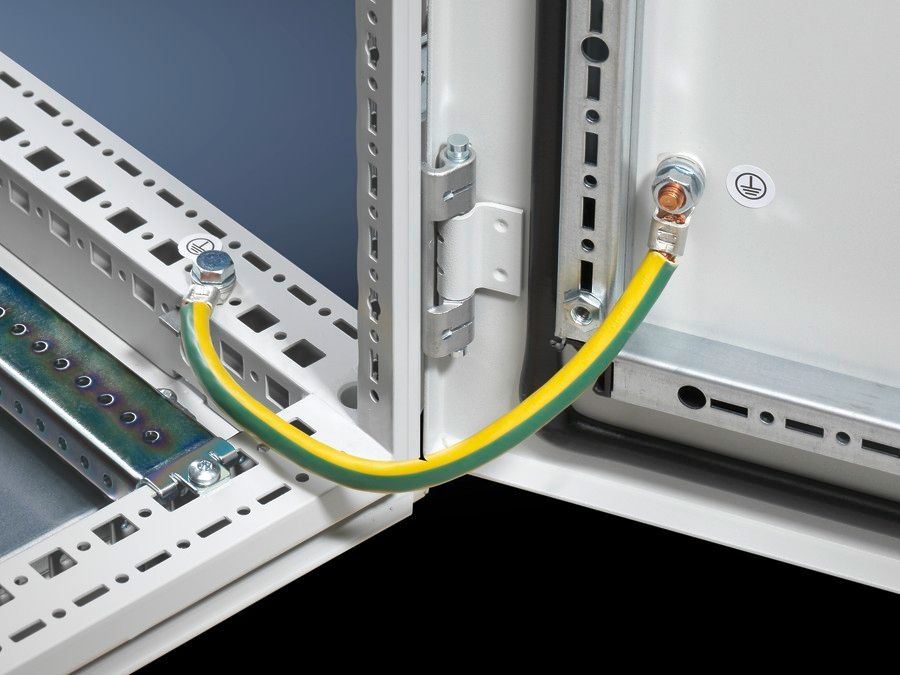

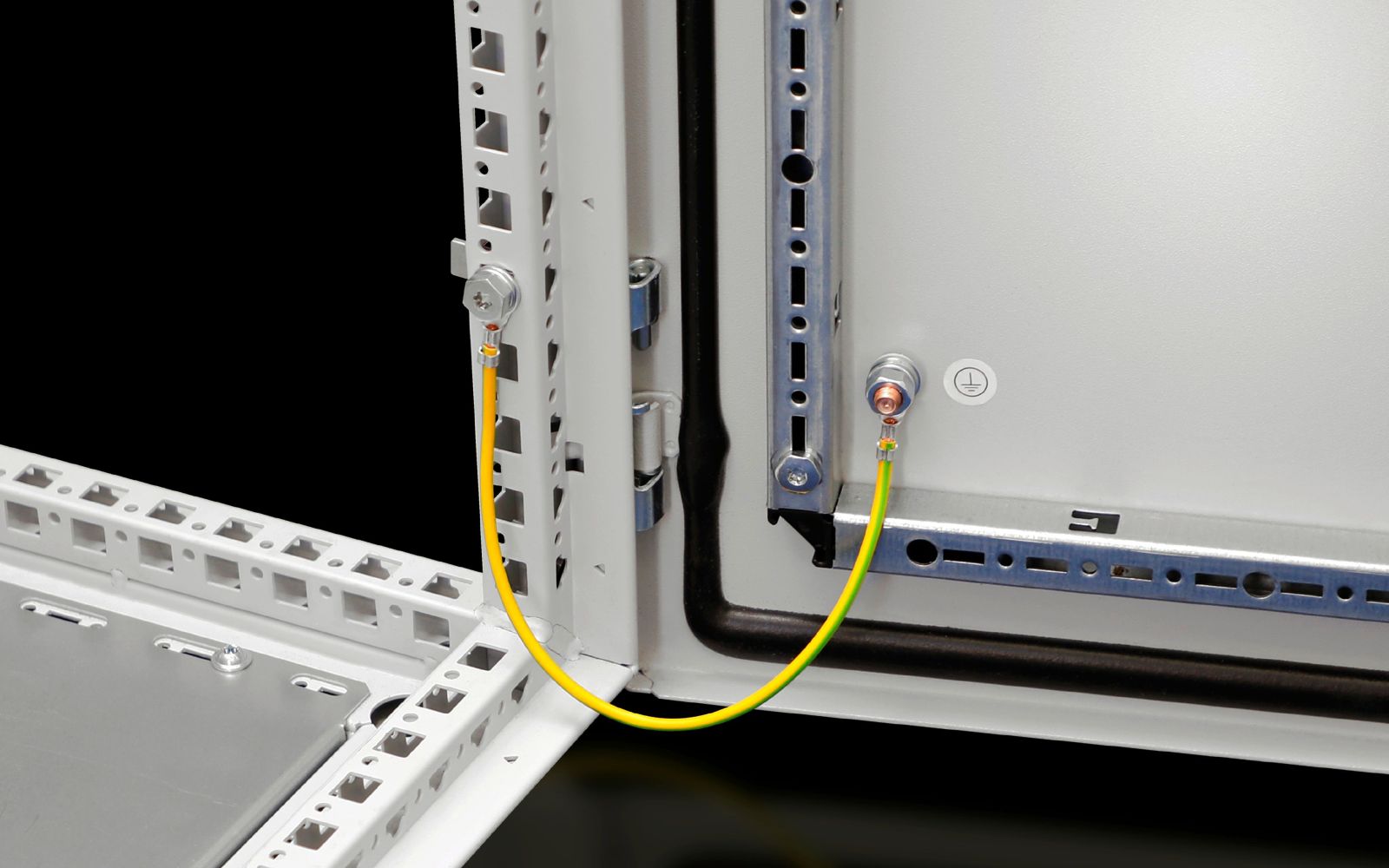

Mounting is done by screwing the ring cable lugs onto the designated earthing points in the enclosure. The screws must be tightened securely to ensure a solid electrical connection. The mounting instructions or protective conductor brochure for the respective enclosure or housing system should be followed to ensure correct installation. The strap is pre-fabricated to the optimal length, so no additional processing is required.
Operational Advantages
The earthing strap provides a reliable and resistance-free earthing connection, which is essential for electrical safety in enclosures. The pre-fabricated length and precise fit of the ring cable lugs in M6 reduce installation time and minimise error sources. The use of 10 mm² cross-section ensures sufficient current dissipation during fault currents. The packaging unit with 5 pieces allows for simultaneous installation at multiple points or replacement in case of wear.
| General | |
| Cross section | 10 mm² |
| Connection | M6 – M6 |
| Mounting options | Connection options KX: door/cover M6, housing M6, mounting plate M6 |
| Note | Please refer to the installation instructions or earthing brochure of the respective cabinet or enclosure system. |
| Length | 350 mm |
Questions & answers
What is the delivery time of Rittal 2565050 earthing straps M6-M6, cross-section 10 mm², length 350 m?
The article Rittal 2565050 earthing straps M6-M6, cross-section 10 mm², length 350 m is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2565050 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2565050 earthing straps M6-M6, cross-section 10 mm², length 350 m always at the best possible price. We can give you a discount of 2% on Rittal 2565050 earthing straps M6-M6, cross-section 10 mm², length 350 m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
