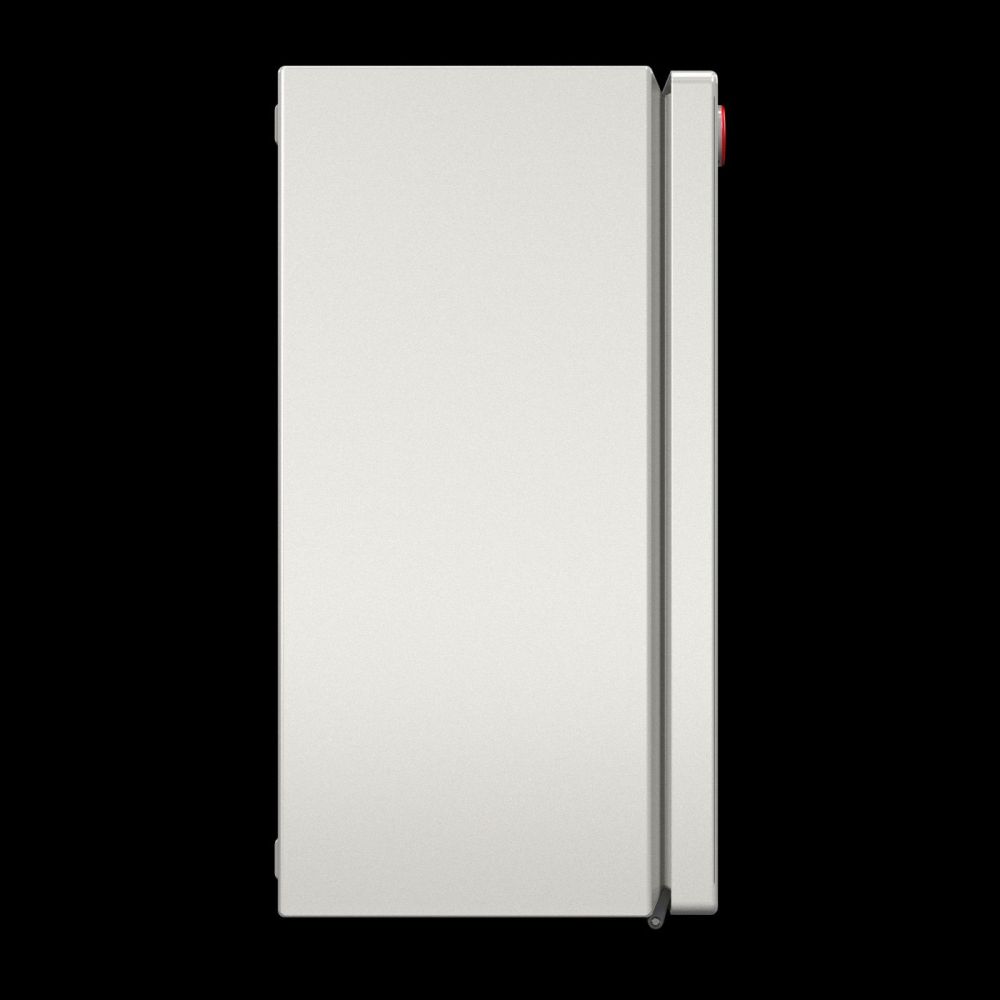

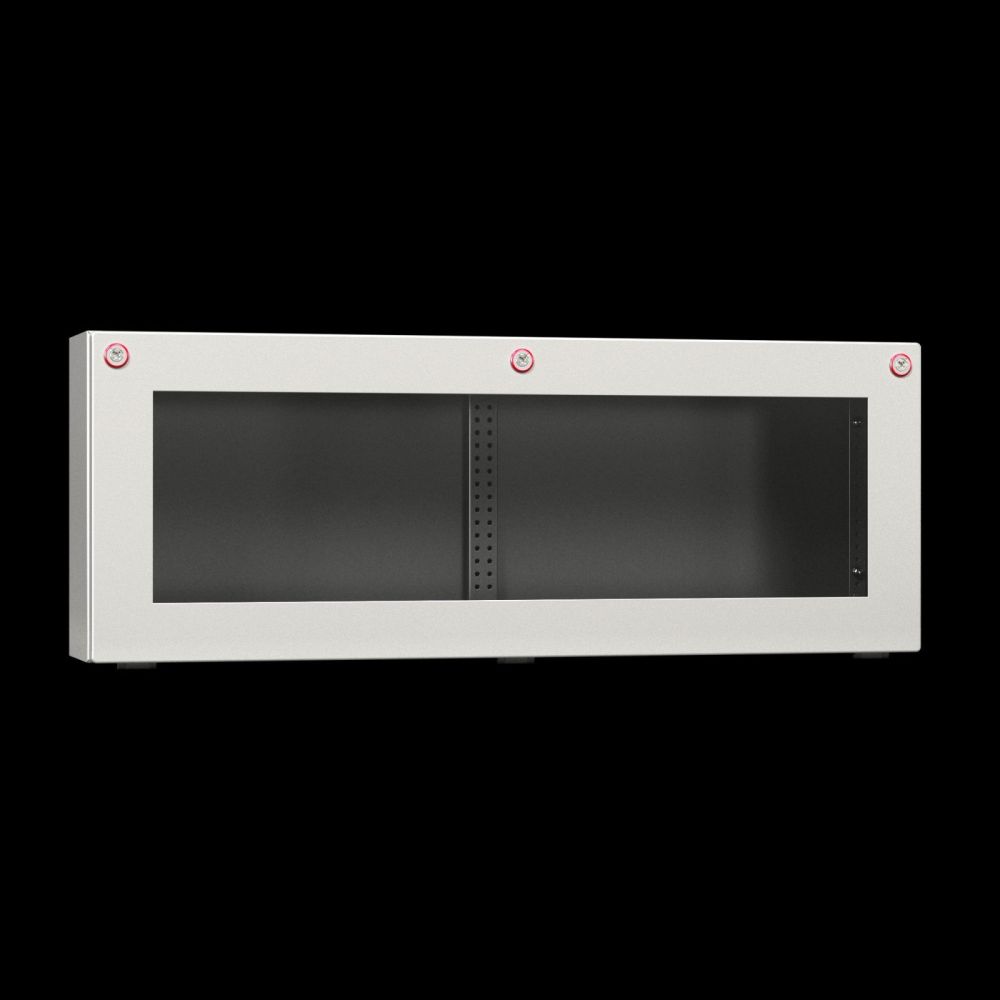

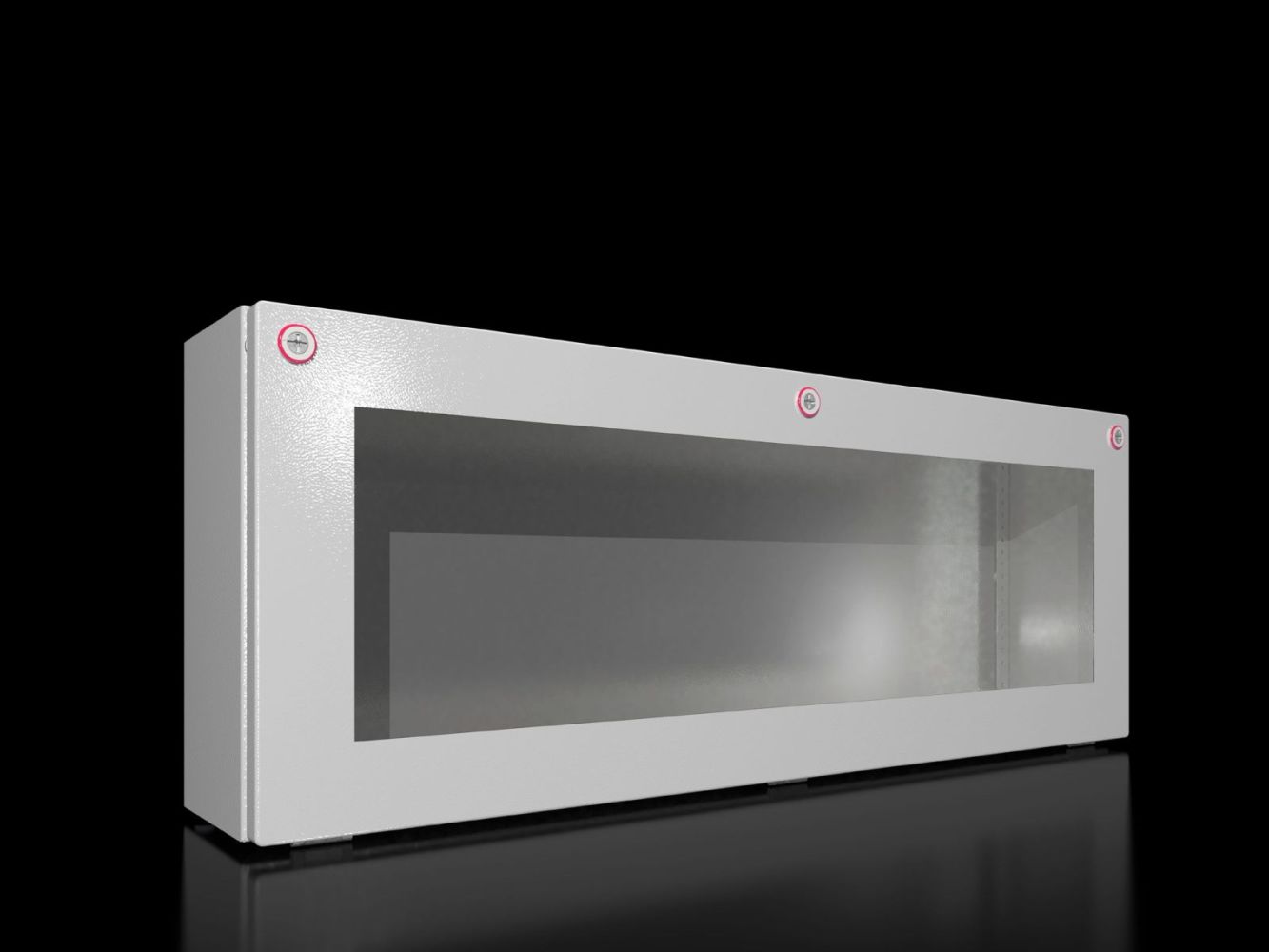

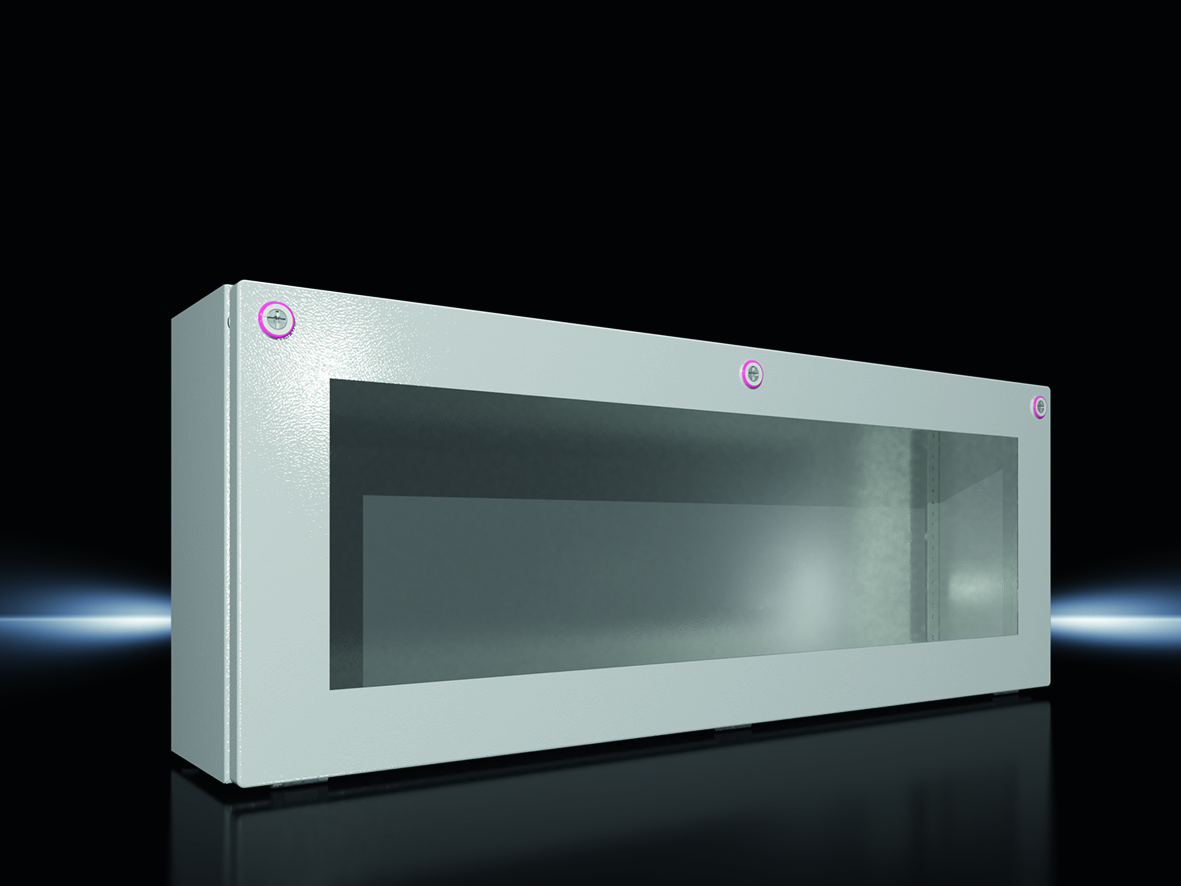

Rittal 1613000 Bus enclosure KX, sheet metal, with viewing window, 800x300x150 mm,

Your rating:
Average rating
product review for Rittal 1613000 Bus enclosure KX, sheet metal, with viewing window, 800x300x150 mm,
( 4.6 / 5 ) 8 ratings
Rittal 1613000
This image may differ from the desired article.
Rittal 1613000Rittal 1613000Rittal 1613000Rittal 1613000Rittal 1613000Rittal 1613000Rittal 1613000Rittal 1613000
167,15 EUR 167,18 EUR
( 198,91 EUR incl. VAT )
≈ £139.90  |  ≈ $183.70
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1613000 Bus enclosure KX, sheet metal, with viewing window, 800x300x150 mm,
Datasheet:file_download Download
Lieske Part No.:1598335
Mfg Part No: 1613000
UPC/EAN: 4028177816701
Weight:8.84 kg
Type:KX 1613000

Product information for Rittal 1613000:

The Rittal Bus housing KX 1613000 is a wall-mounted housing made of sheet steel, designed for use in industrial plants to accommodate bus modules and sensors from various manufacturers. The housing features a hinged lid and an integrated viewing window made of polycarbonate with a thickness of 4 mm, enabling visual inspection of installed components without opening the lid. Dimensions are 800 mm width, 300 mm height, and 155 mm depth, with the housing having a closed base. The construction is formed from a single piece, bent and welded, resulting in a stable and robust structure. The surface is treated in three stages: dip-primed, coated with a nano-ceramic protective layer, and externally powder-coated in the colour RAL 7035 with a textured finish, ensuring high resistance against corrosion as well as against mineral oils, lubricants, machining emulsions, and solvents.

Applications
This housing is suitable for use in industrial environments, particularly in plants with increased requirements for protection against dust, splashing water, and mechanical impacts. It is frequently used in automation technology, process control, and for the installation of fieldbus systems. The protection rating IP 65 according to EN 60 529 ensures dust-tight and water-tight sealing, even against splashing water from all directions. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for indoor use and environments with slight contamination risk. The type rating according to UL 50E includes Type 1 and Type 12, permitting use in dry indoor areas and environments with light dirt or splashing water. The IK code IK08 indicates high mechanical strength against impact and shock, making the housing suitable for applications in industrial facilities.

Functions and Equipment in Detail

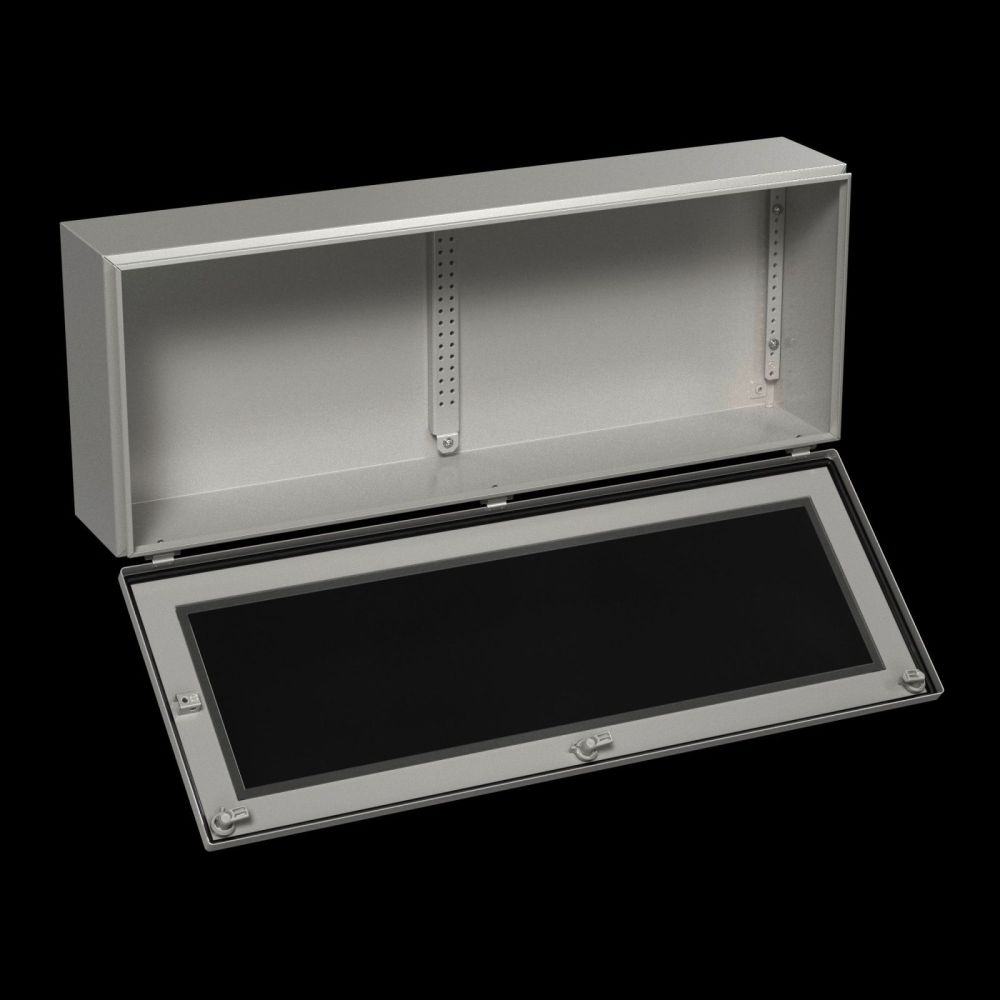

The housing is equipped with a continuous foam-sealed PU gasket, ensuring a tight seal between the housing and lid. The lid is hinged at the bottom and secured by mini-latch locks, enabling secure and quick assembly. The housing includes an integrated protective earth connection, which, via a U-bracket in the lid, allows for simple and reliable earthing. The rear panel features pass-throughs for wall mounting brackets, enabling flexible mounting on walls or beams. A printed QR code on the housing, lid, and nameplate enables unique identification and easy access to relevant product information, as well as traceability of individual parts.

Technology Explained Simply
The material thickness of 1.25 mm for both housing and lid ensures sufficient mechanical stability. The use of sheet steel as the base material provides high strength and durability. The powder-coated surface in RAL 7035 with textured finish offers not only an attractive appearance but also high corrosion resistance. The polycarbonate viewing window is transparent and resistant to mechanical stress, allowing visual inspection of installed components without opening the lid. The IP 65 protection rating means the housing is dust-tight and protected against splashing water from all directions, making it suitable for outdoor use or in damp indoor environments.

Compatibility and Accessories
The housing is designed for mounting bus modules and sensors from various manufacturers. Compatible accessories include mounting clips for support rails, plug-throughs, pressure equalization plugs M12x1.5, mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, drill screws type ST 4.8 L9.5 mm, mounting brackets, support rails TH 35/7.5/35/15, earthing straps M6-M6, mounting plates for terminal boxes and bus housings, mounting claws for a second mounting level, and wall mounting brackets. These accessories enable flexible and application-specific mounting and integration into existing systems.

Mounting and Installation

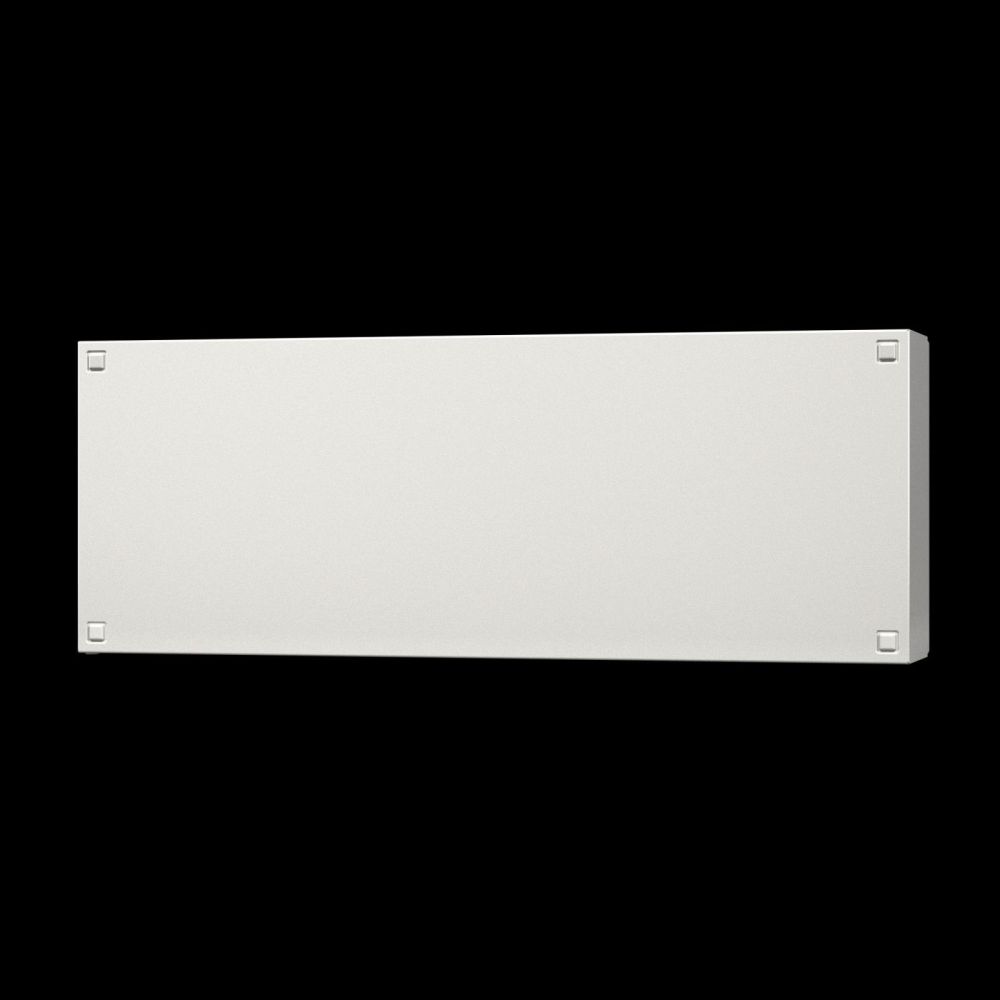

Mounting is done on a wall or beam using the designated pass-throughs in the rear panel. Fastening is achieved with appropriate screws or mounting accessories. Support rails can be secured with mounting clips to safely mount modules and components. Earthing is done via the integrated protective earth connection in the housing and the U-bracket in the lid, enabling quick and reliable connection. The viewing window allows inspection of components without opening the lid, simplifying maintenance and commissioning.

Advantages in Operation
The housing offers high mechanical strength and protection rating, suitable for industrial environments. The integrated viewing window enables quick visual inspection of components, simplifying maintenance and diagnostics. The powder-coated surface in RAL 7035 provides high corrosion resistance and is resistant to industrial chemicals. The mini-latch locks ensure secure and quick closure of the lid. The integrated earthing and designated mounting points simplify installation and integration into existing systems. The QR codes on the housing and lid enable easy identification and document retrieval, supporting traceability and maintenance.

General
Modelwith viewing window
MaterialHousing: sheet steel, cover: sheet steel, continuously foamed PU seal, vision window: polycarbonate, 4 mm
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryHousing with hinged cover, viewing window in cover, mini cam locks
Width800 mm
Height300 mm
Depth155 mm
Degree of protection IP according to EN 60 529IP 65
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)49.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1613000, EAN: 4028177816701
