Rittal 2309100 mounting claw for second mounting level

Your rating:
Average rating
product review for Rittal 2309100 mounting claw for second mounting level
( 4.4 / 5 ) 5 ratings
Rittal 2309100
This image may differ from the desired article.
Rittal 2309100Rittal 2309100Rittal 2309100Rittal 2309100
29,67 EUR
( 35,31 EUR incl. VAT )
≈ £24.83  |  ≈ $32.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2309100 mounting claw for second mounting level
Datasheet:file_download Download
Lieske Part No.:1598333
Mfg Part No: 2309100
UPC/EAN: 4028177938106
Weight:0.16 kg
Type:KX 2309100

Product information for Rittal 2309100:

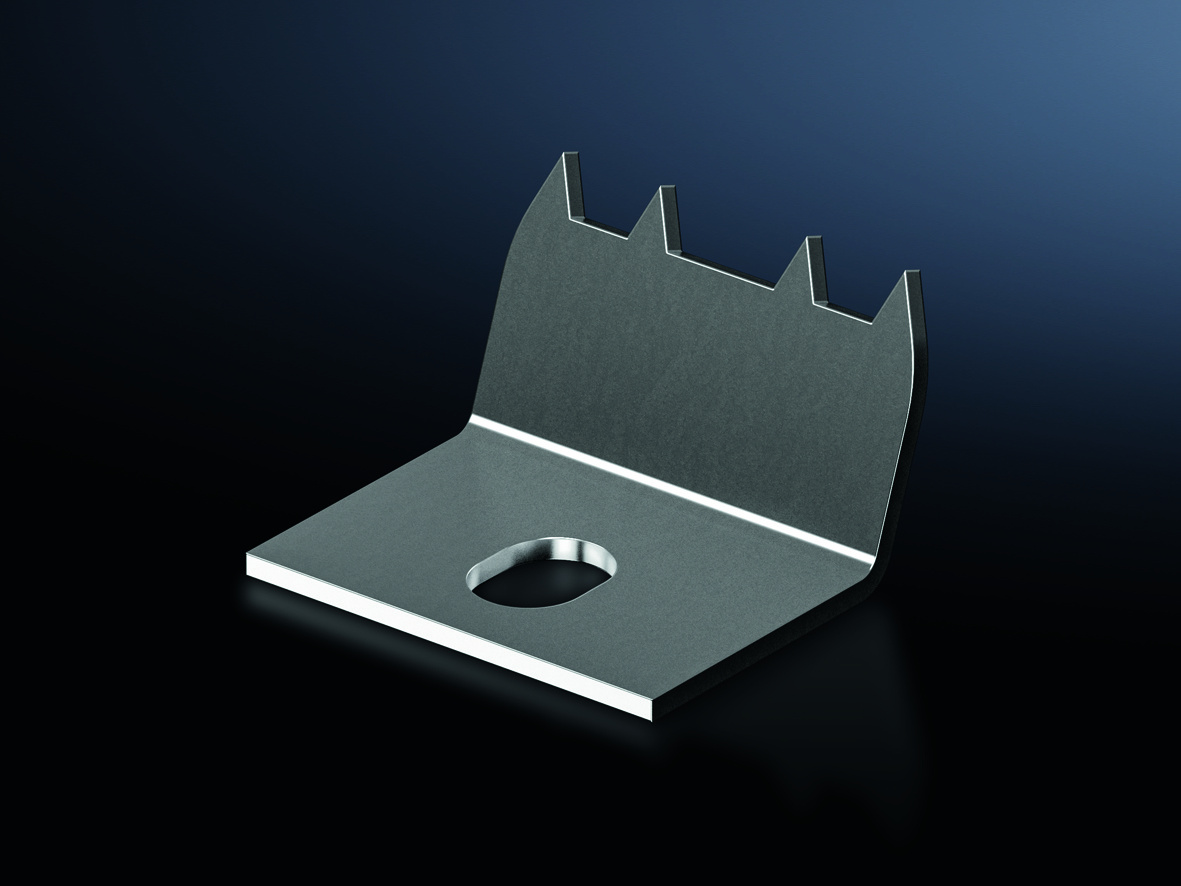

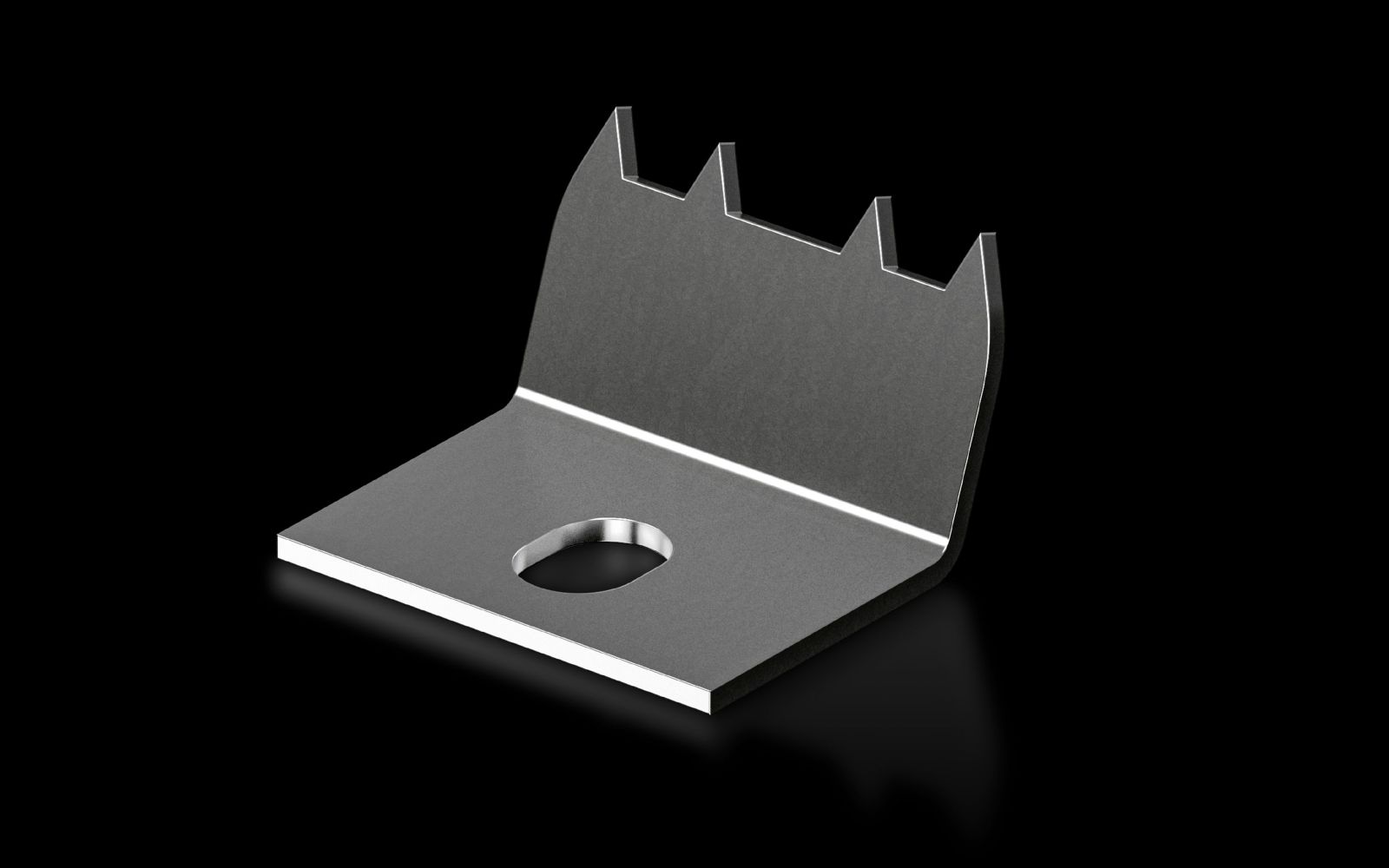

The Rittal KX 2309100 mounting claw is a system accessory for mounting DIN rails in terminal boxes KX and bus enclosures KX. It is used to secure DIN rails directly to the rear wall of the enclosure, creating an additional mounting plane. This increases the installation depth by 10 mm without requiring mechanical modification of the enclosure. This solution is particularly useful when additional space is needed in the enclosure for components or modules, without altering the existing structure.

Applications

The mounting claw is specifically designed for use in terminal boxes KX and bus enclosures KX. It enables the installation of components mounted on DIN rails in a second plane behind the front mounting surface. This is especially advantageous in compact enclosures where space is limited and vertical expansion of the mounting surface is required. The claw is mounted directly to the rear wall of the enclosure, allowing DIN rails to be positioned 10 mm behind the front wall.

Functions and Equipment in Detail

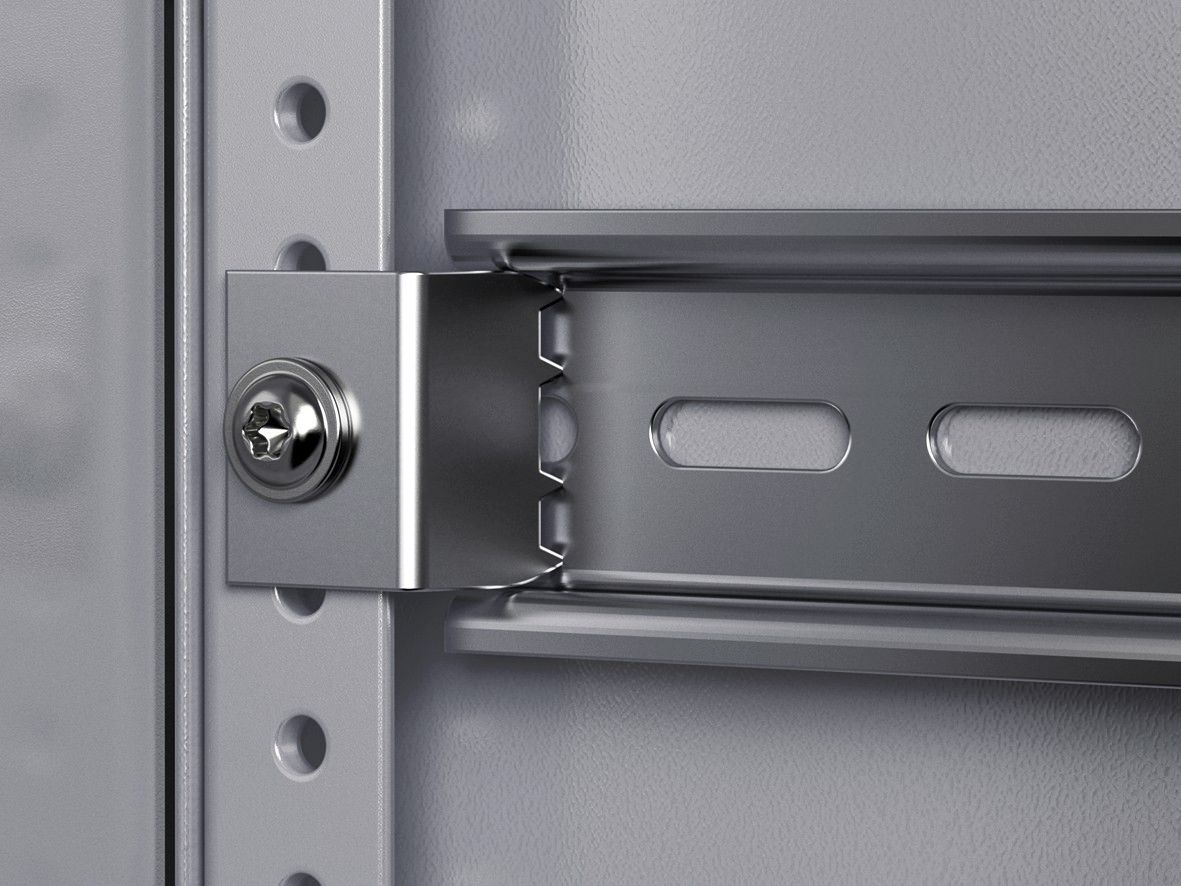

The claw is designed to allow DIN rail mounting directly to the rear wall without requiring drilling or other modifications to the enclosure. This reduces installation time and avoids potential damage to the enclosure. The mounting is achieved via a mechanical locking mechanism that securely holds the claw to the rear wall. DIN rails compliant with EN 60 715 can be used, with the length of the support rails varying according to application. The claw is available in a packaging unit of 20 pieces, suitable for larger installation projects or series applications.

Technology Explained Simply

The mounting claw features a clamp-like shape that anchors to the rear wall of the enclosure. It is positioned to securely hold the DIN rails while simultaneously creating a 10 mm gap from the front wall. This additional spacing allows deeper components to be mounted without affecting the front mounting plane. The design ensures mechanical stability of the DIN rails, even under load from mounted components.

Compatibility and Accessories

The claw is compatible with terminal boxes KX and bus enclosures KX. It is designed for use with DIN rails compliant with EN 60 715, with support rail lengths varying according to requirements. Combined with other Rittal system components, such as support rails, it enables flexible and modular mounting within the enclosure. The claw is not a replacement for standard mounting, but rather complements it by providing an additional mounting plane.

Mounting and Installation

Installation is performed by simply inserting the claw into the rear wall of the enclosure. No additional tools or drilling are required. The DIN rails are then placed onto the claw and secured. The installation is quick and requires no special skills. The claw is designed to securely anchor to the rear wall and hold the DIN rails stably.

Operational Advantages

Using the mounting claw enables more efficient use of available space within the enclosure. The additional mounting plane reduces the need to modify the enclosure, saving time and effort. The mechanical stability of the DIN rails is maintained, and installation is simple and fast. The claw is available in a pack of 20 pieces, making it suitable for series applications and larger projects. The use of DIN rails compliant with EN 60 715 ensures standardized mounting compatible with many components.

General
Suitable for housing typeTerminal box KX, bus housing KX


Product data sheet
Datasheet for Rittal 2309100, EAN: 4028177938106
