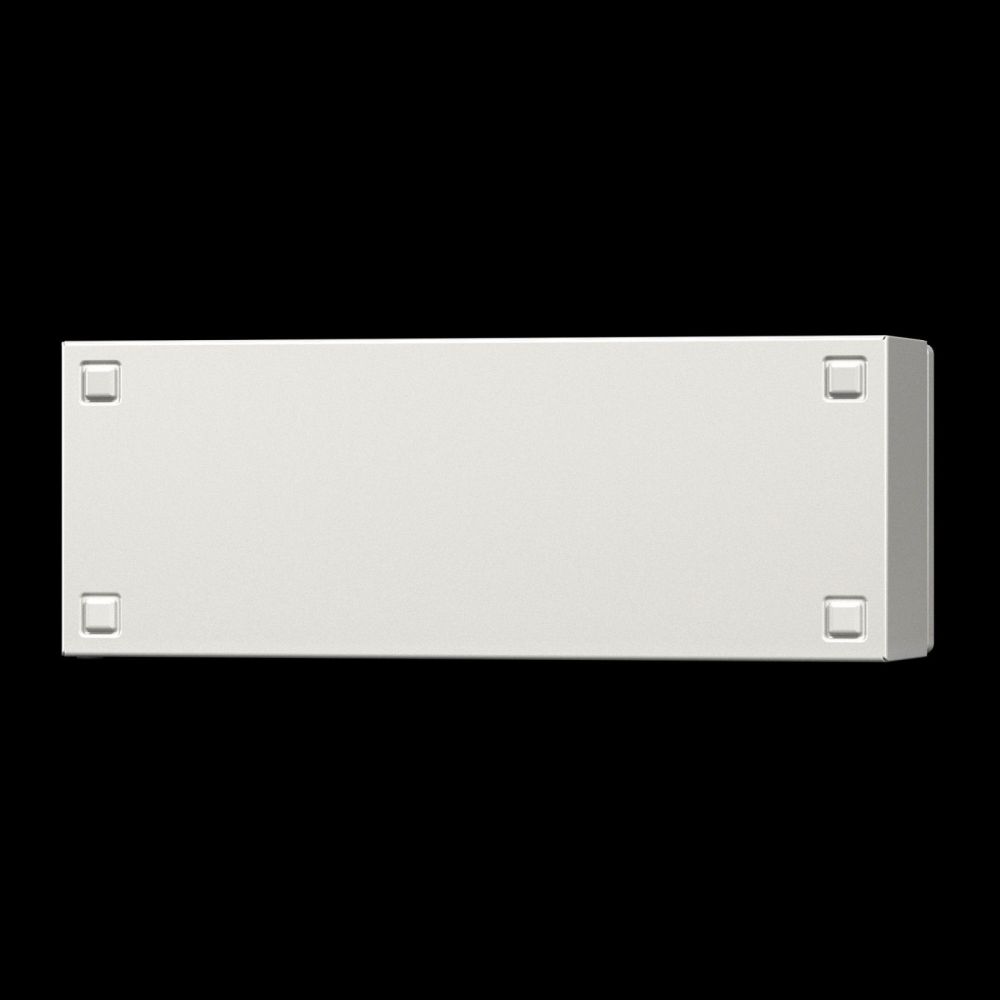

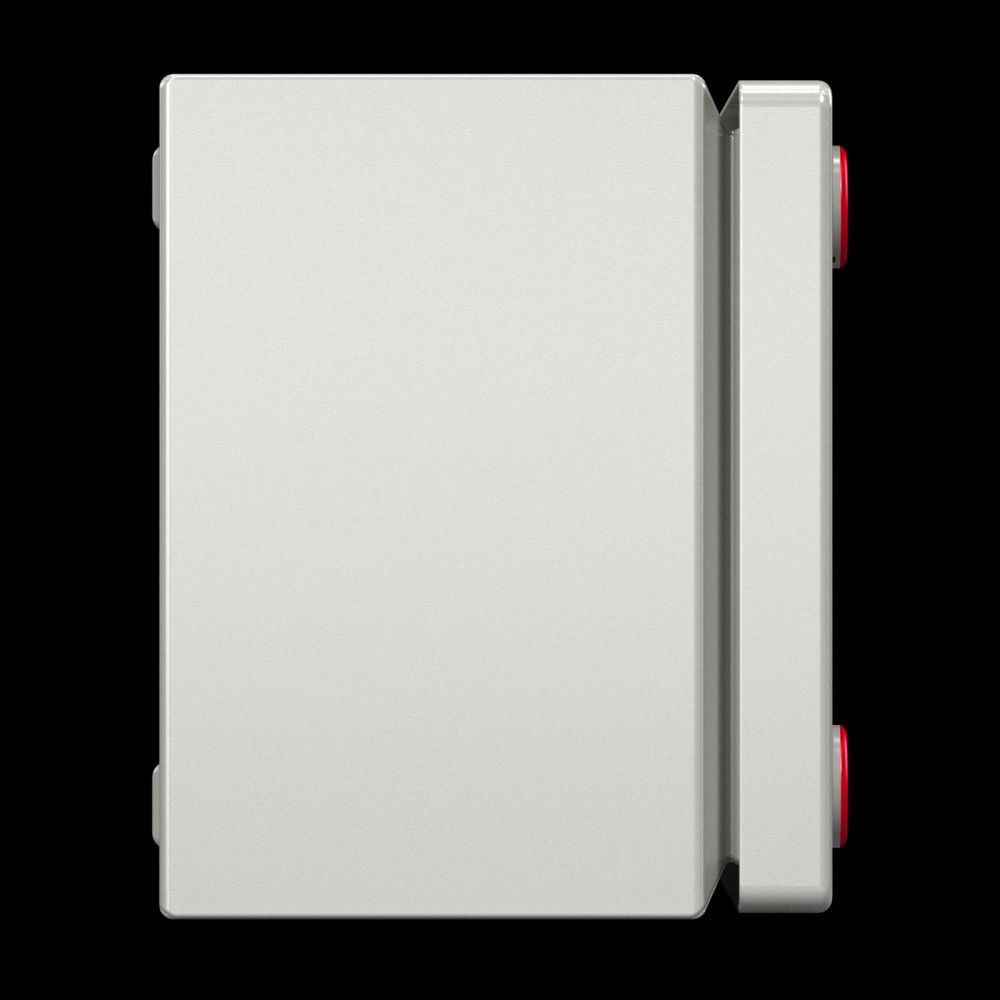

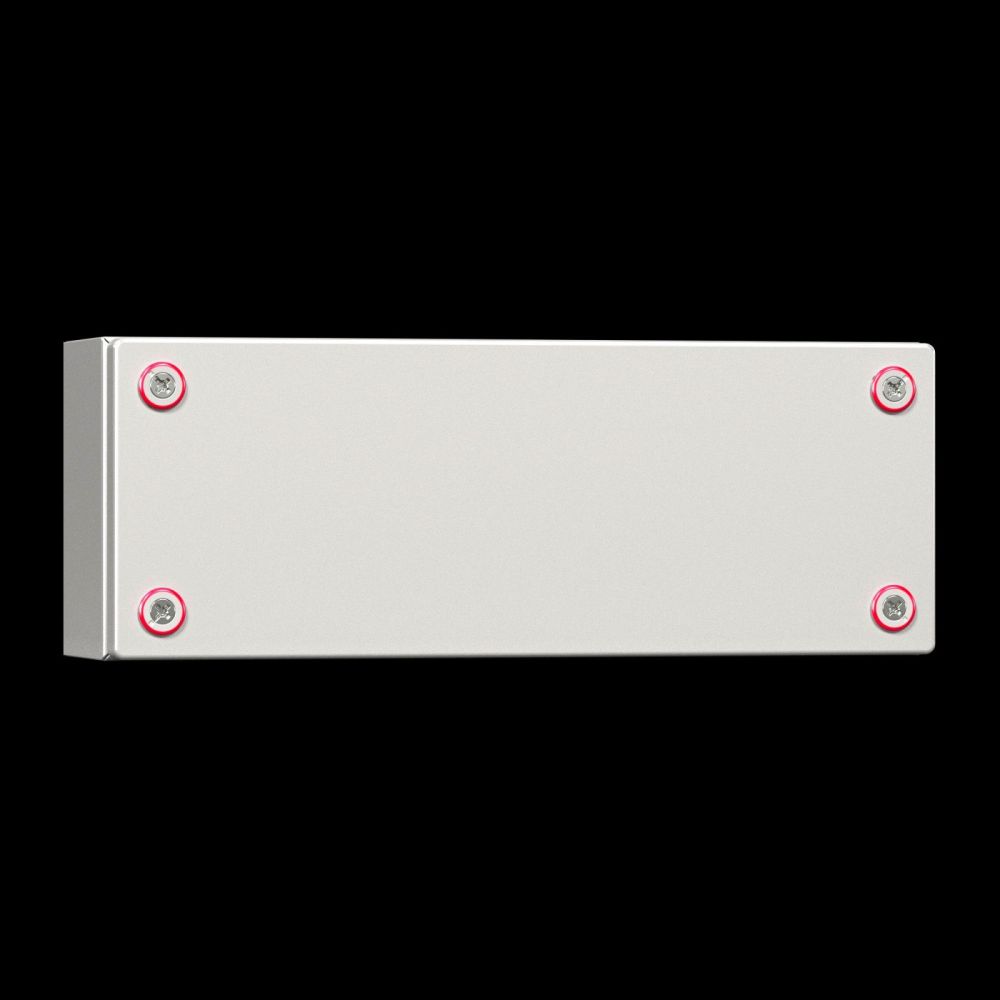

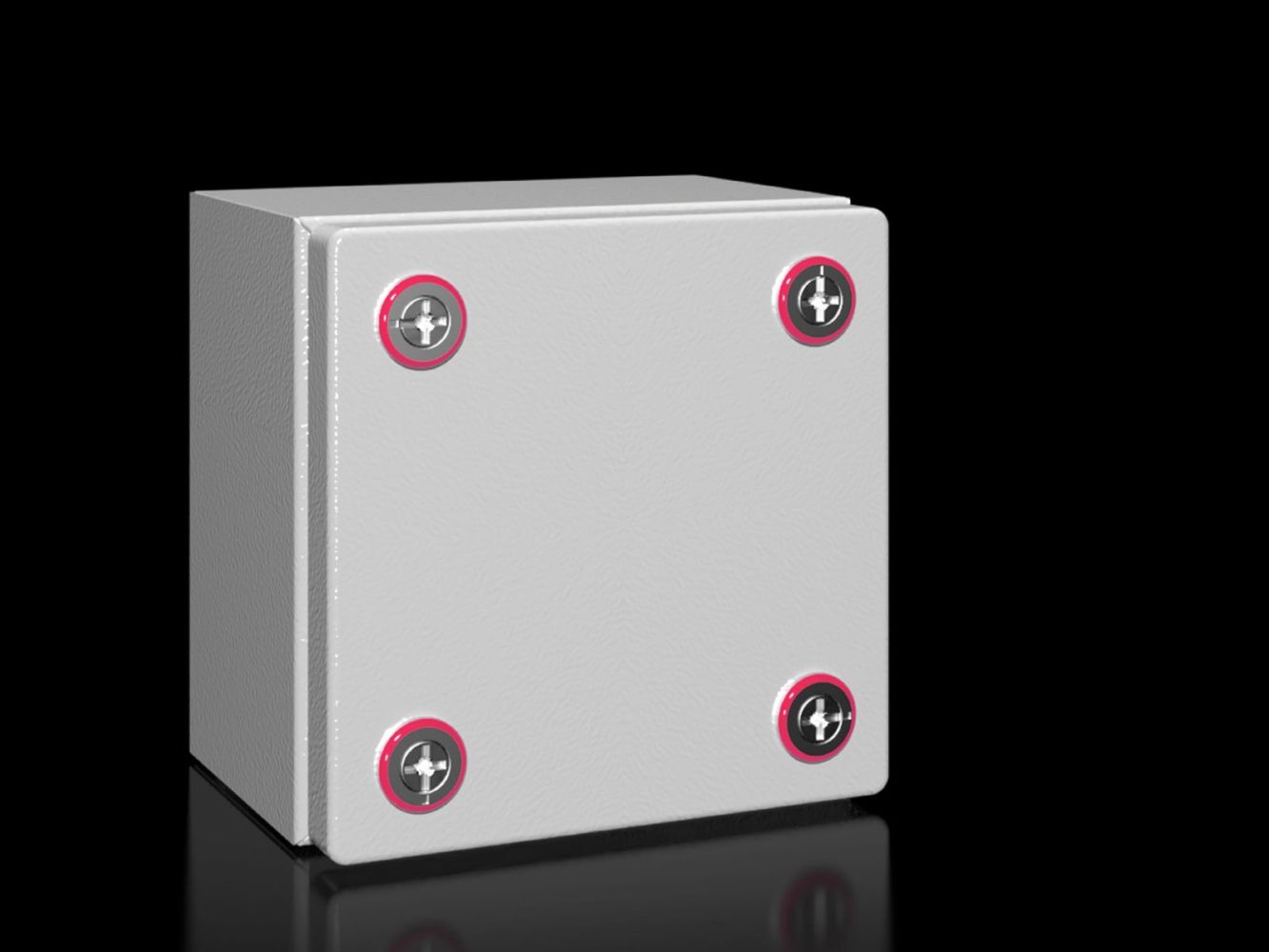

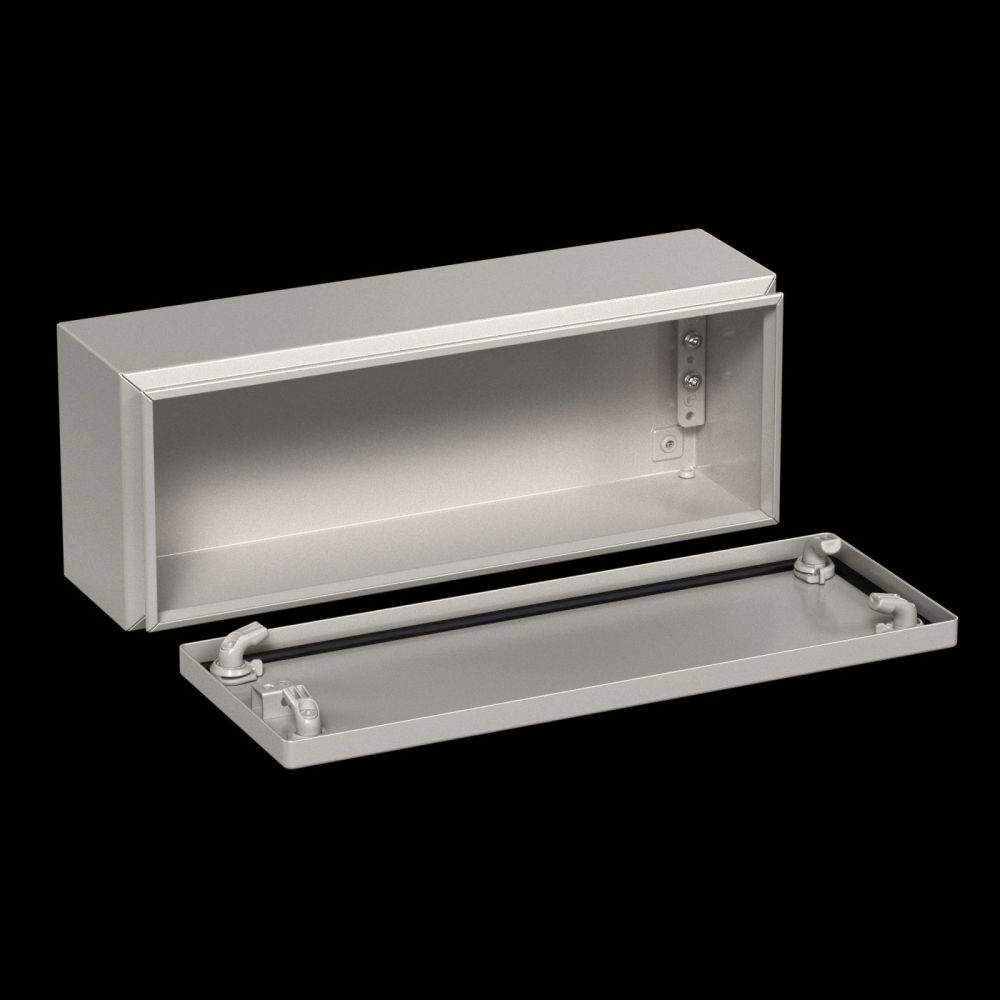

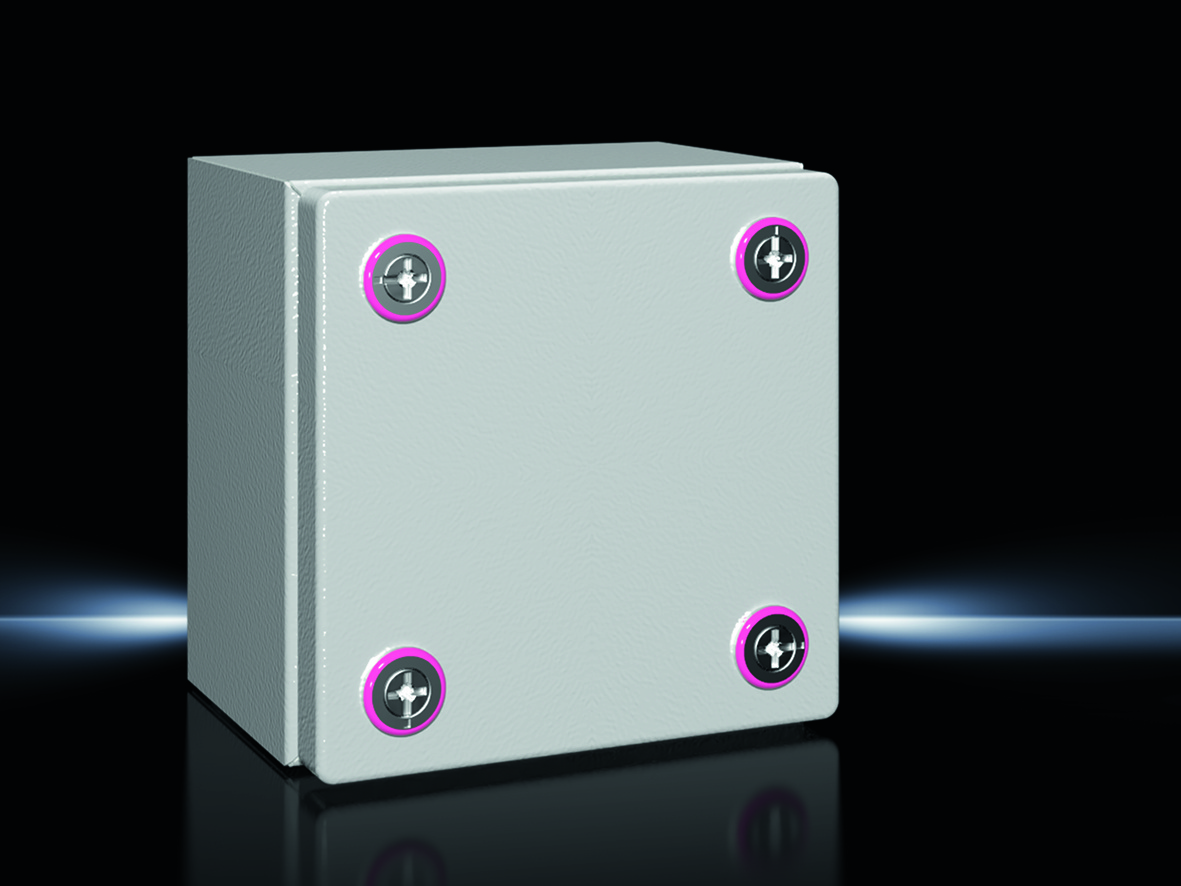

Rittal 1502000 terminal box KX, without gland plate 200x200x120 mm
|
32,98 EUR |
|
|
( 39,25 EUR incl. VAT ) ≈ £27.60 | ≈ $36.25 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598126 |
| Mfg Part No: | 1502000 |
| UPC/EAN: | 4028177816169 |
| Weight: | 2.12 kg |
| Type: | KX 1502000 |
Product information for Rittal 1502000:
| General | |
| Housing material | steel sheet |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Cover material | steel sheet |
| Surface protection | Dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Sealing | Foamed-in-place PU seal, continuous |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Degree of protection | IP 66 |
| Width | 200 mm |
| Height | 200 mm |
| Depth | 120 mm |
| Model | without mounting plate, with cover, without flange plate |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 27.57 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 1502000 terminal box KX, without gland plate 200x200x120 mm?
The article Rittal 1502000 terminal box KX, without gland plate 200x200x120 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1502000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1502000 terminal box KX, without gland plate 200x200x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1502000 terminal box KX, without gland plate 200x200x120 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
