Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br

Your rating:
Average rating
product review for Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br
( 4.5 / 5 ) 46 ratings

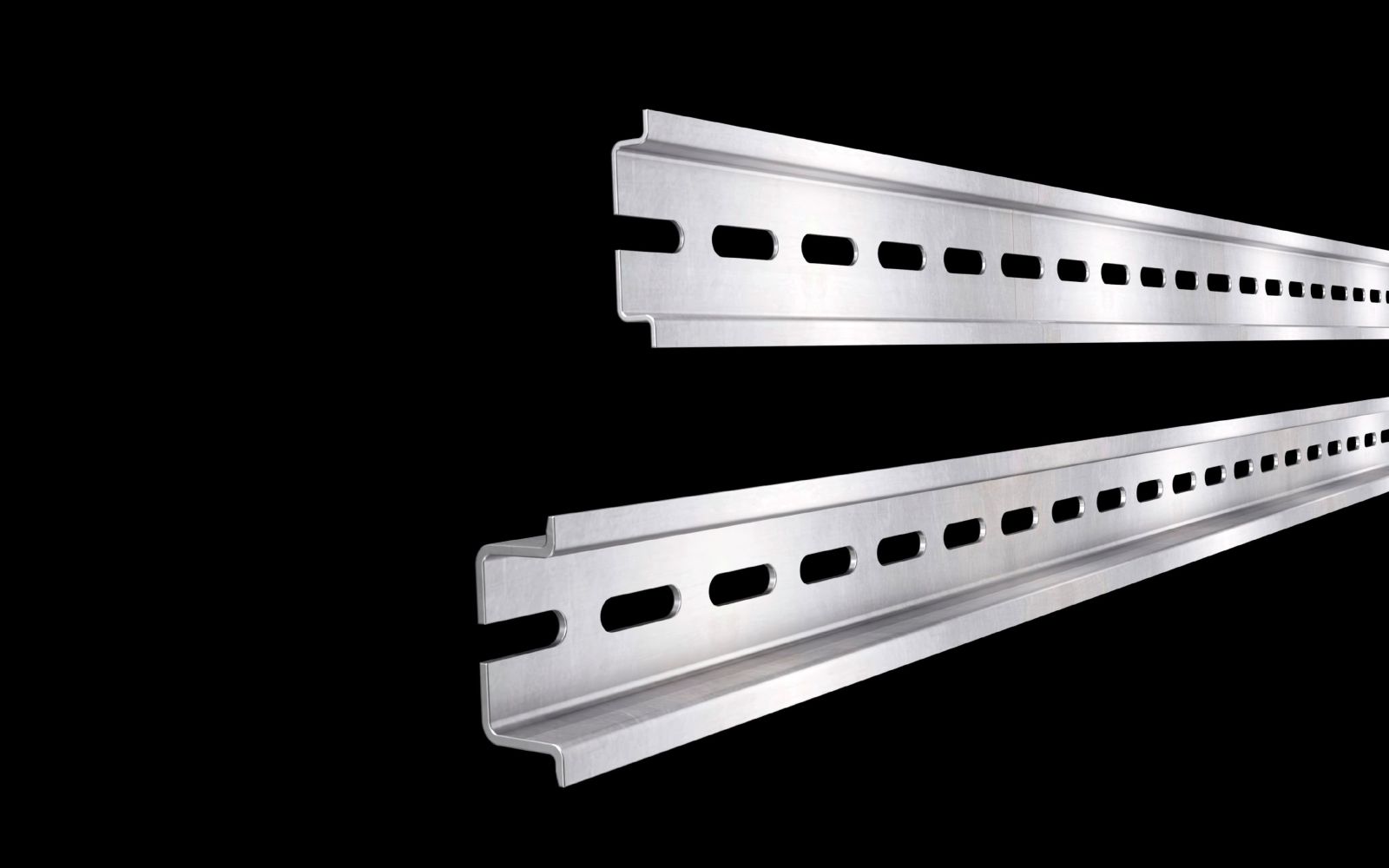

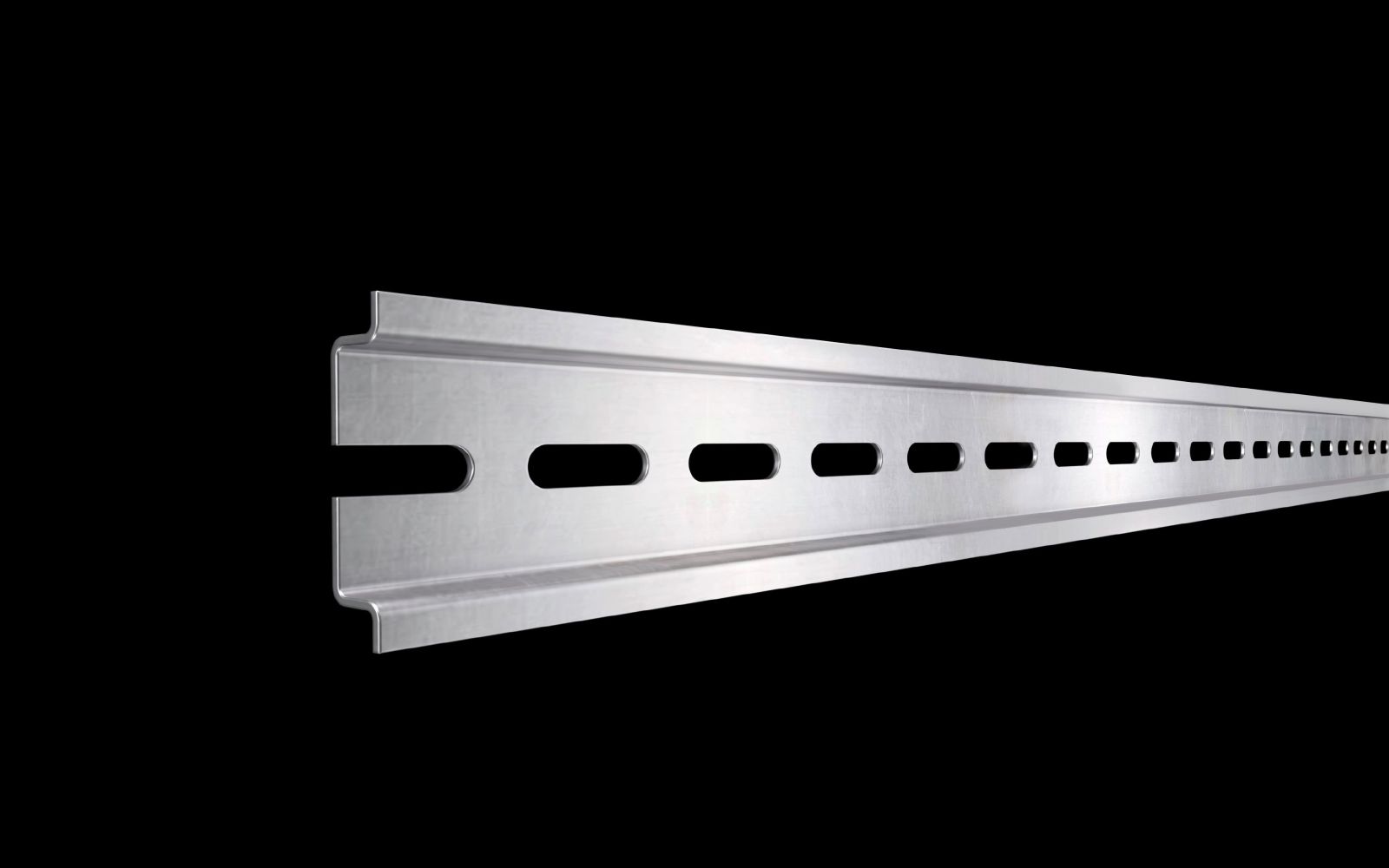

Rittal 2315000
This image may differ from the desired article.
Rittal 2315000Rittal 2315000Rittal 2315000Rittal 2315000
26,57 EUR
( 31,62 EUR incl. VAT )
≈ £22.24  |  ≈ $29.20
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br
Datasheet:file_download Download
Lieske Part No.:355856
Mfg Part No: 2315000
UPC/EAN: 4028177021020
Weight:0.61 kg
Type:SZ 2315000

Product information for Rittal 2315000:

The SZ 2315000 is a support rail from manufacturer Rittal, designed as TH 35/7.5, specifically intended for use in enclosures and housings. It serves as a mounting element for electrical components such as switches, relays, connectors, and other parts that are attached to a standardized mounting surface. The support rail is made of sheet steel and features a galvanized surface, providing high corrosion resistance and extending service life in industrial applications. The length of the support rail is 187 mm, matched to the enclosure width of 200 mm to ensure optimal fit and secure mounting.

Support rail

The support rail complies with standard EN 60 715, which defines the geometric dimensions and mounting characteristics for support rails in electrical switchgear. The TH 35/7.5 designation refers to the standard dimensions of the rail: a height of 35 mm and a profile depth of 7.5 mm. These dimensions are widely used in industry and allow compatibility with a wide range of standard components designed for this norm. As a result, the support rail is compatible with a broad range of electrical and electronic components mounted on a TH rail.

Applications

The SZ 2315000 is intended for various enclosure types, including models AX, KX, AE, KL, and KL-HD. These enclosures are typically used in industrial electrical engineering, automation technology, and building automation. The support rail is particularly used in enclosures with a width of 200 mm, with its length of 187 mm specifically matched to this enclosure width. This enables efficient use of available internal space without requiring additional adjustments or extra components.

Functions and equipment in detail

The support rail is made of sheet steel, providing sufficient strength and stability to transmit mechanical loads from mounted components. The galvanized surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. Mounting is achieved via integrated holes and fastening elements designed for standard installation on enclosure walls. The support rail is supplied in packaging units of 10 pieces, enabling cost-effective procurement for larger projects.

Technology explained simply

Standard EN 60 715 defines the dimensions and mounting conditions for support rails to ensure uniform and secure mounting of electrical components. The designation TH 35/7.5 describes the height (35 mm) and profile depth (7.5 mm) of the rail, which are critical for compatibility with standard components. The length of 187 mm is matched to the enclosure width of 200 mm to enable optimal positioning and secure mounting within the enclosure. The galvanized surface provides additional protection against environmental influences, especially in industrial applications.

Compatibility and accessories

The support rail is suitable for enclosure types AX, KX, AE, KL, and KL-HD, used in various industrial enclosure solutions. Compatibility with these enclosures is ensured by the matched length and standard dimensions of the support rail. Use with components designed for the TH 35/7.5 standard is standard, without requiring additional modifications. The support rail is supplied in packaging units of 10 pieces, enabling efficient procurement for projects involving multiple enclosures.

Mounting and installation

Mounting of the support rail is done by securing it to the inner wall of the enclosure using the integrated holes and fastening elements. The rail is designed to easily fit into the designated mounting openings and is secured with screws or other fasteners. The length of 187 mm allows optimal positioning within an enclosure with a width of 200 mm, ensuring efficient use of available space.

Advantages in operation

Using the SZ 2315000 provides a reliable and standardized mounting base for electrical components. The galvanized surface increases service life and resistance to corrosion, which is particularly beneficial in industrial environments. The length matching the enclosure width of 200 mm enables optimal positioning and reduces the need for additional adjustments. Compatibility with various enclosure types and standard components simplifies planning and installation of enclosures and reduces complexity during assembly.

General
ModelTH 35/7,5
Materialsteel sheet
Surface protectionZinc-plated
Length of busbar187 mm
Suitable forHousing type: AX, KX, AE, KL, KL-HD, Width: = 200 mm
PCF/VE (Cradle-to-Gate)2.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2315000, EAN: 4028177021020

Questions & answers

What is the delivery time of Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br?

The article Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2315000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br always at the best possible price. We can give you a discount of 2% on Rittal 2315000 support rail TH 35/7.5/TS 35/15, length 187 mm, for Br if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
