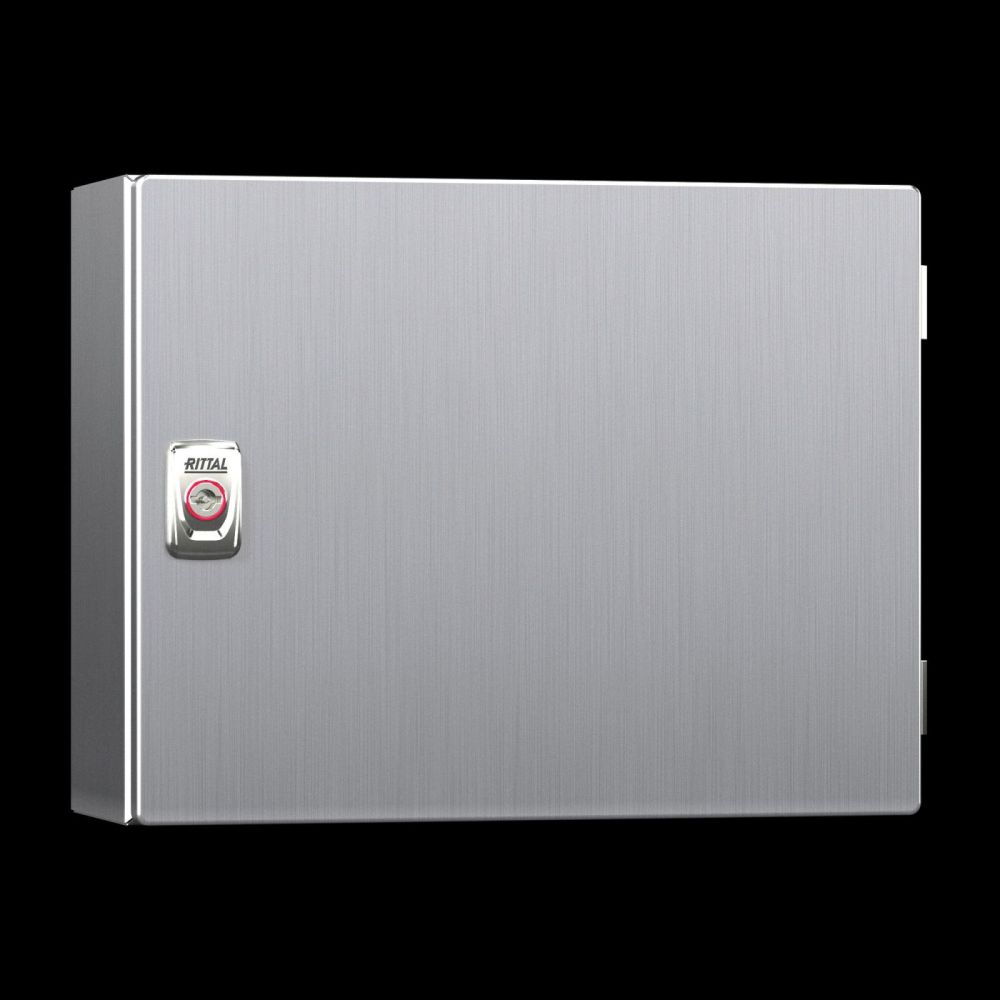

Rittal 1301000 KX E-Box, 200x300x155 mm, with mounting plate, 1-door

Your rating:
Average rating
product review for Rittal 1301000 KX E-Box, 200x300x155 mm, with mounting plate, 1-door
( 4.6 / 5 ) 5 ratings
Rittal 1301000
This image may differ from the desired article.
Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000Rittal 1301000
302,22 EUR
( 359,64 EUR incl. VAT )
≈ £252.96  |  ≈ $332.14
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1301000 KX E-Box, 200x300x155 mm, with mounting plate, 1-door
Datasheet:file_download Download
Lieske Part No.:1778597
Mfg Part No: 1301000
UPC/EAN: 4028177919037
Weight:3.889 kg
Type:KX 1301000

Product information for Rittal 1301000:

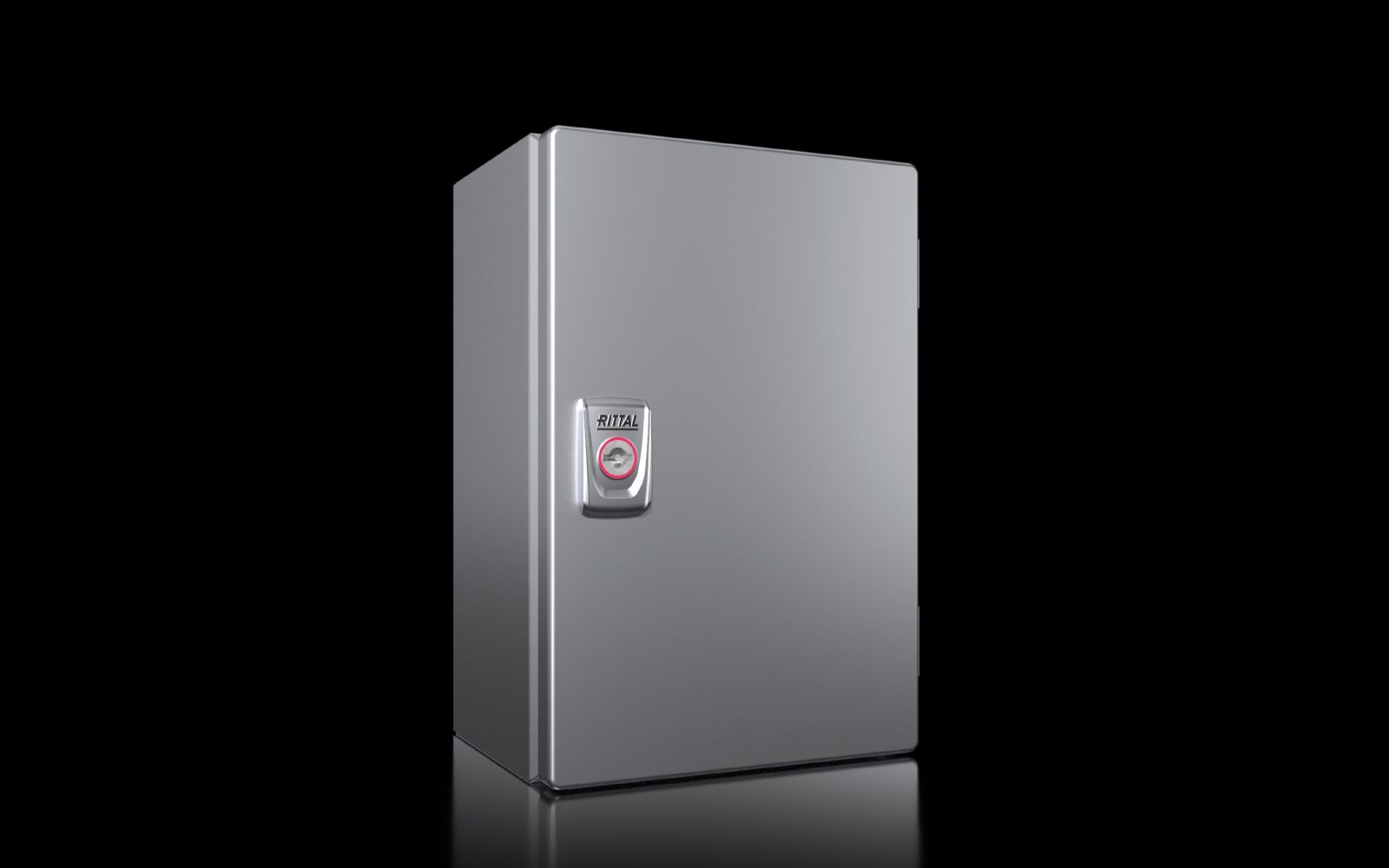

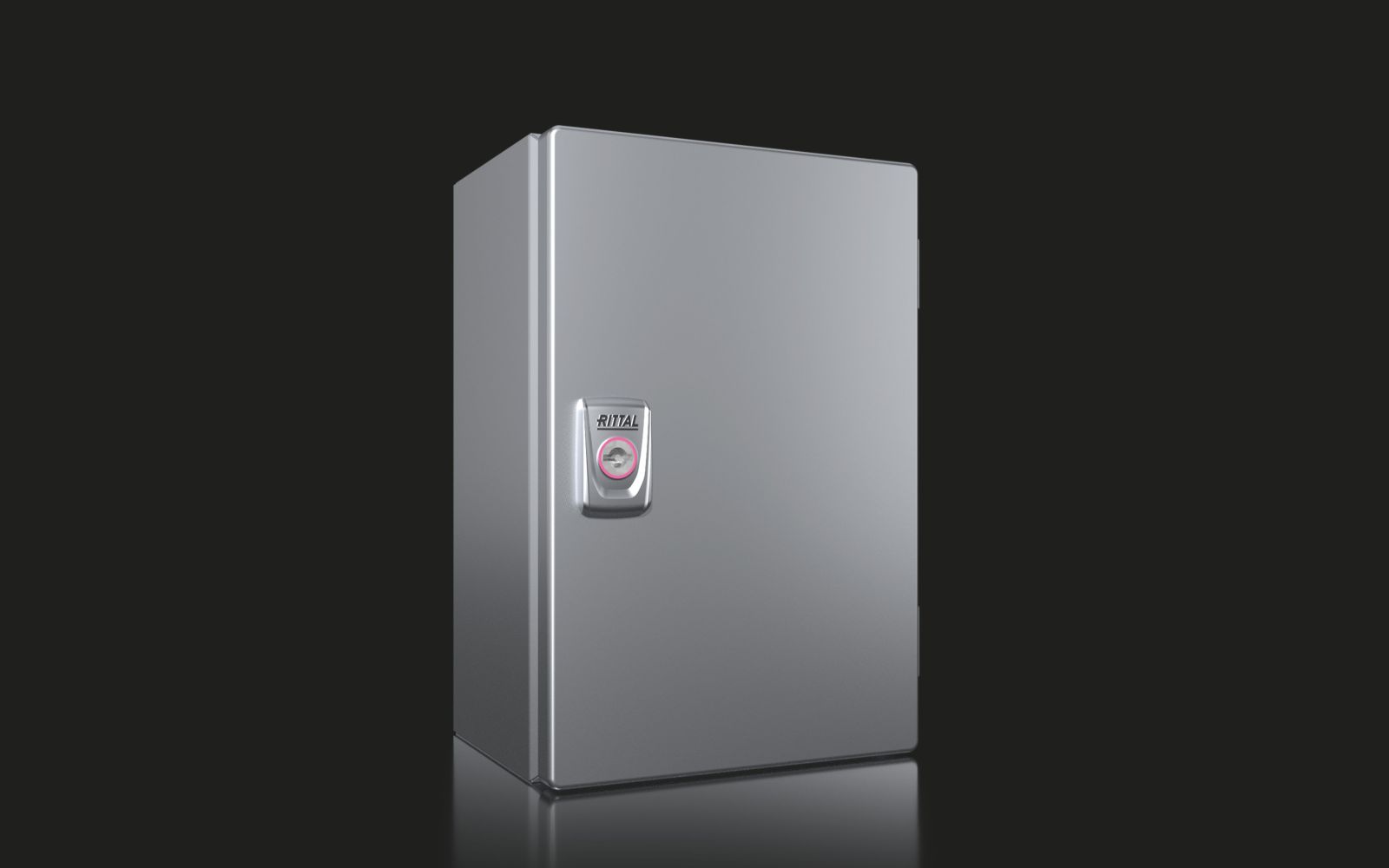

The Rittal KX 1301000 is an industrial E-Box made of stainless steel, designed for use in demanding environments where high mechanical stability, corrosion resistance, and protection against dust and water are required. The housing has dimensions of 200 mm (width) × 300 mm (height) × 155 mm (depth) and is configured as a single-door model. It is made of stainless steel 1.4404 (AISI 316L), a high-quality, non-rusting material particularly suitable for use in moist or aggressive environments. The surface of the housing and door is brush-finished with a grit of 180, providing a uniform, easy-to-clean, and aesthetically pleasing appearance. The mounting plate made of galvanized steel sheet enables secure attachment to support rails or other mounting surfaces.

Applications

The E-Box KX 1301000 is suitable for use in industrial electrical engineering, automation technology, and manufacturing and process industries. It can be used, for example, to house controls, switching devices, sensors, or small network components. The high protection rating IP 66 according to EN 60 529 ensures that the housing is dust-tight and protected against water jets from all directions. This makes it suitable for outdoor use or in moist production environments. The UL-Type-Ratings (Type 1, 3R, 3RX, 4, 4X, 12) confirm suitability for various application scenarios in the USA and Canada, particularly in environments with splashing water, dust, or light dirt.

Functions and Equipment in Detail

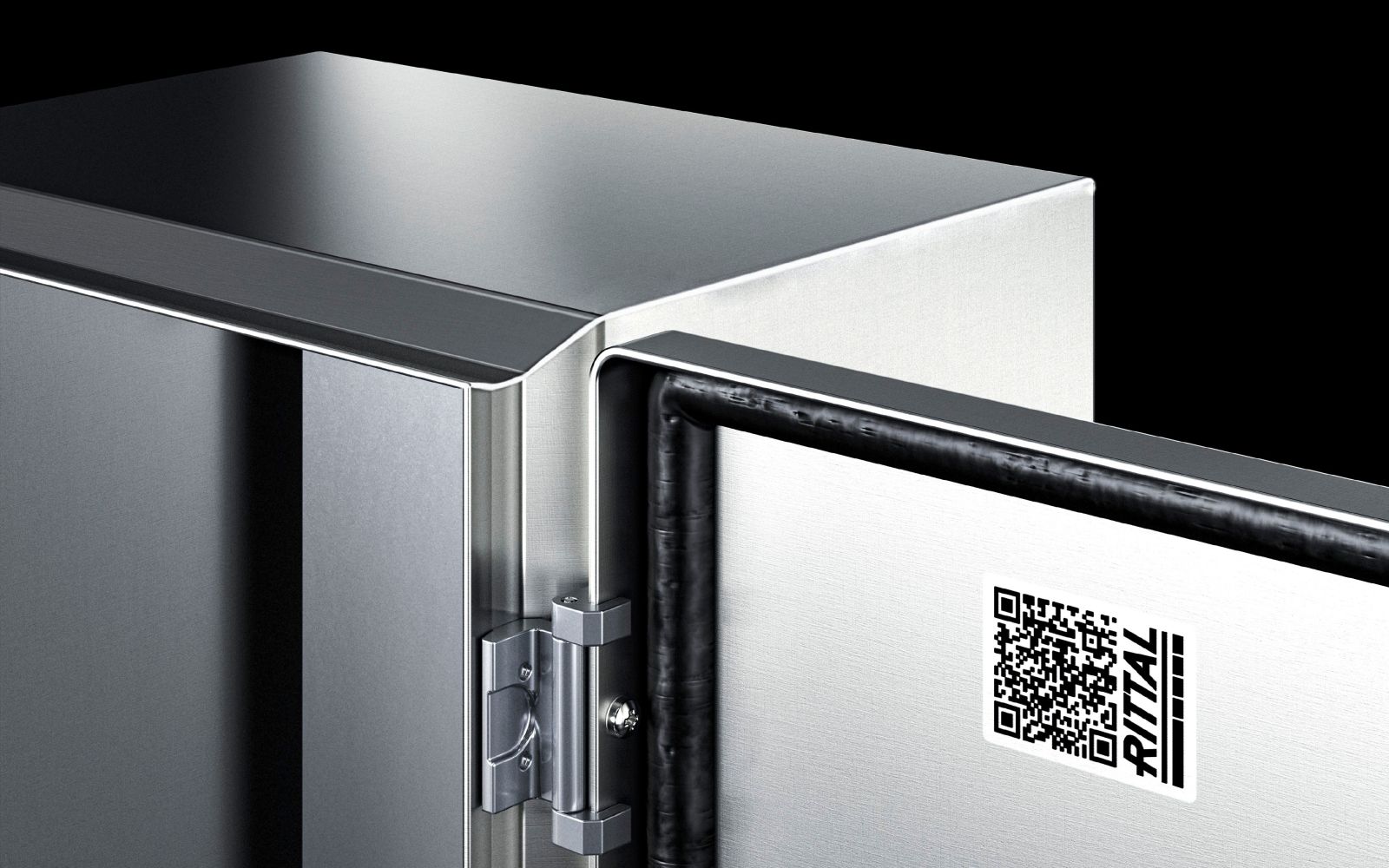

The housing features a continuous foamed PU seal, ensuring a tight closure between the door and housing body, thus supporting the IP 66 protection function. The door is hinged on the right side with 180° hinges, allowing optimal access to the interior. The locking mechanism consists of a stainless steel 1.4404 latch with a 3 mm double-barrel lock insert, ensuring secure and easy operation. The mounting plate is included as standard and has dimensions of 175 mm × 285 mm. The material thickness of both the housing and door is 1.25 mm, providing high mechanical strength and resistance to damage.

Technology Explained Simply

The IP 66 protection rating means the housing is completely protected against dust (dust-tight) and resistant to water jets from all directions (e.g., rain or splashing water). The UL-Type-Ratings refer to the American standard UL 50E and describe suitability for specific environmental conditions, such as protection against splashing water (Type 4X) or for use in dry indoor environments (Type 1). The use of stainless steel 1.4404 (AISI 316L) provides high corrosion resistance, especially against chloride-containing media, making it suitable for use in the food industry, chemical industry, or coastal locations.

Compatibility and Accessories

Various accessories are available to extend the functionality and can be combined with the E-Box KX 1301000. These include mounting clips for support rails, lock inserts made of zinc die-cast, support rails TH 35/7,5/TS 35/15, mounting brackets, condensate drains, drill screws type ST 4,8, mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, earthing straps M6-M6 with a cross-section of 10 mm², and mini comfort handles AX for padlocks. These components enable flexible mounting and adaptation to specific operational requirements.

Mounting and Installation

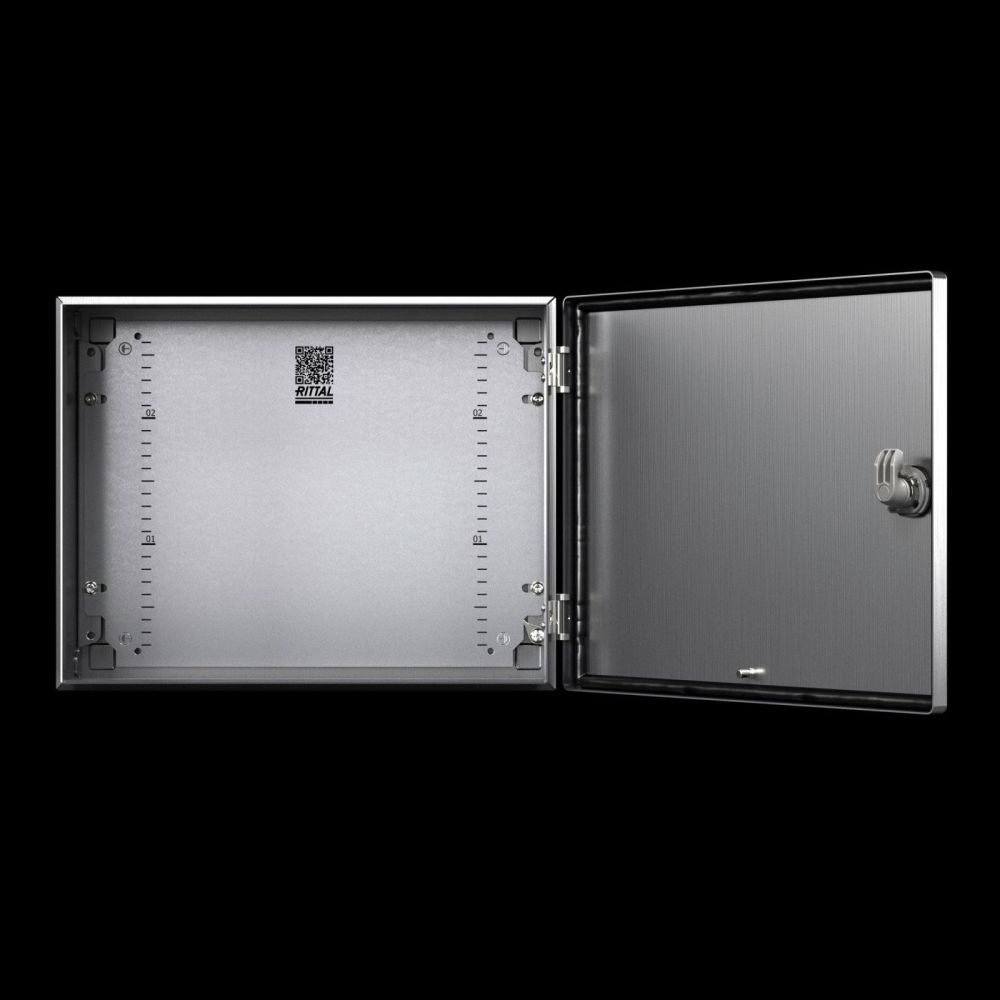

Mounting is performed via the standard mounting plate, designed for attachment to support rails or wall mounting. The 180° hinges allow full door opening, facilitating access to installed components. Earthing is achieved via a bolt in the door, ensuring a secure electrical connection to the housing body.

Operational Advantages

The E-Box KX 1301000 offers reliable protection for sensitive electronic components due to its robust stainless steel construction and high IP 66 protection rating. The brush-finished surface is easy to clean and resistant to mechanical stress. The integrated mounting plate and compatibility with various accessories enable flexible and quick installation. The use of stainless steel 1.4404 ensures long service life even in corrosive environments. The standard inclusion of a latch provides secure and easy operation without additional tools.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4404 (AISI 316L)
Surface protectionEnclosure and cover: Brushed finish, grit 180, mounting plate: galvanized
Scope of deliveryMounting plate, pre-lubricated lock with 3 mm double-barrel insert
Width200 mm
Height300 mm
Depth155 mm
Mounting plate dimensions (W x H)175 mm x 285 mm
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
LockNumber of locks: 1, Lock material: stainless steel 1.4404 (AISI 316L)
Base materialStainless steel 1.4404 (AISI 316L)
PCF/VE (Cradle-to-Gate)13,5


Product data sheet
Datasheet for Rittal 1301000, EAN: 4028177919037
