Rittal 2584100 AX mast mounting
|
66,45 EUR 66,47 EUR |
|
|
( 79,08 EUR incl. VAT ) ≈ £55.62 | ≈ $73.03 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1593407 |
| Mfg Part No: | 2584100 |
| UPC/EAN: | 4028177940598 |
| Weight: | 1.96 kg |
| Type: | AX 2584100 |
Product information for Rittal 2584100:
Applications
The mast mounting is intended for use in industrial and technical installations, particularly in areas where enclosures are mounted on masts, such as in telecommunications, power supply, or monitoring systems. The mounting is suitable for outdoor use, as it meets the requirements of UL 50E Type Rating, including Type 1, Type 3R, Type 4, and Type 12. This classification includes protection against dust, splashing water, and other environmental influences, highlighting its suitability for outdoor installations.
Functions and Equipment in Detail

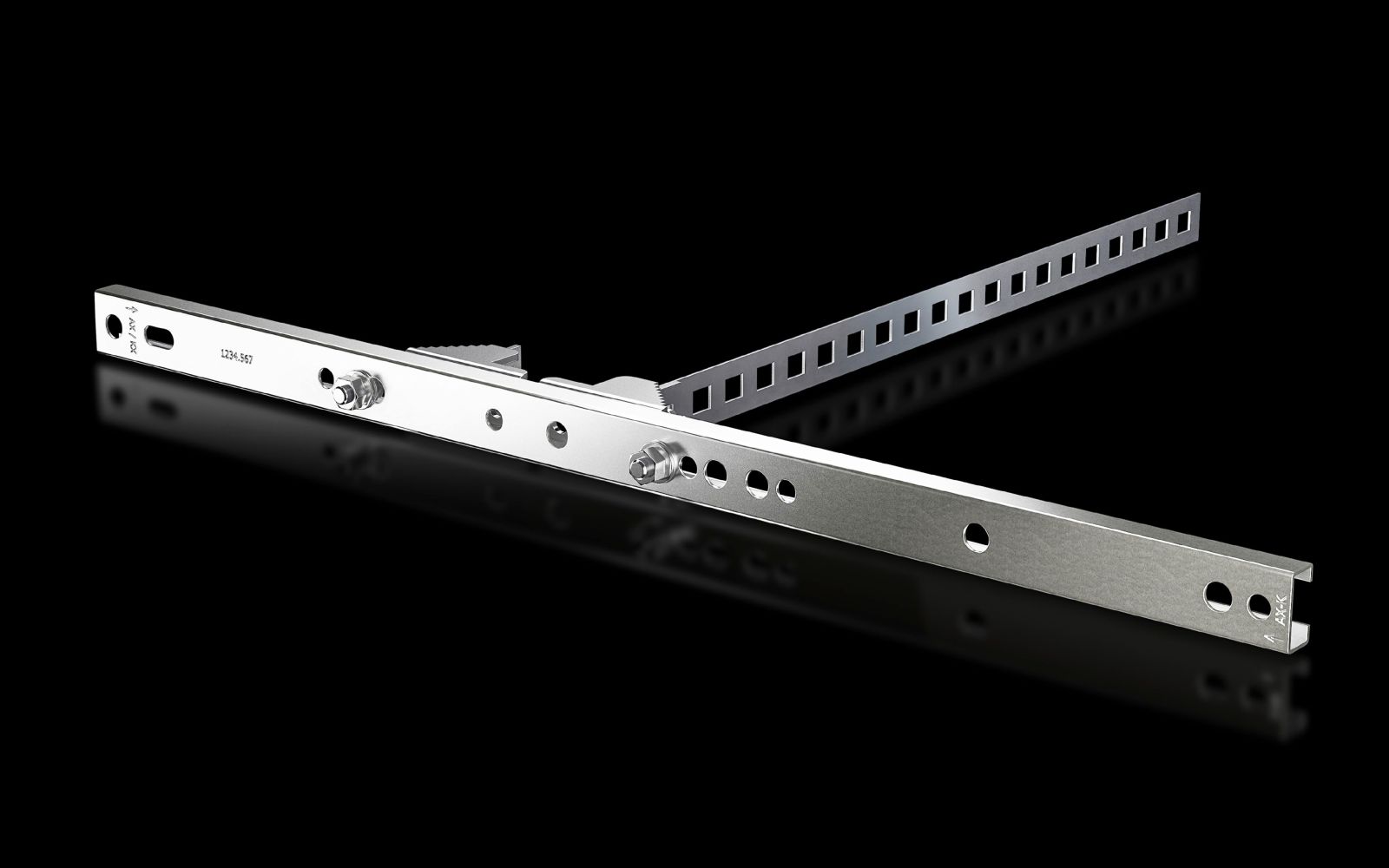

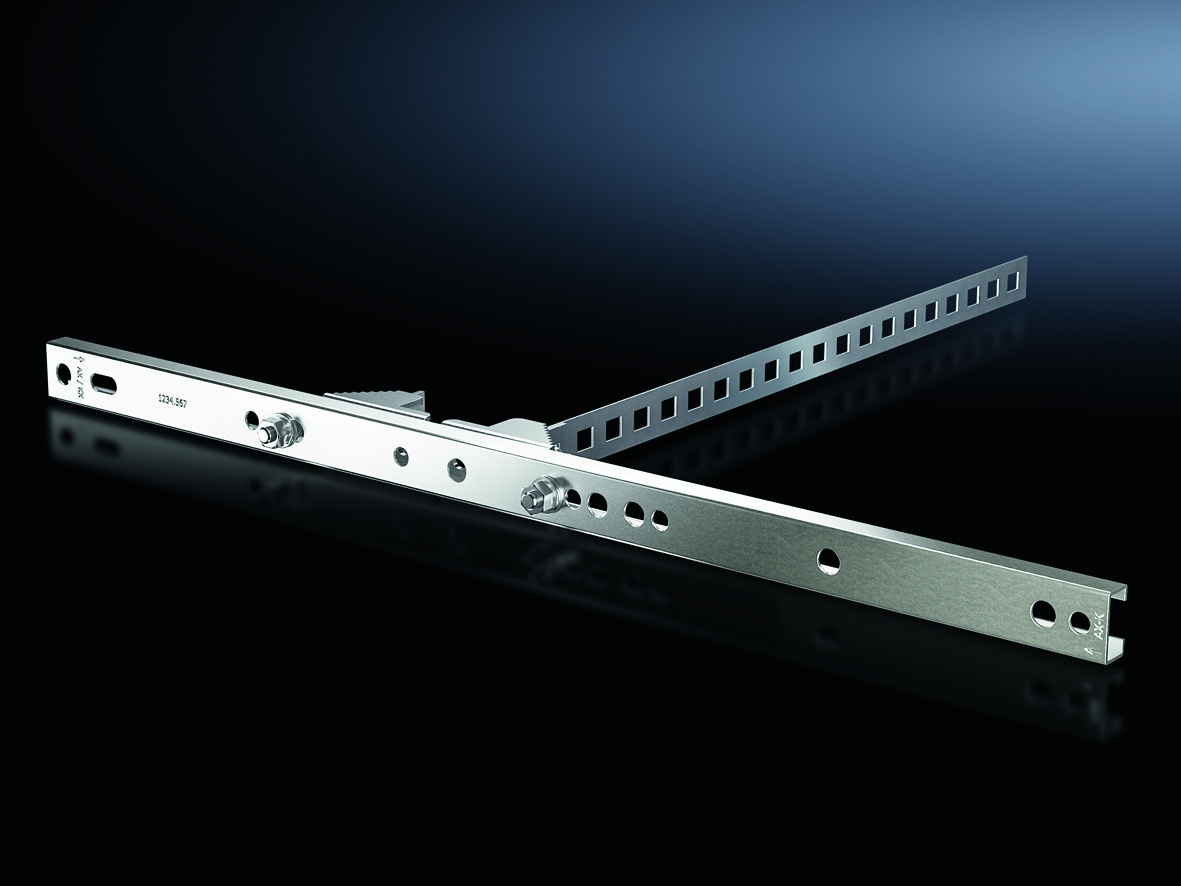

The mounting consists of two profile rails with a length of 600 mm, four clamp profiles, two stainless steel tension bands (1.4301, AISI 304), four tension brackets, and four thread-forming screws M10 for mounting to the enclosure. The profile rails and clamp profiles are made of sheet steel and are galvanically coated with zinc-nickel, ensuring high corrosion resistance and durability. The stainless steel tension bands ensure a durable and resilient connection to the mast, even under load from wind or vibrations.
Technology Explained Simply

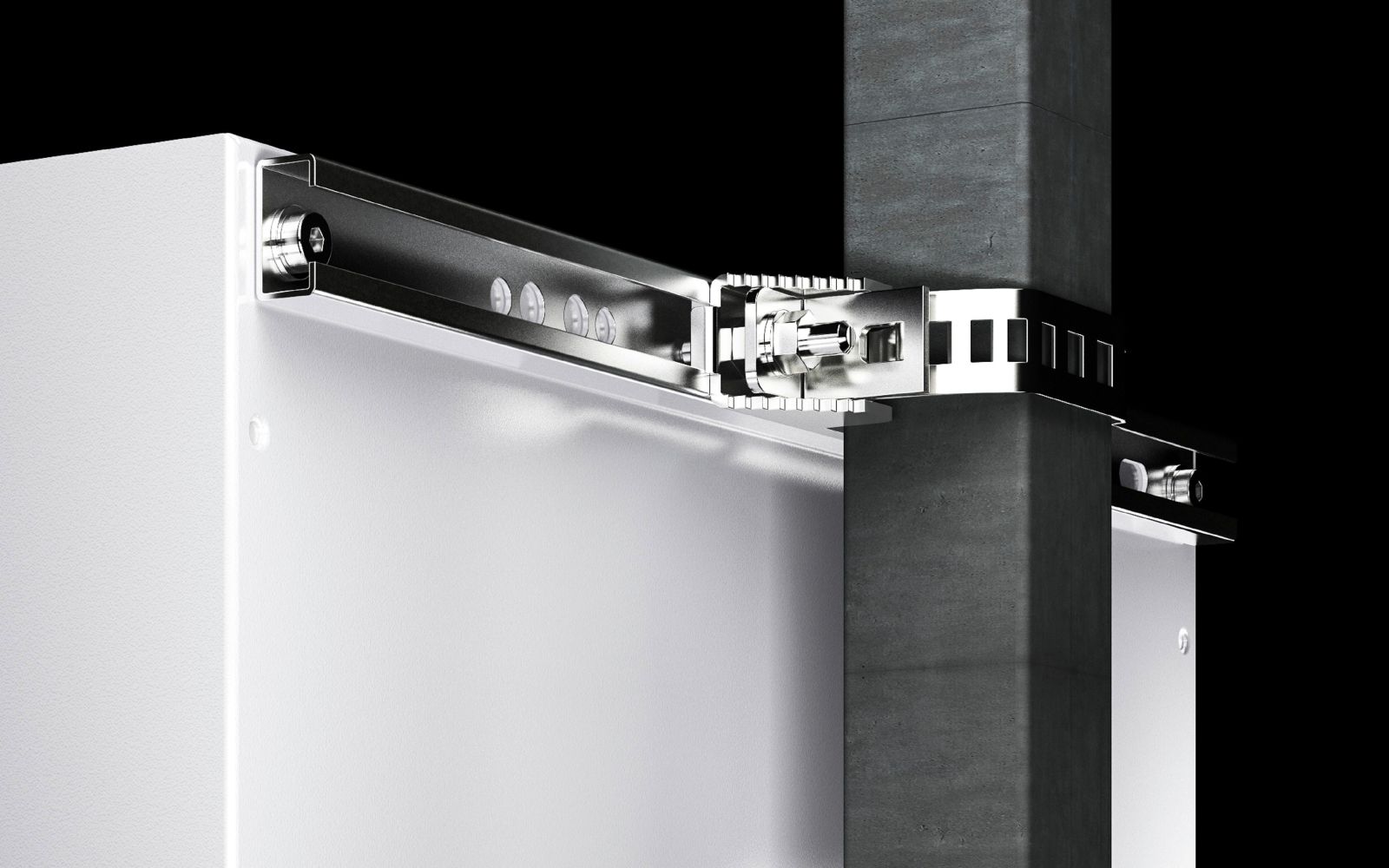

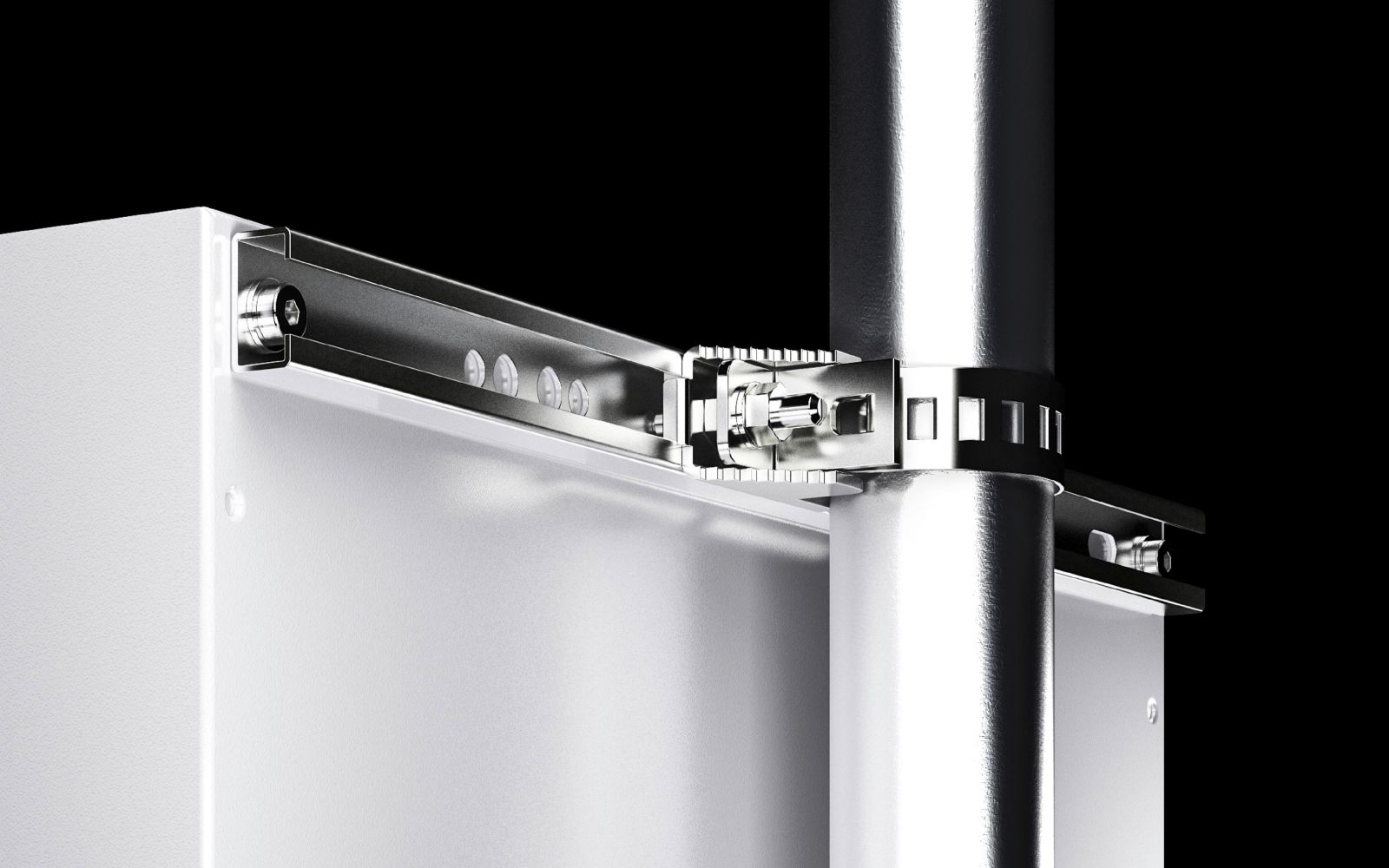

Installation is carried out by attaching the profile rails to the sides of the enclosure using the supplied thread-forming screws. The clamp profiles and tension bands are then placed around the mast and secured with the tension brackets. The use of stainless steel for the tension bands and the galvanic zinc-nickel coating of the steel parts ensure high resistance to corrosion, especially in humid or aggressive environments. The mounting is designed to ensure even load distribution and securely fix the enclosure to the mast.
Compatibility and Accessories
The mast mounting is specifically developed for enclosure types AX, KX, AX plastic, AX IT, CS wall-mounted enclosures, AX outdoor housing, AE, KL, EB, as well as wall-mounted enclosures AX, 3-piece. Compatibility is limited to enclosures with a maximum width of 600 mm. The mounting is not intended for other enclosure types or larger dimensions. Use with other products or modifications is not recommended, as this could compromise stability and safety.
Mounting and Installation
Installation is performed by mounting the profile rails to the sides of the enclosure using the supplied thread-forming screws M10. Subsequently, the clamp profiles and tension bands are placed around the mast and secured with the tension brackets. The installation is designed to be carried out without special expertise, while complying with the relevant standards and safety requirements.
Operational Advantages
The Rittal AX 2584100 offers reliable and easy mounting of enclosures on masts. The use of high-quality materials such as stainless steel and galvanically coated sheet steel ensures long service life and high corrosion resistance. The mounting is suitable for outdoor use and meets the requirements of UL 50E Type Rating, confirming its suitability for demanding environments. The simple installation and stable connection ensure a secure and maintenance-friendly installation.
| General | |
| Technical data | For mast diameter: Ø from 40 to 170 mm, For mast size: ◻ from 50 to 150 mm |
| Material | Profile rails, Clamp profile: sheet steel, Tension band: stainless steel 1.4301 (AISI 304) |
| Surface protection | Profile rail, clamp profile: galvanically zinc-nickel passivated |
| Scope of delivery | 2 profile rails, 600 mm long, 4 clamp profiles, 2 tension bands, 4 tension brackets, 4 thread-forming screws M10 for mounting on cabinet |
| Note | Suitable only for enclosures up to a width of 600 mm. |
| Suitable for | Housing type: AX, KX, AX plastic, AX IT, CS wall-mounted housing, AX outdoor enclosure, AE, KL, EB, wall-mounted housing AX, 3-piece |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| PCF/VE (Cradle-to-Gate) | 7.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
