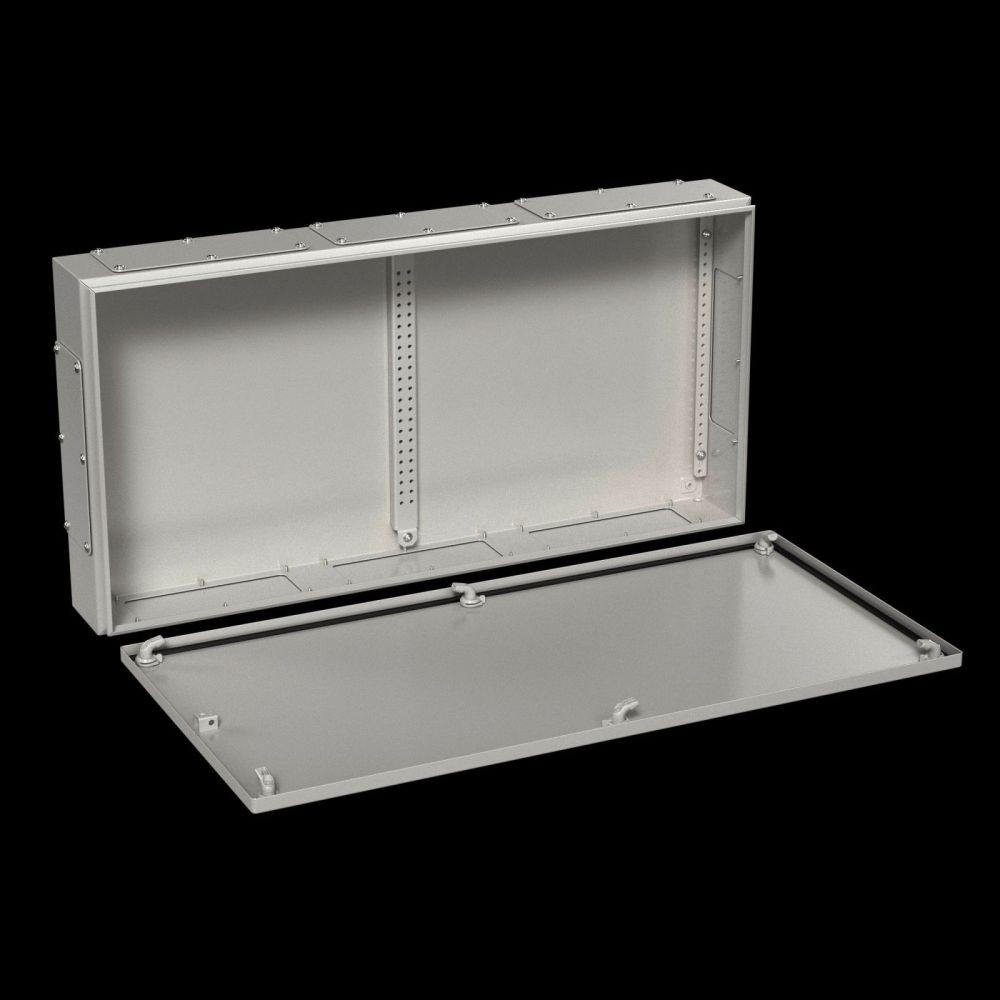

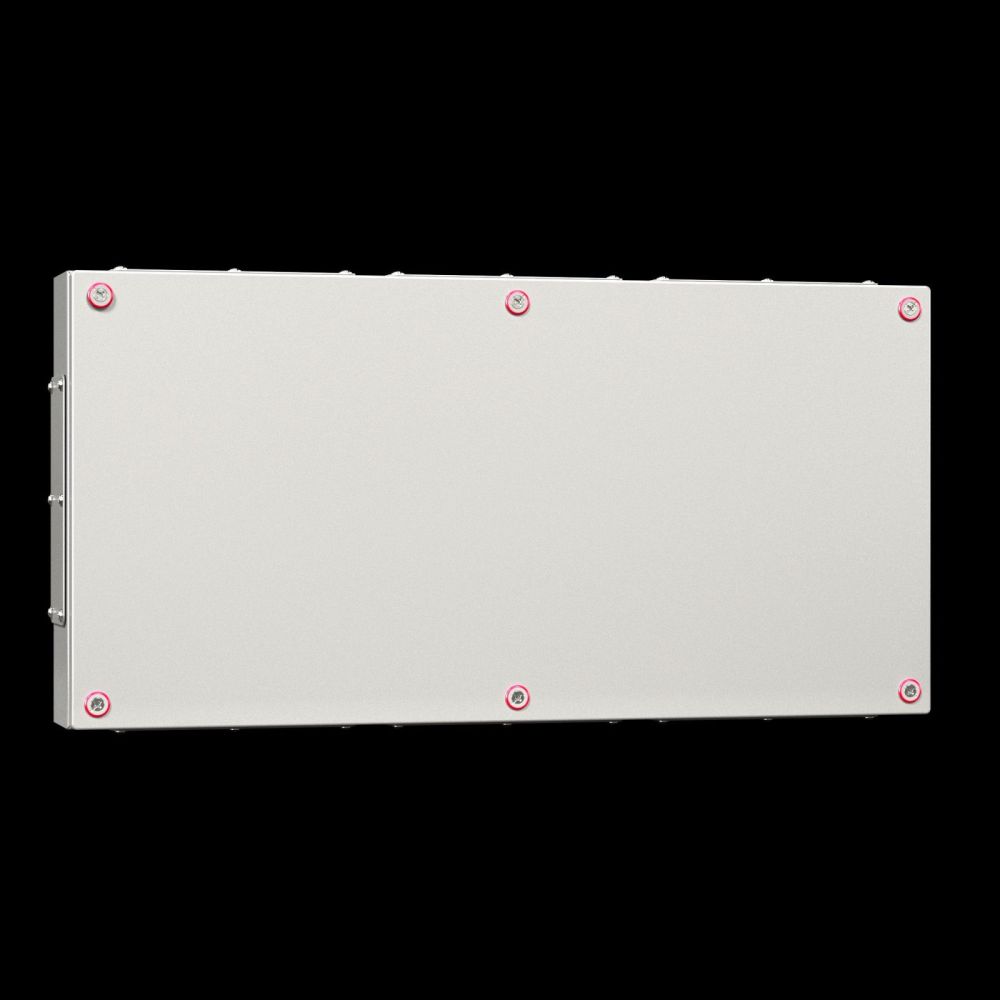

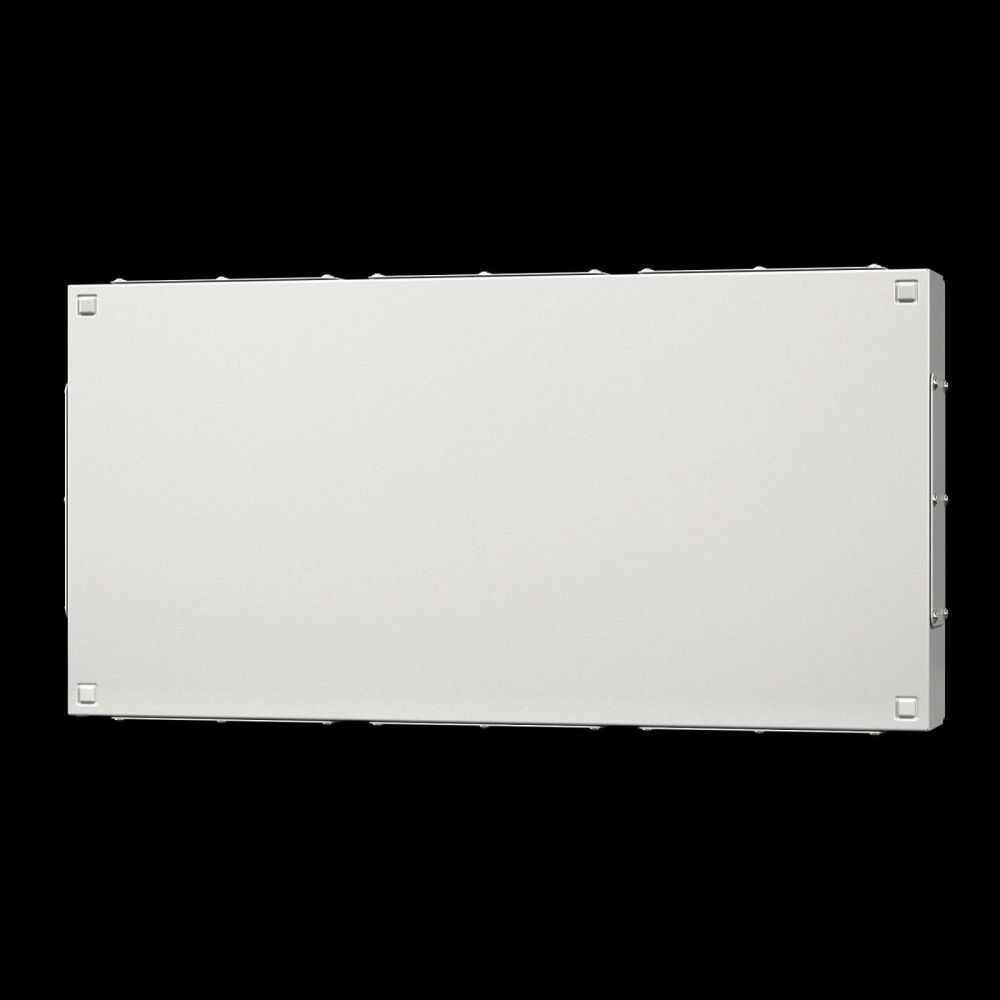

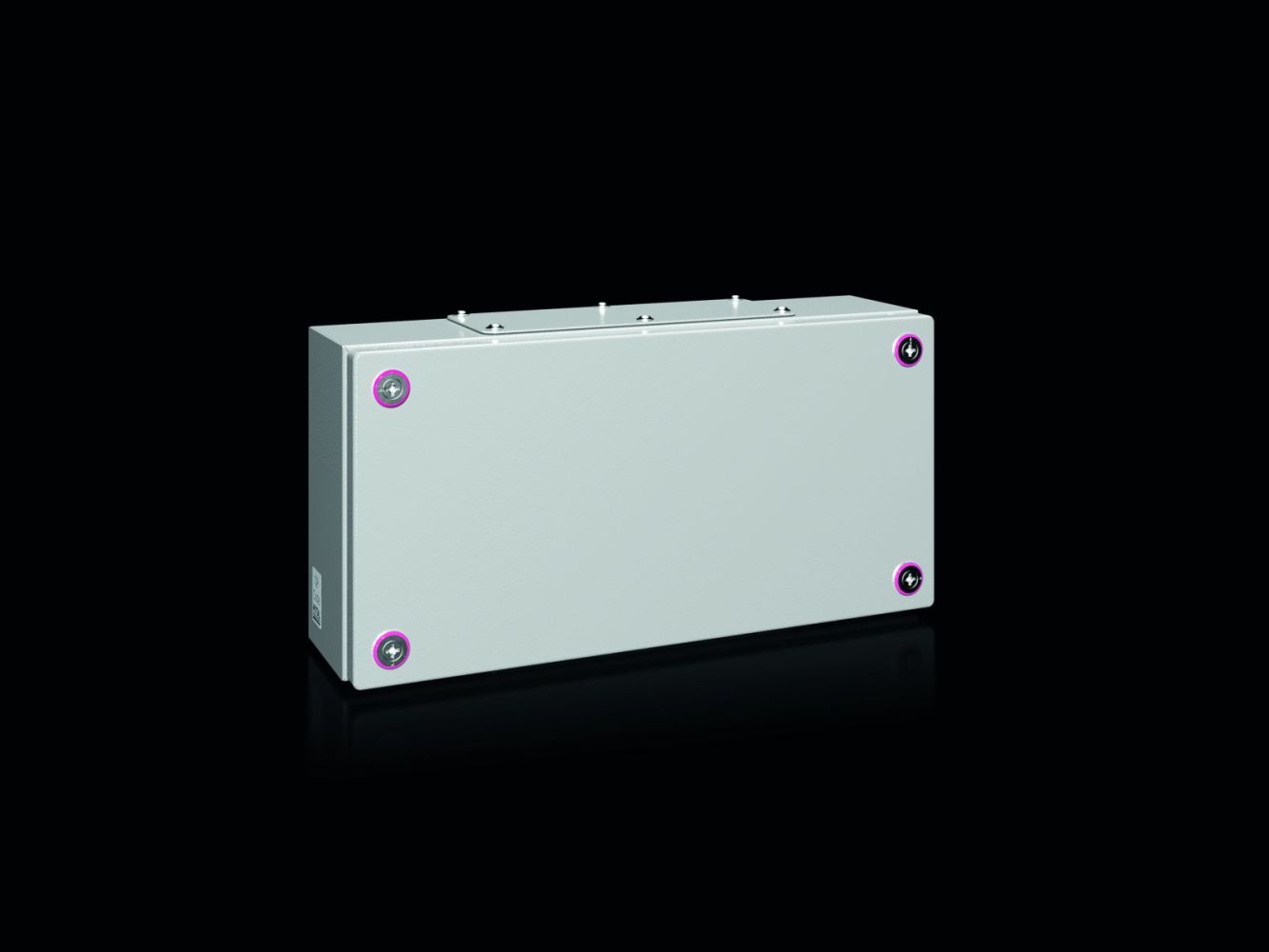

Rittal 1532000 terminal box KX, with gland plate, 400x200x120 mm

Your rating:
Average rating
product review for Rittal 1532000 terminal box KX, with gland plate, 400x200x120 mm
( 4.5 / 5 ) 4 ratings
Rittal 1532000
This image may differ from the desired article.
Rittal 1532000Rittal 1532000Rittal 1532000Rittal 1532000Rittal 1532000Rittal 1532000Rittal 1532000
51,98 EUR 52,00 EUR
( 61,86 EUR incl. VAT )
≈ £43.51  |  ≈ $57.13
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1532000 terminal box KX, with gland plate, 400x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1598161
Mfg Part No: 1532000
UPC/EAN: 4028177816381
Weight:3.823 kg
Type:KX 1532000

Product information for Rittal 1532000:

The Rittal KX 1532000 is an industrial terminal box made of sheet steel, designed for use in enclosures and control systems. The housing has dimensions of 400 mm width, 200 mm height, and 120 mm depth, serving as a compact solution for housing terminals, plug connectors, or small electrical components. It is equipped with a lid and integrated gland plates, enabling easy mounting on enclosure walls or other structures. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high resistance to corrosion and chemical influences such as mineral oils, lubricants, or solvents.

Applications
This terminal box is suitable for use in industrial environments, particularly in automation technology, machine building, and for the installation of control and switching devices. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for outdoor use or humid indoor areas. The NEMA classification includes NEMA 1 and NEMA 12, confirming its use in dry indoor environments as well as in areas with light dirt or splashing water. The type rating according to UL 50E (Type 1 and Type 12) confirms compliance with North American safety standards.

Functions and Equipment in Detail
The housing is made from a single piece of sheet steel, bent and welded, resulting in a stable and dimensionally stable construction. The lid is fitted with a continuous foamed PU seal, ensuring a tight closure. Fastening is achieved via mini-latch locks, enabling quick and secure mounting. The delivery includes the housing with lid, mini-latch locks, two sheet steel gland plates (top and bottom), and the required fastening material. The gland plates allow for easy wall or enclosure mounting.

Technology Explained Simply
The material thickness of 1.25 mm for both housing and lid ensures sufficient mechanical strength. The IK code classification IK08 means the housing is resistant to mechanical impacts such as shocks or vibrations up to a certain energy level. The surface treatment, featuring a nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer, provides high corrosion protection. The integrated protective earth connection point in the housing and via a U-bracket on the lid enables quick and reliable earthing.

Compatibility and Accessories
The KX 1532000 is compatible with various accessories that enhance its flexibility. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets for other KX models, drill screws, mounting brackets, support rails (TH 35/7.5/35/15), spacing angles for shock protection covers, zinc die-cast lid hinges, mast mounting brackets, mounting plates, and mounting claws for a second mounting plane. These components extend the functionality and adaptability of the terminal box to specific requirements.

Mounting and Installation
Mounting is done via the integrated gland plates, which are supplied with fastening material. The gland plates are attached to the top and bottom edges of the housing, allowing secure fastening to vertical or horizontal surfaces. The mini-latch locks ensure a secure closure of the lid. The rear wall of the housing features pass-throughs that can be used for wall mounting with brackets.

Advantages in Operation
The terminal box offers optimal space utilization due to its compact design and allows for flexible internal equipment. The integrated gland plates and robust construction simplify mounting and maintenance. The high protection rating IP 55 and IK08 rating ensure reliability in demanding environments. The surface coating guarantees long service life even under industrial conditions. A printed QR code on the housing, lid, and type plate enables unique identification and easy access to product information and documentation.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryEnclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware
Width400 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Flange platesFlange plate (top + bottom) quantity: 1 + 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)32.57 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1532000, EAN: 4028177816381
