Rittal 1581200 Metal gland plate, with metric pre-punching, for

Your rating:
Average rating
product review for Rittal 1581200 Metal gland plate, with metric pre-punching, for
( 4.5 / 5 ) 11 ratings

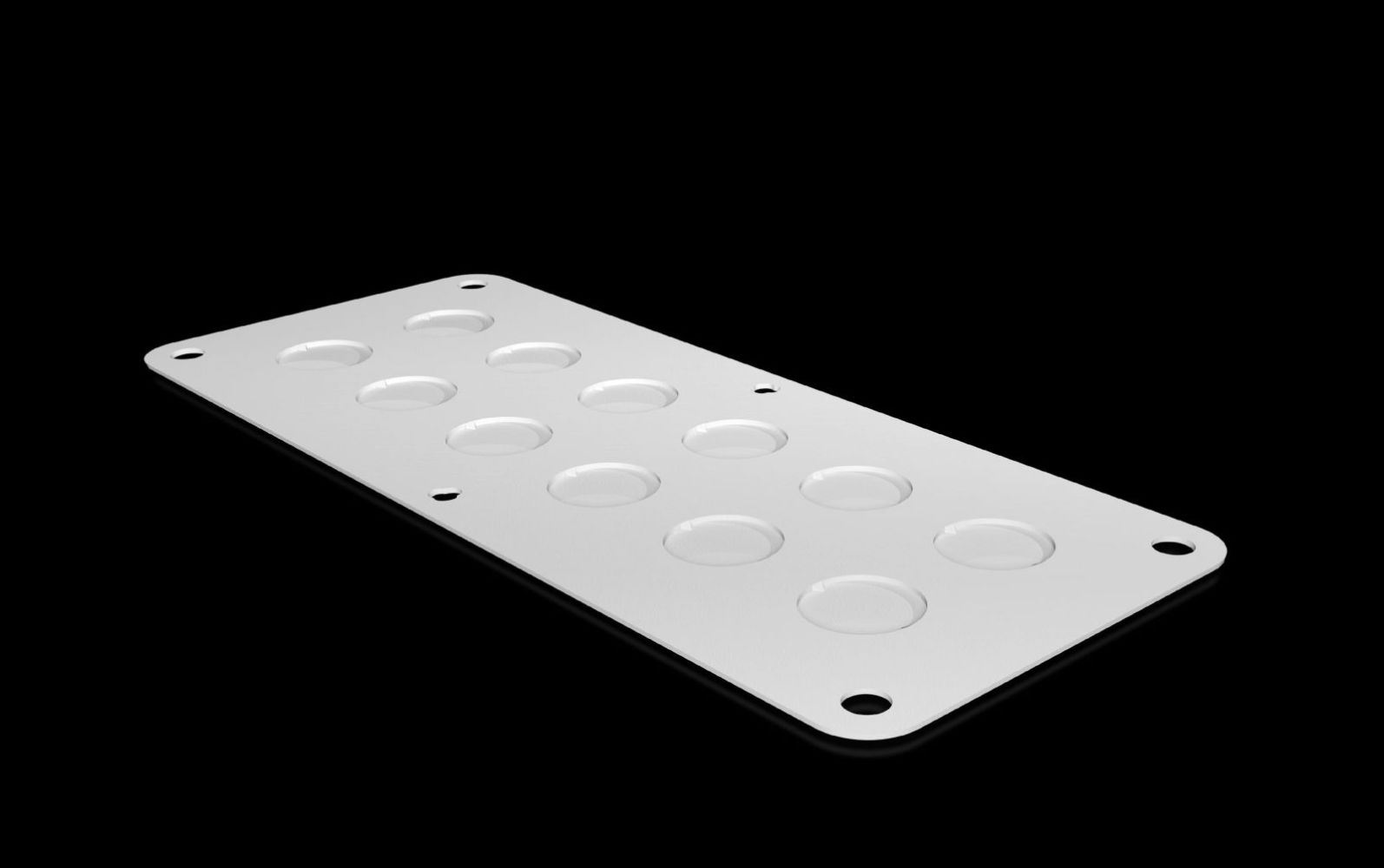

Rittal 1581200
This image may differ from the desired article.
Rittal 1581200Rittal 1581200Rittal 1581200
8,35 EUR
( 9,94 EUR incl. VAT )
≈ £6.99  |  ≈ $9.18
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >100 pieces
1x Rittal 1581200 Metal gland plate, with metric pre-punching, for
Datasheet:file_download Download
Lieske Part No.:1598343
Mfg Part No: 1581200
UPC/EAN: 4028177940536
Weight:0.24 kg
Type:SZ 1581200

Product information for Rittal 1581200:

The Rittal metal gland plate SZ 1581200 is a system accessory for enclosures of the housing type KX. It serves as a mounting base for cable glands and enables structured and secure cable routing through the enclosure wall. The component is made of sheet steel and finished in RAL 7035, ensuring visual harmonization with standardized enclosure components. The gland plate features 12 metric pre-punches for cable diameters M20, which can be easily punched out using a screwdriver to create the desired drill holes.

Applications

The gland plate is primarily used in industrial environments where reliable and quick installation of cable glands is required. It is specifically designed for enclosures of type KX, which are widely used in electrical and automation technology. Installation takes place on the front or rear side of the enclosure, depending on cable routing requirements. Dimensions of 220 mm width and 90 mm depth allow for compact mounting without compromising the structure of the housing.

Functions and Features in Detail

The M20-sized pre-punches are designed for mounting cable glands supporting cable diameters up to 20 mm. The number of pre-punches (12) provides sufficient flexibility for various cable arrangements. The holes can be easily and precisely opened using a screwdriver, reducing installation time and ensuring clean workmanship. The gland plate is designed for mounting in standard positions, particularly at the bottom, where IP 66 protection rating is achieved.

Technical Explanation

The IP 66 protection rating, achieved with proper installation, means the gland plate is dust-protected and protected against water jets from any direction. This makes it suitable for use in industrial environments where dust and splashing water are present. The IP 66 rating when mounted in standard position (bottom) refers to a higher protection class achieved under specific mounting conditions. The type rating according to UL 50E (Type 1, Type 12K) indicates compliance with North American safety standards for enclosure accessories, with Type 1 for indoor use and Type 12K for dust- and splash-protected applications.

Compatibility and Accessories

The gland plate is specifically developed for enclosures of type KX and adapts to their construction. The selection of gland plate size is based on the respective housing description. Use with cable glands for M20 is intended, with the exact gland selection depending on cable diameter and environmental conditions. The gland plate is not a standalone enclosure but an accessory to be integrated into existing systems.

Mounting and Installation

Mounting is done by securing the plate to the enclosure wall of the KX housing. The pre-punches are punched out using a screwdriver to create holes for the cable glands. Positioning of the gland plate depends on cable routing—typically on the front or rear side. Mounting must be carried out correctly to ensure the specified IP 66 protection rating. When mounted in standard position (bottom), IP 66 protection is achieved.

Operational Advantages

The gland plate offers quick and easy installation thanks to pre-punched holes that can be opened with a screwdriver. The use of sheet steel ensures high mechanical stability and durability. The RAL 7035 color supports visual uniformity in industrial facilities. The IP 66 protection rating (or IP 66 when mounted at the bottom) ensures reliable operation in environments with dust and splashing water. Compliance with UL 50E enables use in international markets, particularly in North America.

General
Materialsteel sheet
ColourRAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms12 x M20
Width220 mm
Depth90 mm
Suitable forHousing type: KX
Degree of protection IP according to EN 60 529IP 55 when installed correctly
Type rating according to UL 50EType 1, Type 12K
PCF/VE (Cradle-to-Gate)1.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1581200, EAN: 4028177940536

Questions & answers

What is the delivery time of Rittal 1581200 Metal gland plate, with metric pre-punching, for?

The article Rittal 1581200 Metal gland plate, with metric pre-punching, for is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1581200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1581200 Metal gland plate, with metric pre-punching, for always at the best possible price. We can give you a discount of 2% on Rittal 1581200 Metal gland plate, with metric pre-punching, for if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
