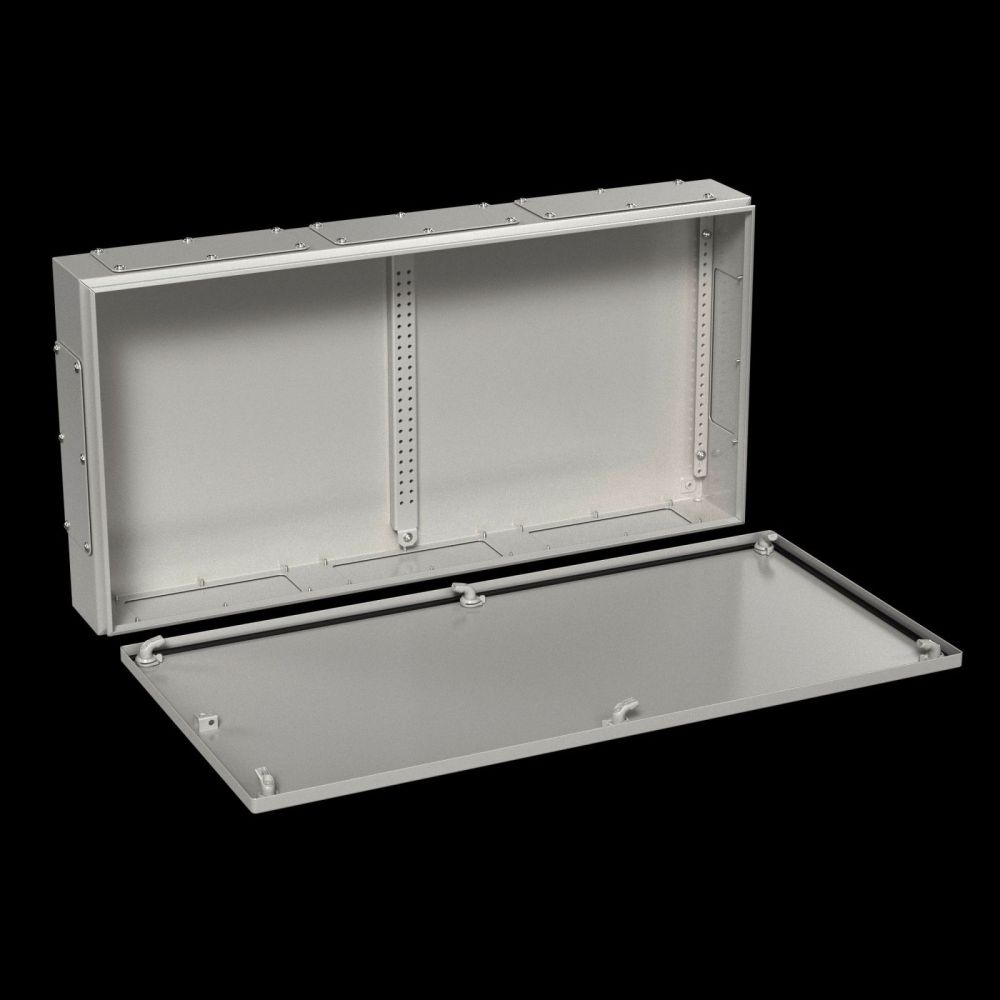

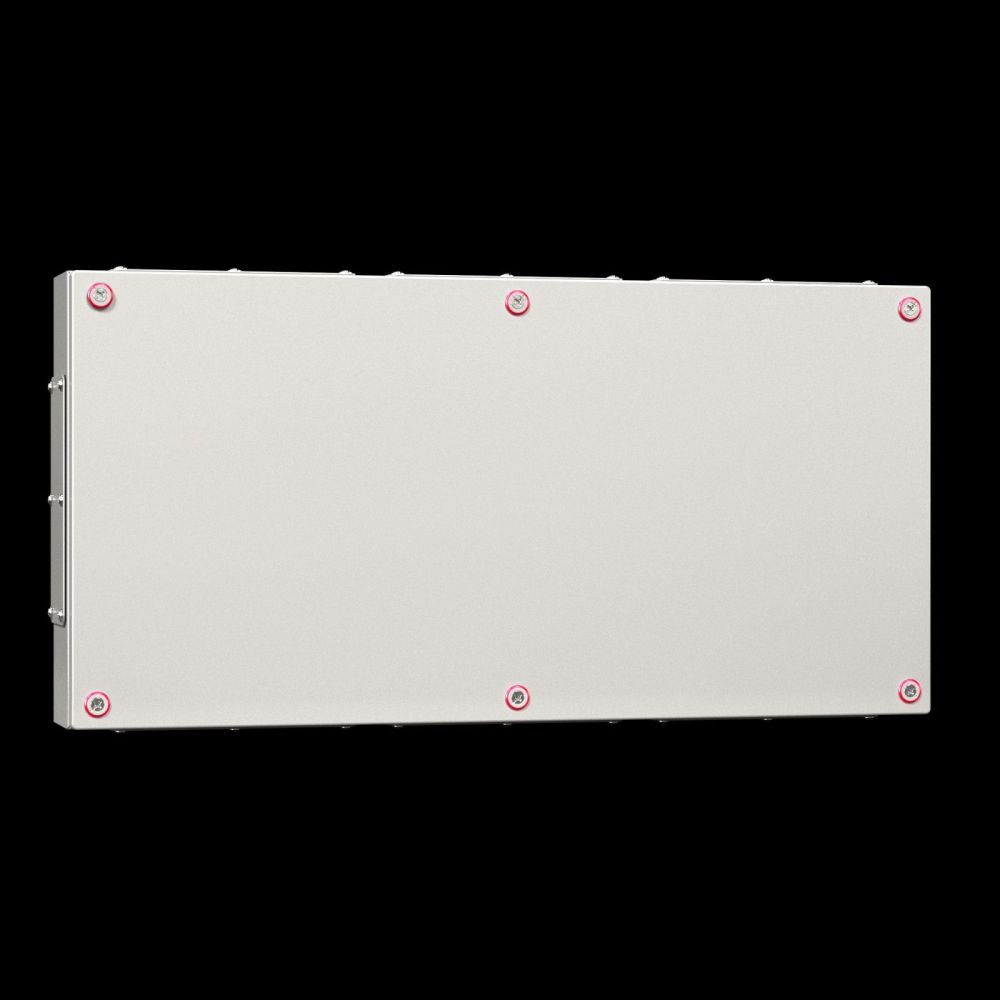

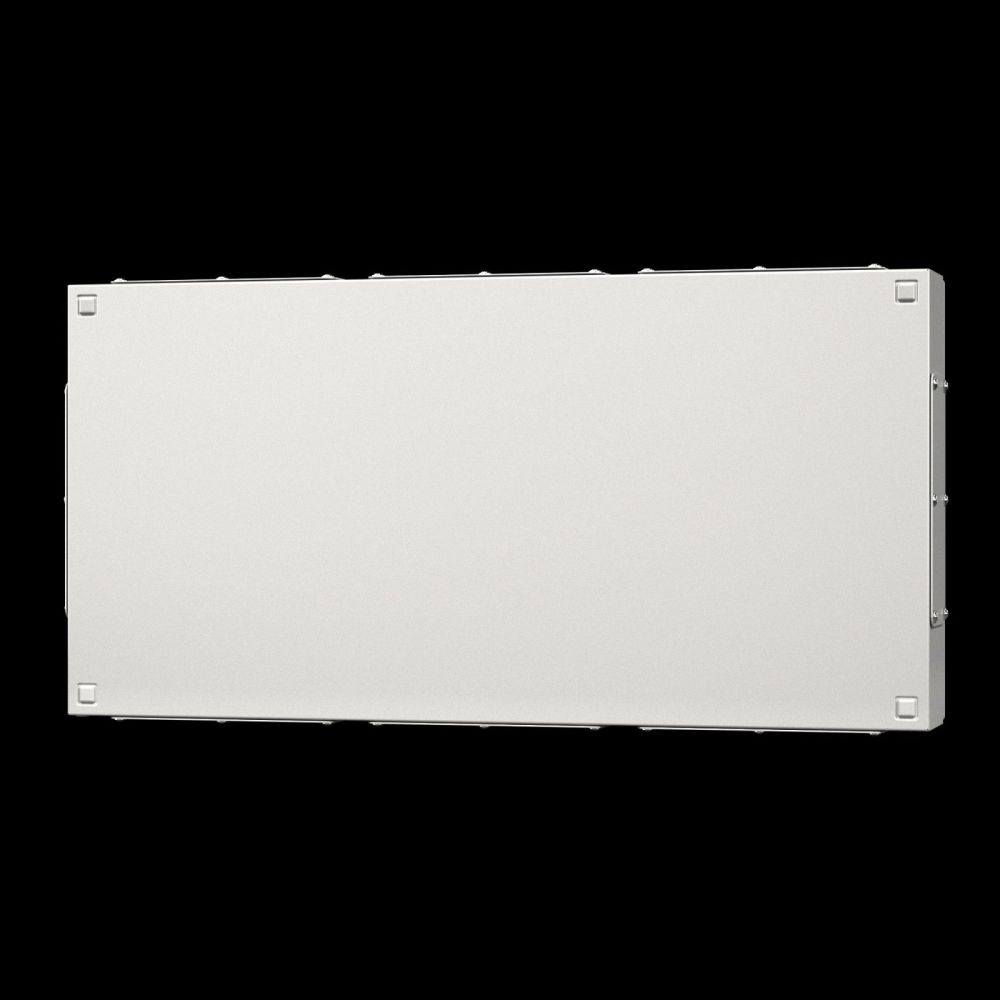

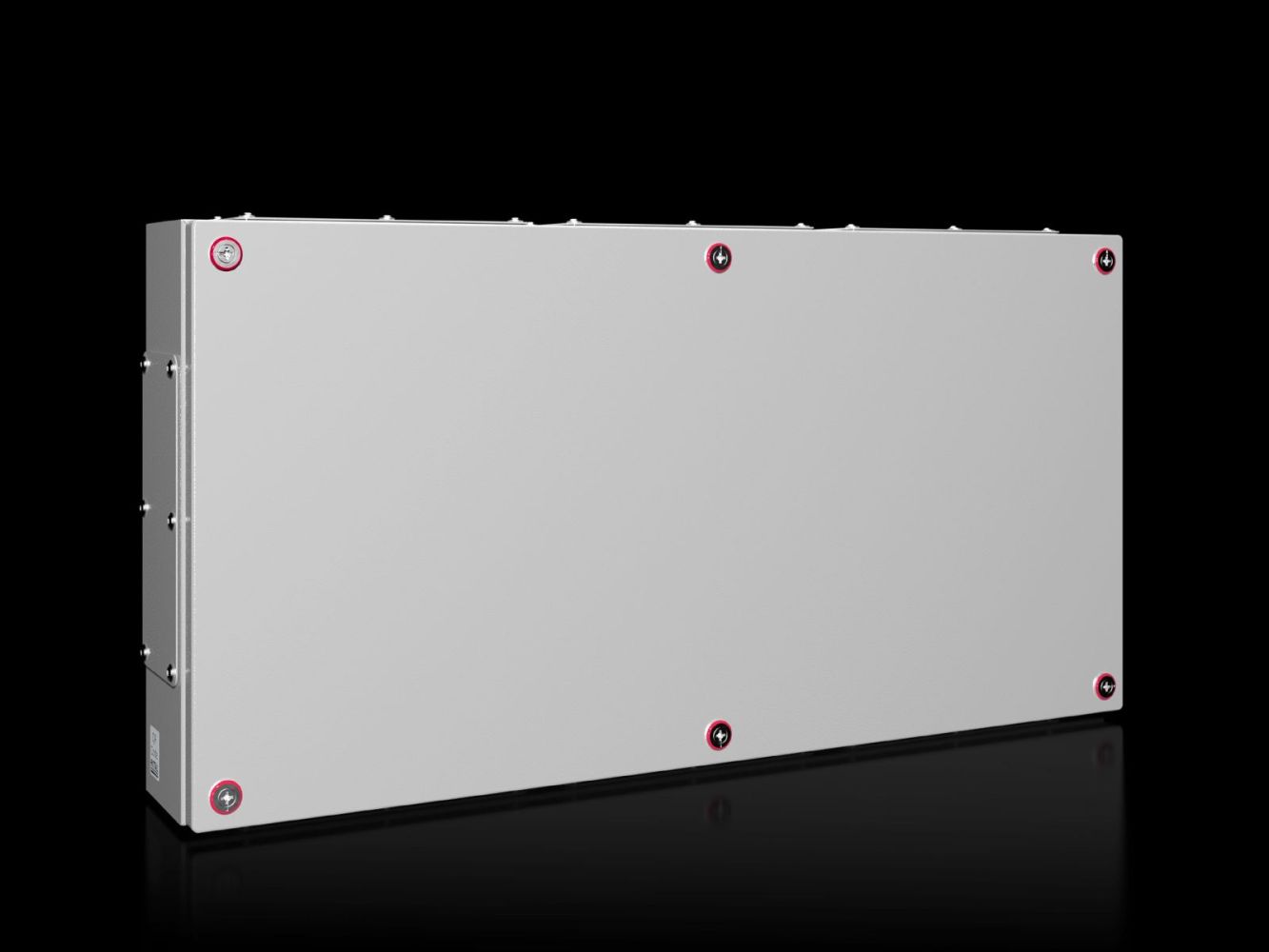

Rittal 1541000 terminal box KX, with gland plate, 800x400x120 mm

Your rating:
Average rating
product review for Rittal 1541000 terminal box KX, with gland plate, 800x400x120 mm
( 4.7 / 5 ) 3 ratings
Rittal 1541000
This image may differ from the desired article.
Rittal 1541000Rittal 1541000Rittal 1541000Rittal 1541000Rittal 1541000Rittal 1541000
-10% 97,52 EUR 108,79 EUR
( 116,05 EUR incl. VAT )
≈ £81.62  |  ≈ $107.17
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1541000 terminal box KX, with gland plate, 800x400x120 mm
Datasheet:file_download Download
Lieske Part No.:1598168
Mfg Part No: 1541000
UPC/EAN: 4028177816466
Weight:11.65 kg
Type:KX 1541000

Product information for Rittal 1541000:

The KX 1541000 is a terminal box from the brand Rittal, designed as a small housing made of sheet metal. It is intended for housing and protecting electrical components, particularly terminals and connection wiring, in industrial and technical installations. The enclosure is equipped with a lid, gland plates, and mini latches, enabling secure and flexible mounting. Dimensions are 800 mm width, 400 mm height, and 120 mm depth, allowing compact use in tight installation situations.

Applications
This terminal box is suitable for use in indoor environments and areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for areas with low to medium contamination risk and occasional moisture. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments and areas with light contamination and splashing water. The type rating according to UL 50E includes Type 1 and Type 12, confirming compliance with the relevant US safety standards for switchgear.

Functions and Equipment in Detail
The enclosure is made of sheet metal with a material thickness of 1.25 mm for both the box and the lid. The surface is dip-primed and externally powder-coated with a textured paint in the colour RAL 7035, providing high corrosion resistance and a robust visual appearance. The lid features a continuously foamed PU sealing gasket, ensuring a tight seal. The delivery includes the enclosure with lid, mini latches, sheet metal gland plates with seals, and the required mounting hardware. The gland plates are supplied in quantities of 1 left, 1 right, 3 top, and 3 bottom, enabling flexible mounting on various surfaces.

Technology Explained Simply
The IP 55 protection rating means the enclosure is protected against dust and splashing water, making it suitable for industrial environments with occasional moisture and contamination. The IK code IK08 indicates mechanical resistance against impacts and vibrations that may occur during operation. The material thickness of 1.25 mm ensures sufficient stability and durability of the enclosure under normal operating conditions. The PU sealing gasket provides a tight seal, preventing moisture and dirt from entering.

Compatibility and Accessories
The terminal box is compatible with various accessories that enable functional expansion. These include mounting clips for support rails, plug-throughs such as SZ 2400500, pressure equalization plugs M12x1.5, mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, drill screws type ST 4.8 L9.5 mm, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, earthing straps M6-M6 with a cross-section of 10 mm² and a length of 350 m, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting plane, and wall mounting brackets for AX sheet metal KX models. These accessories allow application-specific adaptation of the box to various mounting and protection requirements.

Mounting and Installation

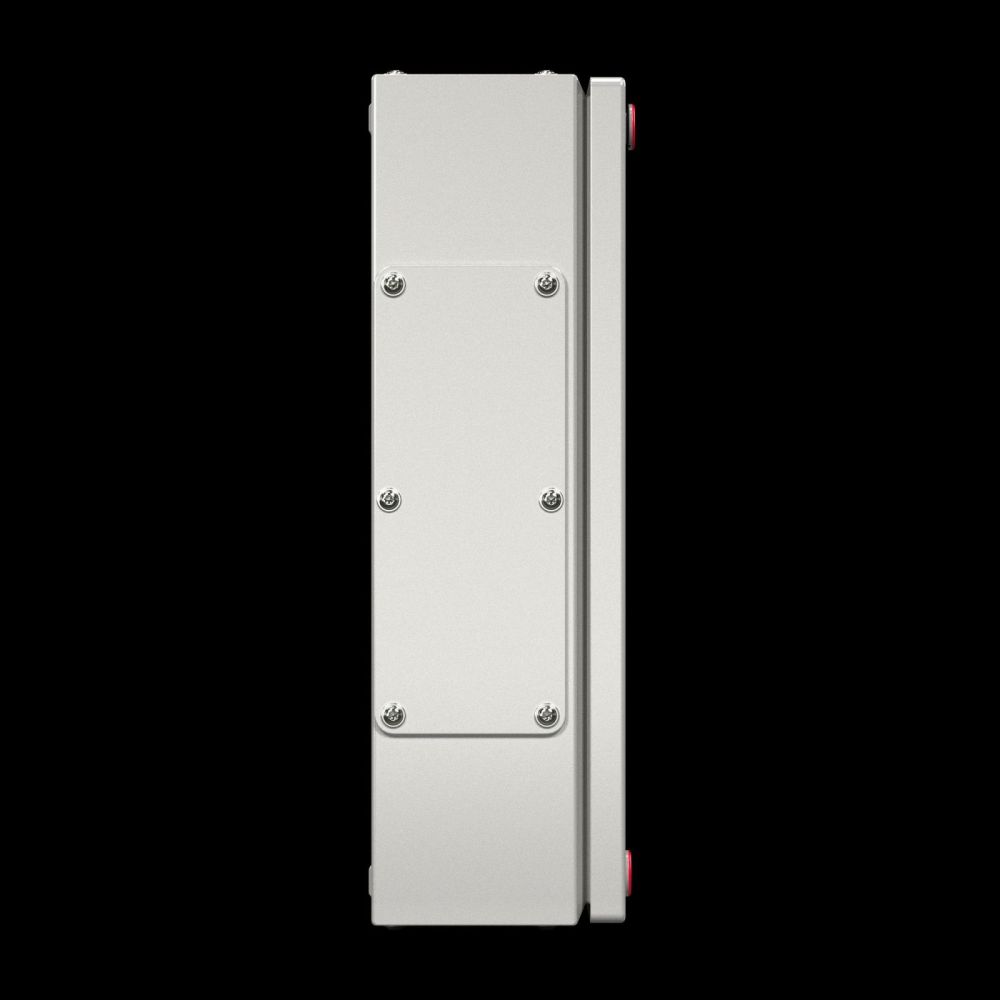

Mounting is done via the integrated gland plates located on the sides, top, and bottom. The gland plates allow fixation to walls, machines, or other structures. The mini latches ensure secure and quick closure of the lid. The included mounting materials facilitate installation without additional tools or components. The dimensions and material thickness are designed to ensure stable and durable installation.

Advantages in Operation
The KX 1541000 offers optimal space utilization due to its compact design and flexible internal equipment. The integrated gland plates and mini latches reduce installation time and increase safety. The IP 55 protection rating and IK08 classification ensure high operational safety in various environments. The robust sheet metal construction and powder-coated surface ensure long service life and resistance to corrosion and mechanical stress. Compatibility with various accessories allows individual adaptation to specific requirements in industrial applications.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryEnclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware
Width800 mm
Height400 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Flange platesFlange plates (left + right) quantity: 1 + 1, flange plates (top + bottom) quantity: 3 + 3
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)54.55 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1541000, EAN: 4028177816466
