Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX,

Your rating:
Average rating
product review for Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX,
( 4.1 / 5 ) 7 ratings

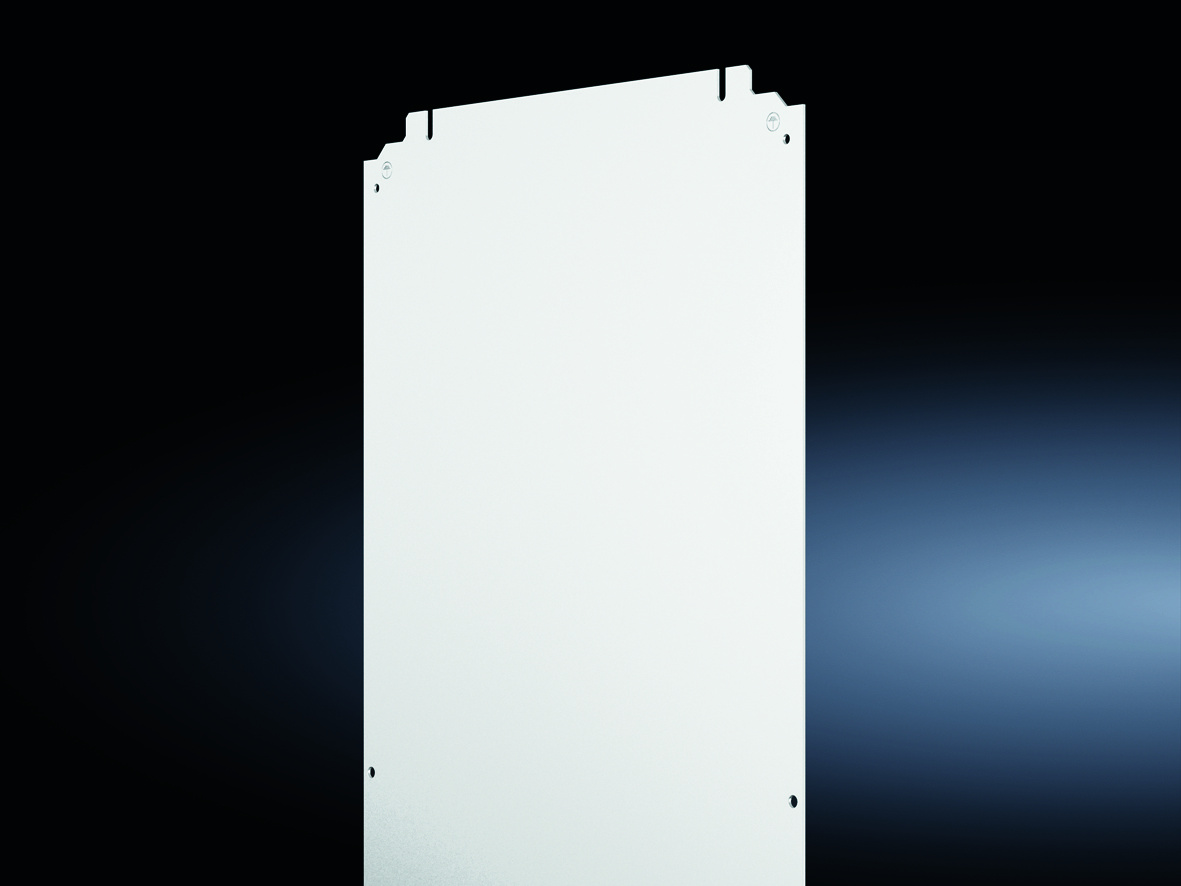

Rittal 1573800
This image may differ from the desired article.
Rittal 1573800Rittal 1573800Rittal 1573800Rittal 1573800
25,78 EUR
( 30,68 EUR incl. VAT )
≈ £21.58  |  ≈ $28.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX,
Datasheet:file_download Download
Lieske Part No.:1598311
Mfg Part No: 1573800
UPC/EAN: 4028177925137
Weight:4.74 kg
Type:KX 1573800

Product information for Rittal 1573800:

The Rittal KX 1573800 is a mounting plate made of sheet steel, specifically designed for the installation of components outside enclosures and housings. It is used to mount electrical components such as terminals, switches, or control devices on the exterior of terminal boxes KX, bus enclosures KX, and terminal boxes HD. The mounting plate is designed for enclosures with a width of 800 mm and a height of 400 mm, with the plate itself measuring 375 mm in width and 785 mm in height. The material consists of 2 mm thick sheet steel, galvanized to prevent corrosion and ensure a longer service life in industrial applications.

Applications

The mounting plate enables efficient and structured installation of components on the exterior of enclosures, particularly in systems where direct access to components is required. It is especially suitable for applications in industrial electrical engineering, where clear visibility of wiring and quick maintenance or repair are necessary. Mounting components outside the enclosure improves air circulation and simplifies the installation and removal of components.

Functions and Equipment in Detail

The plate is made of robust sheet steel, providing high mechanical stability. The galvanized surface protects the material from moisture and oxidation, which is particularly beneficial in humid or industrial environments. Mounting is done at the designated attachment points of the enclosures, with the required mounting screws included in the accessories of the respective enclosure. The mounting plate itself is not supplied with screws.

Technology Explained Simply

The mounting plate is a passive component that does not perform any electrical function, serving exclusively as a mechanical mounting surface. The use of 2 mm thick sheet steel ensures sufficient strength to securely support even larger or heavier components. The galvanized surface provides a simple but effective corrosion protection, extending the plate’s service life. The plate dimensions (375x785 mm) are designed to optimally fit the intended enclosure types.

Compatibility and Accessories

The mounting plate is compatible with terminal boxes KX, bus enclosures KX, and terminal boxes HD with a width of 800 mm and a height of 400 mm. As an accessory, a drilling screw of type ST 4,8 L9,5 mm is available in a pack of 300 pieces, but it is not included in the delivery of the mounting plate. The mounting screws for attaching the plate to the enclosure are included in the accessories of the respective enclosure.

Mounting and Installation

Mounting is done at the designated attachment points of the enclosures, using screws from the enclosure’s accessories. The plate is installed to correctly match the specified dimensions (375x785 mm) and allow secure attachment of components. Installation requires no special tools other than a screwdriver or a suitable screw gun.

Operational Advantages

The mounting plate enables a clear and organized arrangement of components on the exterior of the enclosure, simplifying maintenance and repair. The use of galvanized sheet steel ensures high resistance to environmental influences, extending the service life of the installation.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Suitable for housing typeTerminal box KX, Bus enclosure KX, Terminal box HD
Suitable forEnclosure type: terminal box KX, bus enclosure KX, terminal box HD, Width: = 800 mm, Height: = 400 mm


Product data sheet
Datasheet for Rittal 1573800, EAN: 4028177925137

Questions & answers

What is the delivery time of Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX, ?

The article Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1573800 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX, always at the best possible price. We can give you a discount of 2% on Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




This product is recommended as accessory for

Rittal 1541000 terminal box KX, with gland plate, 800x400x120 mm Rittal LogoRittal 1541000 terminal box KX, with gland plate, 800x400x120 mm The KX 1541000 is a terminal box from the brand Rittal, designed as a small housing made of sheet metal. It is intended for housing and protecting electrical components, particularly terminals and ...

Lieske Part No.: 1598168
Mfg Part No: 1541000
Type: KX 1541000
-10% 97,52 EUR 108,79 EUR
Rittal 1541000 plus VAT
≈ £81.62  |  ≈ $107.17
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 1513000 terminal box KX, without gland plate 800x400x120 mm Rittal LogoRittal 1513000 terminal box KX, without gland plate 800x400x120 mm The KX 1513000 is a terminal box from the KX series by Rittal, made of sheet steel and designed for use in industrial plants and electrical installations. The enclosure has dimensions of 800 mm width, ...

Lieske Part No.: 1598172
Mfg Part No: 1513000
Type: KX 1513000
82,00 EUR 85,27 EUR
Rittal 1513000 plus VAT
≈ £68.63  |  ≈ $90.12
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline

Fitting accessory for Rittal 1573800 mounting plate, for terminal box KX, bus enclosure KX,

Rittal 2487000 Drill screws type ST 4.8 L9.5 mm 300 pcs Rittal LogoRittal 2487000 Drill screws type ST 4.8 L9.5 mm 300 pcs Mark, drill and tighten in a single operation using electric or pneumatic tools. Width across flats: 8 mm
Applications: For metal thickness: 0.8 - 3 mm
Packs of: 300 pc(s).
EAN: 4028177025042
Customs ...

Lieske Part No.: 679752
Mfg Part No: 2487000
Type: SZ 2487000
56,12 EUR 57,41 EUR
Rittal 2487000 plus VAT
≈ £46.97  |  ≈ $61.68
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
