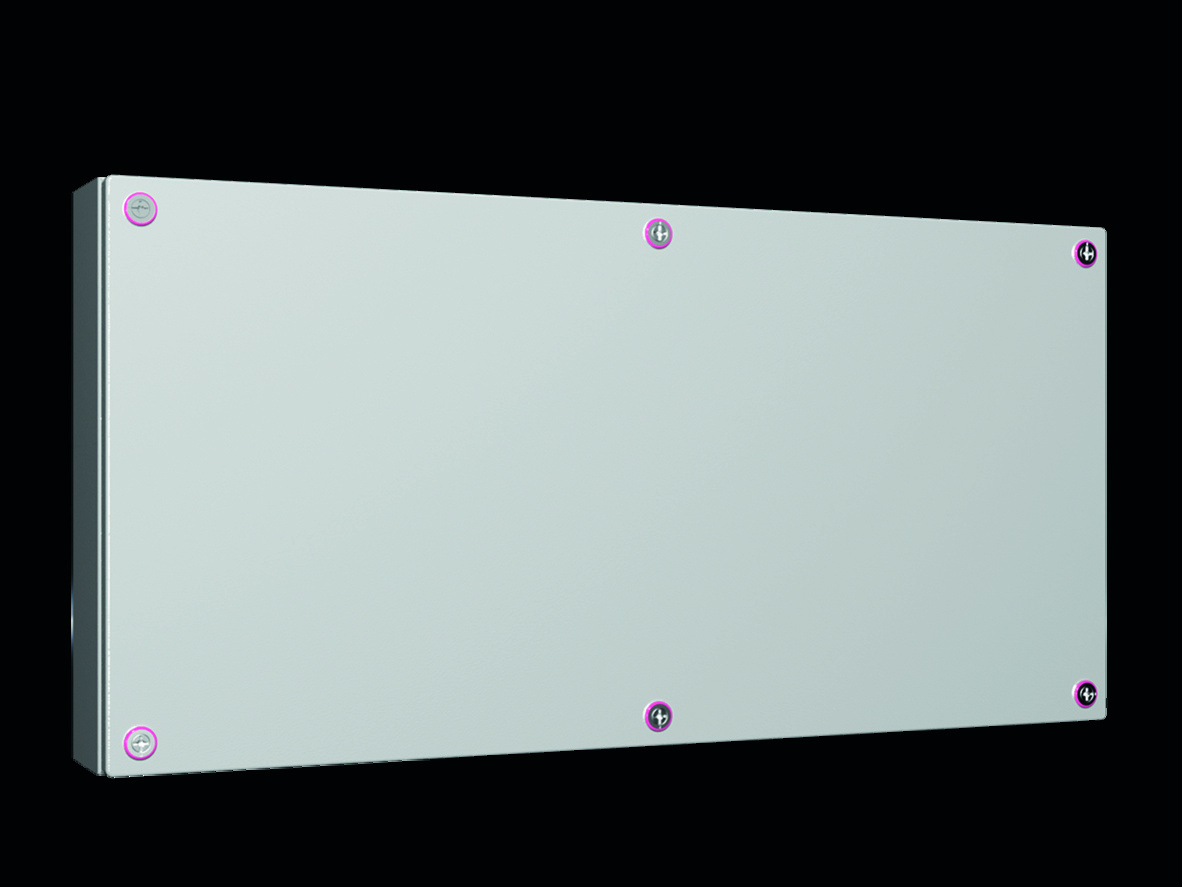

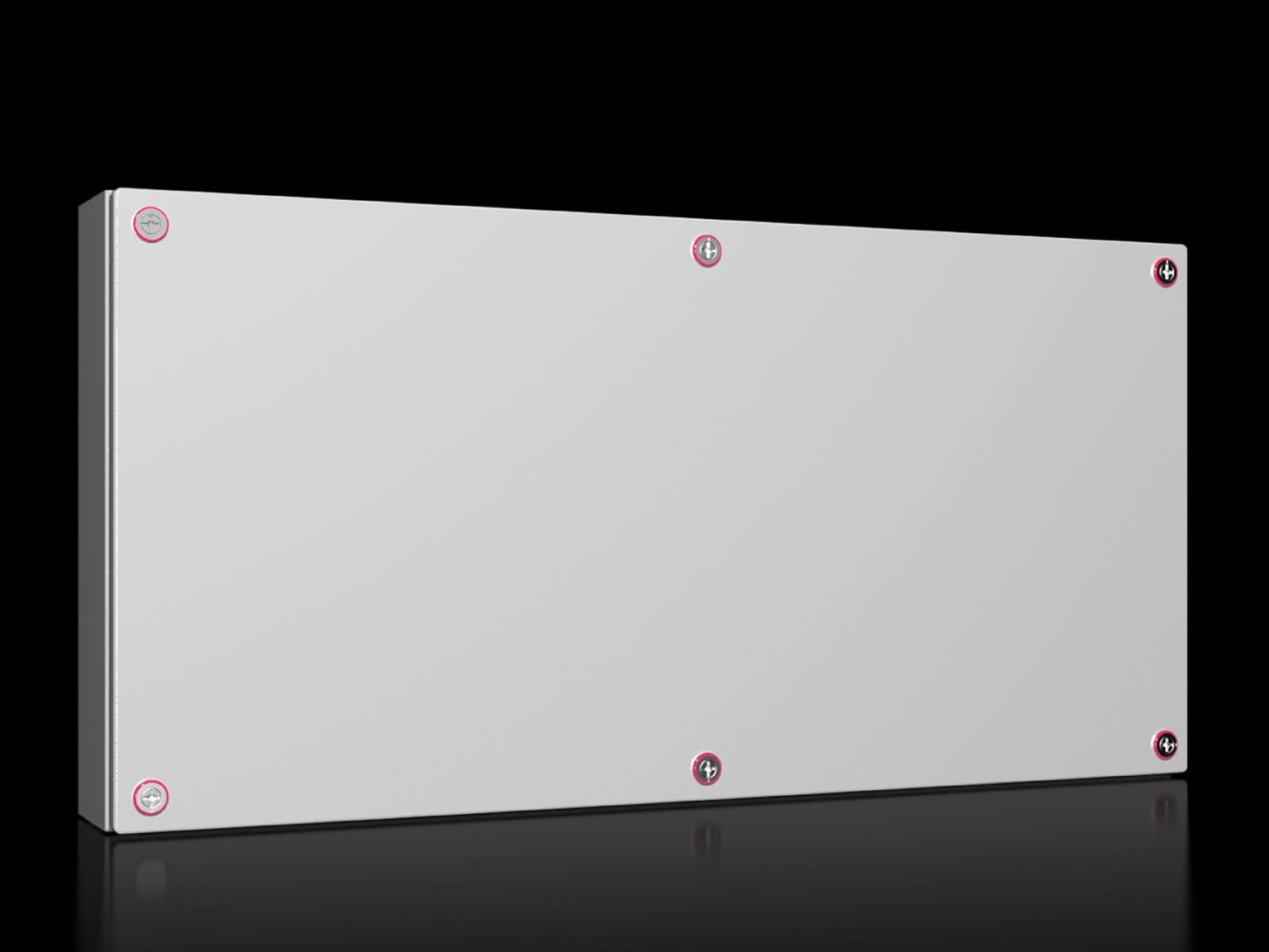

Rittal 1513000 terminal box KX, without gland plate 800x400x120 mm

Your rating:
Average rating
product review for Rittal 1513000 terminal box KX, without gland plate 800x400x120 mm
( 4.4 / 5 ) 5 ratings
Rittal 1513000
This image may differ from the desired article.
Rittal 1513000Rittal 1513000Rittal 1513000Rittal 1513000Rittal 1513000Rittal 1513000Rittal 1513000Rittal 1513000
82,00 EUR 85,27 EUR
( 97,58 EUR incl. VAT )
≈ £68.63  |  ≈ $90.12
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1513000 terminal box KX, without gland plate 800x400x120 mm
Datasheet:file_download Download
Lieske Part No.:1598172
Mfg Part No: 1513000
UPC/EAN: 4028177816275
Weight:10.76 kg
Type:KX 1513000

Product information for Rittal 1513000:

The KX 1513000 is a terminal box from the KX series by Rittal, made of sheet steel and designed for use in industrial plants and electrical installations. The enclosure has dimensions of 800 mm width, 400 mm height, and 120 mm depth and is available without a mounting plate and without a gland plate. It features an integrated lid with a continuous foamed PU seal, ensuring a tight seal. The surface is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035, providing high resistance to corrosion and to mineral oils, lubricants, machining emulsions, and solvents. The material thickness is 1.25 mm for both the enclosure and the lid, enabling a stable construction.

Applications
This terminal box is suitable for use in indoor and outdoor environments, particularly in settings with high requirements for protection against dust, water, and mechanical impacts. It is suitable for installing terminals, plug connectors, switches, and other electrical components in industrial plants, machine building, building technology, and automation technology. The high degree of protection allows use in damp or dusty environments, for example in the food industry, agriculture, or manufacturing.

Functions and Equipment in Detail
The enclosure is formed and welded as a single piece, resulting in a stable and dimensionally stable construction. A continuous protective channel is integrated at the lid opening, providing additional protection. The lid is secured with a mini-latch lock, enabling secure and quick assembly. The enclosure includes a protective conductor connection, which ensures simple and reliable earthing via a U-bracket in the lid. A printed QR code on the enclosure, lid, and type plate enables unique identification and easy access to relevant product information, as well as traceability of individual components.

Technology Explained Simply
The protection rating IP 66 according to EN 60 529 means the enclosure is dust-tight and protected against strong splashing water, making it suitable for outdoor use. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various environments, including dry indoor spaces, damp outdoor areas, and environments with splashing water. The IK code IK08 indicates that the enclosure is resistant to mechanical impacts such as shocks and vibrations with a defined energy level. The triple surface treatment — nanoceramic coating, electrophoretic dip priming, and external coating in RAL 7035 — ensures high resistance to corrosion and chemical influences.

Compatibility and Accessories
The KX 1513000 can be expanded with various accessories to meet specific requirements. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting brackets, condensate drains, baying sets for connecting to other enclosures, drill screws, mounting brackets, spacing brackets for shock protection covers, lid hinges, earthing straps, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These components enable flexible and application-specific mounting and integration into existing systems.

Mounting and Installation
The rear wall of the enclosure features pass-throughs intended for wall mounting with brackets. Mounting is done using the integrated fastening elements, with the use of mounting brackets or wall mounting brackets ensuring secure and stable fastening. The mounting plate can be optionally added to attach additional components or rails. Installation typically requires no additional tools, with the mini-latch locks enabling quick and secure closure.

Operational Advantages
The KX 1513000 offers a high degree of protection, enabling long service life and low maintenance frequency. The robust sheet steel construction and special surface treatment ensure high resistance to environmental influences. The integrated earthing and secure closure via the mini-latch lock increase operational safety. Unique identification via the QR code simplifies maintenance and documentation. Compatibility with various accessories allows flexible adaptation to different requirements in industrial applications.

Scope of Delivery
The product is delivered with enclosure, lid, and mini-latch lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width800 mm
Height400 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)50.32 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1513000, EAN: 4028177816275
