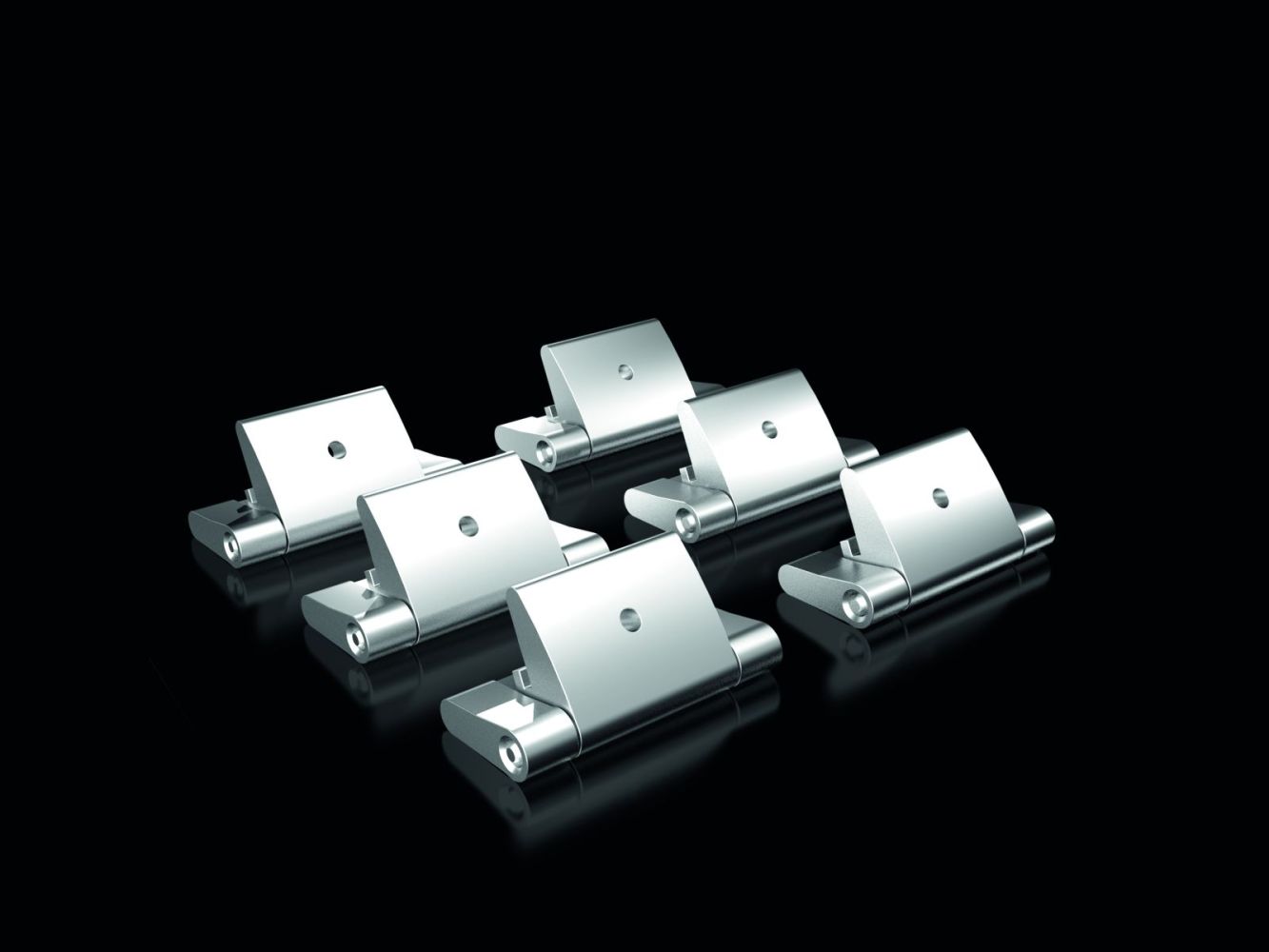

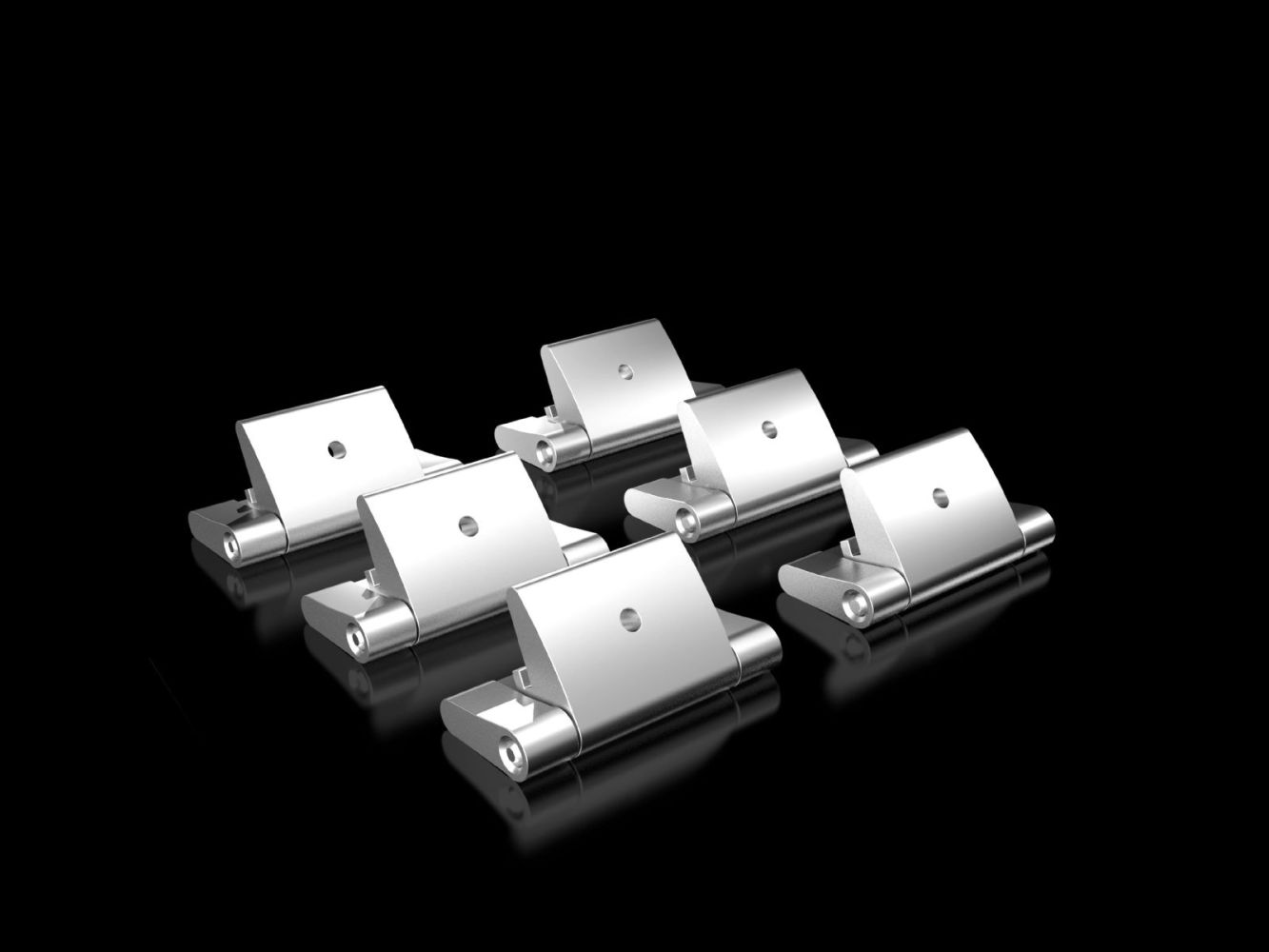

Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast

Your rating:
Average rating
product review for Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast
( 5 / 5 ) 2 ratings
Rittal 1592220
This image may differ from the desired article.
14,84 EUR 14,96 EUR
( 17,66 EUR incl. VAT )
≈ £12.42  |  ≈ $16.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast
Datasheet:file_download Download
Lieske Part No.:1104053
Mfg Part No: 1592220
UPC/EAN: 4028177973169
Weight:0.165 kg
Type:KX 1592220

Product information for Rittal 1592220:

The Rittal KX 1592220 is a lid hinge made of zinc die-cast, specifically developed for mounting on terminal boxes of the KX series. It ensures a secure and stable connection between the enclosure and the lid, allowing the lid to be opened to an angle of up to 180°. The hinge enables a continuous fastening to the enclosure protection flange and the lid flange, ensuring even load distribution and secure latching of the lid.

Applications
This lid hinge is intended for use in industrial electrical installations, particularly in terminal boxes of the KX series, used in electrical installation, automation technology, or machine building. The zinc die-cast construction provides sufficient strength and corrosion resistance for indoor use and environments with moderate humidity and contamination levels. The pre-punched mounting holes simplify installation, as no measuring or marking is required.

Functions and Equipment in Detail
The hinge is screwed to the enclosure and lid flanges using the mounting materials included in the delivery scope. The holes are pre-punched, which reduces installation time and increases accuracy. The delivery scope includes the lid hinge, locking plugs, and the mounting materials. The locking plugs ensure secure fastening of the mounting points and prevent screws from loosening due to vibrations or mechanical stress.

Technology Explained Simply
The zinc die-cast material offers a good combination of strength, shape stability, and low weight. It is suitable for industrial applications requiring sufficient mechanical load capacity and a certain level of corrosion resistance. The hinge is designed to allow an opening angle of up to 180°, ensuring full accessibility to the interior of the terminal box. The continuous fastening to the enclosure protection flange and the lid flange ensures even force distribution and prevents one-sided warping or deformation of the lid.

Compatibility and Accessories
The lid hinge is specifically designed for terminal boxes of the KX series. It is compatible with enclosures featuring a matching protection flange and lid flange. Use with other enclosure types is not intended and may result in inadequate fastening or malfunction. The accessories consist of the locking plugs and mounting materials included in the delivery scope, specifically designed for mounting on KX terminal boxes.

Mounting and Installation
Installation is carried out by screwing the hinge to the enclosure protection flange and the lid flange. The pre-punched holes facilitate precise positioning. Fastening is done using the screws and locking plugs included in the delivery scope. Installation is typically quick and requires no additional modifications.

Advantages in Operation
The hinge enables a secure and stable fastening of the lid, ensuring the integrity of the terminal box. The opening angle of up to 180° provides optimal access to the interior, simplifying maintenance and installation of components. The pre-punched holes reduce installation time and increase accuracy. The use of locking plugs provides additional security against loosening of fastening screws under mechanical stress or vibrations.

General
Materialzinc die-cast
Scope of deliveryLid hinge, closure plug, including mounting hardware
NoteFor door opening angle up to 180°


Product data sheet
Datasheet for Rittal 1592220, EAN: 4028177973169

Questions & answers

What is the delivery time of Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast?

The article Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1592220 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast always at the best possible price. We can give you a discount of 2% on Rittal 1592220 KX lid hinge for terminal boxes KX, zinc die-cast if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
