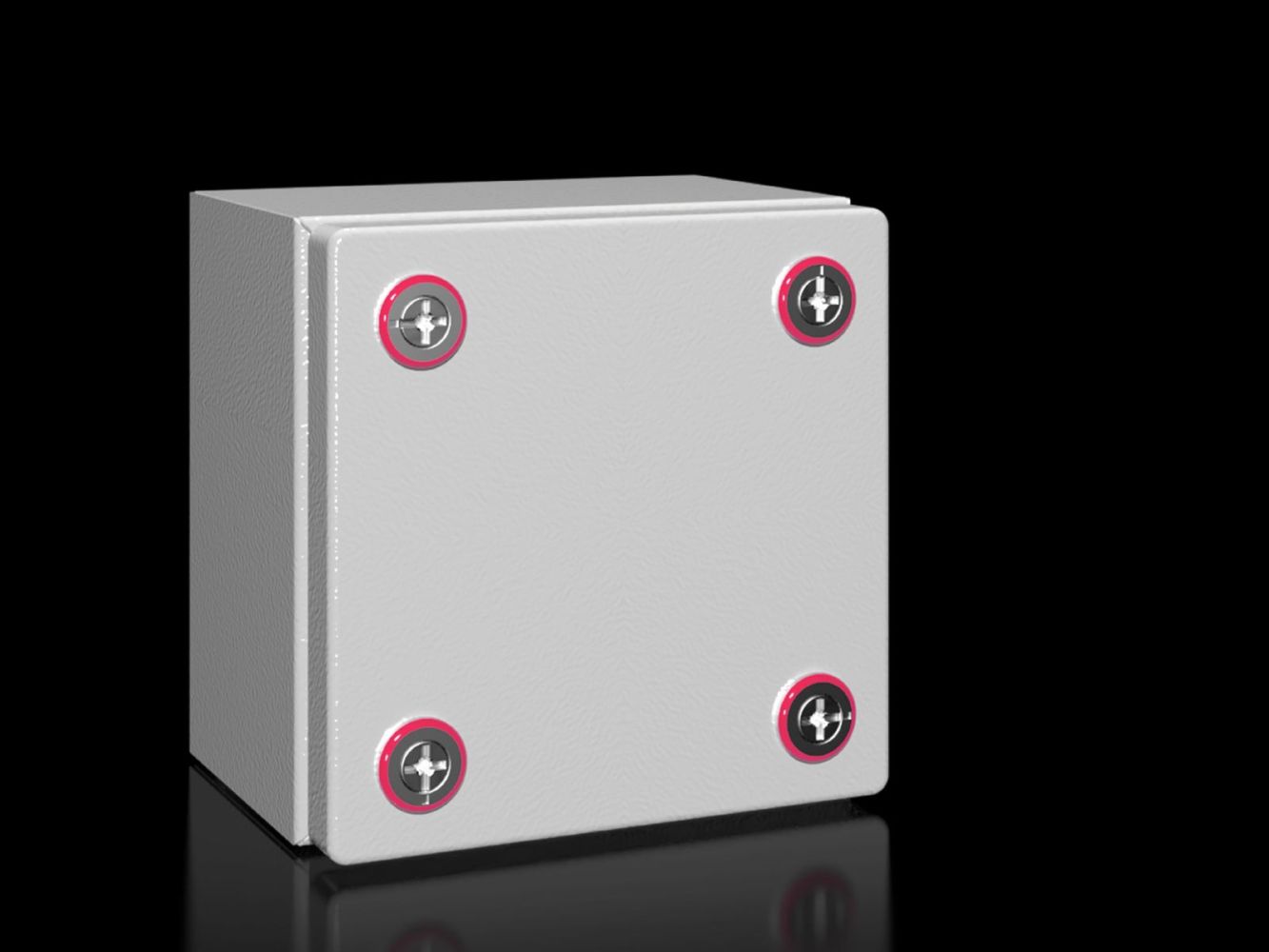

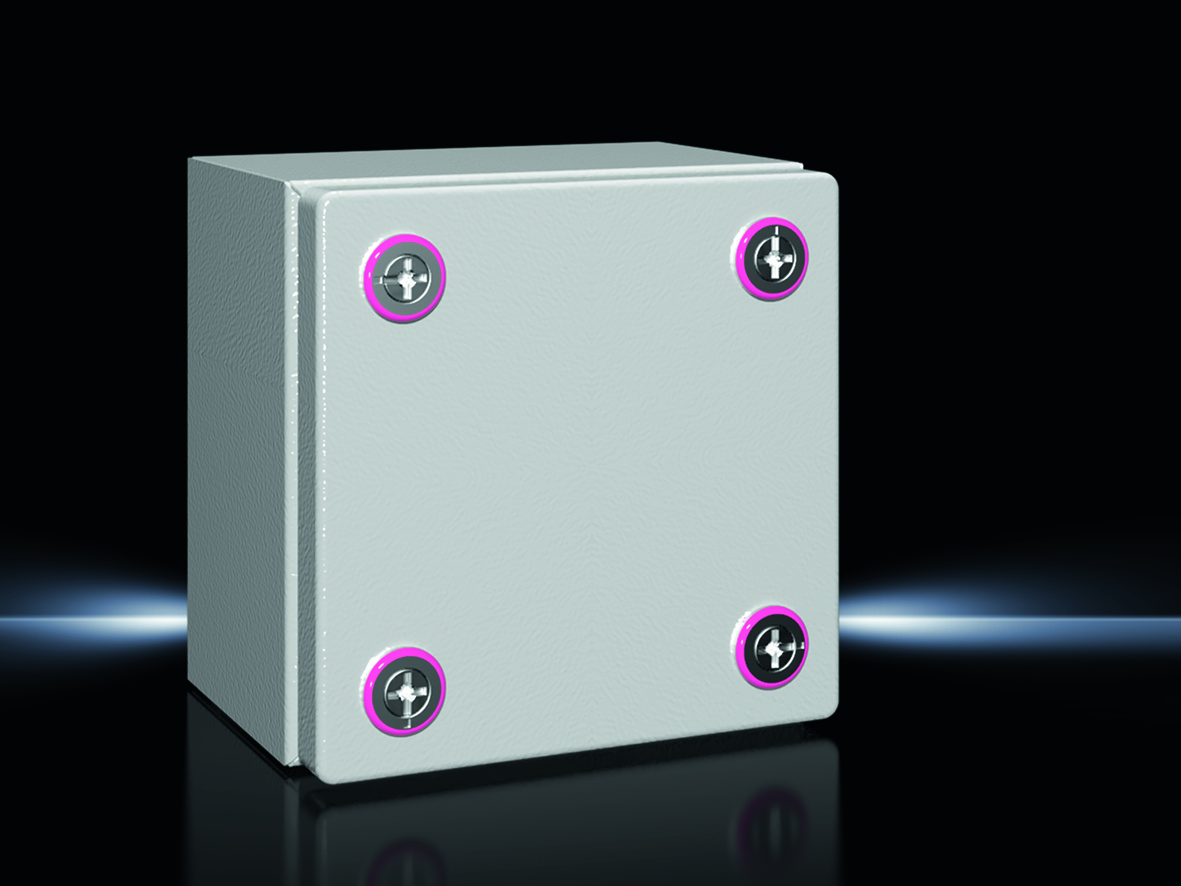

Rittal 1500000 terminal box KX, without gland plate 150x150x120 mm

Your rating:
Average rating
product review for Rittal 1500000 terminal box KX, without gland plate 150x150x120 mm
( 4.6 / 5 ) 7 ratings
Rittal 1500000
This image may differ from the desired article.
Rittal 1500000Rittal 1500000Rittal 1500000Rittal 1500000Rittal 1500000Rittal 1500000Rittal 1500000
28,89 EUR 28,90 EUR
( 34,38 EUR incl. VAT )
≈ £24.18  |  ≈ $31.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1500000 terminal box KX, without gland plate 150x150x120 mm
Datasheet:file_download Download
Lieske Part No.:1598128
Mfg Part No: 1500000
UPC/EAN: 4028177816145
Weight:1.435 kg
Type:KX 1500000

Product information for Rittal 1500000:

The KX 1500000 is a terminal box from the KX series by Rittal, designed as a small housing made of sheet steel. It is intended for use in industrial applications where flexible internal assembly is required along with high protection rating. The housing has dimensions of width 150 mm, height 150 mm, and depth 120 mm, and is delivered without a mounting plate and without a gland plate. The construction consists of a single-piece bent and welded body, ensuring a stable and tight design. An integrated sealing groove is located at the lid opening, together with the foamed PU gasket, providing reliable protection against dust and water.

Applications
This terminal box is suitable for use in industrial environments, particularly in areas subject to high mechanical loads and environmental influences such as moisture, splashing water, or dust. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even during temporary submersion. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the Type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for indoor and outdoor applications under various environmental conditions. The IK code IK08 indicates high mechanical strength against vibrations and mechanical impacts.

Functions and Equipment in Detail
The housing is supplied with a lid and a mini-latch lock, enabling secure and quick closure. The surface is treated in three stages: dip primed, coated with a nano-ceramic layer, and externally powder-coated in RAL 7035 structured paint. This treatment provides high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. A protective conductor connection via a U-bracket is integrated in the housing and lid, enabling simple and secure earthing. A QR code is printed on the housing, lid, and type plate, enabling unique identification and access to relevant product information, as well as traceability of components.

Technology Explained Simply
The material thickness of 1.25 mm for the housing and lid ensures sufficient strength to withstand mechanical loads. The continuously foamed PU gasket ensures tight sealing, supporting the IP 66 protection rating. The powder-coated surface in RAL 7035 structured paint provides a robust and durable coating that withstands industrial conditions. The IP 66 rating means the housing is dust-tight and protected against splashing water from any direction and temporary submersion. The NEMA and UL approvals confirm suitability for various operating conditions in Europe and North America.

Compatibility and Accessories
Various accessories are available for this terminal box to extend its application. These include support rails (SZ 2314000) for mounting components, plug-throughs (SZ 2400500) for cable entries with diameters from 4 to 6 mm, pressure equalization plugs M12x1.5, mounting brackets, condensate drains, baying sets for connecting multiple housings, drilling screws type ST 4.8 L9.5 mm, mounting brackets, spacing brackets for shock protection covers, zinc die-cast lid hinges, mounting plates, and mounting claws for a second mounting level. These components allow individual adaptation of the box to specific requirements.

Mounting and Installation
The rear wall of the housing features pass-throughs intended for wall mounting using brackets. Installation is carried out via the designated mounting points, with the use of wall mounting brackets or mounting brackets recommended to ensure secure fastening. The support rails can be used to mount components such as terminals or switches. Mounting plates and mounting claws allow flexible arrangement of components within the housing.

Operational Advantages
The KX 1500000 offers high mechanical and chemical resistance, making it suitable for demanding industrial applications. The simple earthing via the integrated protective conductor connection and the quick closure with the mini-latch lock reduce installation and maintenance times. The unique identification via the QR code simplifies documentation and traceability. The high protection rating IP 66 and the NEMA and UL approvals ensure safe and reliable operation under various environmental conditions.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width150 mm
Height150 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)25.71 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1500000, EAN: 4028177816145
