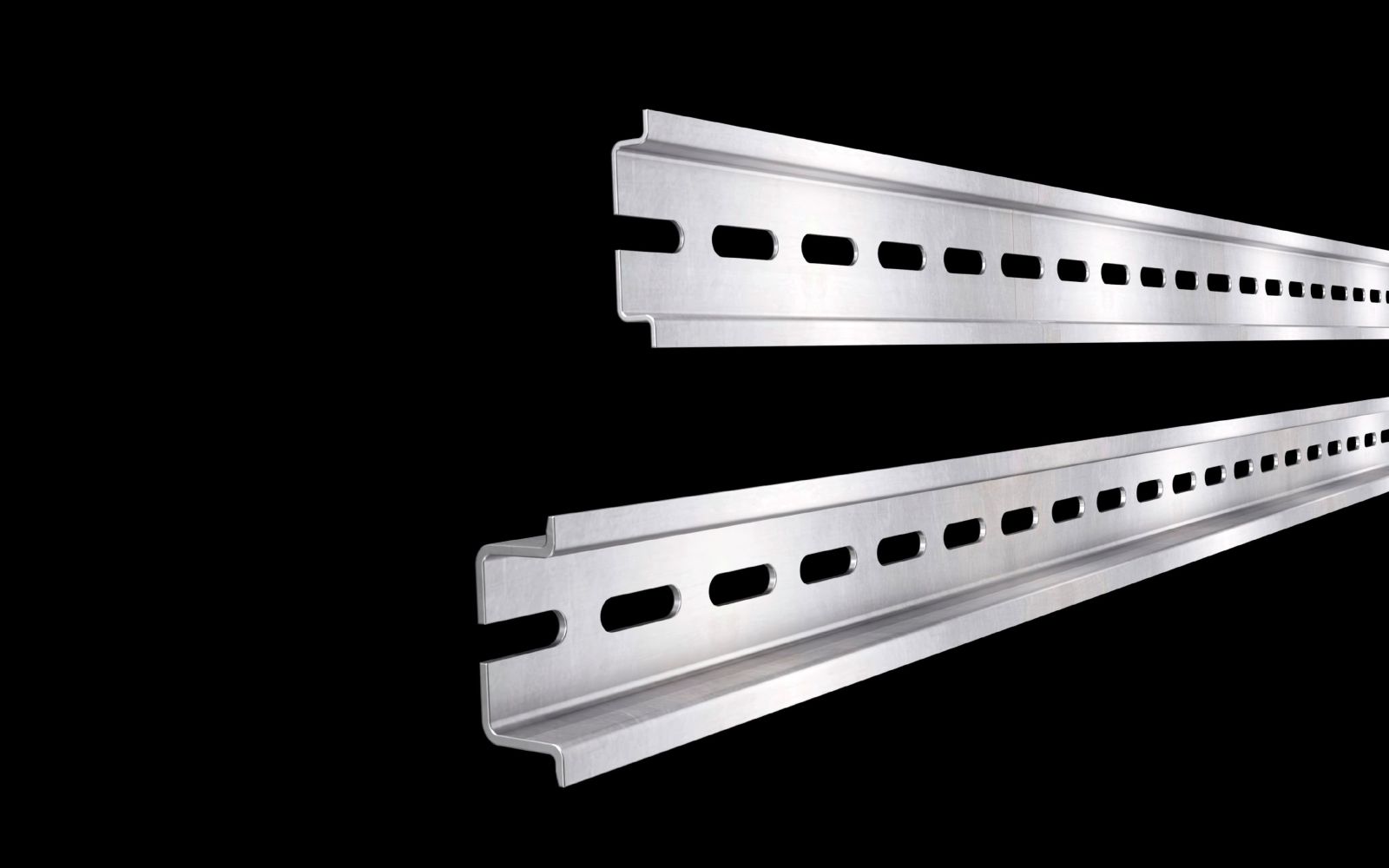

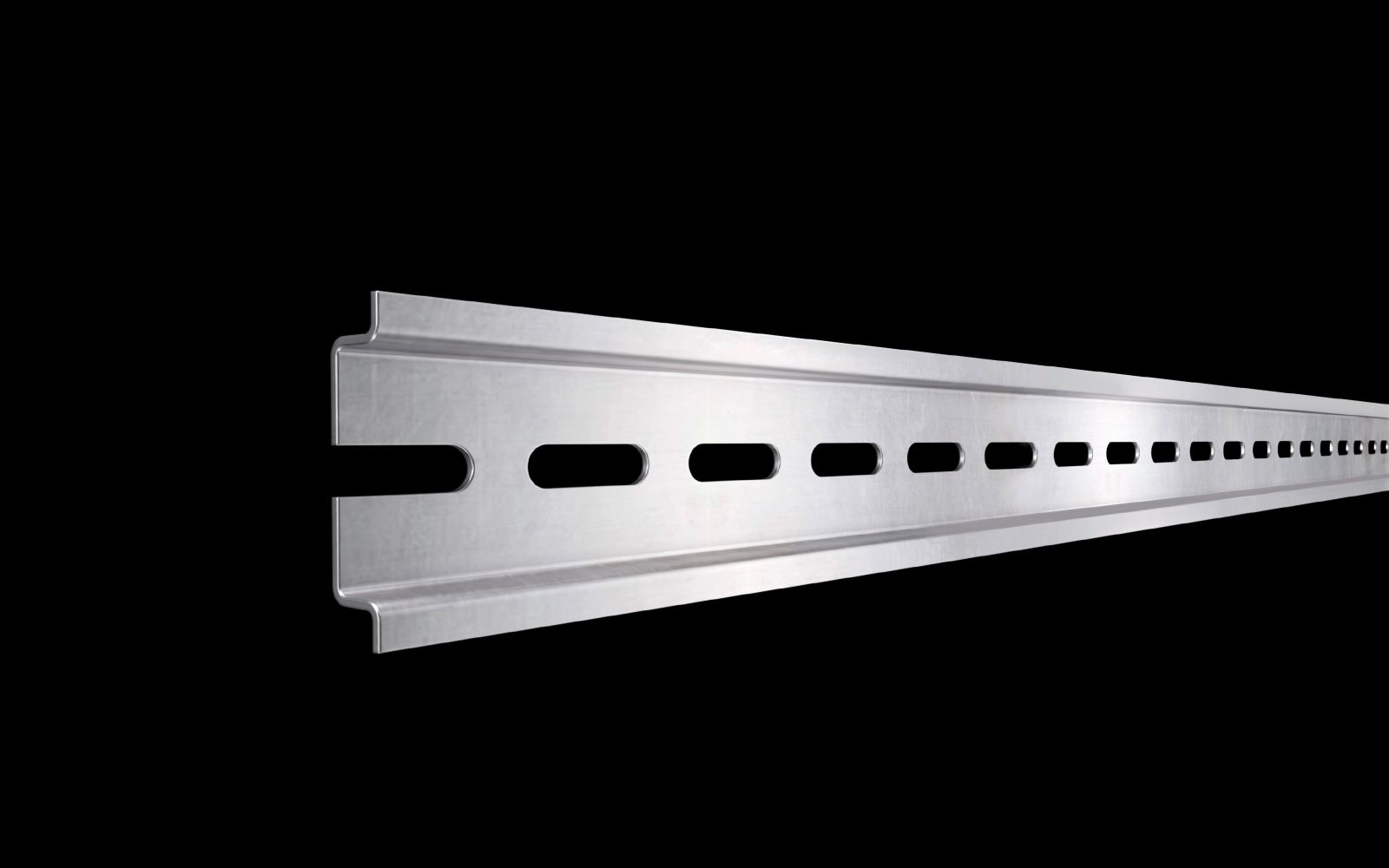

Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm

Your rating:
Average rating
product review for Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm
( 4.6 / 5 ) 31 ratings
Rittal 2314000
This image may differ from the desired article.
Rittal 2314000Rittal 2314000Rittal 2314000
23,57 EUR 23,58 EUR
( 28,05 EUR incl. VAT )
≈ £19.73  |  ≈ $25.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm
Datasheet:file_download Download
Lieske Part No.:101277
Mfg Part No: 2314000
UPC/EAN: 4028177021006
Weight:0.436 kg
Type:SZ 2314000

Product information for Rittal 2314000:

The Rittal SZ 2314000 is a support rail in the format TH 35/7.5, manufactured according to the standard EN 60 715. It serves as a mounting element for electrical components within enclosures and is specifically designed for housings with a width of 150 mm. The rail is made of sheet steel and features a zinc-coated surface, providing corrosion protection and extending service life in industrial applications. The length of the support rail is 137 mm and is matched to the housing width to enable optimal positioning and mounting of components.

Applications
The support rail is suitable for various housing types from Rittal, including the models AX, KX, AE, KL and KL-HD. These housings are used in industrial electrical engineering, automation technology, as well as in building and plant control. The rail is used in enclosures to mount components such as switches, relays, fuses or control devices securely and standardized. The standard EN 60 715 ensures mechanical compatibility with other components also manufactured according to this standard.

Functions and Equipment in Detail
The support rail TH 35/7.5 provides a stable mounting solution for electrical components. The dimension TH 35/7.5 refers to the height (35 mm) and depth (7.5 mm) of the rail, which is a standard dimension in the electrical industry. The zinc-coated surface provides sufficient corrosion protection, especially in environments with increased humidity or low aggressiveness. The length of 137 mm is precisely matched to the width of 150 mm to enable precise mounting without additional adjustments.

Technology Explained Simply
The standard EN 60 715 defines the geometric and mechanical requirements for support rails for electrical components. The designation TH 35/7.5 describes the cross-sectional dimensions: 35 mm height and 7.5 mm depth. These dimensions are internationally standardized, so components from different manufacturers can be mounted on the rail without problems. The zinc coating of the sheet steel rails provides protection against oxidation and ensures a longer service life, especially in industrial environments.

Compatibility and Accessories
The support rail is specifically designed for housing types AX, KX, AE, KL and KL-HD, all of which have a width of 150 mm. Use in other housing widths is not intended. The rail is part of the Rittal system accessories and can be combined with other system components such as enclosure housings, doors, mounting plates and electrical assemblies. The packaging unit is 10 pieces, suitable for mounting in larger enclosures or for series applications.

Mounting and Installation
Mounting is done by inserting the support rail into the designated mounting openings of the enclosure housings. The rail is typically secured with screws or clamp connections, with the exact mounting method depending on the specific housing type. The length of 137 mm allows for centered positioning within the housing and ensures sufficient clearance from the housing walls. The zinc-coated surface facilitates mounting, as it does not require additional coatings or protective measures.

Advantages in Operation
The use of the Rittal SZ 2314000 provides a standardized and reliable mounting solution. Compliance with the standard EN 60 715 ensures interoperability with other components. The zinc-coated surface ensures increased service life, especially in environments with increased humidity. The precisely matched length of 137 mm for a housing width of 150 mm reduces mounting errors and ensures proper positioning of components. The rail is designed for use in industrial plants, where reliability and standardization are crucial.

General
ModelTH 35/7,5
Materialsteel sheet
Surface protectionZinc-plated
Length of busbar137 mm
Suitable forenclosure type: AX, KX, AE, KL, KL-HD, width: = 150 mm
PCF/VE (Cradle-to-Gate)1.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2314000, EAN: 4028177021006

Questions & answers

What is the delivery time of Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm?

The article Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2314000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm always at the best possible price. We can give you a discount of 2% on Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
