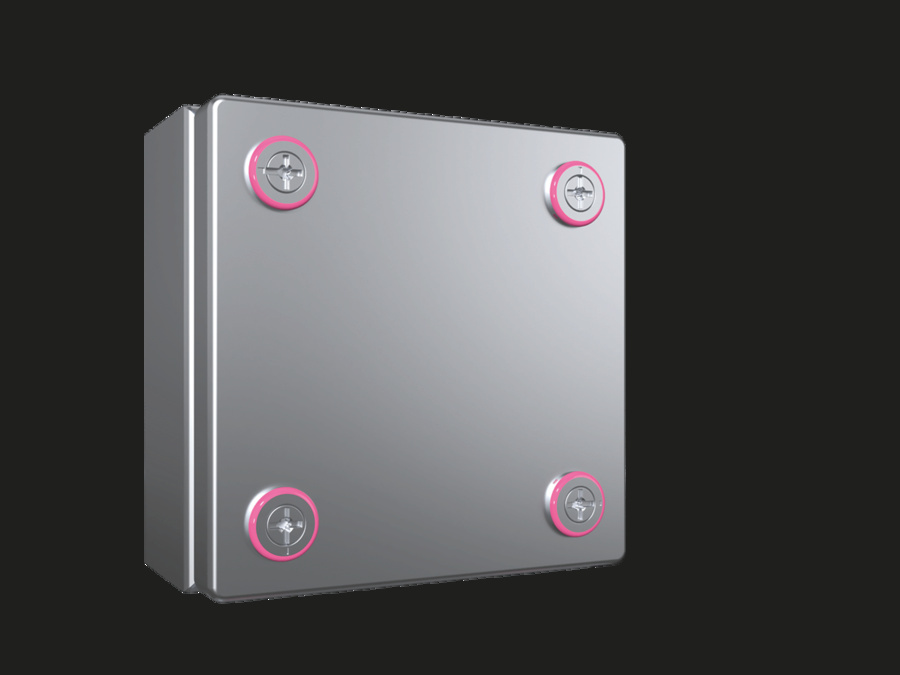

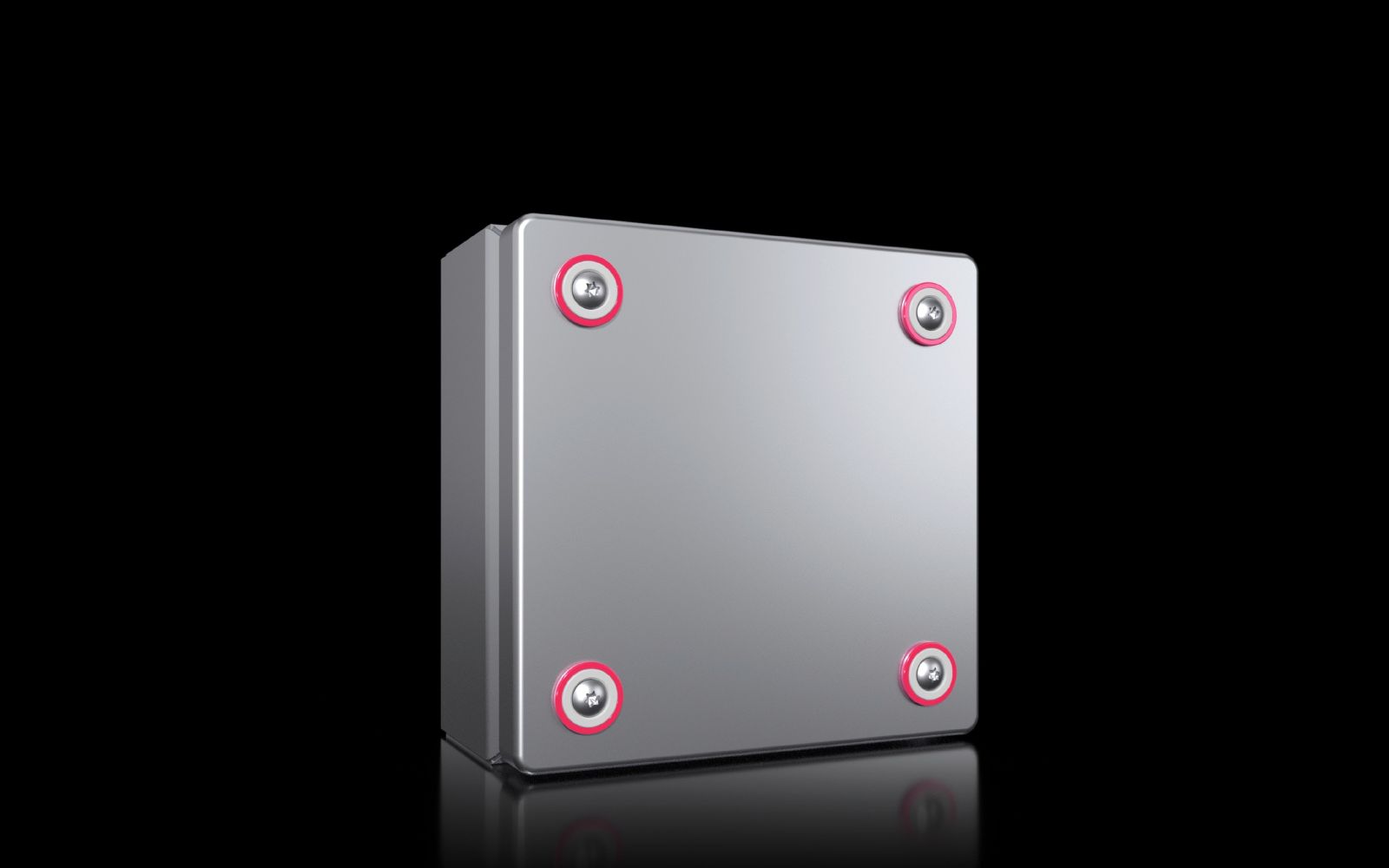

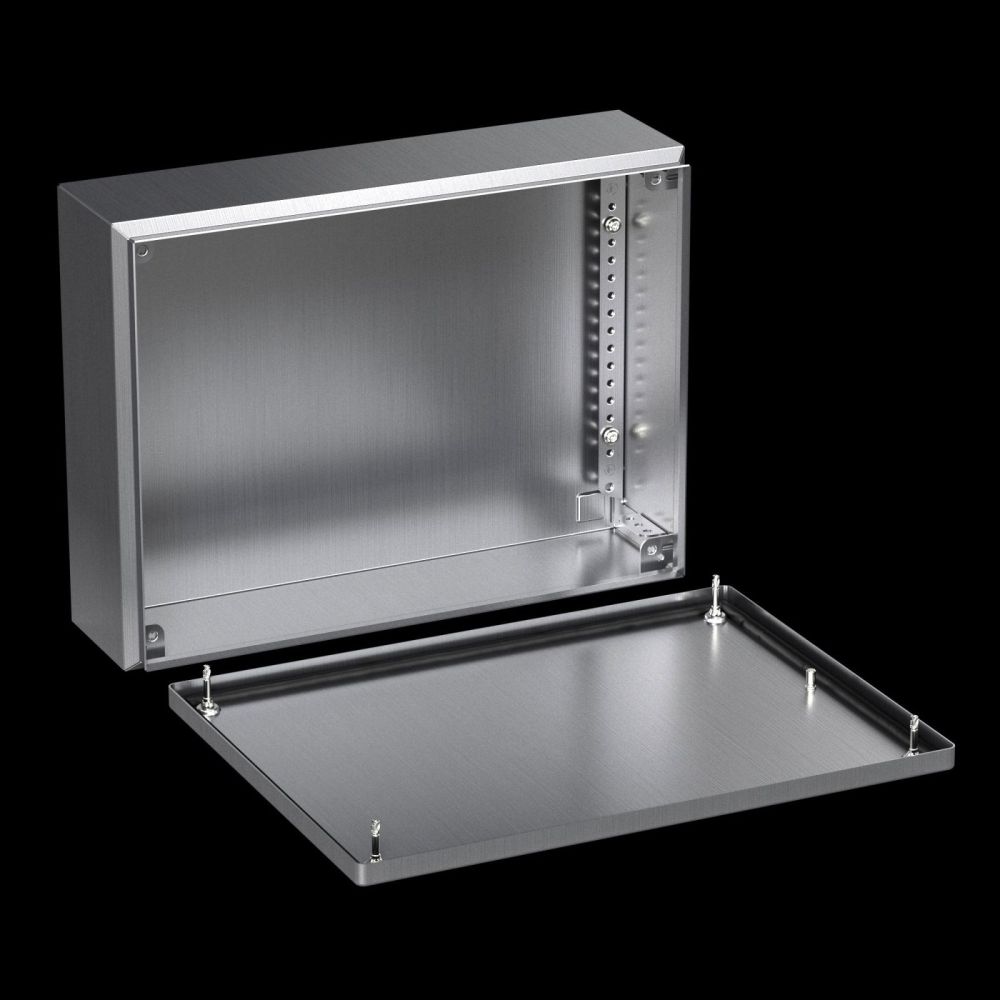

Rittal 1560000 terminal box KX, stainless steel 1.4301, 150x150x80 mm
|
-8% 125,01 EUR 135,39 EUR |
|
|
( 148,76 EUR incl. VAT ) ≈ £104.63 | ≈ $137.39 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1769050 |
| Mfg Part No: | 1560000 |
| UPC/EAN: | 4028177009981 |
| Weight: | 1.323 kg |
| Type: | KX 1560000 |
Product information for Rittal 1560000:
Applications
The terminal box is suitable for use in industrial installations, particularly in areas with increased humidity, dust exposure or outdoor use. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water conditions. The approvals according to NEMA 1, 3R, 3RX, 4, 4X and 12 as well as type rating according to UL 50E (Type 1, 3R, 3RX, 4, 4X, 12) make the box suitable for a wide range of application scenarios in industry, machine construction and automation technology. The material thickness of the enclosure is 1.5 mm, that of the lid is 1.25 mm, providing high mechanical strength and resistance to external influences.
Functions and equipment in detail

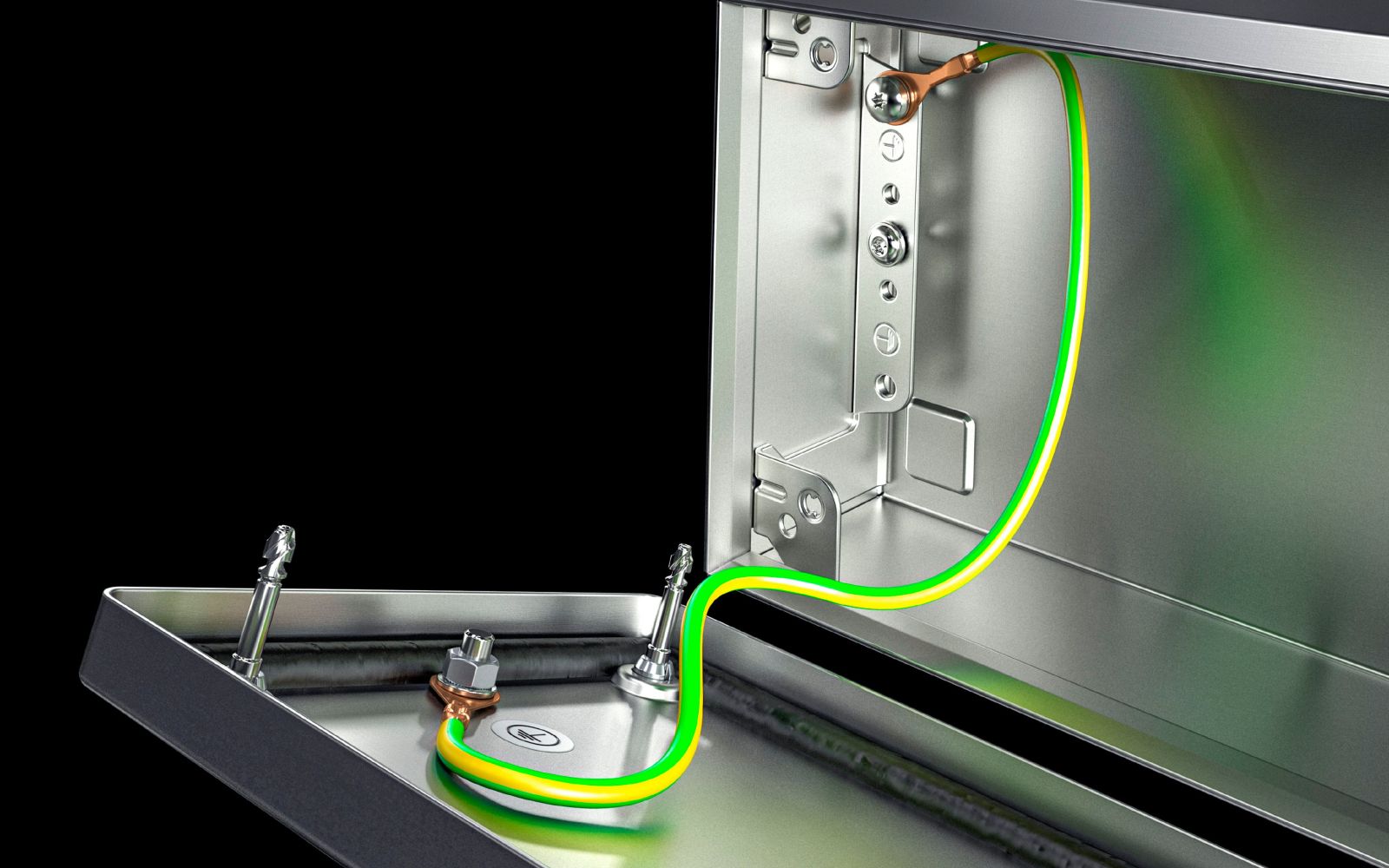

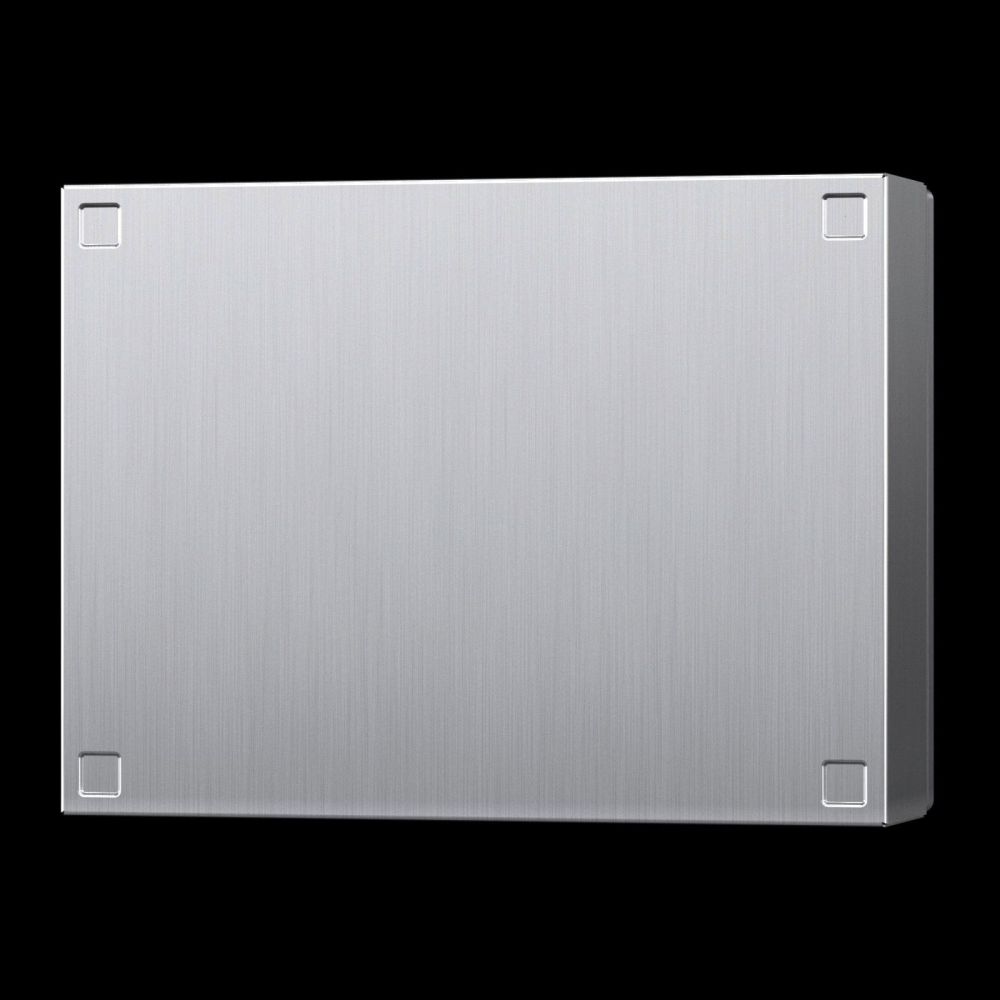

The enclosure is made from a single piece, flanged and welded, resulting in a stable, wear-resistant construction. The rear wall is closed and features embossings that enable secure mounting. The lid is fitted with a PU foam sealing gasket, ensuring a tight seal. Earthing is achieved via a protective conductor connection in the enclosure and a bolt in the lid, enabling quick and easy earthing. The locking mechanism consists of four quick-release latches equipped with plastic bushings to ensure secure and repeatable closure.
Technology explained simply
The protection rating IP 66 means that the enclosure is completely dust-tight and protected against heavy spray water, making it suitable for outdoor use or in humid indoor environments. The NEMA approvals cover various protection levels, protecting against rain, spray water, dust and mechanical damage. The material choice of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially in humid or aggressive environments. The brush-finished surface (grit 180) provides a uniform, easy-to-clean and aesthetically pleasing surface.
Compatibility and accessories

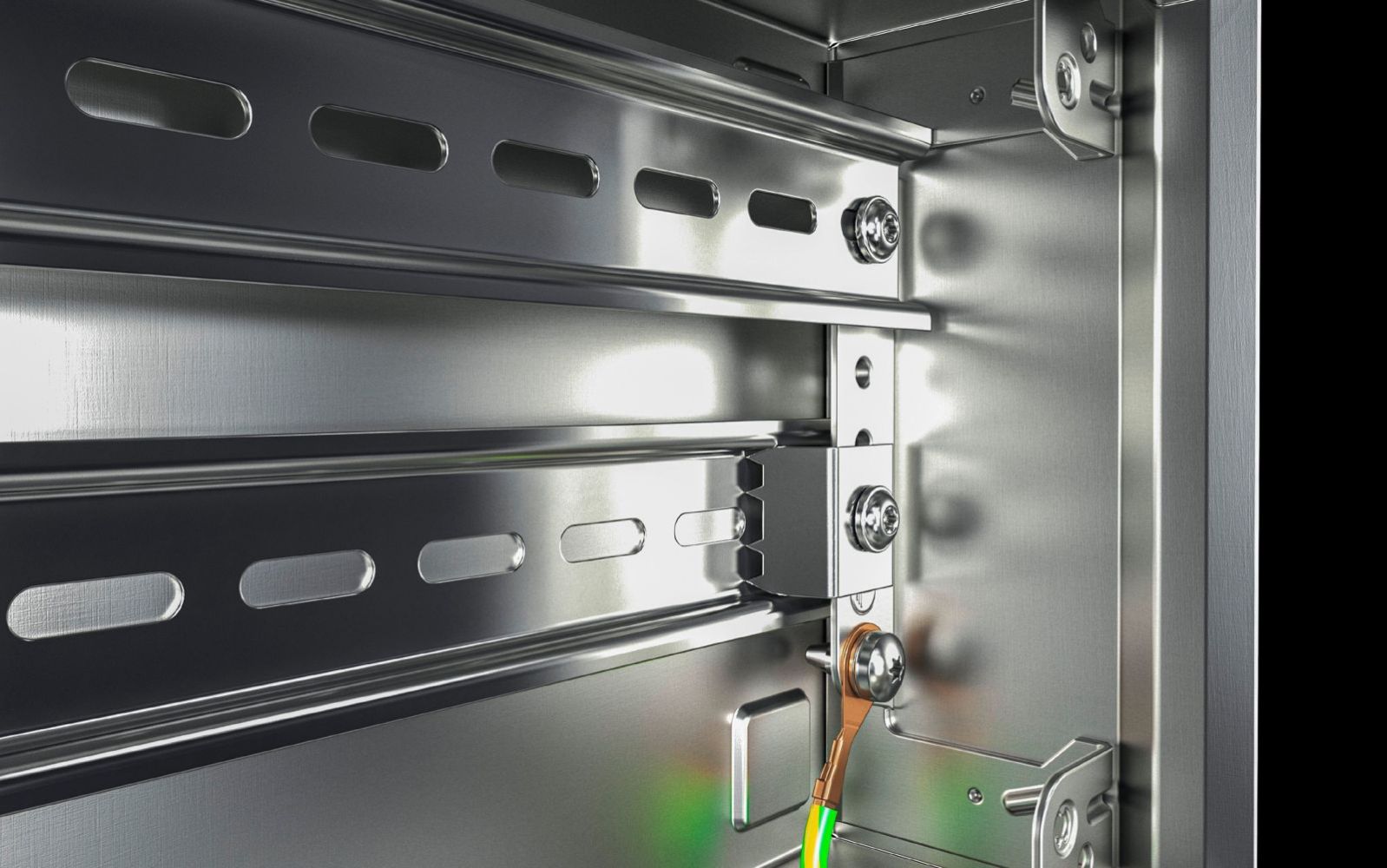

The terminal box is compatible with various accessories that extend mounting and usage options. These include, for example, support rails (SZ 2314000), mounting clips, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, earthing straps M6-M6 with a cross-section of 10 mm², ST 4,8 L9,5 mm screws, mounting brackets, pressure equalization plugs made of stainless steel 1.4305, mast mounting brackets (AX 2584100), mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting plane, as well as wall mounting brackets and angles made of stainless steel 1.4301. These elements enable flexible and application-specific mounting of the box on enclosures, walls or other structures.
Mounting and installation
Mounting is carried out via the designated mounting points on the enclosure. The quick-release latches allow for easy and quick installation of the lid. The integrated earthing via protective conductor connection in the enclosure and bolt in the lid simplifies the electrical connection. The use of mounting plates, wall mounting brackets or support rails allows flexible fixation on various substrates. The ST 4,8 L9,5 mm screws can be used for mounting on metal or wooden structures.
Advantages in operation
The terminal box offers high mechanical stability, reliable sealing and long service life due to the stainless steel construction. The IP 66 protection rating and NEMA approvals enable use in demanding environments. The quick and easy mounting as well as integrated earthing reduce installation time. The clear identification via QR codes on enclosure, lid and nameplate enables easy identification and traceability of individual parts. The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially in humid or aggressive environments.
The delivery includes the enclosure with lid as well as the quick-release latches including plastic bushings.
| General | |
| Material | Housing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal |
| Surface protection | Housing and cover: fine grinding, grit 180 |
| Scope of delivery | Housing with cover, quick-release fastener including plastic inserts |
| Width | 150 mm |
| Height | 150 mm |
| Depth | 80 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,5 mm |
| Lock | Number of locks: 4 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 5,24 |
Questions & answers
What is the delivery time of Rittal 1560000 terminal box KX, stainless steel 1.4301, 150x150x80 mm?
The article Rittal 1560000 terminal box KX, stainless steel 1.4301, 150x150x80 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1560000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1560000 terminal box KX, stainless steel 1.4301, 150x150x80 mm always at the best possible price. We can give you a discount of 2% on Rittal 1560000 terminal box KX, stainless steel 1.4301, 150x150x80 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
