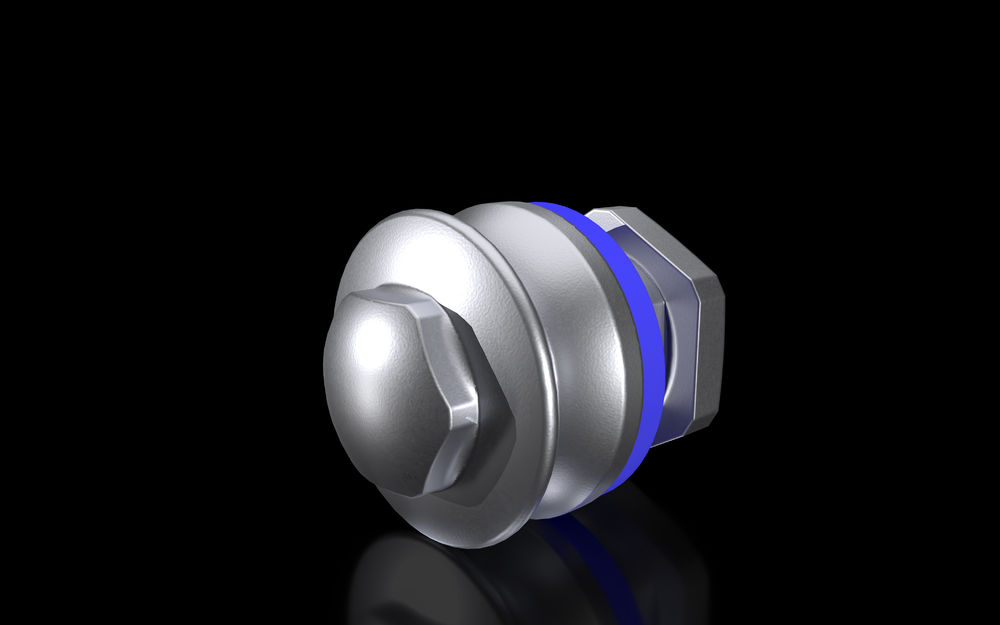

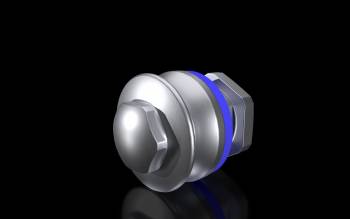

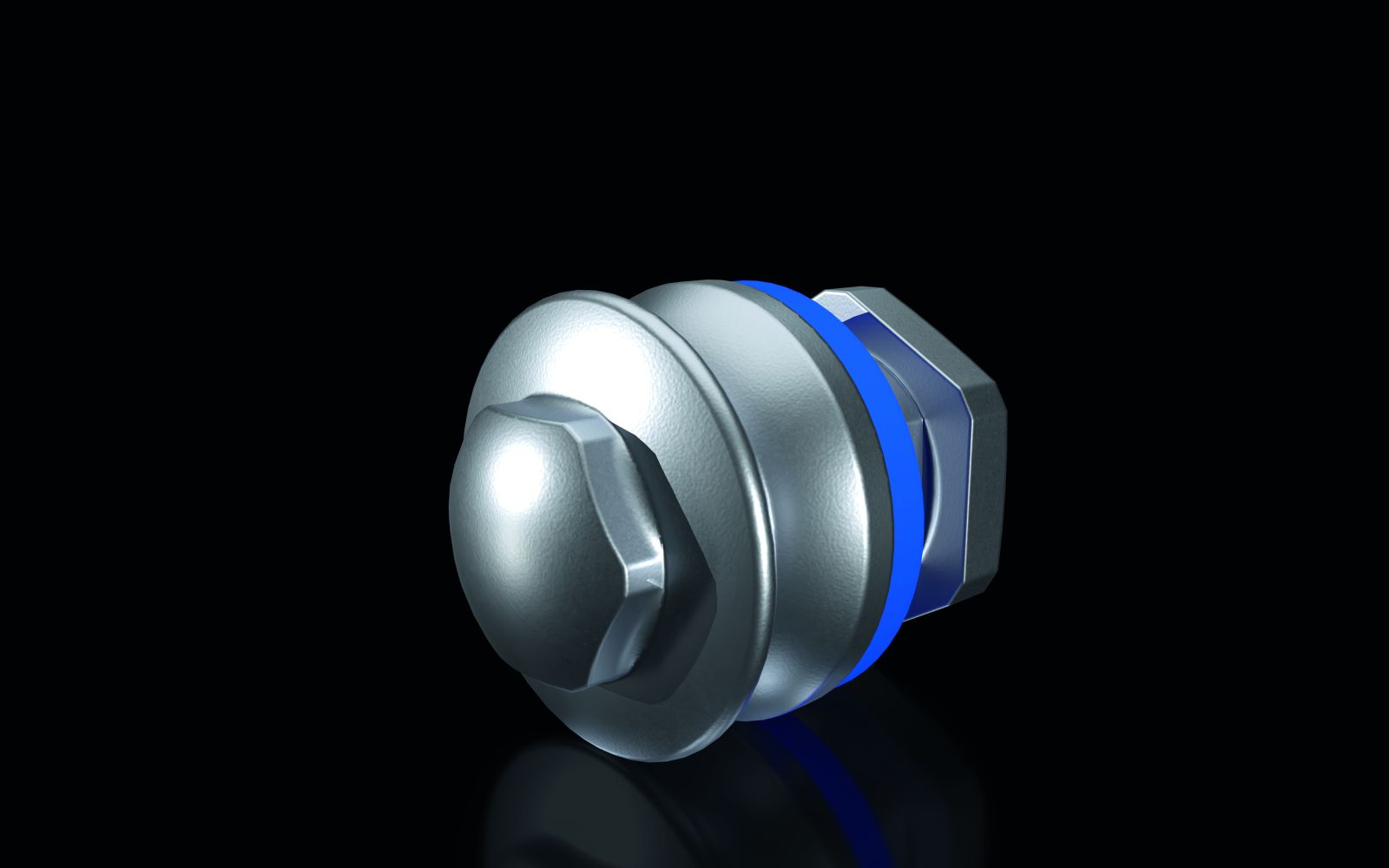

Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305
|
-6% 163,42 EUR 174,72 EUR |
|
|
( 194,47 EUR incl. VAT ) ≈ £136.78 | ≈ $179.60 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101878 |
| Mfg Part No: | 4000300 |
| UPC/EAN: | 4028177967892 |
| Weight: | 0.12 kg |
| Type: | SZ 4000300 |
Product information for Rittal 4000300:
Applications
This pressure equalization plug is particularly suitable for enclosures installed outdoors or in environments with significant temperature fluctuations. In such applications, temperature changes can lead to condensation forming inside the enclosure, potentially causing corrosion, malfunctions, or damage to electrical components. The SZ 4000300 minimizes these risks through continuous pressure equalization, without allowing moisture or dirt to enter the enclosure.
Functions and Equipment in Detail
The plug features a connection thread M12 x 1.5, enabling secure mounting in standardized drill holes. The integrated sealing membrane ensures that air flows when pressure differences occur, while preventing moisture and particles from entering. The air permeability is up to 60 liters per hour at a pressure difference of 70 mbar, which is sufficient to compensate for pressure differences in typical industrial applications. The plug has a length of 10 mm, allowing for compact installation in standard enclosures.
Technology Explained Simply
The sealing membrane in the plug is an elastic element that deforms slightly under pressure differences to allow air flow, while remaining closed under equal pressure or in the presence of moisture. This prevents water or dirt from entering through open openings in the enclosure. The material choice of stainless steel 1.4305 (AISI 303) ensures high corrosion resistance and mechanical strength, even under prolonged exposure in humid or aggressive environments.
Compatibility and Accessories
The plug is designed for use in enclosures requiring a protection rating of at least IP 66. It complies with type ratings according to UL 50E: Type 1, Type 4, and Type 4X, confirming its suitability for indoor and outdoor applications under various environmental conditions. The protection rating IP 66, IP X8, and IP X9 according to IEC 60 529 guarantees dust-tight and water-tight shielding, even under high-pressure water jets and steam jets.
Mounting and Installation
The pressure equalization plug is screwed into vertical surfaces of the enclosure using the connection thread M12 x 1.5. Installation is performed with a suitable screwdriver or electric screwdriver. The delivery includes a lock nut for secure fastening of the plug. The installation should be carried out at a height that enables optimal air circulation, with vertical orientation recommended to avoid dust accumulation.
Operational Advantages
Using the SZ 4000300 extends the service life of electrical and electronic components in the enclosure by minimizing condensation and moisture ingress. The continuous pressure equalization function ensures a stable internal atmosphere, increasing the reliability of installed devices. The robust construction from stainless steel 1.4305 guarantees long-term durability even in demanding environments. The protection rating IP 66, IP X8, and IP X9 makes the plug suitable for outdoor use, where high requirements for weather resistance apply.
| General | |
| Technical data | Connection thread M12 x 1.5, air flow up to 60 litres/hour at a pressure difference of 70 mbar |
| Material | Stainless steel 1.4305 (AISI 303) |
| Scope of delivery | Including locknut |
| Type rating according to UL 50E | Type 1, Type 4, Type 4X |
| Degree of protection IP according to IEC 60 529 | IP 66, IP X8, IP X9 |
| Length | 10 mm |
