Rittal 1315600 Hygienic Design compact enclosure HD

Your rating:
Average rating
product review for Rittal 1315600 Hygienic Design compact enclosure HD
( 4.5 / 5 ) 123 ratings
Rittal 1315600
This image may differ from the desired article.
Rittal 1315600Rittal 1315600Rittal 1315600Rittal 1315600Rittal 1315600Rittal 1315600Rittal 1315600
777,37 EUR 777,50 EUR
( 925,07 EUR incl. VAT )
≈ £650.66  |  ≈ $854.33
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1315600 Hygienic Design compact enclosure HD
Datasheet:file_download Download
Lieske Part No.:1351083
Mfg Part No: 1315600
UPC/EAN: 4028177815667
Weight:39.5 kg
Type:HD 1315.600

Product information for Rittal 1315600:

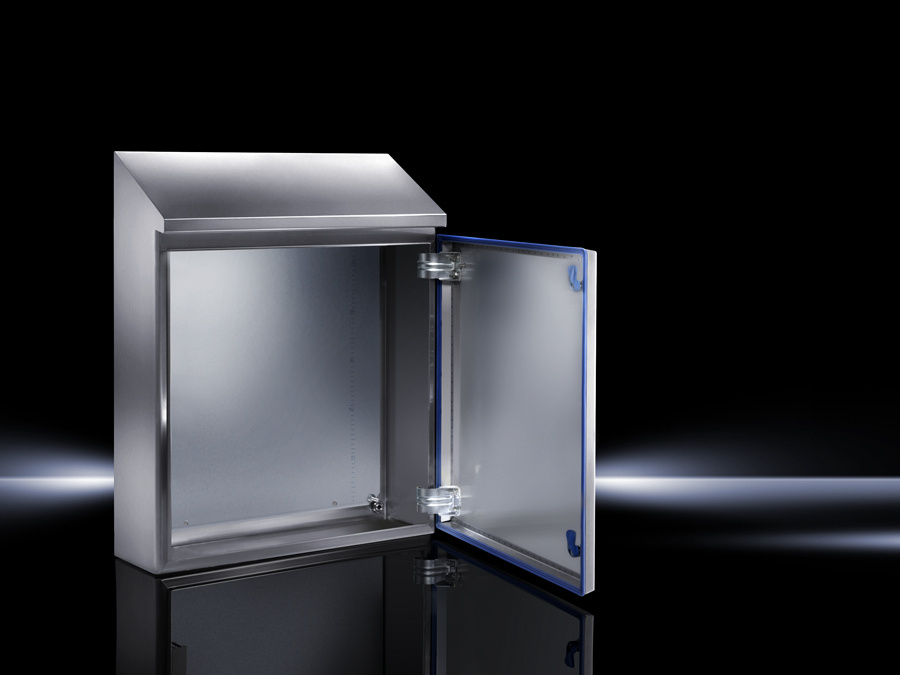

The Rittal HD 1315.600 is a Hygienic Design enclosure made of stainless steel, specifically designed for use in the food and beverage industry. The compact enclosure model features a single-door construction with an integrated sloped roof, inclined at 30° forward, to enable effective water drainage and easy cleaning. The enclosure is formed from a single piece, bent and welded, fully enclosed all around, and features no additional gaps or dead spaces, meeting hygiene requirements. The door is equipped with continuous 10° inclined flanges and features a gap-free transition to the enclosure, preventing crevices. The door seal is made of silicone, compliant with FDA regulation 21 CFR 177.2600, and is blue-coloured (RAL 5010) to be clearly distinguishable from food products.

Applications
This enclosure model is intended for environments with high hygiene and cleaning requirements, such as food processing, beverage industry, or pharmaceutical production. The special design with integrated drip edge protects the upper door seal and enables safe cleaning. The protection rating IP 66 and IP X9 ensure high protection against dust, water, and high-pressure cleaning, while the protection rating NEMA 4X and Type Rating according to UL 50E confirm suitability for wet and aggressive environments. The IK code IK08 certification ensures sufficient impact resistance against mechanical stresses.

Functions and Equipment in Detail
The enclosure is made of stainless steel 1.4301 (AISI 304), suitable for its corrosion resistance and hygiene-friendly properties. The door is standard right-hinged, but can be converted to left-hinged. The steel sheet mounting plate is galvanised and has dimensions 750 mm (W) x 575 mm (H). The door opens up to an angle of 125°, providing good access to the interior. The locks are designed in hygienic style, with the lock insert made of stainless steel 1.4404 (AISI 316L) to ensure easy cleaning without recesses or gaps. The surface of the enclosure and door is brush-finished (grit 400, roughness < 0.8 μm), creating a smooth, easy-to-clean surface.

Technology Explained Simply
The IP 66 protection rating means the enclosure is dust-tight and protected against powerful water jets from any direction. The IP X9 certification refers to resistance against high-pressure cleaning, which is crucial in the food industry. The NEMA 4X classification guarantees protection against splashing water, dust, and corrosion, even in salt-laden environments. The IK08 impact resistance protects the enclosure from mechanical stresses, such as those occurring during transport or installation. The integrated drip edge on the roof prevents water from dripping onto the door seal, extending the seal’s lifespan and simplifying cleaning.

Compatibility and Accessories
Various accessories are available to extend the hygienic setup, including HD wall spacers with a 50 mm distance, improving air circulation and cleaning. HD viewing windows in various sizes (e.g. 470x290 mm and 330x190 mm) made of stainless steel 1.4301 are also available, equipped with knob handles. For cable connections, cable strain relief rails for mounting plates (length 699 mm) can be used. The locks can be operated with a universal key and matching Bit HD for universal key 2549500. Additionally, HD knob handles and knob handles with safety cylinder insert made of stainless steel are available. SZ pressure equalisation plugs made of stainless steel 1.4305 can be used for air permeability when the door is closed.

Installation and Mounting
The enclosure comes pre-equipped with a mounting plate, enabling easy attachment to walls or stands. The door hinge direction is standard right, but can be changed to left to adapt to specific mounting conditions. The integrated drip edge and sloped roof facilitate installation in environments where water drainage and cleaning are important. The mounting plate provides sufficient space for securing enclosure components.

Operational Advantages
The Rittal HD 1315.600 offers high operational reliability due to its robust stainless steel construction and hygienic design. Easy cleaning, enabled by the gap-free construction and blue-coloured seal, reduces the risk of contamination. The high protection rating and impact resistance ensure long service life even in demanding environments. The integrated mounting plate and the option to change the door hinge direction increase installation flexibility. Compatibility with various accessories allows custom adaptation to specific requirements.

Scope of Delivery
The product is delivered as a fully enclosed enclosure, including door with inserted seal, right-hinged door (convertible to left), and mounting plate. The seal is blue-coloured (RAL 5010) and made of silicone, compliant with FDA regulation 21 CFR 177.2600. The mounting plate has dimensions 750 mm (W) x 575 mm (H). The door opens up to 125°, and the enclosure features two hygienic design locks.

Certifications
The product is UL- and cUL-certified (listed) and complies with standards IEC 60 529, NEMA, and UL 50E. The certifications include protection ratings IP 66, IP X9, NEMA 1, 3, 3X, 4, 4X, 12, 13, and Type Rating 1, 3, 3X, 4, 4X, 12, 13. The IK code certification is IK08. The declaration of conformity and PCF declaration (Cradle-to-Gate) are available.

Dimensions
The enclosure dimensions are 810 mm (width) x 650 mm (height front) x 821 mm (height rear) x 300 mm (depth). The mounting plate has dimensions 750 mm (W) x 575 mm (H). The net weight is 39 kg, and the gross weight is 39.5 kg.

Manufacturer and Model
Manufacturer: Rittal GmbH & Co. KG
Manufacturer's number: 1315600
Type: HD 1315.600
Category: Industrial materials › Enclosures / cabinets › Enclosure systems

Accessories
Compatible accessories include: HD wall spacers (50 mm spacing), HD viewing windows (470x290 mm and 330x190 mm), cable strain relief rails (699 mm), Bit HD for universal key 2549500, universal key, SZ pressure equalisation plugs (stainless steel 1.4305), HD knob handle, knob handle with safety cylinder insert (stainless steel). These components enable a complete hygienic installation.

General
ModelHygienic Design housing
Market-relevant product changesThe compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX.
MaterialHousing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate
Width810 mm
Height front650 mm
Height at rear821 mm
Depth300 mm
Mounting plate dimensions (W x H)750 mm x 575 mm
Door opening angle125°
Number of locks2
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)121,98


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1315600, EAN: 4028177815667

Questions & answers

What is the delivery time of Rittal 1315600 Hygienic Design compact enclosure HD?

The article Rittal 1315600 Hygienic Design compact enclosure HD is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1315600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1315600 Hygienic Design compact enclosure HD always at the best possible price. We can give you a discount of 2% on Rittal 1315600 Hygienic Design compact enclosure HD if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
