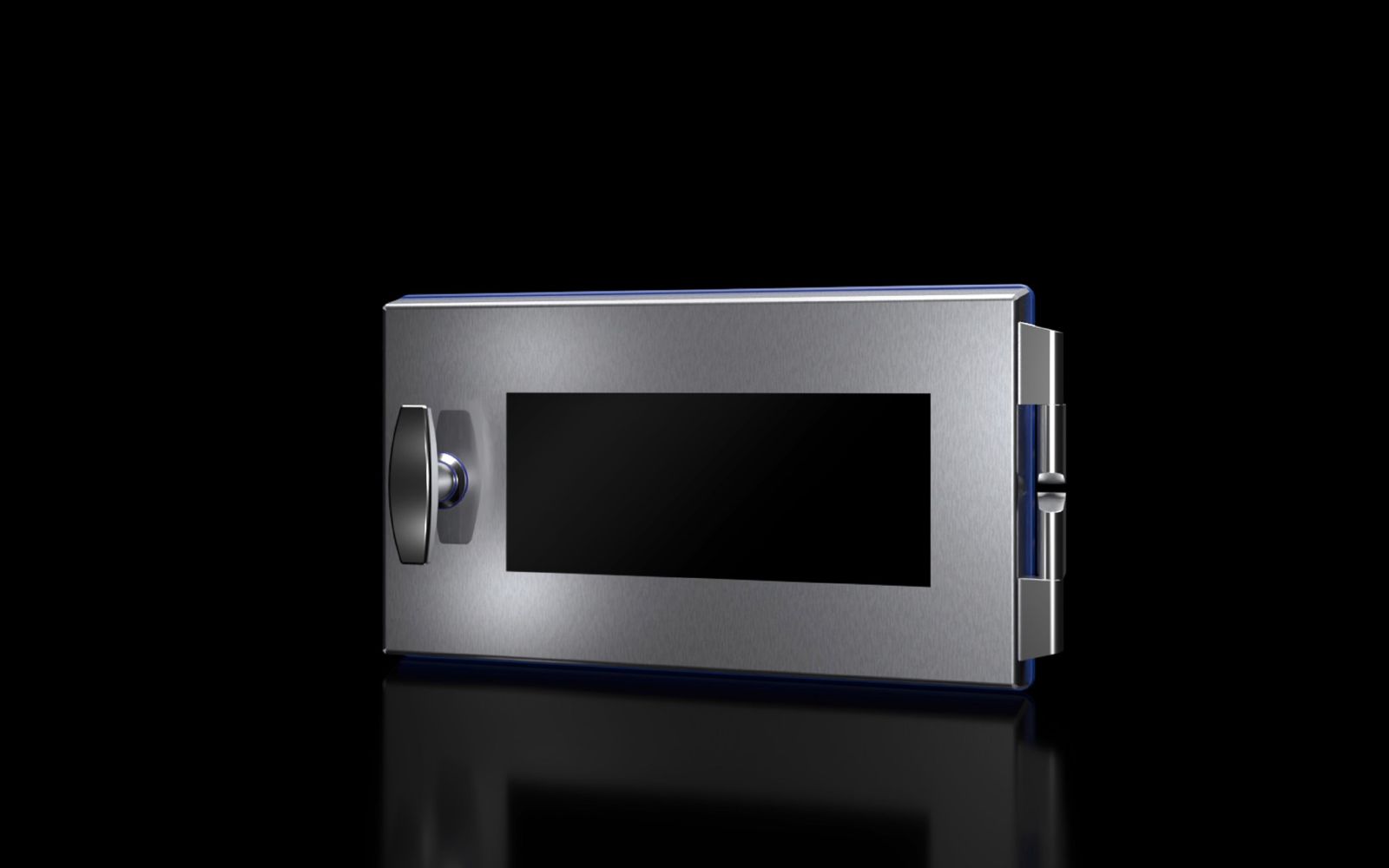

Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301

Your rating:
Average rating
product review for Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301
( 4.5 / 5 ) 2 ratings
Rittal 4000081
This image may differ from the desired article.
-6% 264,50 EUR 282,77 EUR
( 314,76 EUR incl. VAT )
≈ £221.39  |  ≈ $290.69
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301
Datasheet:file_download Download
Lieske Part No.:1567527
Mfg Part No: 4000081
UPC/EAN: 4028177985148
Weight:1.891 kg
Type:HD 4000081

Product information for Rittal 4000081:

The Rittal HD viewing window, type 4000081, is a robust system accessory for compact enclosures of the HD series. It protects buttons or displays mounted inside the enclosure while enabling clear visibility of the control elements. The viewing window is made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The viewing pane is made of polycarbonate, a transparent, impact-resistant plastic suitable for industrial applications. The silicone seal complies with FDA regulation 21 CFR 177.2600, supporting use in environments with hygiene requirements.

Applications

The viewing window is designed for use in industrial environments, particularly in plants where visual monitoring of control elements is required without opening the enclosure. It is suitable for applications in manufacturing, automation technology, or environments with increased requirements for mechanical strength and protection rating. The protection rating IP 55 according to IEC 60 529 protects against dust and splashing water, making it suitable for outdoor use or humid indoor environments. The IK code IK08 provides high protection against mechanical impacts, such as shocks or vibrations.

Functions and equipment in detail

The viewing window features a large viewing area with a visible surface of 212 mm width and 90 mm height, enabling clear and unobstructed visibility of the components inside. The seamless transition between the viewing window and the frame ensures a clean appearance and improves sealing performance. The viewing window is attached to the enclosure front using two external hinges, enabling simple and secure installation. The integrated knob handle allows opening without a key, making access to control elements quick and easy.

Technology explained simply

The use of stainless steel 1.4301 for the frame ensures high resistance to corrosion, especially in humid or aggressive environments. Polycarbonate as the material for the viewing pane offers high transparency and impact resistance, increasing safety. The silicone seal provides a tight seal, preventing dust and water ingress. The protection rating IP 55 means the device is protected against dust and splashing water, which is sufficient for many industrial applications. The IK code IK08 describes mechanical strength and protects against impacts with energy up to 20 Joules.

Compatibility and accessories

The viewing window is specifically designed for compact enclosures of the HD series and adapts to their dimensions. It is intended for mounting on flat surfaces, with the viewing window dimensions being 330 mm width, 190 mm height, and 65 mm depth. As an accessory, a knob handle with a stainless steel security cylinder insert is available, enabling additional security if key operation is required.

Installation and mounting

Installation is carried out by attaching the viewing window to the enclosure front using the hinges and mounting materials included in the delivery. The external hinges allow easy opening and closing of the viewing window. The specified dimensions and seamless construction facilitate integration into existing enclosure systems.

Operational advantages

The viewing window provides clear visibility of control elements without opening the enclosure. The robust construction from stainless steel and polycarbonate ensures long service life even under demanding operating conditions. The IP protection rating 55 and IK code IK08 ensure high protection against environmental influences and mechanical stress. The integrated mounting with hinges and mounting materials enables quick and secure installation. The delivery includes 2 hinges, a knob handle, and the required mounting materials.

General
MaterialFrame: stainless steel 1.4301 (AISI 304), seal: silicone, compliant with FDA regulation 21 CFR 177.2600, viewing window: polycarbonate
Scope of deliveryIncludes 2 hinges, includes knob handle, includes mounting material
Visible surface areaViewing window width: 212 mm, viewing window height: 90 mm
Width330 mm
Height190 mm
Depth65 mm
Suitable forEnclosure type: Compact control cabinet HD
Degree of protection IP according to IEC 60 529IP 55
IK codeIK08
Mounting optionsFor mounting on surfaces
Type rating according to UL 50EType 1, Type 12, Type 13


Product data sheet
Datasheet for Rittal 4000081, EAN: 4028177985148

Questions & answers

What is the delivery time of Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301?

The article Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4000081 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301 always at the best possible price. We can give you a discount of 2% on Rittal 4000081 HD viewing window with knob handle W x H: 330x190 mm stainless steel 1.4301 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
