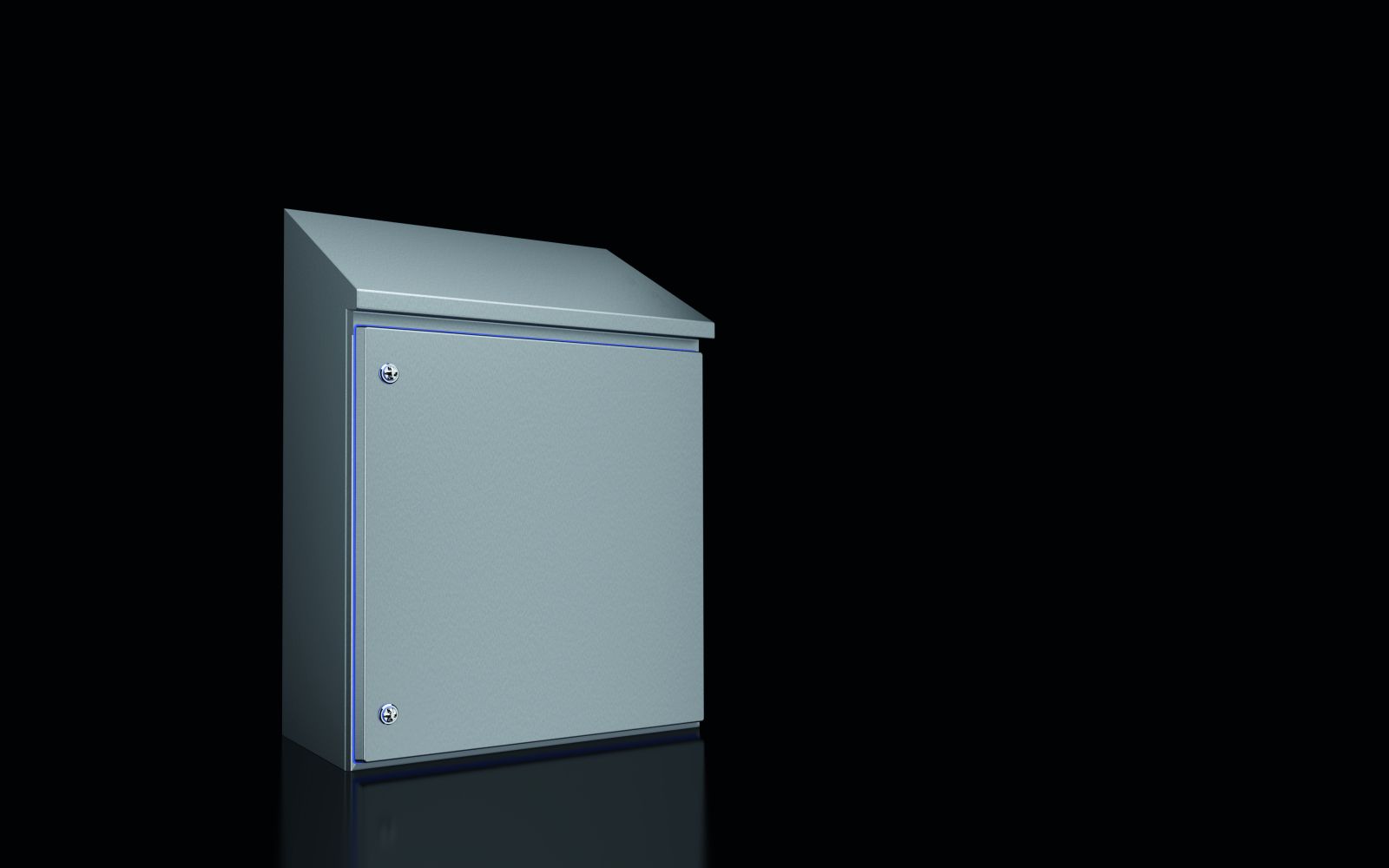

Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm

Your rating:
Average rating
product review for Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm
( 4 / 5 ) 1 ratings
Rittal 1311600
This image may differ from the desired article.
Rittal 1311600Rittal 1311600Rittal 1311600Rittal 1311600Rittal 1311600Rittal 1311600
727,26 EUR
( 865,44 EUR incl. VAT )
≈ £608.72  |  ≈ $799.26
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm
Datasheet:file_download Download
Lieske Part No.:2061402
Mfg Part No: 1311600
UPC/EAN: 4028177967441
Weight:31 kg
Type:HD 1311600

Product information for Rittal 1311600:

The Rittal compact enclosure HD 1311600 is an industrial housing in hygienic design, specifically designed for use in the food and beverage industry. The enclosure is made as a single piece, fully enclosed all around, and features no additional gaps or dead spaces, enabling effective cleaning. The front side is equipped with a forward-sloping roof inclined at 30° and includes an integrated drip edge to protect the upper door seal from contamination. The door is single-door, with a 10° inclined frame all around, and is hinged on the right side, with the hinge direction changeable to the left. The door seal made of silicone is dyed blue (RAL 5010) and is compliant with FDA regulation 21 CFR 177.2600, allowing clear differentiation from food products. The lock insert is designed in hygienic design, without recesses or gaps, to ensure quick and easy cleaning.

Applications

The enclosure is intended for environments with high hygiene requirements, such as food processing, beverage industry, or pharmaceutical production. The construction without undercuts and dead spaces facilitates cleaning and prevents the accumulation of dirt or microorganisms. The roof slope and integrated drip edge ensure that rain or spray water does not enter the upper area of the door seal.

Functions and Equipment in Detail

The enclosure and door are made of stainless steel 1.4301 (AISI 304), offering high corrosion resistance and mechanical strength. The mounting plate is made of sheet steel and zinc-coated to ensure secure fixation of components. The surface of the enclosure and door is brush-finished with grit 400 and a roughness depth under 0.8 μm, resulting in a smooth, easy-to-clean surface. The door opens up to an angle of 125°, facilitating access to internal components.

Technology Explained Simply

The protection rating IP 66 according to IEC 60 529 means the enclosure is dust-tight and protected against heavy spray water. The protection rating IP X9 indicates that the enclosure is also protected against high-pressure cleaning with hot or cold liquids, which is crucial for hygienic applications. The IK code rating IK08 guarantees high impact resistance, required for industrial environments. The protection ratings according to NEMA (NEMA 1, 3, 3X, 4, 4X, 12, 13) and Type Rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13) confirm suitability for various industrial operating conditions, including humid, dusty, or corrosive environments.

Compatibility and Accessories

To build a consistently hygienic system, various accessories are available, including wall spacers HD with a distance of 50 mm, viewing windows with knob handles in various sizes (e.g. 470x290 mm and 330x190 mm), Bit HD for universal keys, universal keys with various inserts, SZ pressure equalization plugs made of stainless steel 1.4305, and knob handles with and without security cylinder inserts. These components enable adaptable and secure mounting and operation of the enclosure.

Mounting and Installation

The enclosure is delivered with an integrated mounting plate, enabling the fixation of components inside the housing. The door hinge direction is standard on the right, but can be changed to the left to adapt to different mounting conditions. The dimensions of the enclosure are 610 mm (width) × 650 mm (height front) × 821 mm (height rear) × 300 mm (depth). The mounting plate has dimensions of 550 mm × 575 mm. Installation is typically done on a wall or base, with the use of wall spacers recommended to ensure sufficient ventilation and cleaning.

Operational Advantages

The enclosure offers high mechanical and chemical resistance through the use of stainless steel 1.4301 and silicone seals. The hygienic design with gap-free transitions and an easy-to-clean surface reduces the risk of contamination. The high impact resistance (IK08) and protection ratings IP 66/IP X9, along with NEMA and UL certifications, ensure reliable operation in demanding industrial environments. The integrated drip edge and roof slope support cleaning and prevent water from entering the upper area of the door seal. The delivery includes a closed enclosure, a door with inserted seal, a right-side door hinge (changeable), and a mounting plate.

General
ModelHygienic Design housing
Market-relevant product changesThe compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX.
MaterialHousing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate
Width610 mm
Height front650 mm
Height at rear821 mm
Depth300 mm
Mounting plate dimensions (W x H)550 mm x 575 mm
Door opening angle125°
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)97,04


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1311600, EAN: 4028177967441

Questions & answers

What is the delivery time of Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm?

The article Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1311600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 1311600 Compact enclosure HD 1.4301, 610x650x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
