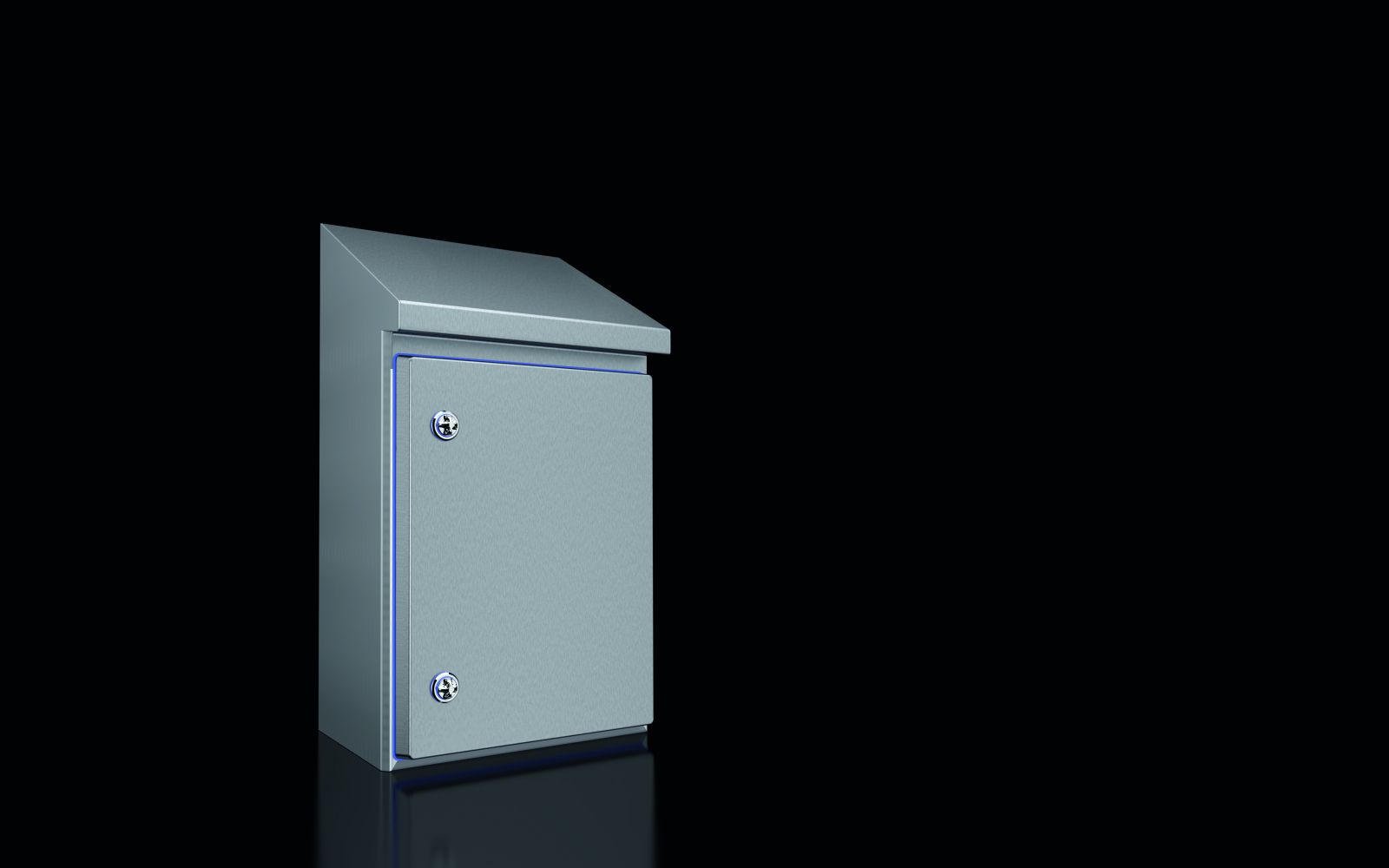

Rittal 1304600 Compact enclosure HD 310x430x210 mm
|
424,35 EUR 441,32 EUR |
|
|
( 504,98 EUR incl. VAT ) ≈ £355.18 | ≈ $466.36 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2061401 |
| Mfg Part No: | 1304600 |
| UPC/EAN: | 4028177967465 |
| Weight: | 11 kg |
| Type: | HD 1304600 |
Product information for Rittal 1304600:
Applications
This enclosure is designed for environments with high hygiene requirements, such as food processing, beverage production, or pharmaceutical manufacturing. The materials and construction are selected to be resistant to cleaning and disinfecting agents, enabling continuous, hygienic operation. The seal is gap-free and prevents ingress of liquids or dirt, simplifying cleaning.
Functions and Equipment in Detail
The enclosure features a mounting plate made of galvanized steel sheet with dimensions 250 mm (W) x 355 mm (H), intended for mounting components and controls. The lock insert is made of stainless steel 1.4404 (AISI 316L) and is free of recesses or gaps to ensure quick and easy cleaning. The door seal is firmly fitted and ensures a tight closure between door and enclosure. The enclosure dimensions are 310 mm (width) x 430 mm (height front) x 549 mm (height rear) x 210 mm (depth).
Technical Explanation
The protection rating IP 66 according to IEC 60 529 means the enclosure is dust-tight and protected against powerful water jets. The protection rating IP X9 indicates resistance to hot steam and water spray jets, which is relevant for cleaning processes using high-pressure washers. The IK code rating IK08 guarantees high impact resistance, required for industrial applications. The protection ratings according to NEMA (NEMA 1, 3, 3X, 4, 4X, 12, 13) and Type Rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13) confirm suitability for various environments, including humid, dusty, or corrosive operating conditions.
Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure, including wall spacers HD (50 mm spacing), Bit HD for universal key 2549500, universal key with various inserts, SZ pressure equalization plugs made of stainless steel 1.4305, viewing window HD 4000081 (W x H: 330x190 mm, stainless steel 1.4301), knob handle HD, and knob handle with security cylinder insert made of stainless steel. These components allow individual adaptation to specific installation requirements.
Mounting and Installation
Mounting is done via the integrated mounting plate, which is included in the delivery scope. The enclosure is designed for wall mounting, with the door swing direction reversible to left-hand. The use of wall spacers can facilitate mounting and ensure sufficient clearance from the wall to allow optimal air circulation and accessibility.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, is easy to clean, and meets hygiene and safety requirements in sensitive production environments. The use of stainless steel 1.4301 and 1.4404 ensures corrosion resistance, while the silicone seal and brushed surface facilitate cleaning. The integrated drip edge and sloped roof prevent liquid accumulation and protect the seal. The protection ratings IP 66, IP X9, as well as NEMA and UL certifications, guarantee reliable performance under demanding conditions.
| General | |
| Model | Hygienic Design housing |
| Market-relevant product changes | The compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX. |
| Material | Housing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600 |
| Surface protection | Housing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010) |
| Scope of delivery | Housing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate |
| Width | 310 mm |
| Height front | 430 mm |
| Height at rear | 549 mm |
| Depth | 210 mm |
| Mounting plate dimensions (W x H) | 250 mm x 355 mm |
| Door opening angle | 125° |
| IK code | IK08 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Degree of protection IP according to IEC 60 529 | IP 66, IP X9 |
| NEMA degree of protection | NEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Type rating according to UL 50E | Type 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13 |
| PCF/VE (Cradle-to-Gate) | 35,48 |
Questions & answers
What is the delivery time of Rittal 1304600 Compact enclosure HD 310x430x210 mm?
The article Rittal 1304600 Compact enclosure HD 310x430x210 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1304600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1304600 Compact enclosure HD 310x430x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 1304600 Compact enclosure HD 310x430x210 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
