Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm

Your rating:
Average rating
product review for Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm
( 5 / 5 ) 2 ratings
Rittal 1318600
This image may differ from the desired article.
Rittal 1318600Rittal 1318600Rittal 1318600Rittal 1318600Rittal 1318600Rittal 1318600
1.531,11 EUR
( 1.822,02 EUR incl. VAT )
≈ £1,281.54  |  ≈ $1,682.69
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm
Datasheet:file_download Download
Lieske Part No.:1910551
Mfg Part No: 1318600
UPC/EAN: 4028177918535
Weight:82 kg
Type:HD 1318600

Product information for Rittal 1318600:

The Rittal HD 1318600 is a compact enclosure in hygienic design, made of stainless steel 1.4301 (AISI 304), designed for use in demanding environments. The enclosure features a brushed surface with grain 400 and a roughness depth under 0.8 μm, enabling easy cleaning and hygiene maintenance. The doors are equipped with an inserted silicone seal compliant with FDA regulation 21 CFR 177.2600 and offer a door opening angle of 125°. The mounting plate made of galvanized steel sheet is included in the delivery scope and has dimensions of 945 mm (W) × 975 mm (H). The enclosure is fully enclosed and features a roof slope of 30° forward.

Applications
This enclosure is suitable for applications in the food industry, pharmaceutical industry, and other areas where high hygiene requirements apply. The materials and surface finish ensure easy cleaning and prevent the accumulation of dirt or bacteria. The robust construction made of stainless steel 1.4301 also makes it suitable for industrial environments with high mechanical stress.

Functions and Equipment in Detail

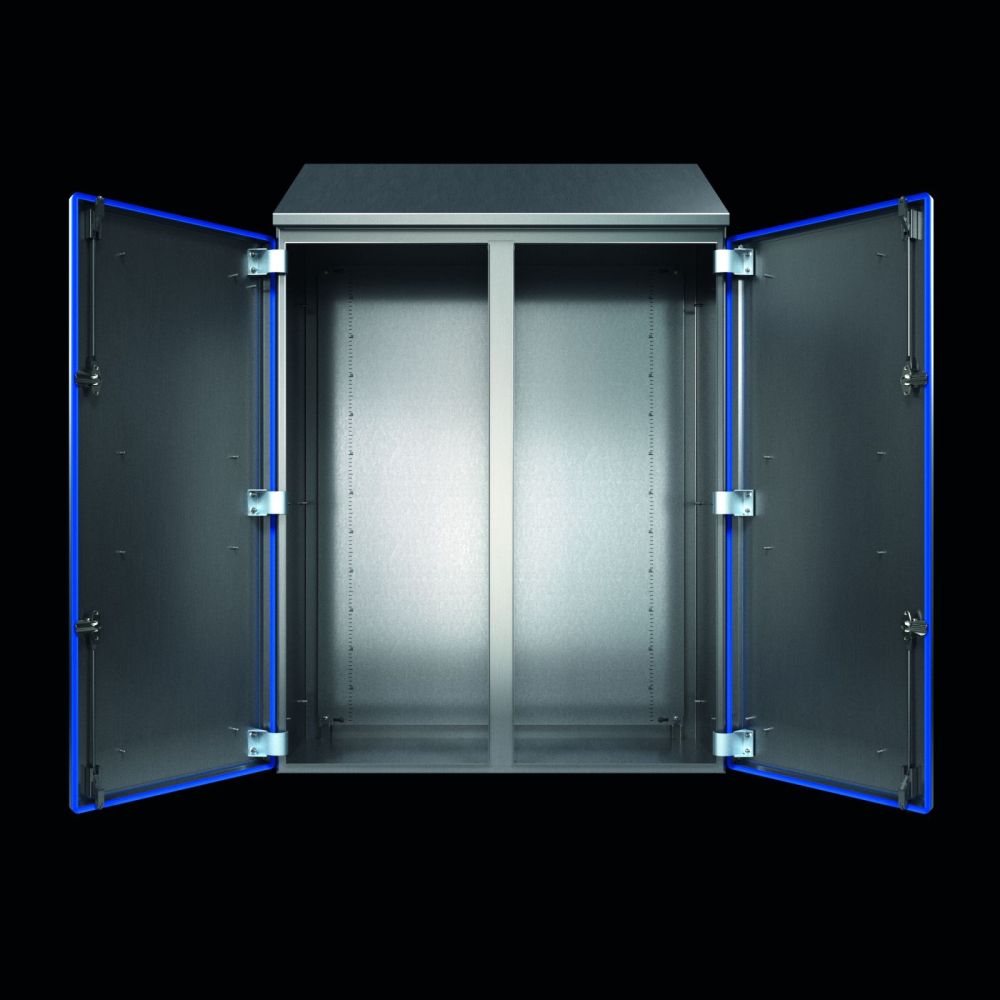

The enclosure offers a width of 1,010 mm, a front height of 1,050 mm, and a rear height of 1,280 mm with a depth of 400 mm. The doors are hinged and equipped with a lock insert made of stainless steel 1.4404 (AISI 316L), providing higher corrosion resistance against aggressive media. The blue-coloured silicone seal (RAL 5010) ensures a tight seal and is certified for use in hygienic installations.

Technology Explained Simply
The protection rating IP 66 and IP X9 according to IEC 60 529 means the enclosure is dust-tight and protected against heavy splashing water and short-term immersion. The protection ratings NEMA 1, 3, 3X, 4, 4X, 12 and 13, as well as the type rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13), confirm suitability for indoor and outdoor use, even under dirty or damp conditions. The IK code IK08 indicates a mechanical protection class against impact and shock, increasing operational safety in industrial installations.

Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include wall clearance brackets HD with a clearance of 50 mm, cable strain relief rails for mounting plates (length 899 mm), mounting plates in various versions, Bit HD for universal key 2549500, universal keys with various attachments, SZ pressure equalization plugs made of stainless steel 1.4305, viewing windows with knob handle (W x H: 330x190 mm, stainless steel 1.4301), earthing straps M6-M6 with a cross-section of 10 mm² and a length of 350 m, and knob handles, including those with a security cylinder insert made of stainless steel. These components allow application-specific adaptation of the enclosure.

Mounting and Installation
Mounting is done via the integrated mounting plate, which is already included in the delivery scope. The pre-fabricated construction with hinged door and built-in seal simplifies installation. The roof slope of 30° forward supports drainage during rainfall and prevents water from entering the enclosure.

Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301 and 1.4404. The hygienic design surface with brushed finish and low roughness depth enables efficient cleaning. The protection ratings IP 66, IP X9, NEMA 4X, and UL Type 4X ensure reliable operation in damp, dusty, or aggressive environments. The integrated mounting plate and compatibility with various accessories increase flexibility during installation and use.

General
ModelHygienic Design housing
MaterialHousing and doors: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, lock insert HD: stainless steel 1.4404 (AISI 316L), seal: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, doors with inserted seal, mounting plate
Width1.010 mm
Height front1.050 mm
Height at rear1.280 mm
Depth400 mm
Mounting plate dimensions (W x H)945 mm x 975 mm
Door opening angle125°
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)250,66


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1318600, EAN: 4028177918535

Questions & answers

What is the delivery time of Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm?

The article Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1318600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 1318600 Compact enclosure HD 1.4301, 1010x1050x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
