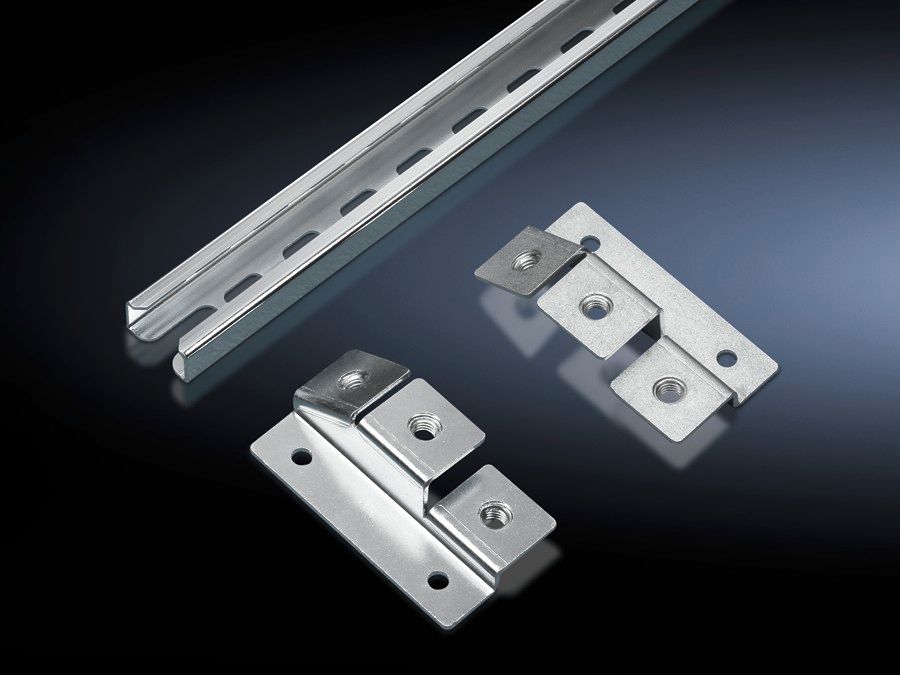

Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm

Your rating:
Average rating
product review for Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm
( 4.3 / 5 ) 30 ratings
Rittal 5001082
This image may differ from the desired article.
Rittal 5001082Rittal 5001082
14,84 EUR
( 17,66 EUR incl. VAT )
≈ £12.42  |  ≈ $16.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm
Datasheet:file_download Download
Lieske Part No.:417153
Mfg Part No: 5001082
UPC/EAN: 4028177502963
Weight:0.965 kg
Type:CM 5001082

Product information for Rittal 5001082:

For strain relief with cable entry. The length of the cable clamp rail is tailored to the width of the mounting plate. The mounting bracket included with the supply supports three different installation situations on the mounting plate.
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Two mounting brackets and assembly screws
Packs of: 1 pc(s).
EAN: 4028177502963
Customs tariff number: 73269098
eCl@ss 5.1: 27189221
eCl@ss 7.0: 27400604
ETIM 6.0: EC000322

To fit: Enclosure type: TS 8
Enclosure type: CM
Enclosure type: TP
Width: = 1000 mm
Dimensions: Length: 899 mm
Installation options: straight, at a distance of 23 mm from the mounting plate
straight, at a distance of 10 mm from the mounting plate
tilted, towards the mounting plate
Weight/pack: 0.45 kg

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding two mounting brackets and mounting screws
Mounting optionsstraight, with 23 mm distance to mounting plate, straight, with 10 mm distance to mounting plate, angled, towards mounting plate
Mounting options VX socketIn socket width/depth 1000 mm when mounted on socket corner pieces, in conjunction with hex socket sheet metal screws
Mounting options VX socket, stainless steelIn socket width 1000 mm, in combination with internal hexagon screws M6 and nut M6
Suitable forSocket system VX, socket system VX, stainless steel
Length899 mm
Suitable for width= 1.000 mm
PCF/VE (Cradle-to-Gate)1.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5001082, EAN: 4028177502963

Questions & answers

What is the delivery time of Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm?

The article Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5001082 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm always at the best possible price. We can give you a discount of 2% on Rittal 5001082 Cable strain relief rails for mounting plates, length 899 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
