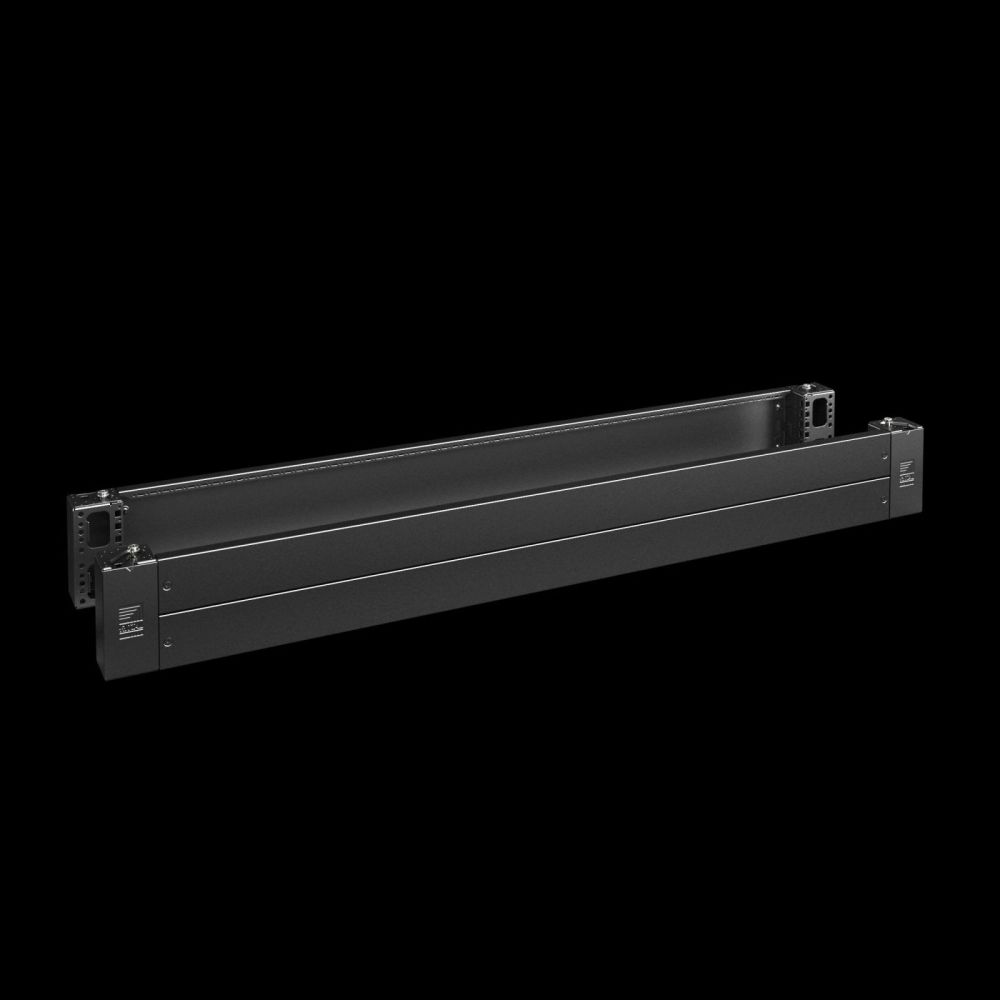

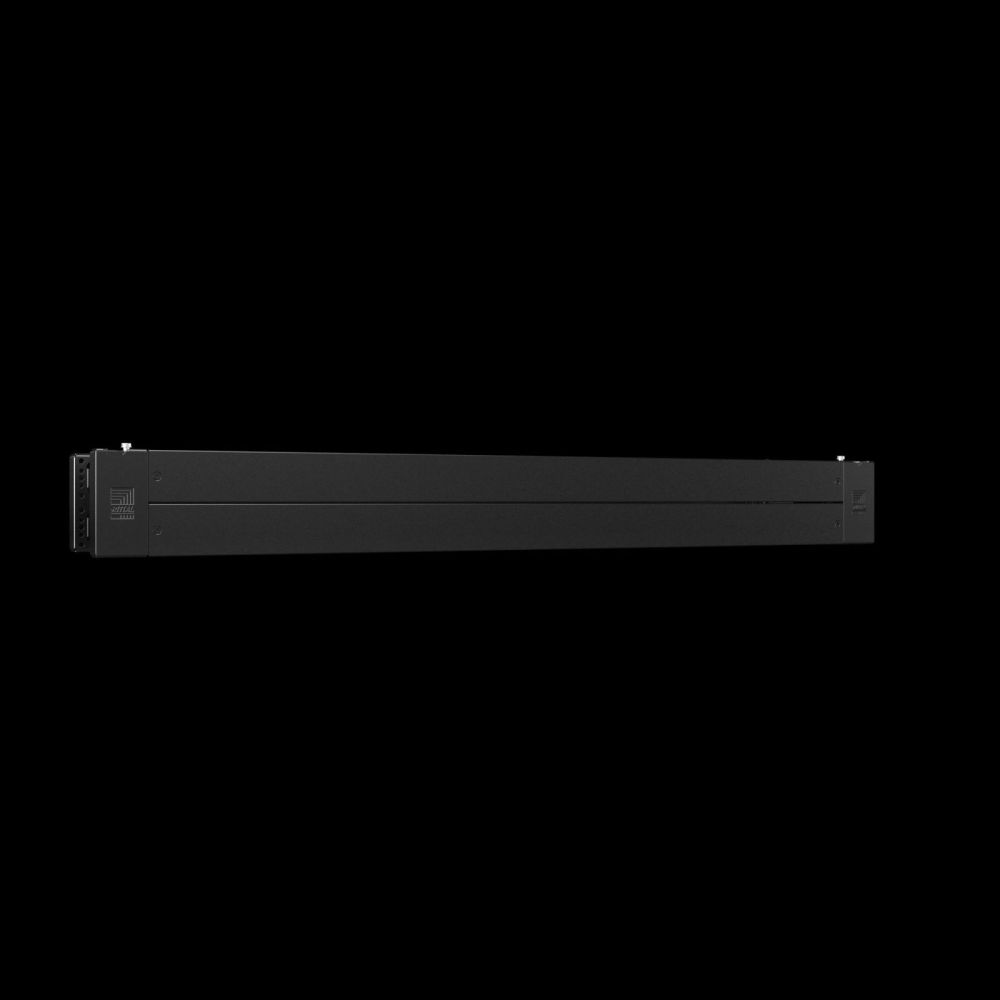

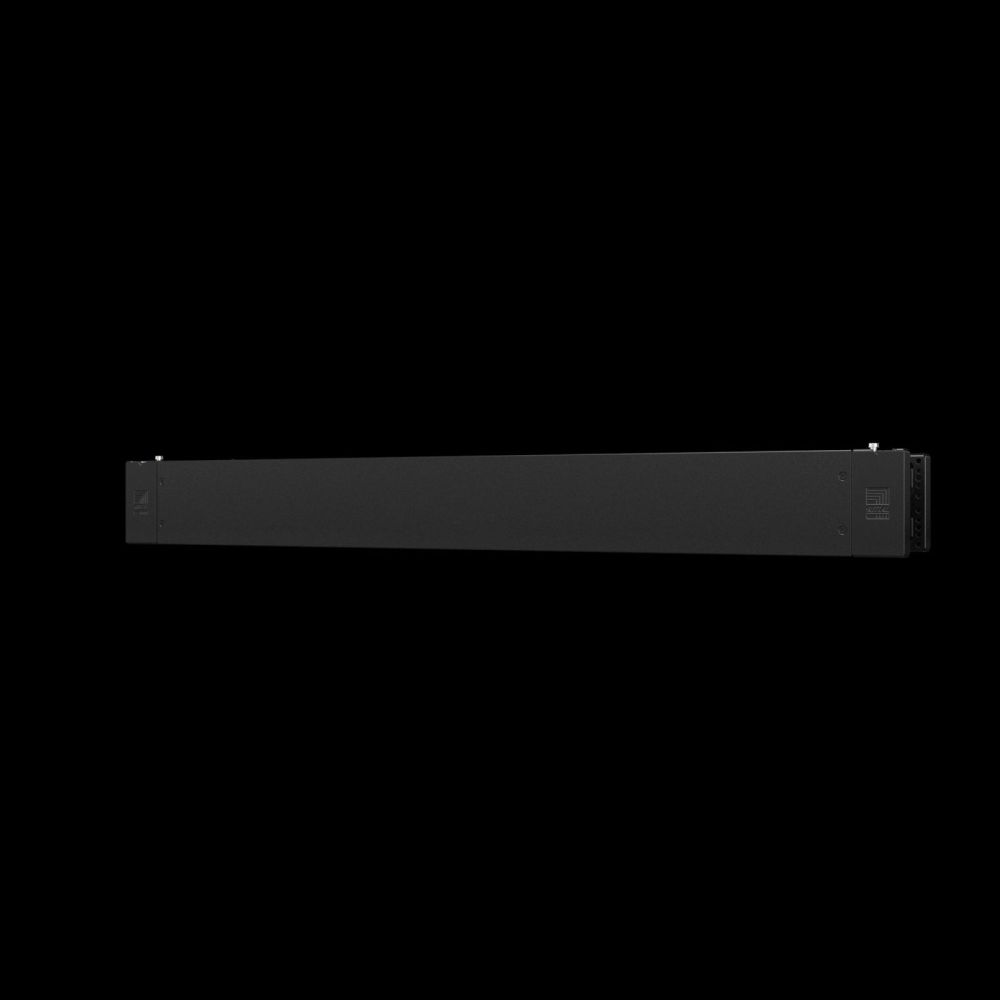

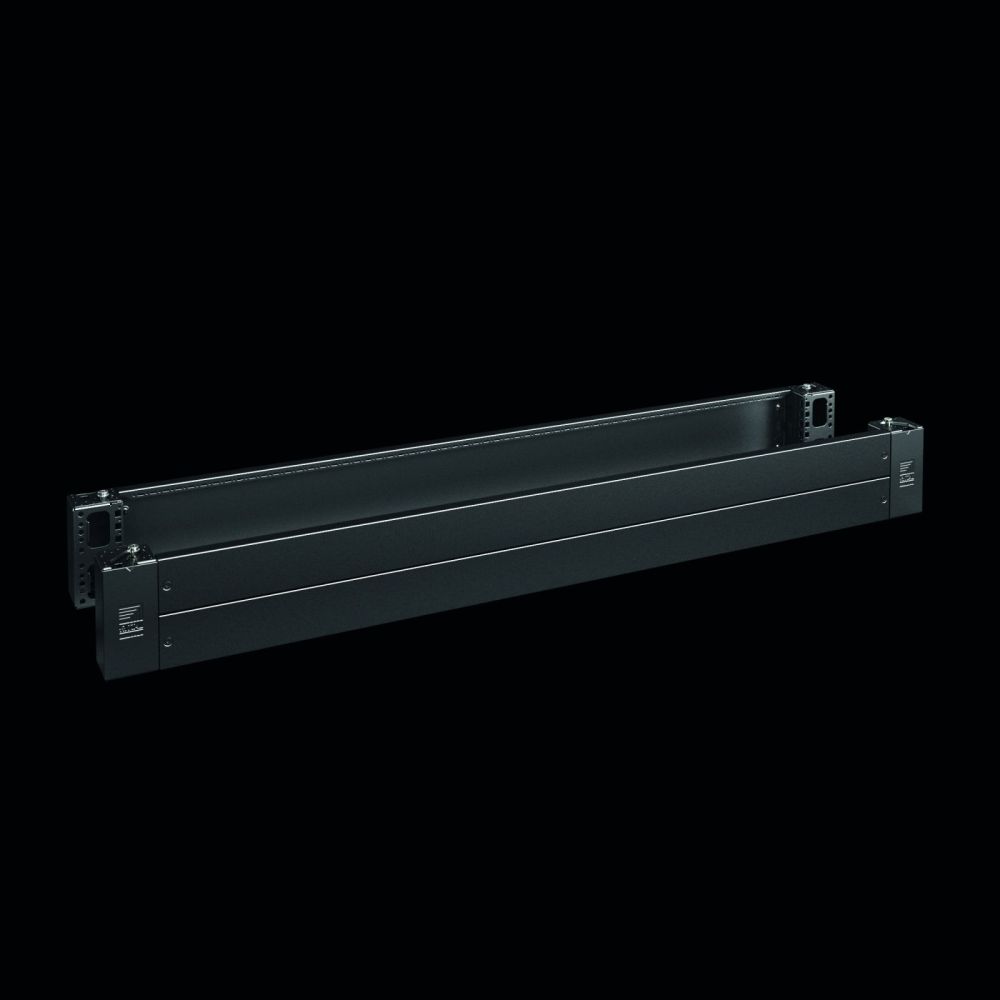

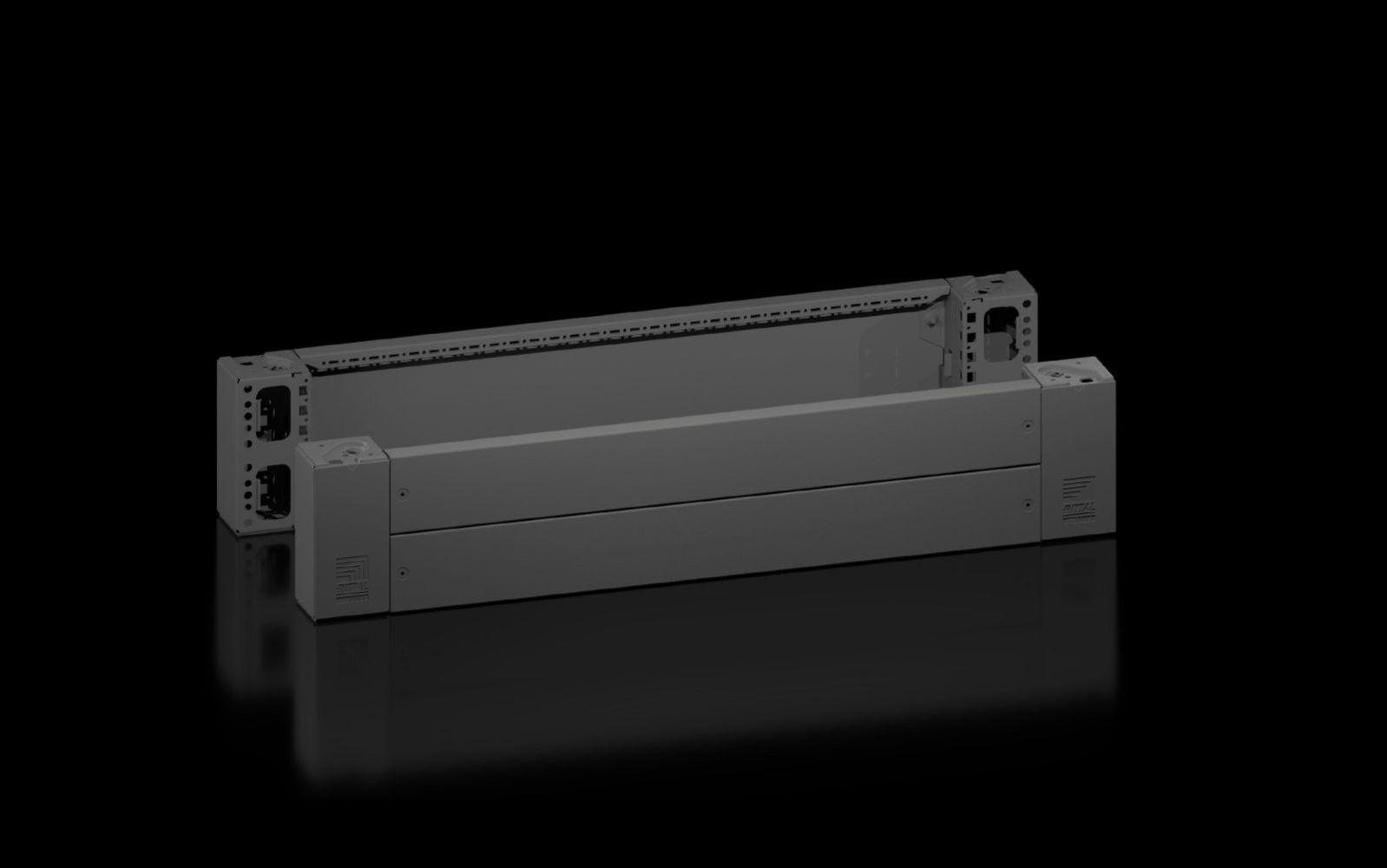

Rittal 8660024 VX plinth corner piece with trim panel, front/rear, H: 200,
|
94,17 EUR |
|
|
( 112,06 EUR incl. VAT ) ≈ £78.82 | ≈ $103.49 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103904 |
| Mfg Part No: | 8660024 |
| UPC/EAN: | 4028177978157 |
| Weight: | 10.239 kg |
| Type: | VX 8660024 |
Product information for Rittal 8660024:
Applications
This product is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is particularly used in industrial installations where high stability and flexible mounting options are required. Its use in combination with other VX accessories enables individual adaptation to specific requirements in the field of enclosure technology.
Functions and Equipment in Detail

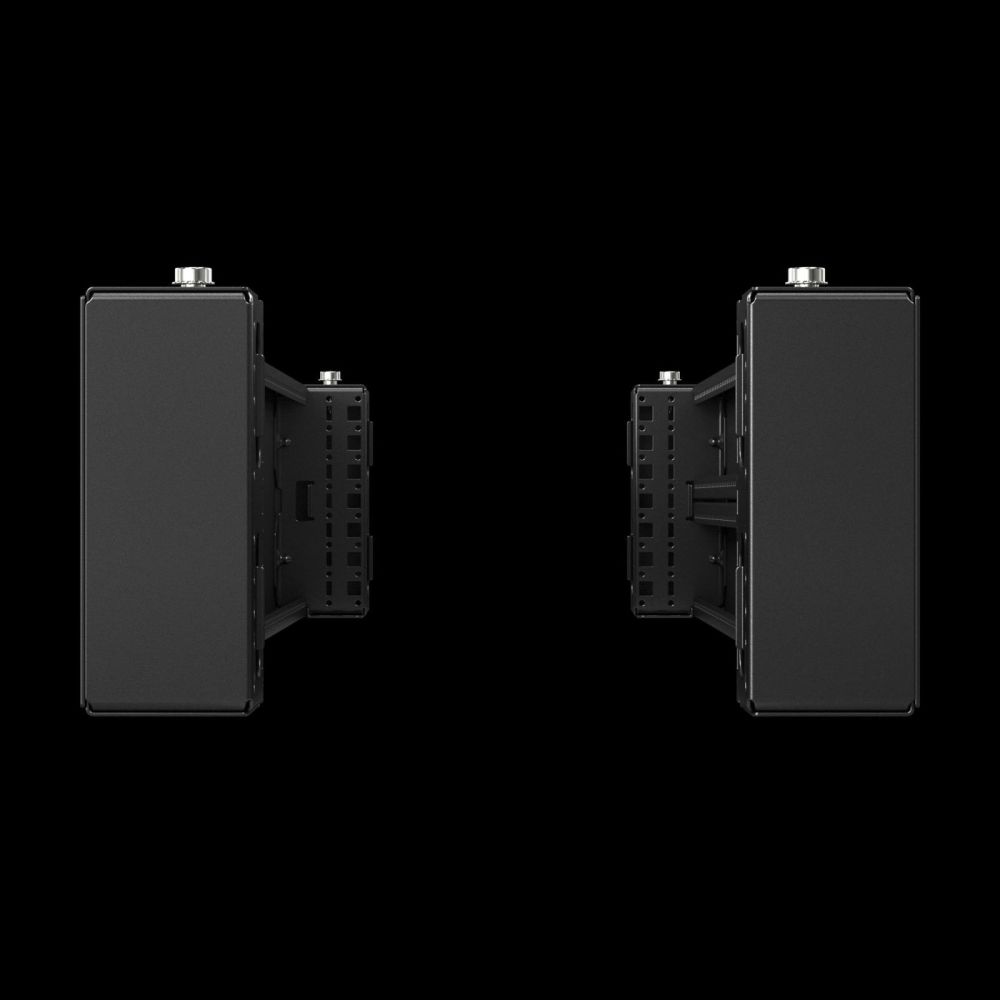

The plinth corner piece is made of sheet steel, ensuring high mechanical strength and durability. The integrated plinth trim panels at the front and rear are also made of sheet steel and provide a closed termination of the plinth corners. Additionally, four plastic corner caps are included, securing the outer corners. The delivery includes fastening material required for mounting the components. The plinth trim panels available in heights of 100 mm and 200 mm allow flexible adaptation to different configurations.
Technology Explained Simply
The use of sheet steel for the corner pieces and trim panels ensures high load-bearing capacity and resistance to mechanical stress. The plastic corner caps provide a clean visual finish and protect the metal edges from damage. The height of 200 mm is matched to the standard width of 1,000 mm for VX plinths, ensuring a perfect fit and flush connection with other plinth elements. The trim panels can also be used for additional stabilization between plinths, which is particularly beneficial for longer baying arrangements.
Compatibility and Accessories
The plinth corner piece is compatible with various enclosure types in the VX system and can be combined with additional accessories to extend functionality. Compatible products include, for example, levelling feet M12, C-profile rails, cable strain relief rails, castors, levelling elements, baying brackets, expansion angles for plinth trim panels, double swivel castors, optional trim panel fasteners, floor mounting brackets, system chassis, and angled cable strain relief rails. These components enable individual adaptation of the plinth system to specific requirements.
Mounting and Installation
Installation is carried out using the fastening material included in the delivery. The plinth corner pieces are mounted at the corners of the plinth elements, with the integrated trim panels at the front and rear forming the termination. The plastic corner caps are attached to the outer corners to ensure a clean visual finish.
Advantages in Operation
The high stability of the plinth is achieved through the use of sheet steel and additional stabilization provided by the trim panels. The flexible internal expansion capability allows individual adaptation to various requirements. The flush termination between baying points ensures a professional appearance and simplifies installation. Compatibility with various enclosure types and accessories increases the versatility of the product. The RAL 9005 finish ensures a uniform visual appearance in industrial environments. The type rating according to UL 50E in categories Type 1 and Type 12 confirms suitability for indoor use and environments with limited protection against dust and splashing water.
| General | |
| Material | Socket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic |
| Colour | RAL 9005 |
| Scope of delivery | 4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm |
| Note | Socket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets |
| Height | 200 mm |
| Suitable for | Housing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX; Width: = 1,000 mm |
| Type rating according to UL 50E | Type 1, Type 12 |
| Weight/PU | 10,2 kg |
| PCF/VE (Cradle-to-Gate) | 34.76 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8660024 VX plinth corner piece with trim panel, front/rear, H: 200, ?
The article Rittal 8660024 VX plinth corner piece with trim panel, front/rear, H: 200, is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660024 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660024 VX plinth corner piece with trim panel, front/rear, H: 200, always at the best possible price. We can give you a discount of 2% on Rittal 8660024 VX plinth corner piece with trim panel, front/rear, H: 200, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
