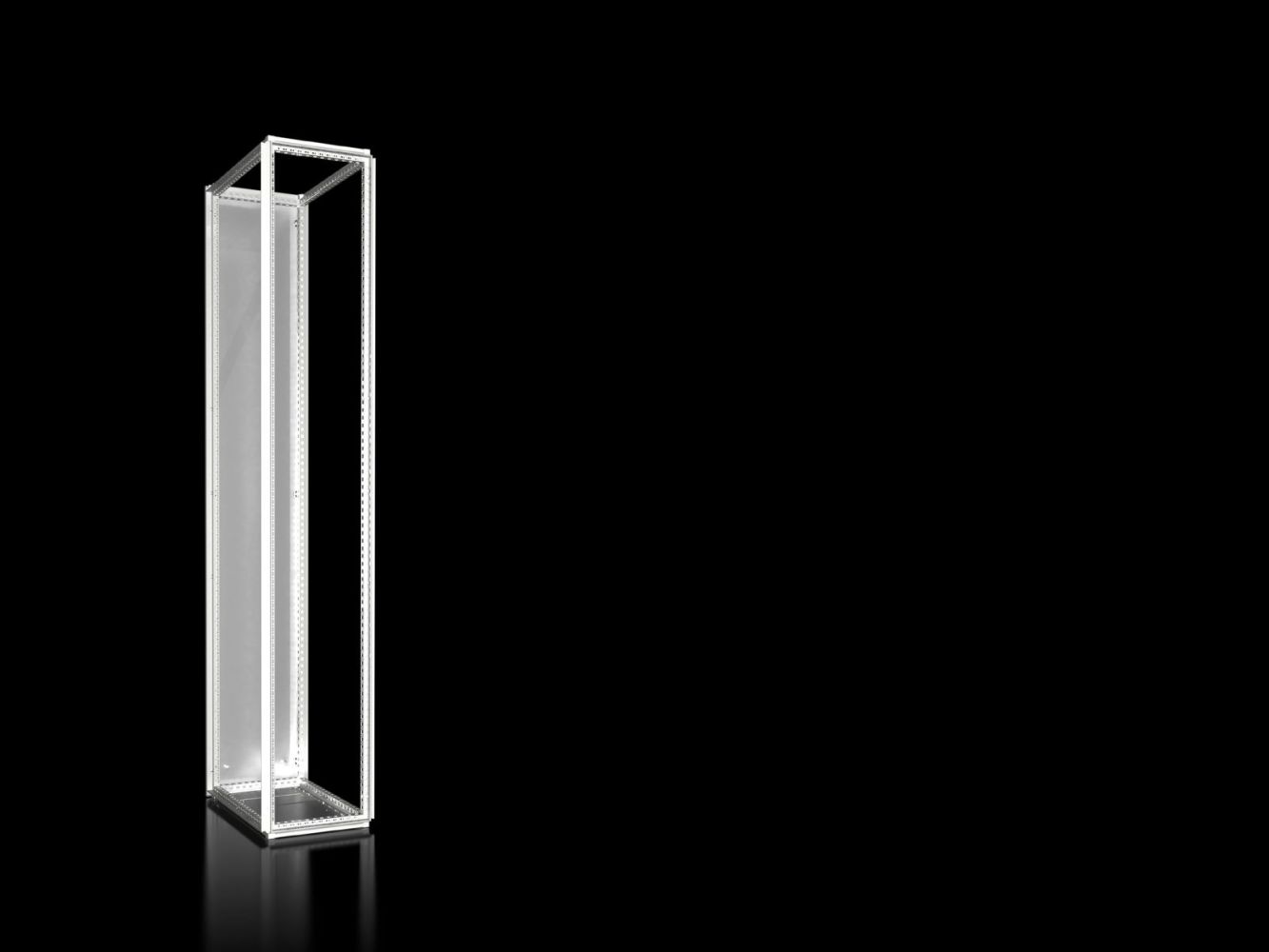

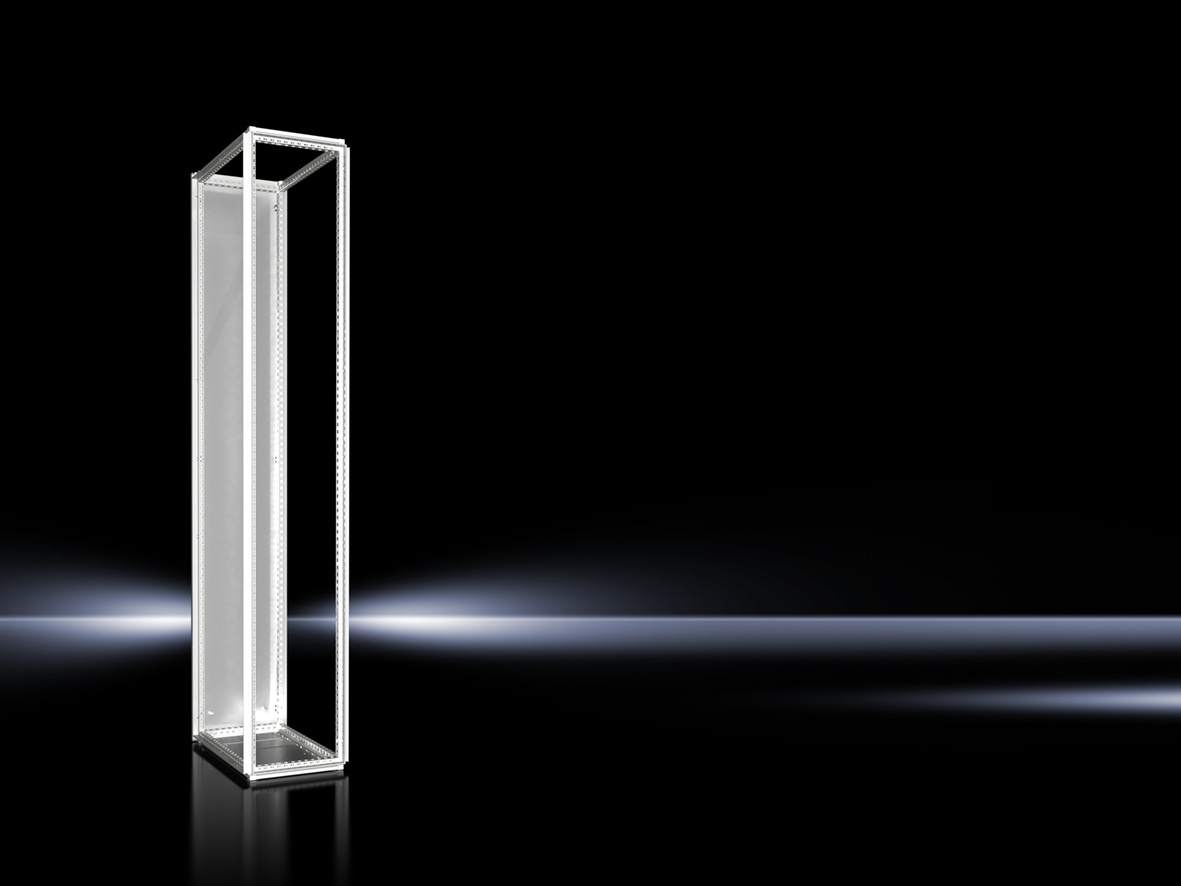

Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm

Your rating:
Average rating
product review for Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm
( 4.4 / 5 ) 8 ratings
Rittal 9680426
This image may differ from the desired article.
Rittal 9680426Rittal 9680426Rittal 9680426
330,05 EUR
( 392,76 EUR incl. VAT )
≈ £276.25  |  ≈ $362.72
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm
Datasheet:file_download Download
Lieske Part No.:1440993
Mfg Part No: 9680426
UPC/EAN: 4028177929739
Weight:38.5 kg
Type:VX 9680.426

Product information for Rittal 9680426:

The Rittal VX 9680.426 is a modular enclosure from the baying system VX25, designed for use in industrial electrical and automation environments. It features dimensions of width 400 mm, height 2,200 mm, and depth 600 mm, and is manufactured from steel sheet with a thickness of 1.5 mm. The enclosure is designed for modular builds, where cladding and internal fittings can be adapted according to requirements. The surface of the enclosure frame and rear panel is dip-primed, with the rear panel additionally externally powder-coated and finished with a textured lacquer. The base plates are galvanized, providing enhanced corrosion resistance. The color finish is RAL 7035, a standard gray tone commonly used in industrial facilities.

Applications
This enclosure is suitable for use in production plants, manufacturing environments, and industrial control systems. It serves as a base for mounting enclosures equipped with partial doors, front trim panels, or internal partitions. The modular design allows for flexible adaptation to various requirements, such as integrating controls, power electronics, or safety systems. The protection rating IP 54 (depending on cladding) makes it suitable for areas where dust and splashing water are present, although no continuous water exposure or high humidity is expected.

Functions and Equipment in Detail
The delivery includes the enclosure frame, rear panel, and base plates. These components form the basic structure of the enclosure and enable stable mounting. The use of steel sheet with 1.5 mm thickness ensures sufficient mechanical strength to safely support components mounted inside the enclosure. The dip-primed surface of the frame and rear panel provides a good base for subsequent coating and increases corrosion resistance. The powder-coated and textured outer surface of the rear panel enhances visual appearance and offers additional protection against environmental influences.

Technology Explained Simply
The IP 54 protection rating means the enclosure is protected against dust (dust-tight) and splashing water (protection against splashing water). This protection class is sufficient for many industrial environments where direct moisture or high air humidity is not prevalent. The test basis IEC 61 439-1/-2 and IEC 61 641 refers to standards for low-voltage switchgear and controlgear, as well as enclosures in industrial electrotechnics. The Cradle-to-Gate value in the PCF (106.4 kg CO2 eq per packaging unit, category B) describes the climate footprint of the product from raw material extraction to completion at the manufacturer’s site. This value is approximately calculated and self-declared, meaning it is estimated based on the product’s weight.

Compatibility and Accessories
The enclosure is part of the baying system VX25 and can be combined with various accessories to enhance functionality and safety. Compatible components include levelling feet M12 with an adjustment height of 18 to 43 mm, SV roof plates IP 54), SV partial doors in various heights (e.g. 200 mm, 1000 mm, 1600 mm, 1800 mm), and SV front trim panels in various sizes (e.g. 400x100 mm, 400x300 mm) for the upper and lower front sides. Additionally, plinth corner pieces with trim panels (heights 100 mm and 200 mm), plinth trim panels (side, 100 mm and 200 mm), VX side panels (screwed), and baying connectors (external, 1200 mm) are available. These elements allow for individual customization and optimization of the enclosure in terms of accessibility, protection, and integration into existing installations.

Mounting and Installation
Mounting is performed by screwing together the individual components. The enclosure frame forms the load-bearing structure to which the rear panel and base plates are attached. The use of levelling feet enables level positioning on uneven surfaces. Baying connectors and side panels support integration into larger enclosure systems. The modular design allows for step-by-step expansion and adaptation to changing requirements.

Advantages in Operation
The enclosure provides a stable and robust base for industrial electrical installations. The modular construction enables flexible adaptation to different applications. The use of 1.5 mm thick steel sheet and special surface treatment ensures long service life and high resistance to environmental influences. Compatibility with a wide range of accessories expands application possibilities and facilitates integration into existing systems. The IP 54 protection rating (depending on cladding) provides sufficient protection for many industrial applications.

General
MaterialSheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, rear panel, base plates
Degree of protection IP according to EN 60 529Up to IP 54 (depending on cladding)
Test basisIEC 61 439-1/-2, IEC 61 641
Width400 mm
Height2.200 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)106.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9680426, EAN: 4028177929739

Questions & answers

What is the delivery time of Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm?

The article Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680426 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680426 VX modular enclosure, W x H x D: 400x2200x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
