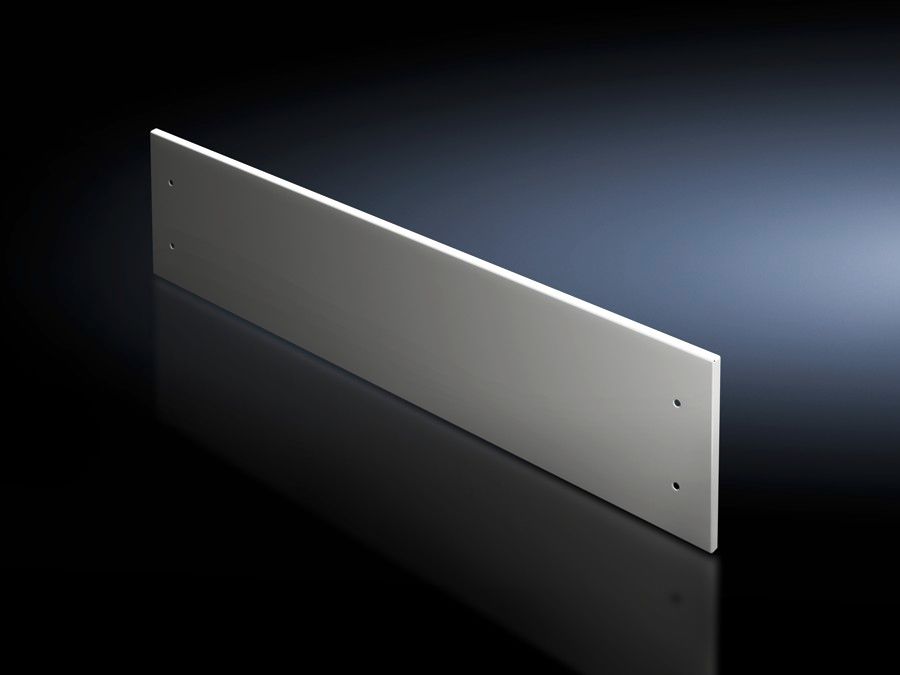

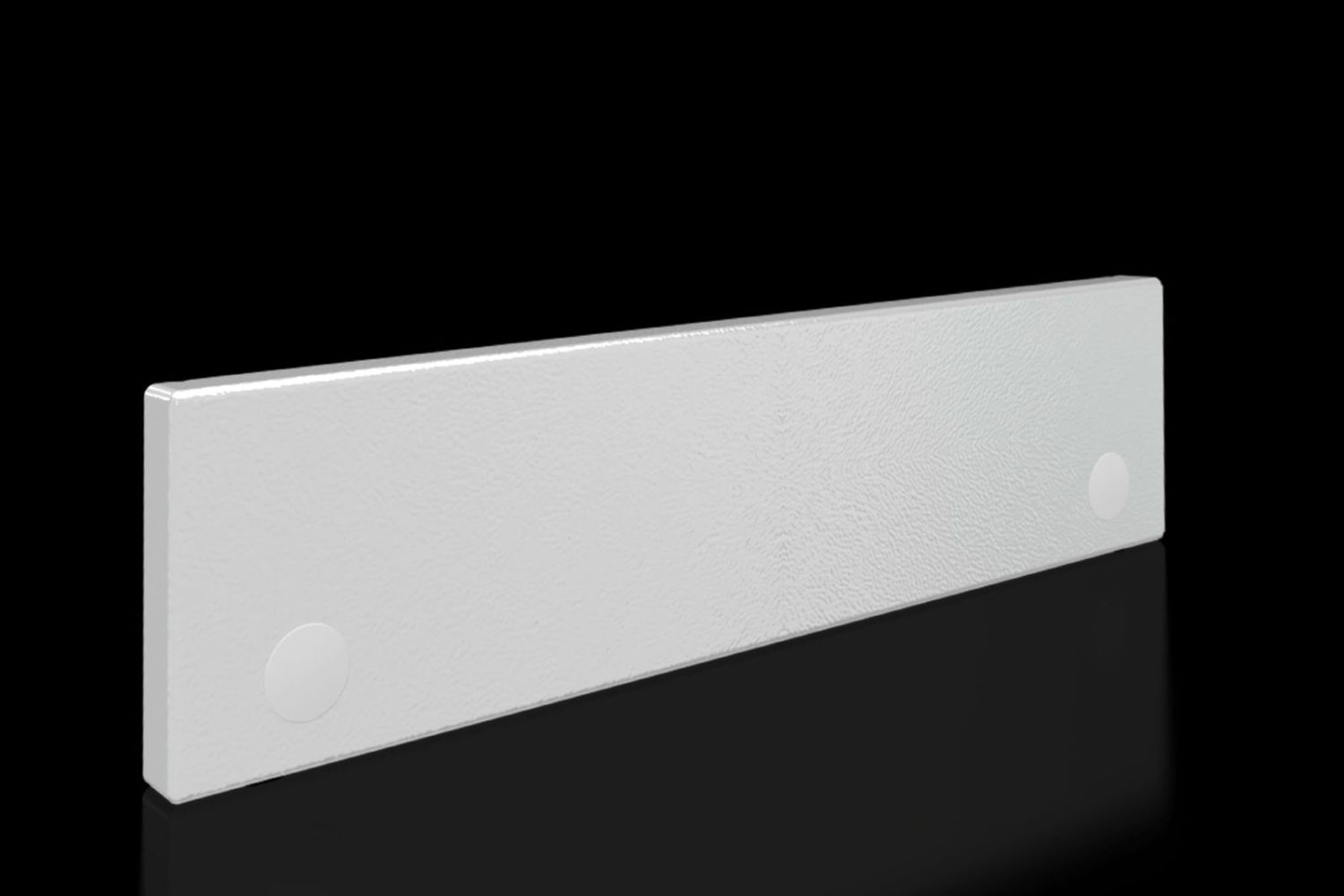

Rittal 9682314 SV front trim panel for VX, top, IP 54, W x H: 400x100 mm

Your rating:
Average rating
product review for Rittal 9682314 SV front trim panel for VX, top, IP 54, W x H: 400x100 mm
( 4.5 / 5 ) 2 ratings
Rittal 9682314
This image may differ from the desired article.
Rittal 9682314Rittal 9682314Rittal 9682314Rittal 9682314
-11% 37,95 EUR 42,68 EUR
( 45,16 EUR incl. VAT )
≈ £31.76  |  ≈ $41.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682314 SV front trim panel for VX, top, IP 54, W x H: 400x100 mm
Datasheet:file_download Download
Lieske Part No.:468957
Mfg Part No: 9682314
UPC/EAN: 4028177929630
Weight:1.02 kg
Type:SV 9682314

Product information for Rittal 9682314:

The Rittal SV 9682314 is a front trim panel for enclosures of the VX series, specifically designed as an upper closure when partial doors are used. The product serves modular enclosure front design and enables a clean, uniform appearance. The front trim panel is made of steel sheet with a thickness of 1.5 mm and features a textured paint surface in the colour RAL 7035, ensuring a robust and even coating. The design is closed, providing a solid front surface without openings. Dimensions are a height of 100 mm and a width of 400 mm, making it specifically designed for enclosures with a width of 400 mm. The front trim panel is equipped with a protection rating of IP 54, meaning it is dust-tight and protected against splashing water from all directions — a feature that makes it suitable for use in industrial environments.

Front trim panel

The SV 9682314 functions as an upper closure for front design when partial doors are installed in the enclosure. It can be removed from the outside by loosening the mounting screws, enabling easy maintenance and replaceability. Installation is carried out using the included mounting hardware, which is part of the delivery scope. The front trim panel is thus a supplementary component used together with partial doors to create a closed and aesthetically pleasing front.

Applications

The front trim panel is intended for use in industrial enclosures, particularly in systems requiring modular front design. It is suitable for environments where high mechanical stability and protection against dust and splashing water are required, such as in production halls, factories, or process automation. The IP 54 rating makes it suitable for indoor use where occasional splashing water may occur.

Functions and equipment in detail

The front trim panel is made of steel sheet, providing sufficient strength for industrial use. The thickness of 1.5 mm ensures a stable construction that withstands mechanical loads. The surface is coated with textured paint, offering an even, slightly structured appearance and high resistance to wear and corrosion. The colour RAL 7035 corresponds to a grey shade that integrates well in industrial environments. The included mounting hardware enables secure installation on the enclosure front.

Technology explained simply

The IP 54 rating means the front trim panel is dust-tight (protection class 5) and protected against splashing water from all directions (protection class 4). This protects components behind it from contamination and moisture. The front trim panel is not designed for outdoor use or environments with direct rain or splashing water from a distance. The use of steel sheet with 1.5 mm thickness ensures sufficient mechanical stability to protect the front surface and enable secure installation. The textured paint surface provides additional protection against mechanical damage and corrosion.

Compatibility and accessories

The front trim panel is specifically designed for Rittal VX series enclosures and fits a width of 400 mm. It is intended as an upper closure when partial doors are used. Installation is carried out using the included mounting hardware. The front trim panel is thus a supplementary element used together with partial doors to create a closed front.

Installation and mounting

The front trim panel is mounted by securing it to the enclosure front using the included hardware. The screws can be loosened from the outside to remove the front trim panel, enabling maintenance or replacement without disassembling the entire enclosure. Installation requires no additional tools other than a screwdriver or suitable key. The front trim panel is designed for simple and quick installation, which can be performed without special expertise.

Operational advantages

The front trim panel provides a clean and uniform front design, improving the visual quality of the enclosure. The IP 54 protection class protects components behind it from dust and splashing water, increasing operational safety. Easy mounting and removal allow for quick maintenance and replaceability without opening the entire enclosure. The use of steel sheet with textured paint ensures high mechanical stability and durability in industrial use.

Approvals and standards

The front trim panel complies with the requirements of UL + C-UL (listed) as well as UL + C-UL - FTTA, confirming the safety and quality of the product in the USA and Canada. These approvals are relevant for use in electrical enclosures and ensure the product meets applicable safety standards.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forWidth: = 400 mm
PCF/VE (Cradle-to-Gate)3.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682314, EAN: 4028177929630
