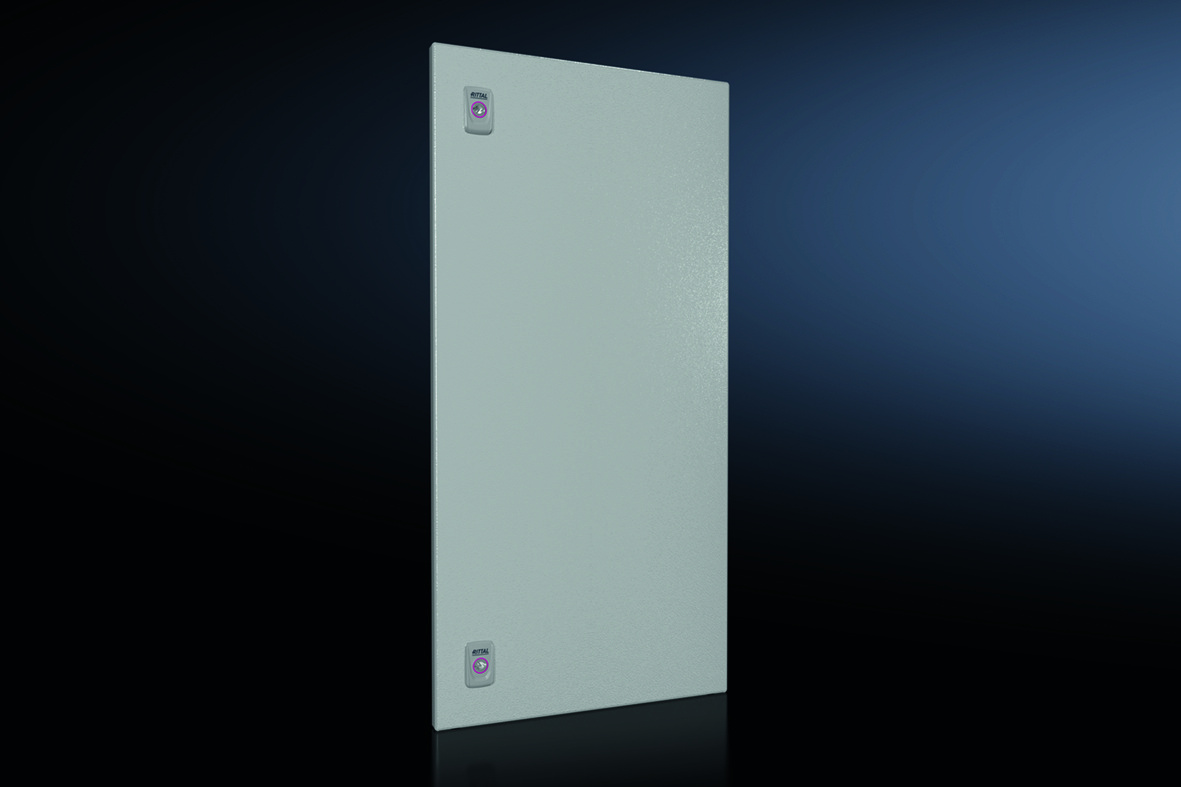

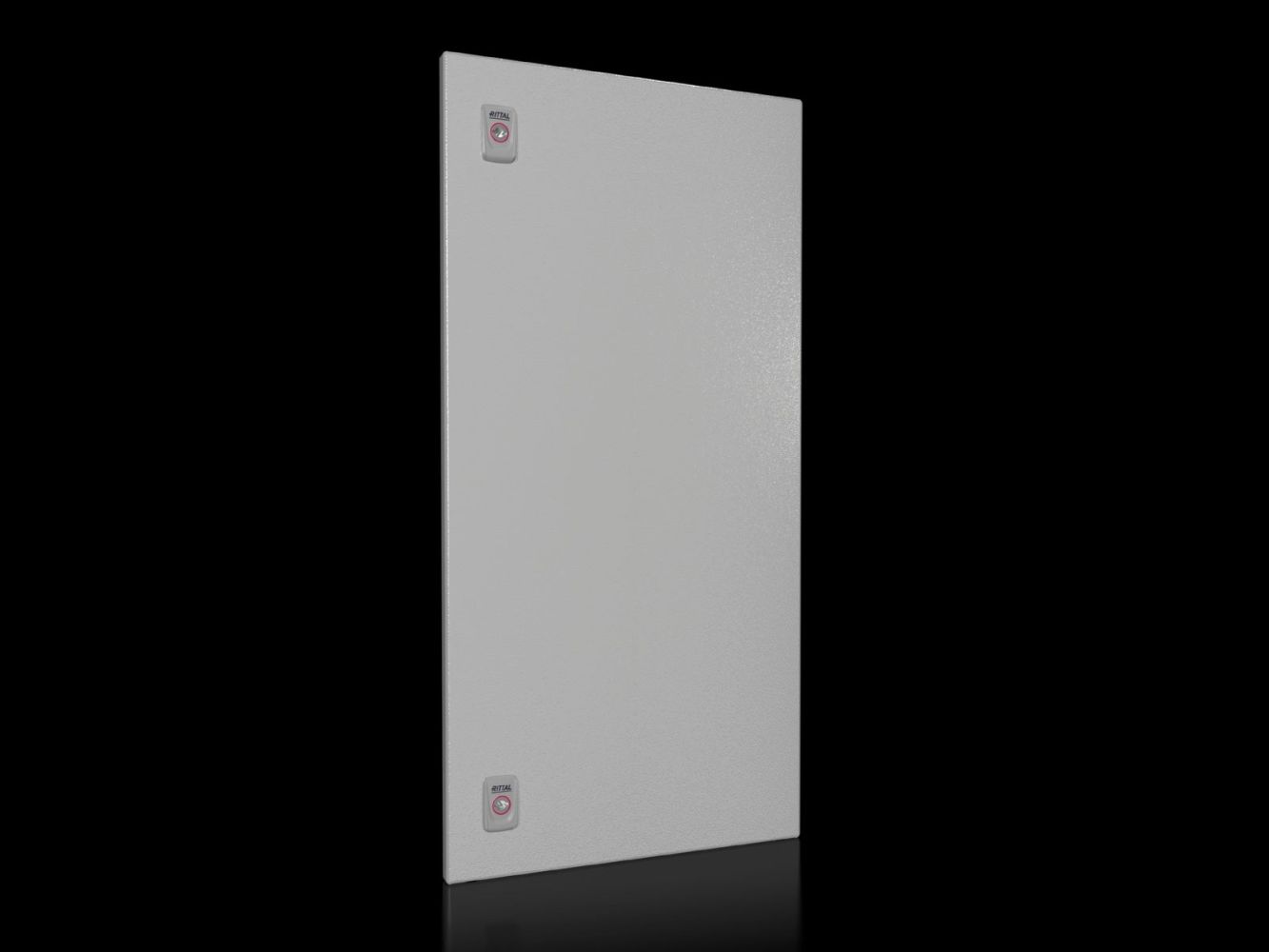

Rittal 9682148 SV partial door for VX, W x H: 400x800 mm

Your rating:
Average rating
product review for Rittal 9682148 SV partial door for VX, W x H: 400x800 mm
( 4.8 / 5 ) 4 ratings
Rittal 9682148
This image may differ from the desired article.
Rittal 9682148Rittal 9682148
76,71 EUR
( 91,28 EUR incl. VAT )
≈ £64.21  |  ≈ $84.30
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682148 SV partial door for VX, W x H: 400x800 mm
Datasheet:file_download Download
Lieske Part No.:2144647
Mfg Part No: 9682148
UPC/EAN: 4028177928886
Weight:7.1 kg
Type:SV 9682148

Product information for Rittal 9682148:

The Rittal SV 9682148 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With dimensions of 400 mm width and 800 mm height, it fits exactly into enclosures with a width of 400 mm. The door is made of steel sheet with a thickness of 2 mm and is coated with a structured lacquer in the colour RAL 7035, providing a robust surface with good weather resistance. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making the door suitable for use in industrial environments.

Applications
The partial door is specifically intended for VX control systems where a flexible division of the front side is required. It can be combined freely with other partial doors to create different access areas. At the top and bottom of the door, a front trim panel is required to ensure optical and functional finishing quality. The door is designed for installation in enclosures with an exact width of 400 mm.

Functions and Equipment in Detail
The door features a double-bar lock insert, which is mounted as standard and ensures secure locking. The number of locks is 2, enabling stable and secure fastening. The lock insert is interchangeable with other variants, such as lock inserts, type A, which are also available in the range. The door can be hinged on the right or left, allowing flexible installation at various positions within the enclosure. The maximum opening angle is 130°, providing sufficient space for access to the internal components.

Technology Explained Simply
The construction from 2 mm steel sheet provides sufficient stability and security without being unnecessarily heavy. The structured lacquer in RAL 7035 ensures a uniform, scratch- and abrasion-resistant surface that integrates well in industrial environments. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in production halls, workshops, or other industrial facilities. The door is not intended for outdoor use, as IP 54 does not provide protection against rain or direct precipitation.

Compatibility and Accessories
The partial door is specifically designed for VX control systems and fits only in enclosures with a width of 400 mm. Various front trim panels are available as accessories, including models with dimensions 400x100 mm and 400x300 mm, which must be mounted at the top and bottom of the door. For doors without a viewing window with a height of 600 to 1000 mm, the installation of the monitor frame 2305.000 is possible, enabling integration of control or display units. Additionally, Mini comfort handles AX are available, suitable for padlocks and facilitating door operation.

Installation and Mounting
Installation is carried out using the included hinges, lock components, and fastening materials. The door is mounted at the desired position within the enclosure, with the hinge direction (right or left) determined prior to installation.

Operational Advantages
The SV 9682148 offers a flexible and secure solution for dividing control system fronts. The ability to combine the door with other partial doors allows for custom-designed access areas. The IP 54 protection rating provides sufficient protection in industrial environments, and the robust steel sheet construction ensures a long service life. The interchangeable lock inserts offer additional flexibility when adapting to specific security requirements.

Scope of Delivery
The scope of delivery includes the partial door, the partition strip, hinges, lock components, and the necessary fastening materials.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width400 mm
Height800 mm
Suitable forWidth: = 400 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)27.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682148, EAN: 4028177928886

Questions & answers

What is the delivery time of Rittal 9682148 SV partial door for VX, W x H: 400x800 mm?

The article Rittal 9682148 SV partial door for VX, W x H: 400x800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682148 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682148 SV partial door for VX, W x H: 400x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682148 SV partial door for VX, W x H: 400x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
