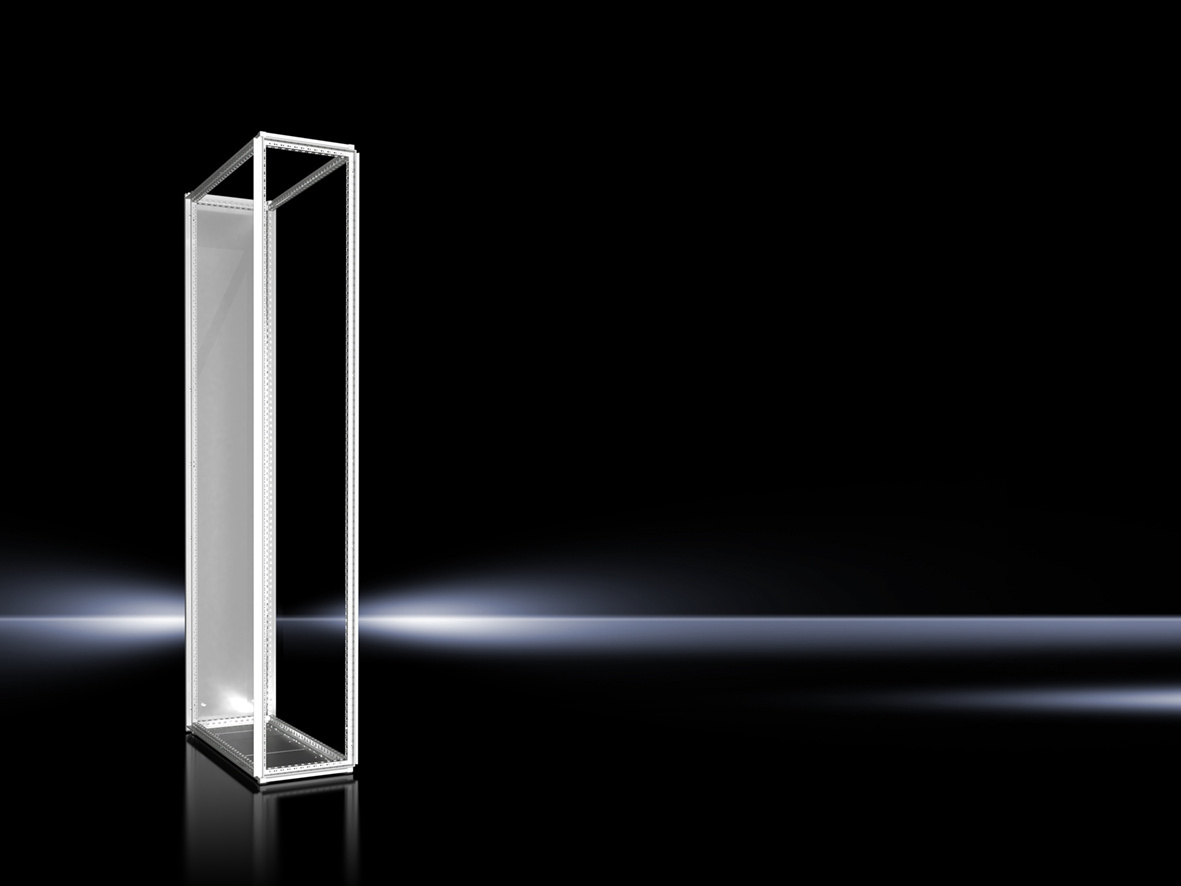

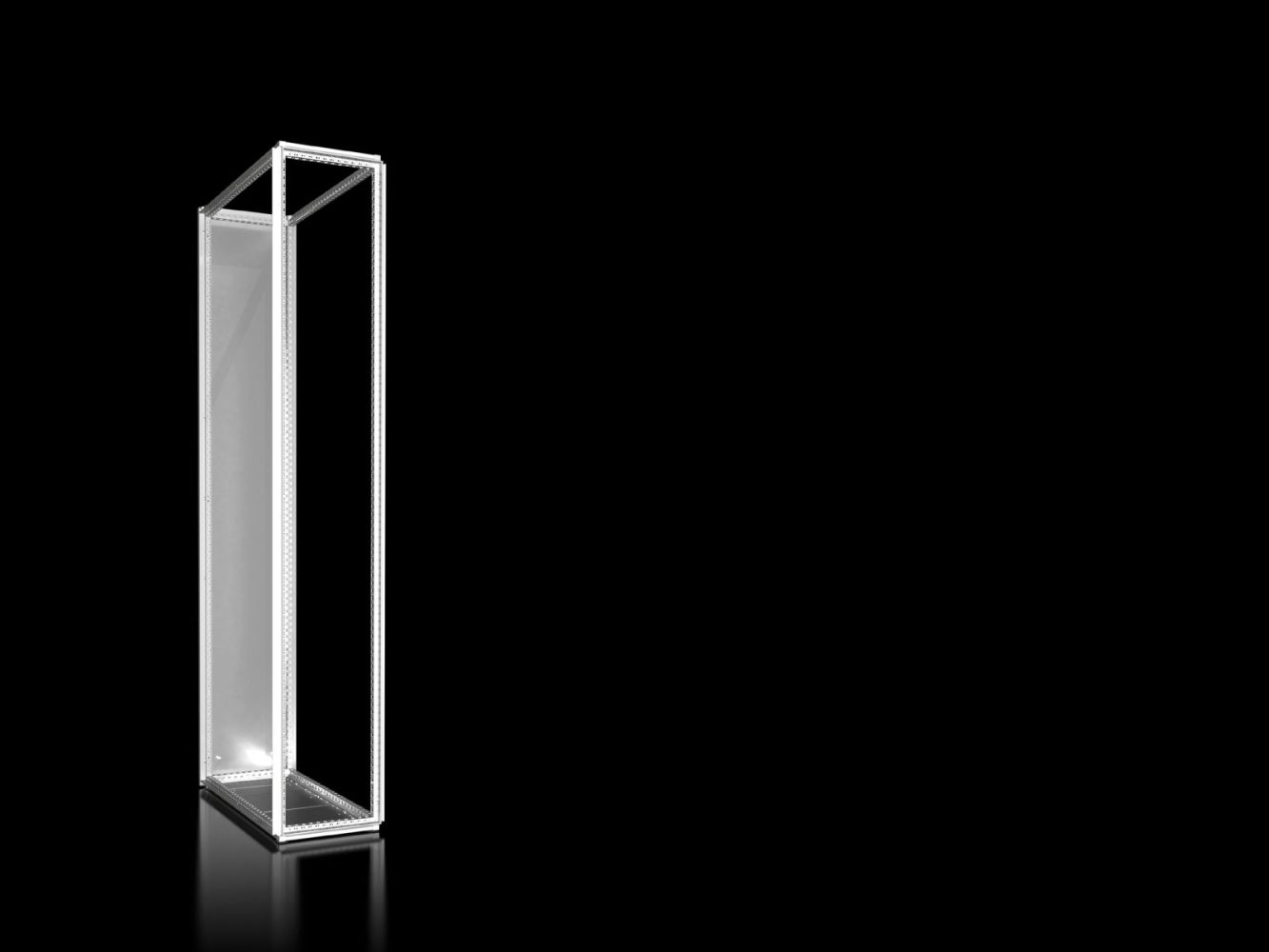

Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm

Your rating:
Average rating
product review for Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm
( 4.6 / 5 ) 9 ratings
Rittal 9680428
This image may differ from the desired article.
Rittal 9680428Rittal 9680428Rittal 9680428
350,75 EUR
( 417,39 EUR incl. VAT )
≈ £293.58  |  ≈ $385.47
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm
Datasheet:file_download Download
Lieske Part No.:1440992
Mfg Part No: 9680428
UPC/EAN: 4028177929746
Weight:35 kg
Type:VX 9680.428

Product information for Rittal 9680428:

The Rittal VX 9680.428 is a modular enclosure made of sheet steel with a wall thickness of 1.5 mm, designed for use in industrial plants and as part of a bayed enclosure system VX25. It has dimensions of width 400 mm, height 2,200 mm, and depth 800 mm, making it suitable for mounting electrical and electronic components in modular systems. The surface of the enclosure frame is dip-primed, the rear panel is also dip-primed and externally powder-coated with a textured finish, while the base plates are galvanized. The color is RAL 7035, a gray-black tone commonly used in industrial environments.

Applications

The enclosure is designed for use in industrial environments, particularly in plants requiring modular expandability and baying capability. It is suitable for mounting switchgear, control systems, distributors, and other electrical components. The construction allows for flexible adaptation to different requirements through additional components such as partial doors, front trim panels, and roof plates. The protection rating IP 54 (depending on cladding) makes it suitable for areas requiring protection against dust and splashing water, although not for permanent outdoor use or direct exposure to precipitation.

Functions and Equipment in Detail

The delivery includes the enclosure frame, rear panel, and base plates. These components form the basic structure of the enclosure and enable the assembly of a functional switchgear installation. The use of sheet steel with a thickness of 1.5 mm ensures sufficient mechanical stability and resistance to external influences. The surface treatment with dip priming and powder coating provides corrosion protection and a durable, robust surface. The galvanized base plates offer additional protection against moisture and corrosion in the lower area.

Technology Explained Simply

The protection rating IP 54 means the enclosure is protected against dust (dust-tight) and splashing water (from any direction). This protection class is typical for indoor installations not directly exposed to weather, but requiring resistance to occasional splashing water. The test basis IEC 61 439-1/-2 and IEC 61 641 refers to standards for low-voltage switchgear and controlgear enclosures, as well as testing of enclosures. The statement “Up to IP 54 (depending on cladding)” means the actual protection rating depends on how the enclosure is clad and sealed — for example, through the use of partial doors or front trim panels.

Compatibility and Accessories

The enclosure is part of the baying system VX and can be combined with various accessories to extend functionality and protection level. Compatible accessories include levelling feet M12 with an adjustment height of 18 to 43 mm, SV roof plates for VX, SV partial doors in various heights (e.g. 400x1000 mm, 400x1600 mm, 400x1800 mm), SV front trim panels in various sizes (e.g. 400x100 mm, 400x300 mm), and VX plinth corner pieces with trim panel in various heights (100 mm, 200 mm). Additionally, baying connectors, baying brackets, and baying blocks are available to connect multiple enclosures. The use of these accessories allows individual adaptation to specific installation requirements.

Mounting and Installation

Mounting is done by screwing together the individual components — enclosure frame, rear panel, and base plates — to form a stable enclosure. The use of levelling feet allows for level and stable positioning on uneven surfaces. Baying connectors and baying brackets facilitate connecting multiple enclosures into a continuous system.

Advantages in Operation

The enclosure offers a modular design enabling flexible expansion and adaptation to changing requirements. The use of standardized components and baying capability reduces installation time and simplifies maintenance. The robust construction from sheet steel and corrosion-resistant surface treatment ensure long service life and low maintenance requirements. The protection rating IP 54 provides sufficient protection for many industrial applications, especially in indoor environments with occasional moisture or splashing water. The PCF value of 113.6 kg CO2 eq (Cat B) indicates the environmental impact of the product over its life cycle from raw material extraction to manufacturing (Cradle-to-Gate).

General
MaterialSheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, rear panel, base plates
Degree of protection IP according to EN 60 529Up to IP 54 (depending on cladding)
Test basisIEC 61 439-1/-2, IEC 61 641
Width400 mm
Height2.200 mm
Depth800 mm
PCF/VE (Cradle-to-Gate)113.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9680428, EAN: 4028177929746

Questions & answers

What is the delivery time of Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm?

The article Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680428 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680428 VX modular enclosure, W x H x D: 400x2200x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
