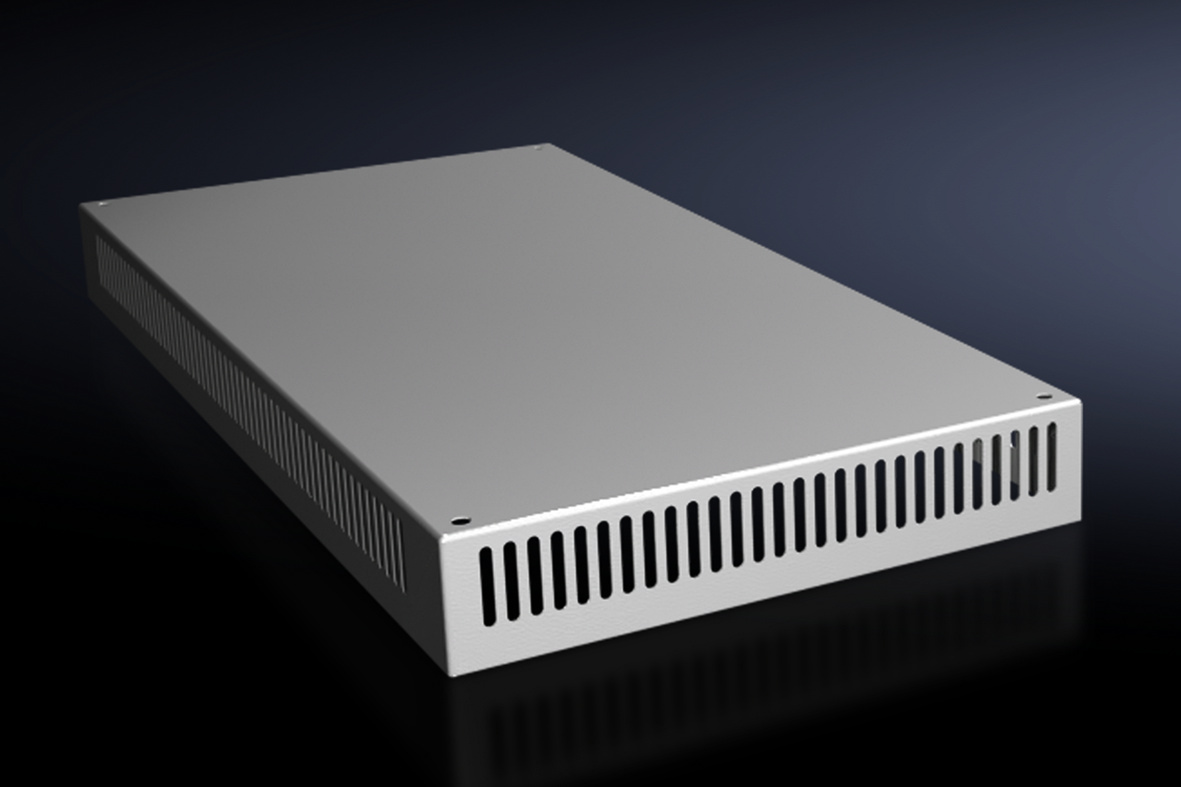

Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X
( 4 / 5 ) 1 ratings
Rittal 9681848
This image may differ from the desired article.
Rittal 9681848Rittal 9681848Rittal 9681848
71,53 EUR
( 85,12 EUR incl. VAT )
≈ £59.80  |  ≈ $79.04
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:468936
Mfg Part No: 9681848
UPC/EAN: 4028177926691
Weight:6.18 kg
Type:SV 9681848

Product information for Rittal 9681848:

The Rittal SV 9681848 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 400 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is equipped with a ventilation opening to ensure sufficient air circulation inside the enclosure, which is important for cooling electronic components.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX series. It is suitable for applications where mechanical compartmentalization of the upper enclosure area is required without impairing the ventilation function. The IP 2X protection rating provides protection against finger contact and vertical dripping water, making it suitable for indoor use where no high requirements for water tightness exist.

Features and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, providing sufficient stability and durability under industrial conditions. The surface is coated with structured paint, forming a robust, scratch- and abrasion-resistant layer. The color corresponds to the standard RAL 7035, a gray tone commonly used for enclosures in industrial applications. The construction height is 72 mm, enabling installation in enclosures with corresponding construction. The product is supplied with mounting hardware to ensure secure installation on the enclosure.

Technology Explained Simply

The ventilation opening in the roof plate enables natural air circulation within the enclosure, supporting the cooling of electronic components. The IP 2X protection rating means the roof plate is protected against finger contact and vertical dripping water. It is not intended for outdoor use or in wet environments, as it does not offer protection against splashing water or dust. The 1.5 mm sheet steel material provides sufficient strength to withstand mechanical loads during operation without deformation.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with a width of 400 mm and a depth of 800 mm. It is not suitable for other dimensions or enclosure types. Installation is carried out using the included mounting hardware, intended for connection to the enclosure walls.

Installation and Mounting

Mounting is performed by securing the roof plate to the upper edges of the enclosure using the supplied mounting hardware. The construction height of 72 mm must be considered during enclosure height planning to ensure proper fit. The ventilation opening must not be obstructed to maintain air circulation.

Operational Advantages

The roof plate provides a simple and reliable solution for compartmentalizing the upper enclosure area without impairing ventilation function. The use of 1.5 mm sheet steel ensures high mechanical stability, while the structured paint surface guarantees long durability and resistance to wear. The RAL 7035 color matches the standard color palette for industrial enclosures, enabling a uniform visual appearance.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 400 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681848, EAN: 4028177926691

Questions & answers

What is the delivery time of Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X?

The article Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681848 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681848 SV roof plate for VX, width: 400x800 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
