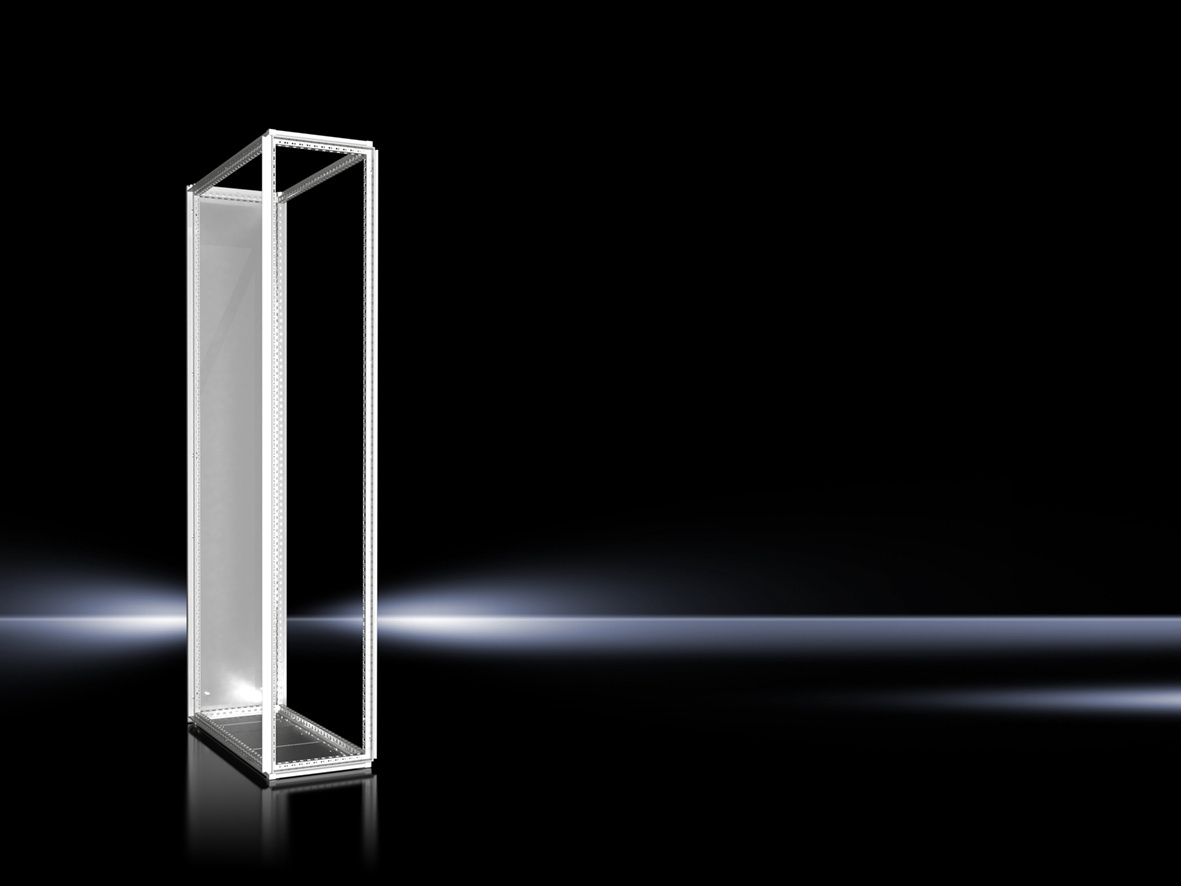

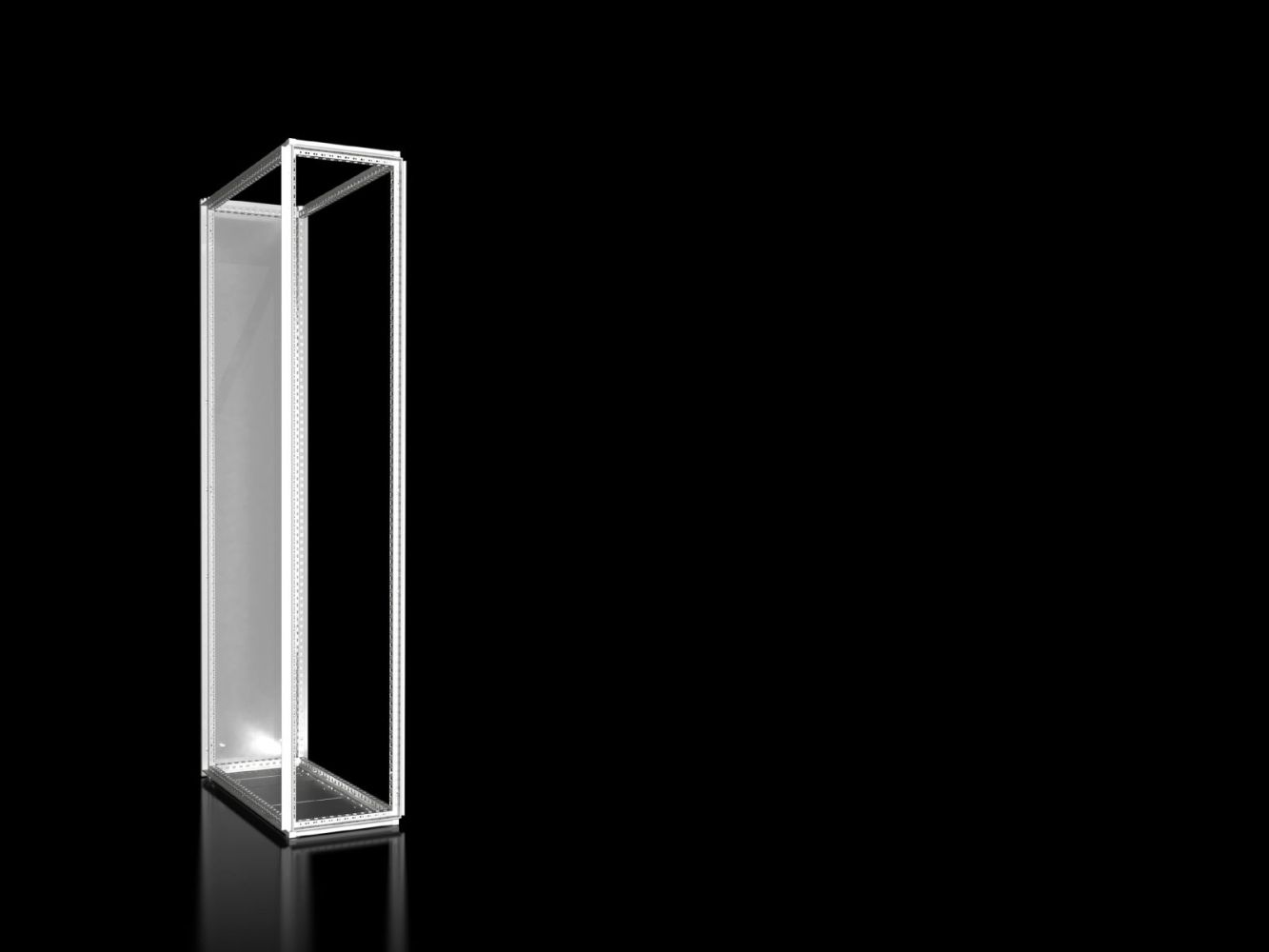

Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm

Your rating:
Average rating
product review for Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm
( 4.5 / 5 ) 10 ratings
Rittal 9680408
This image may differ from the desired article.
Rittal 9680408Rittal 9680408Rittal 9680408
-5% 308,66 EUR 326,32 EUR
( 367,31 EUR incl. VAT )
≈ £258.35  |  ≈ $339.22
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm
Datasheet:file_download Download
Lieske Part No.:1440994
Mfg Part No: 9680408
UPC/EAN: 4028177929753
Weight:40.2 kg
Type:VX 9680.408

Product information for Rittal 9680408:

The Rittal VX 9680.408 is a modular enclosure from the bayed enclosure system series VX25, designed for use in industrial applications. It features dimensions W x H x D 400 mm × 2,000 mm × 800 mm and is constructed from steel sheet with a wall thickness of 1.5 mm. The enclosure is designed for modular assembly, allowing flexible integration into existing enclosure systems. The surface of the enclosure frame is dip-primed, the rear panel is also dip-primed and externally powder-coated with a textured finish, while the base sheets are galvanized. The color is RAL 7035, a gray-black tone commonly used in industrial electrical engineering.

Applications
This enclosure is intended for use in industrial environments, particularly in installations requiring a modular and expandable enclosure structure. It is suitable for housing electrical components, controls, power electronics, or network units. The design allows for flexible arrangement of partial doors, front trim panels, and internal partitions, optimizing accessibility and maintainability of installed devices. The protection rating IP 54, achieved depending on paneling, protects against dust and splashing water, making it suitable for indoor areas with increased contamination risk.

Functions and Equipment in Detail
The delivery includes the enclosure frame, rear panel, and base sheets. These components form the basic structure of the enclosure, necessary for modular assembly. The use of steel sheet with 1.5 mm thickness ensures sufficient mechanical stability to safely support installed components. The dip-primed surface of the frame and the powder-coated rear panel provide an effective corrosion protection layer, extending the enclosure’s service life. The galvanized base sheets offer additional protection against moisture and corrosion in the lower area.

Technology Explained Simply
The protection rating IP 54, achieved depending on paneling, means the enclosure is protected against dust and splashing water. This is particularly important in environments where moisture or dust particles could affect electrical components. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with international standards for enclosures and their electrical safety. The Cradle-to-Gate reference for the PCF value (113.3 kg CO2 eq) indicates the climate impact of production up to product completion, with the value approximated based on product weight.

Compatibility and Accessories
The enclosure is part of the VX system and can be expanded with various accessories. These include levelling feet M12 with an adjustment height of 18 to 43 mm, SV roof plates for covering the top of the enclosure, and SV partial doors in various heights (e.g. 1000 mm, 1600 mm, 1800 mm, 2000 mm) and SV front trim panels in different sizes (e.g. 400x100 mm, 400x300 mm). Additionally, plinth corner pieces with trim panels in various heights (100 mm, 200 mm) and plinth trim panels for side and front are available. For baying multiple enclosures, baying connectors (external, 1200 mm), internal baying brackets, and baying blocks can be used. The side panels are screw-mounted and designed for a height of 2000 mm and depth of 800 mm.

Mounting and Installation
Installation is performed using the pre-fabricated enclosure frame, which already includes the necessary mounting points for the rear panel and base sheets. The use of levelling feet allows for level installation on uneven surfaces. The modular design enables flexible adaptation to specific installation requirements. Components such as partial doors, front trim panels, and baying connectors are added as needed, allowing individual customization of the enclosure structure.

Advantages in Operation
The modular construction of the VX 9680.408 allows flexible expansion and adaptation to changing requirements. The high mechanical stability provided by the 1.5 mm thick steel sheet ensures a long service life. The surface coating with dip-primed and powder-coated layers offers effective corrosion protection. The IP 54 protection rating safeguards installed components from environmental influences, increasing operational safety. Compatibility with a wide range of accessories from the VX system facilitates integration into existing installation structures.

General
MaterialSheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, rear panel, base plates
Degree of protection IP according to EN 60 529Up to IP 54 (depending on cladding)
Test basisIEC 61 439-1/-2, IEC 61 641
Width400 mm
Height2.000 mm
Depth800 mm
PCF/VE (Cradle-to-Gate)113.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9680408, EAN: 4028177929753

Questions & answers

What is the delivery time of Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm?

The article Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680408 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680408 VX modular enclosure, W x H x D: 400x2000x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
