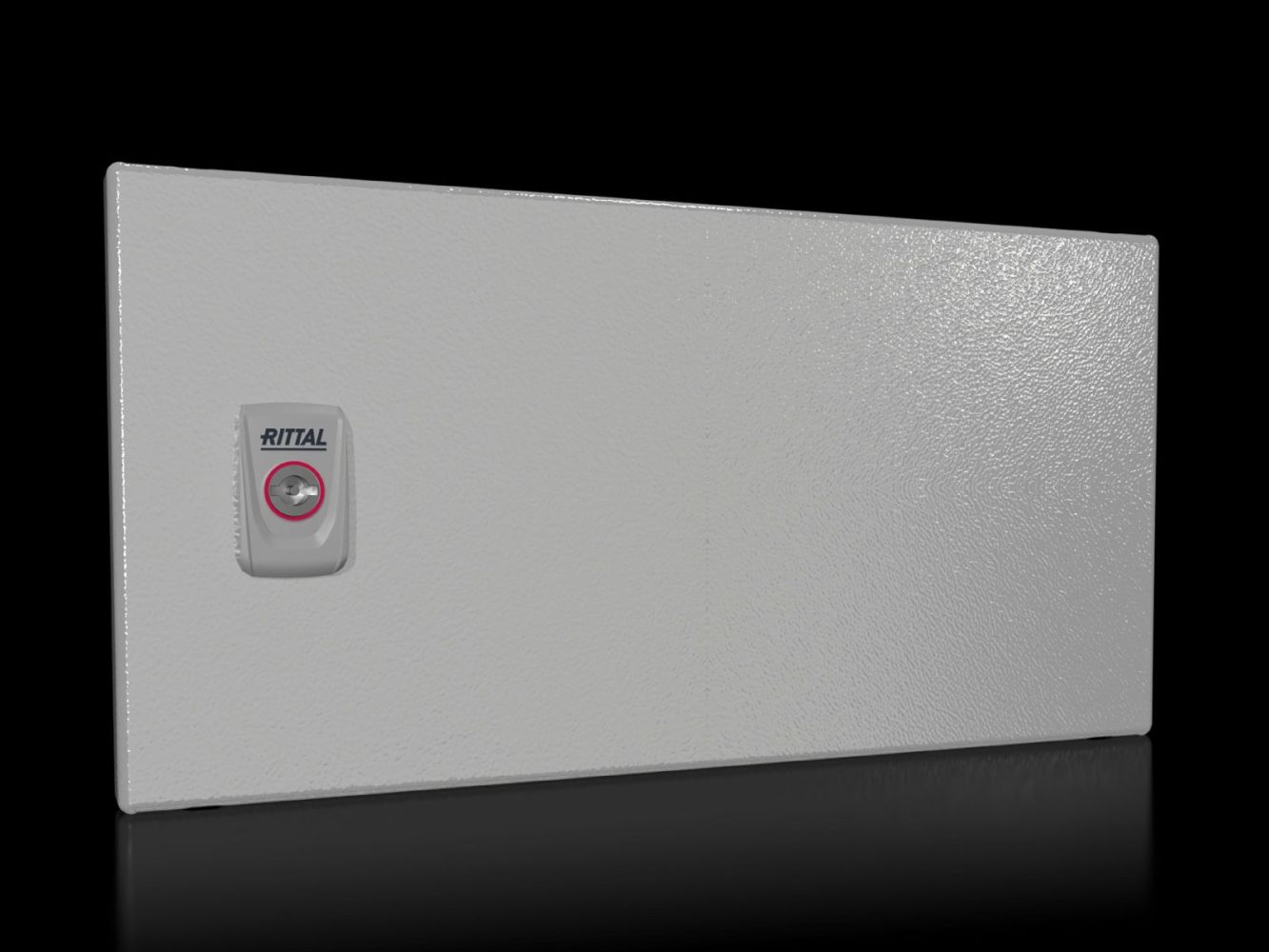

Rittal 9682142 SV partial door for VX, W x H: 400x200 mm
|
44,16 EUR |
|
|
( 52,55 EUR incl. VAT ) ≈ £36.96 | ≈ $48.53 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 468938 |
| Mfg Part No: | 9682142 |
| UPC/EAN: | 4028177929005 |
| Weight: | 2.38 kg |
| Type: | SV 9682142 |
Product information for Rittal 9682142:
Applications
The partial door is used in VX enclosures where a full door is not required, for example in partially accessible areas or to improve ventilation. It can be combined freely with other partial doors to create individual arrangements. A front trim panel is required at the top and bottom of the enclosure to ensure a clean appearance. The door is intended for use in switchgear, control systems and other industrial electrical installations where a modular and flexible door configuration is necessary.
Functions and Equipment in Detail
The SV 9682142 features a standard double-bar lock insert, ensuring secure locking. This lock can be replaced with lock inserts of type A, allowing adaptation to specific security requirements. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations. The maximum opening angle is 130°, sufficient to provide access to components inside. The delivery includes the partial door, a partition, hinges, lock components, and the necessary mounting material.
Technology Explained Simply
The sheet steel material with a thickness of 2 mm provides sufficient stability and resistance to mechanical stress. The textured coating in RAL 7035 ensures a uniform, abrasion-resistant surface that integrates well in industrial environments. The IP 54 protection rating means the door is dust-tight and protected against splashing water, making it suitable for use in indoor areas with increased humidity or occasional splashing. The door is not intended for outdoor use or in highly humid environments such as wet areas.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 400 mm. It can be combined with other partial doors to create a modular door arrangement. Front trim panels are required for mounting at the top and bottom of the enclosure and are available in various sizes, for example in dimensions 400x100 mm or 400x300 mm. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to increase security. Mini comfort handles from the AX series are also compatible and can be used to improve operability.
Installation and Mounting
Mounting is carried out using the hinges and mounting material included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The partition component ensures a stable connection between individual partial doors. Mounting does not require special tools, but adherence to the installation instructions is important to ensure functionality and safety.
Operational Advantages
The modular design of the partial door allows flexible adaptation to different requirements without having to reconfigure an entire enclosure. The IP 54 protection rating provides sufficient protection against dust and splashing water, increasing reliability in industrial environments. The interchangeable lock inserts allow adaptation to specific security requirements. The robust sheet steel construction ensures a long service life and resistance to mechanical stress. The integrated mounting solution simplifies installation and reduces installation effort.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 1 |
| Width | 400 mm |
| Height | 200 mm |
| Suitable for | Width: = 400 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 9.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
