Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm

Your rating:
Average rating
product review for Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm
( 4 / 5 ) 1 ratings
Rittal 9682324

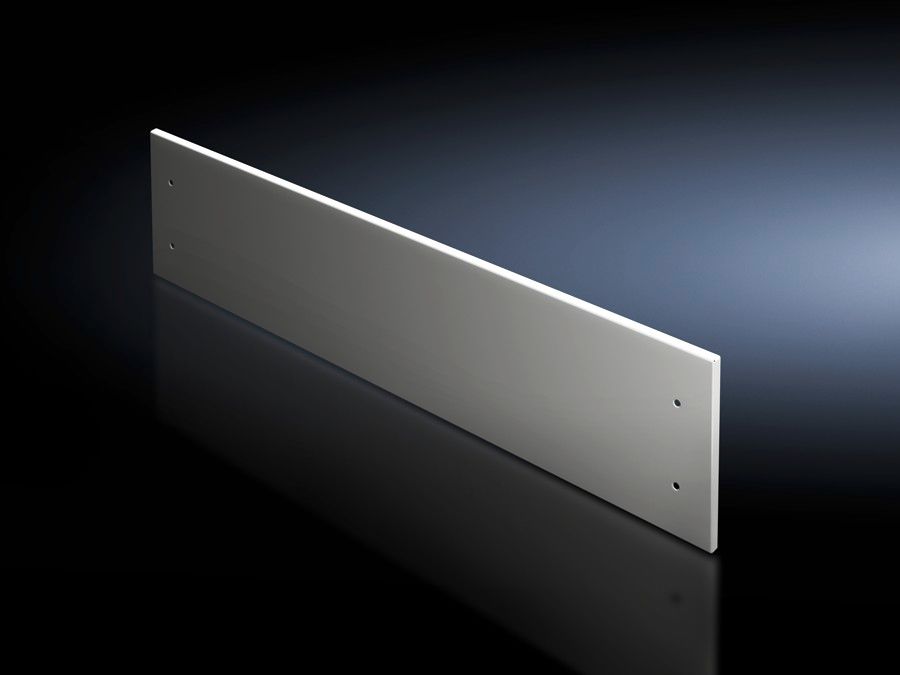

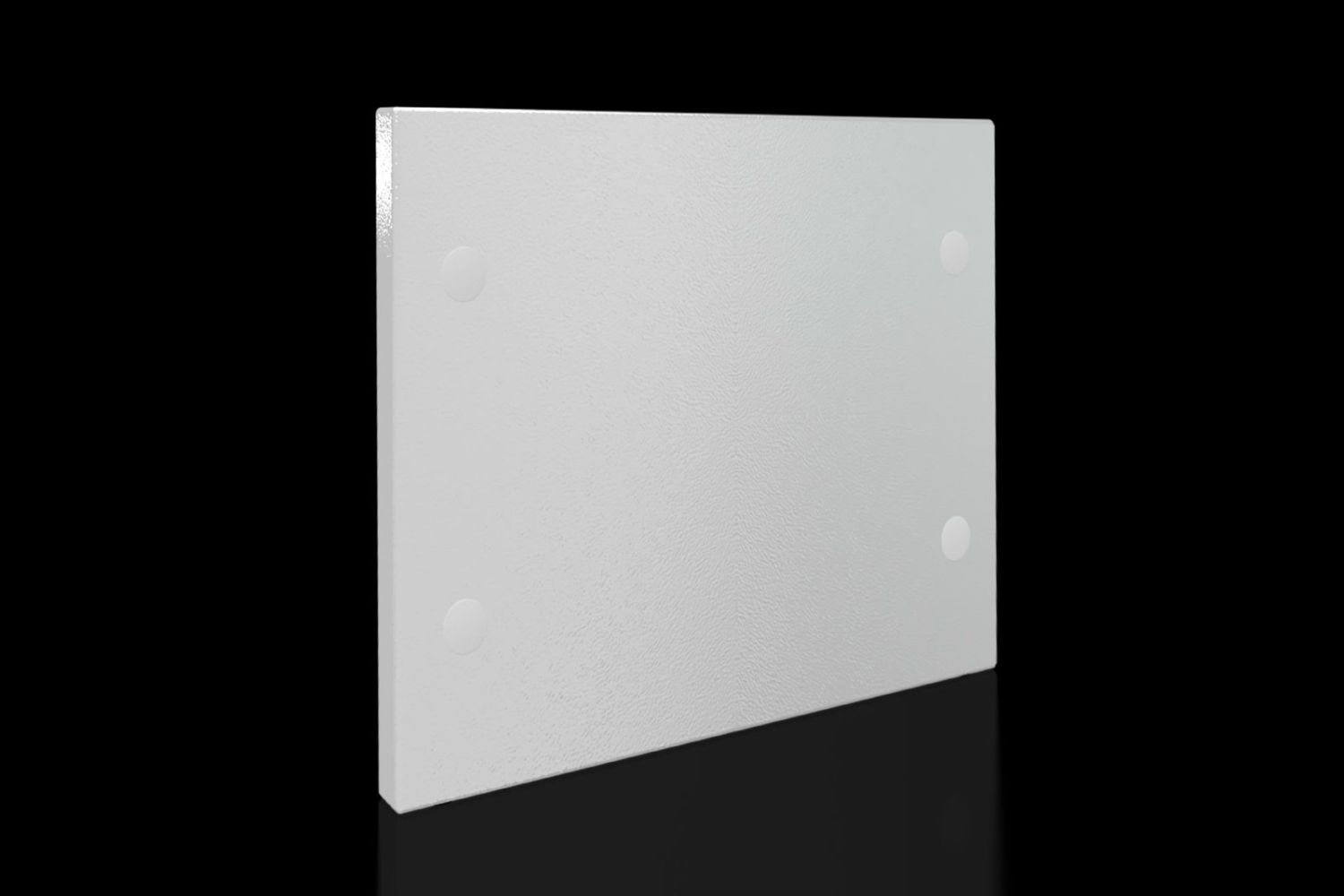

This image may differ from the desired article.
Rittal 9682324Rittal 9682324Rittal 9682324Rittal 9682324
46,12 EUR
( 54,88 EUR incl. VAT )
≈ £38.60  |  ≈ $50.69
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm
Datasheet:file_download Download
Lieske Part No.:468960
Mfg Part No: 9682324
UPC/EAN: 4028177929647
Weight:2.28 kg
Type:SV 9682324

Product information for Rittal 9682324:

The Rittal SV 9682324 is a front trim panel for enclosures of the VX series, specifically designed as an upper closure when using partial doors. The product enables modular design of the front side of enclosures and provides a clean, uniform appearance. The front trim panel is closed and offers a protection rating IP 54, ensuring dust and splash water protection. This makes it suitable for use in industrial environments where certain mechanical and atmospheric loads are expected. The dimensions are 400 mm width and 300 mm height, with the width precisely matched to enclosures with a width of 400 mm. The front trim panel is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient stability and durability. The surface is coated with a structured paint, forming a robust and scratch-resistant layer, and the color corresponds to the standard RAL 7035, a gray shade commonly used in industry.

Applications

The front trim panel is primarily intended for use on enclosures of the VX series, especially when partial doors are installed. It serves as an upper closure for front design and prevents exposed edges or unprotected areas from being visible. Installation is done using mounting screws, which are included in the delivery scope. The front trim panel can be removed from the outside by loosening the screws, enabling maintenance or replacement without additional tools or damage to the front. Installation is carried out on the existing partition ribs included with the partial doors.

Functions and Equipment in Detail

The front trim panel is closed, meaning it contains no openings or cutouts for controls or displays. It serves purely decorative and protective purposes. The structured paint finish ensures an even surface that better withstands mechanical stresses such as scratches or abrasion compared to smooth paint finishes. The color RAL 7035 is an industry standard and enables visual harmonization with other components.

Technology Explained Simply

The protection rating IP 54 means the front trim panel is protected against dust (dust-protected, class 5) and against splashing water from any direction (class 4). This makes it suitable for indoor areas with increased contamination risk or occasional water contact, such as in production halls or on machines. The material sheet steel (1.5 mm) provides sufficient strength to withstand mechanical loads such as touches or minor impacts without deformation. The structured paint finish increases surface hardness and reduces susceptibility to scratches.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures of the VX series with a width of 400 mm. It is used in combination with partial doors, with installation carried out via the partition ribs included in the delivery scope of the partial doors. The front trim panel is not suitable for other widths or enclosure types. The use of partial doors is a prerequisite, as the front trim panel serves as an upper closure and does not include its own mounting elements.

Installation and Mounting

Installation is done using mounting screws, which are included in the delivery scope. The screws are inserted into the pre-drilled holes of the front trim panel and tightened onto the partition rib of the partial door. The front trim panel can be removed from the outside by loosening the screws. This allows for easy maintenance or replacement without the need to open the entire enclosure or use additional tools.

Operational Advantages

The front trim panel provides a clean, uniform front design, enhancing the industrial appearance of the enclosure. The IP 54 protection class ensures sufficient protection against dust and splashing water, increasing service life and reliability. The structured paint finish and sheet steel ensure high mechanical stability and durability. The simple mounting and dismounting facilitate maintenance and replacement without requiring additional tools or modifications to the enclosure structure.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height300 mm
Suitable forWidth: = 400 mm
PCF/VE (Cradle-to-Gate)8.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682324, EAN: 4028177929647

Questions & answers

What is the delivery time of Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm?

The article Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682324 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682324 SV front trim panel for VX, top, IP 54, W x H: 400x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
